Lubrication System And Blow-By System

Ferrari 360 Challenge Stradale

Find Your Part

Ferrari 360 Challenge Stradale - LUBRICATION SYSTEM AND BLOW-BY SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
185412 OIL RADIATOR $3,248.86 To Order
Photo Part No Description Price (each) Stock
181001 AIR INLET CONVEYOR $71.77 To Order
Photo Part No Description Price (each) Stock
180555 GASKET $6.74 To Order
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER $18.48 IN STOCK
Photo Part No Description Price (each) Stock
175724 RADIATOR SUPPORTING BRACKET $45.80 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
10977824 SCREW $1.71 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $713.71 IN STOCK
Photo Part No Description Price (each) Stock
201655 HOSE FROM ENGINE HOSE TO RADIATOR $567.86 To Order
Photo Part No Description Price (each) Stock
201656 HOSE FROM RADIATOR TO DISAREATOR $689.88 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.87 IN STOCK
Photo Part No Description Price (each) Stock
134041 NUT $0.82 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
122319 UNION $147.14 To Order
Photo Part No Description Price (each) Stock
907923 DOWTY WASHER $36.47 IN STOCK
Photo Part No Description Price (each) Stock
201625 COMPLETE OIL DISAREATOR $1,252.34 To Order
Photo Part No Description Price (each) Stock
202249 TANK PLUG $611.49 To Order
Photo Part No Description Price (each) Stock
180585 Oil Tank Cap Gasket $90.09 IN STOCK
Photo Part No Description Price (each) Stock
13517124 STUD BOLT $17.06 To Order
Photo Part No Description Price (each) Stock
10450690 BRACKET WITH SHEATH $0.66 To Order
Photo Part No Description Price (each) Stock
178314 BRACKET $2.95 To Order
Photo Part No Description Price (each) Stock
176388 O-RING $2.22 IN STOCK
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
197654 Oil Filter $47.56 IN STOCK
Photo Part No Description Price (each) Stock
173929 THREADED UNION $7.82 To Order
Photo Part No Description Price (each) Stock
173633 OIL FILTER BASE-PLATE $101.89 To Order
Photo Part No Description Price (each) Stock
188052 Oil Filter Base Gasket $8.69 IN STOCK
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
135940 Transmitter Oil Pressure $166.52 IN STOCK
Photo Part No Description Price (each) Stock
10259960 Copper Washer 18 - 24 x 1.5 $0.31 IN STOCK
Photo Part No Description Price (each) Stock
62790300 NUT $0.29 IN STOCK
Photo Part No Description Price (each) Stock
201654 HOSE FROM ENGINE TO RADIATOR HOSE $216.96 To Order
Photo Part No Description Price (each) Stock
122318 THREADED PLUG $44.29 To Order
Photo Part No Description Price (each) Stock
183044 GASKET $11.12 To Order
Photo Part No Description Price (each) Stock
183655 OIL HOSE RETAINING BRACKET $120.64 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
202194 R.H. BUTTERFLY CONNECTION PIPE $66.04 To Order
Photo Part No Description Price (each) Stock
201653 HEADS CONNECTION VENT PIPE $225.79 To Order
Photo Part No Description Price (each) Stock
170448 VALVE $65.76 To Order
215820 VALVE Enquire To Order
Photo Part No Description Price (each) Stock
175746 RUBBER HOSE $20.47 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.40 IN STOCK
Photo Part No Description Price (each) Stock
202182 RUBBER HOSE $18.91 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.40 IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.40 IN STOCK
Photo Part No Description Price (each) Stock
202183 RUBBER HOSE $8.22 To Order
Photo Part No Description Price (each) Stock
126342 RUBBER HOSE FROM UNION TO AIR CAPACITY UNION $2.75 To Order
Photo Part No Description Price (each) Stock
194910 RUBBER HOSE $6.28 To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR $40.53 IN STOCK
Photo Part No Description Price (each) Stock
160013 CLIP $0.88 To Order
Photo Part No Description Price (each) Stock
202196 L.H. BUTTERFLY CONNECTION PIPE $55.46 To Order
Photo Part No Description Price (each) Stock
209265 NO SCREW ABLE SPLIT PIN $1.27 To Order
View All

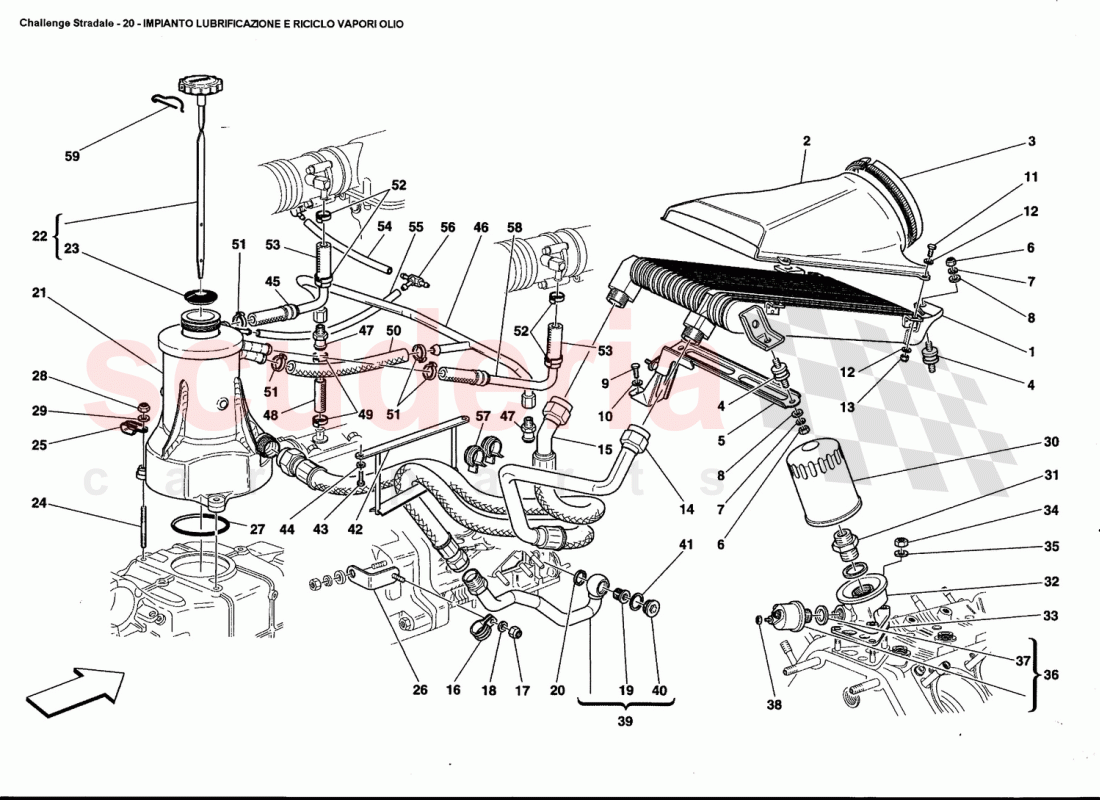

LUBRICATION SYSTEM AND BLOW-BY SYSTEM of Ferrari Ferrari 360 Challenge Stradale Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 185412
OIL RADIATOR 		$3,248.86 1
2 181001
AIR INLET CONVEYOR 		$71.77 1
3 180555
GASKET 		$6.74 1
4 102947
VIBRATION DAMPER
IN STOCK 		$18.48 (5.3% off) 4
5 175724
RADIATOR SUPPORTING BRACKET 		$45.80 1
6 14059290
FLANGED NUT M6
IN STOCK 		$1.33 8
7 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 8
8 12644424
WASHER
IN STOCK 		$0.06 (85% off) 8
9 10902424
SCREW
IN STOCK 		$0.14 (80% off) 2
10 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
11 10977824
SCREW
IN STOCK 		$1.71 3
12 12637824
WASHER
IN STOCK 		$0.06 (88% off) 6
13 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		$713.71 3
14 201655
HOSE FROM ENGINE HOSE TO RADIATOR
RADIATOR 		$567.86 1
15 201656
HOSE FROM RADIATOR TO DISAREATOR
DISAREATOR 		$689.88 1
16 291225
P clip Bracket With Sheath
IN STOCK 		$4.87 1
17 134041
NUT
IN STOCK 		$0.82 1
18 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 1
19 122319
UNION 		$147.14 1
20 907923
DOWTY WASHER
IN STOCK 		$36.47 1
21 201625
COMPLETE OIL DISAREATOR
Till car Ass. Nr. 56313 to assemble with / tank plug 202249 ref. 22 with hole and / no screwable split pin 209265 ref. 59 		$1,252.34 1
22 202249
TANK PLUG 		$611.49 1
23 180585
Oil Tank Cap Gasket
IN STOCK 		$90.09 (20.7% off) 1
24 13517124
STUD BOLT 		$17.06 3
25 10450690
BRACKET WITH SHEATH 		$0.66 (61.2% off) 1
26 178314
BRACKET 		$2.95 1
27 176388
O-RING
IN STOCK 		$2.22 (43.8% off) 1
28 147985
NUT
IN STOCK 		$0.14 (72% off) 3
29 12601374
WASHER
IN STOCK 		$0.02 (92% off) 3
30 197654
Oil Filter
IN STOCK 		$47.56 1
31 173929
THREADED UNION 		$7.82 1
32 173633
OIL FILTER BASE-PLATE 		$101.89 1
33 188052
Oil Filter Base Gasket
IN STOCK 		$8.69 (25.7% off) 1
34 147985
NUT
IN STOCK 		$0.14 (72% off) 3
35 12601374
WASHER
IN STOCK 		$0.02 (92% off) 3
36 135940
Transmitter Oil Pressure
IN STOCK 		$166.52 (23.2% off) 1
37 10259960
Copper Washer 18 - 24 x 1.5
IN STOCK 		$0.31 (75.2% off) 1
38 62790300
NUT
IN STOCK 		$0.29 (61.3% off) 2
39 201654
HOSE FROM ENGINE TO RADIATOR HOSE
RADIATOR HOSE 		$216.96 1
40 122318
THREADED PLUG 		$44.29 (4.8% off) 1
41 183044
GASKET 		$11.12 (24.5% off) 1
42 183655
OIL HOSE RETAINING BRACKET 		$120.64 1
43 897538
SCREW 		$1.53 2
44 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
45 202194
R.H. BUTTERFLY CONNECTION PIPE 		$66.04 1
46 201653
HEADS CONNECTION VENT PIPE 		$225.79 1
47 170448
VALVE
For cars not USA and CDN from Ass. Nr. 57034 Q.ty 1 		$65.76 2
47 215820
VALVE
With hole 0 2 on the membrane / Not for USA and CDN / Valid from Ass. Nr. 57034 		- 1 Enquire
48 175746
RUBBER HOSE 		$20.47 2
49 262111
JUBILEE CLAMP
IN STOCK 		$1.40 4
50 202182
RUBBER HOSE 		$18.91 1
51 262111
JUBILEE CLAMP
IN STOCK 		$1.40 4
52 262111
JUBILEE CLAMP
IN STOCK 		$1.40 4
53 202183
RUBBER HOSE 		$8.22 2
54 126342
RUBBER HOSE FROM UNION TO AIR CAPACITY UNION 		$2.75 (54.2% off) 2
55 194910
RUBBER HOSE 		$6.28 1
56 258855
3-WAY CONNECTOR
IN STOCK 		$40.53 1
57 160013
CLIP 		$0.88 2
58 202196
L.H. BUTTERFLY CONNECTION PIPE 		$55.46 1
59 209265
NO SCREW ABLE SPLIT PIN
Valid form car Ass. Nr. 56314 		$1.27 (7.3% off) 1
