Name: Fuel Supply System
Rating: 4.6 (1 reviews)

View All

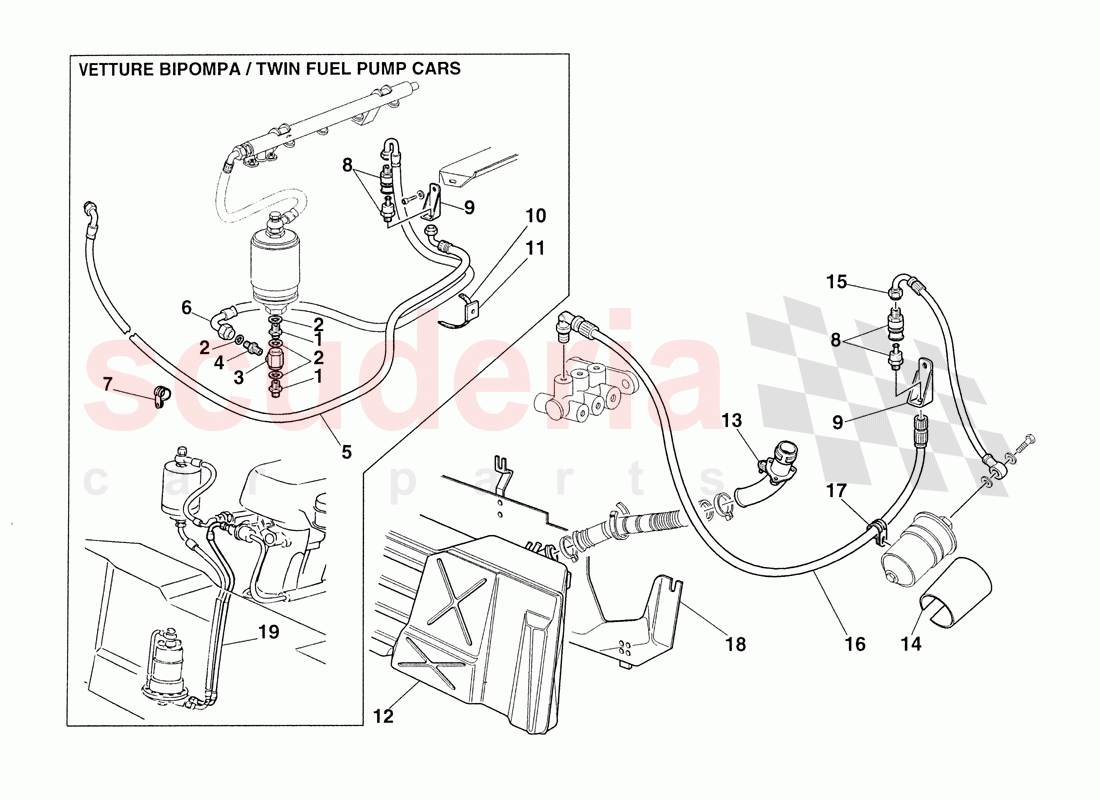

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	164763	Nipple	$11.18	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	164764	T-connector	$195.97	To Order

Photo	Part No	Description	Price (each)	Stock
	164765	Nippel	$11.18	To Order

Photo	Part No	Description	Price (each)	Stock
	164767	RH pipe	$603.00	To Order

Photo	Part No	Description	Price (each)	Stock
	164766	LH pipe	$467.32	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	153218	Valve	$1,025.12	To Order

Photo	Part No	Description	Price (each)	Stock
	169052	Bracket	$69.33	To Order

Photo	Part No	Description	Price (each)	Stock
	163287	Clamp	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	163288	Clamp support	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	171124	Fuel tank	$4,275.41	To Order

Photo	Part No	Description	Price (each)	Stock
	169066	Union	$376.87	To Order

Photo	Part No	Description	Price (each)	Stock
	174466	Filter insulation	$68.37	To Order

Photo	Part No	Description	Price (each)	Stock
	170898	Pipe	$589.24	To Order

Photo	Part No	Description	Price (each)	Stock
	170899	Pipe	$1,100.49	To Order

Photo	Part No	Description	Price (each)	Stock
	10450590	BRACKET WITH SHEATH	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	153571	Shield	$557.78	To Order

Photo	Part No	Description	Price (each)	Stock
	172439	FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	$422.10	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	164763	Nipple	164763 Nipple	$11.18	4
2	10280060	WASHER COPPER D14. 20 X 1.5 IN STOCK	10280060 WASHER COPPER D14. 20 X 1.5 IN STOCK	$0.20 MSRP: ~~1.00~~ (80% off)	8
3	164764	T-connector	164764 T-connector	$195.97	2
4	164765	Nippel	164765 Nippel	$11.18	2
5	164767	RH pipe	164767 RH pipe	$603.00	1
6	164766	LH pipe	164766 LH pipe	$467.32	1
7	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	$0.53 MSRP: ~~1.68~~ (68.5% off)	2
8	153218	Valve	153218 Valve	$1,025.12	1
9	169052	Bracket	169052 Bracket	$69.33	1
10	163287	Clamp	163287 Clamp	$0.70	4
11	163288	Clamp support	163288 Clamp support	$1.34	1
12	171124	Fuel tank	171124 Fuel tank	$4,275.41	1
13	169066	Union	169066 Union	$376.87	1
14	174466	Filter insulation	174466 Filter insulation	$68.37	1
15	170898	Pipe	170898 Pipe	$589.24	1
16	170899	Pipe	170899 Pipe	$1,100.49	1
17	10450590	BRACKET WITH SHEATH	10450590 BRACKET WITH SHEATH	$1.78	1
18	153571	Shield	153571 Shield	$557.78	1
19	172439	FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	172439 FUEL TUBE FROM PRESSURE ADJUSTER TO RH PUMP	$422.10	1

Fuel Supply System

Ferrari 355 Challenge (1999)
