Top Hydraulic Control -Valid Far Spider-

Ferrari 355 (2.7 Motronic)

Find Your Part

Ferrari 355 (2.7 Motronic) - TOP HYDRAULIC CONTROL -Valid far Spider-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
64967200 R.H. SECONDARY CYLINDER $1,984.17 To Order
Photo Part No Description Price (each) Stock
65699800 LH. SECONDARY CYLINDER $1,945.29 To Order
Photo Part No Description Price (each) Stock
168857 (L) PIPE FROM VALVE TO PUMP $164.41 To Order
Photo Part No Description Price (each) Stock
168858 (N) PIPE FROM VALVE TO PUMP $374.25 To Order
Photo Part No Description Price (each) Stock
168859 (K) PIPE FROM VALVE TO LH MAIN CYLINDER $131.64 To Order
Photo Part No Description Price (each) Stock
168860 (O) PIPE FROM VALVE TO RH SECONDARY CYLINDER $210.93 To Order
Photo Part No Description Price (each) Stock
168861 (P) PIPE FROM VALVE TO RHSECONDARY CYLINDER $165.43 To Order
Photo Part No Description Price (each) Stock
168862 (R) PIPE FROM VALVE TO LH SECONDARY CYLINDER $122.61 To Order
Photo Part No Description Price (each) Stock
168863 (S) PIPE FROM VALVE TO LH SECONDARY CYLINDER $125.28 To Order
Photo Part No Description Price (each) Stock
168864 (V) PIPE FROM PUMP TO RH MAIN CYLINDER $180.80 To Order
Photo Part No Description Price (each) Stock
168865 90° UNION $40.67 To Order
Photo Part No Description Price (each) Stock
168866 O.R. GASKET FOR UNIONS $13.45 To Order
Photo Part No Description Price (each) Stock
232649 CLIP $1.07 IN STOCK
Photo Part No Description Price (each) Stock
64660200 ELECTRONIC CONTROL STATION $2,565.79 To Order
Photo Part No Description Price (each) Stock
13833224 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
14496324 WASHER $2.77 To Order
Photo Part No Description Price (each) Stock
131941 30 A MAXI FUSE $0.56 To Order
Photo Part No Description Price (each) Stock
157992 DEVIATOR RELAY 30/20 A. $43.68 To Order
Photo Part No Description Price (each) Stock
155184 BRACKET $10.01 To Order
Photo Part No Description Price (each) Stock
13835814 BLOCKS FIXING SCREW $3.45 To Order
Photo Part No Description Price (each) Stock
168881 CUP COMPLETE KIT $326.39 To Order
Photo Part No Description Price (each) Stock
168884 SMALL PLATE FIXING SCREW $2.12 To Order
Photo Part No Description Price (each) Stock
168885 SMALL PLATE $81.35 To Order
Photo Part No Description Price (each) Stock
168886 O.R. GASKET $1.72 To Order
Photo Part No Description Price (each) Stock
168887 Seeger Ring $2.12 To Order
Photo Part No Description Price (each) Stock
14359021 SOLENOID VALVE FIXING SCREW $0.37 To Order
Photo Part No Description Price (each) Stock
168888 COMPLETE SOLENOID VALVE $2,285.62 To Order
Photo Part No Description Price (each) Stock
64662600 SOLENOID VALVE FIXING SMALL PLATE $66.28 To Order
Photo Part No Description Price (each) Stock
899480 NUT $0.37 To Order
Photo Part No Description Price (each) Stock
14496204 WASHER $0.17 IN STOCK
Photo Part No Description Price (each) Stock
168889 SPACER $3.29 To Order
Photo Part No Description Price (each) Stock
168890 RUBBER BUSHING $15.65 To Order
Photo Part No Description Price (each) Stock
168891 PUMP FIXING PLATE $88.88 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
MC43254 CLAMP Enquire To Order
View All

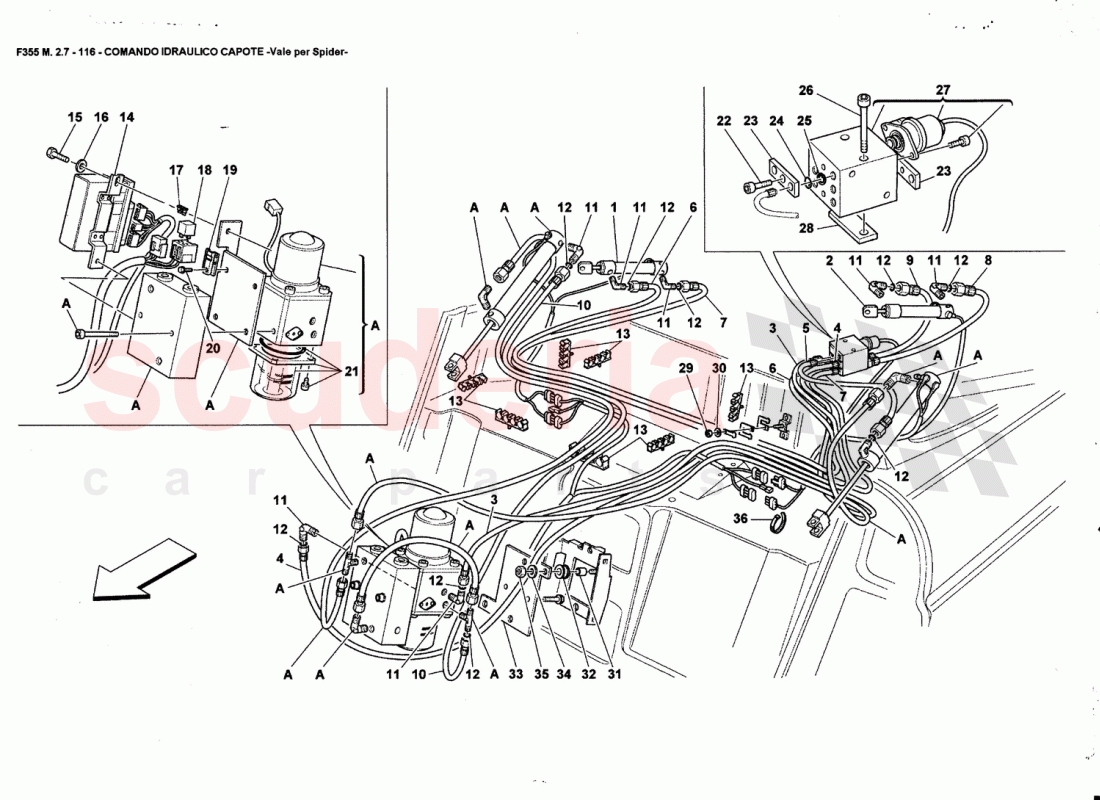

TOP HYDRAULIC CONTROL -Valid far Spider- of Ferrari Ferrari 355 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 125242
15 AMP. FUSE
Blue / For top contrai station 		$0.61 1
- 13833224
SCREW
Valid after stock exhaustion of 1383327 		$0.18 2
- 64418200
COMPLETE HYDRAULIC CIRCUIT 		$11,030.48 1
- 64418200
COMPLETE HYDRAULIC CIRCUIT
PIPES COMPLETE ASSEMBLY 		$11,030.48 1
1 64967200
R.H. SECONDARY CYLINDER 		$1,984.17 1
2 65699800
LH. SECONDARY CYLINDER 		$1,945.29 1
3 168857
(L) PIPE FROM VALVE TO PUMP 		$164.41 1
4 168858
(N) PIPE FROM VALVE TO PUMP 		$374.25 1
5 168859
(K) PIPE FROM VALVE TO LH MAIN CYLINDER
MAIN CYLINDER 		$131.64 1
6 168860
(O) PIPE FROM VALVE TO RH SECONDARY CYLINDER
SECONDARY CYLINDER 		$210.93 1
7 168861
(P) PIPE FROM VALVE TO RHSECONDARY CYLINDER
SECONDARY CYLINDER 		$165.43 1
8 168862
(R) PIPE FROM VALVE TO LH SECONDARY CYLINDER
SECONDARY CYLINDER 		$122.61 1
9 168863
(S) PIPE FROM VALVE TO LH SECONDARY CYLINDER
SECONDARY CYLINDER 		$125.28 1
10 168864
(V) PIPE FROM PUMP TO RH MAIN CYLINDER
MAIN CYLINDER 		$180.80 (19.9% off) 1
11 168865
90° UNION 		$40.67 -
12 168866
O.R. GASKET FOR UNIONS 		$13.45 (6.6% off) -
13 232649
CLIP
IN STOCK 		$1.07 8
14 64660200
ELECTRONIC CONTROL STATION 		$2,565.79 1
15 13833224
SCREW 		$0.18 2
16 14496324
WASHER 		$2.77 2
17 131941
30 A MAXI FUSE
Green / For top movement engine 		$0.56 1
18 157992
DEVIATOR RELAY 30/20 A. 		$43.68 (16.3% off) 2
19 155184
BRACKET 		$10.01 2
20 13835814
BLOCKS FIXING SCREW 		$3.45 2
21 168881
CUP COMPLETE KIT 		$326.39 1
22 168884
SMALL PLATE FIXING SCREW 		$2.12 4
23 168885
SMALL PLATE 		$81.35 4
24 168886
O.R. GASKET 		$1.72 (37.5% off) 7
25 168887
Seeger Ring 		$2.12 7
26 14359021
SOLENOID VALVE FIXING SCREW 		$0.37 2
27 168888
COMPLETE SOLENOID VALVE 		$2,285.62 1
28 64662600
SOLENOID VALVE FIXING SMALL PLATE
PLATE 		$66.28 1
29 899480
NUT 		$0.37 2
30 14496204
WASHER
IN STOCK 		$0.17 2
31 168889
SPACER 		$3.29 2
32 168890
RUBBER BUSHING 		$15.65 2
33 168891
PUMP FIXING PLATE 		$88.88 1
34 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
35 104030
NUT
IN STOCK 		$0.24 (76% off) 2
36 MC43254
CLAMP 		- 6 Enquire
