Driving Shaft - Connecting Rods And Pistons

Ferrari 348 (2.7 Motronic)

Find Your Part

Ferrari 348 (2.7 Motronic) - DRIVING SHAFT - CONNECTING RODS AND PISTONS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
138193 CRANKSHAFT $2,173.02 To Order
Photo Part No Description Price (each) Stock
163528 THREADED PLUG $3.70 IN STOCK
Photo Part No Description Price (each) Stock
100118 UPPER HALF BEARING $31.04 To Order
Photo Part No Description Price (each) Stock
100122 LOWER HALF BEARING $32.33 To Order
Photo Part No Description Price (each) Stock
104023 UPPER AND LOWER HALF BEARING $32.33 To Order
Photo Part No Description Price (each) Stock
4150813 Shim for rear support Enquire To Order
Photo Part No Description Price (each) Stock
10206020 Tongue $0.99 To Order
Photo Part No Description Price (each) Stock
14723320 Tongue $0.53 To Order
Photo Part No Description Price (each) Stock
132807 TIMING GEAR $80.54 To Order
Photo Part No Description Price (each) Stock
138792 WASHER $4.58 To Order
Photo Part No Description Price (each) Stock
153030 TOOTHED WHEEL AND PULLEY $420.85 To Order
Photo Part No Description Price (each) Stock
10841010 DOWEL $0.68 To Order
Photo Part No Description Price (each) Stock
148671 SEAL RING $16.49 To Order
Photo Part No Description Price (each) Stock
183581 Rear Crankshaft Oil Seal $182.52 IN STOCK
Photo Part No Description Price (each) Stock
156535 COMPLETE CONNECTING ROD AND CAP $89.46 To Order
Photo Part No Description Price (each) Stock
157807 PISTON WITH RINGS $1,367.18 To Order
Photo Part No Description Price (each) Stock
132959 PISTONS RINGS SET $124.90 To Order
Photo Part No Description Price (each) Stock
157649 PIN $34.95 To Order
Photo Part No Description Price (each) Stock
157873 STOP RING $5.63 To Order
Photo Part No Description Price (each) Stock
100156 CONNECTING ROD TIGHTENING SCREW $16.52 To Order
Photo Part No Description Price (each) Stock
104011 CONNECTING ROD TIGHTENING NUT $53.24 To Order
Photo Part No Description Price (each) Stock
107100 Bush for gudgeon pin $39.52 To Order
Photo Part No Description Price (each) Stock
106183 CONNECTING ROD HALF BEARING $24.09 To Order
Photo Part No Description Price (each) Stock
138793 SCREW $87.27 To Order
Photo Part No Description Price (each) Stock
151289 KEY $4.50 To Order
View All

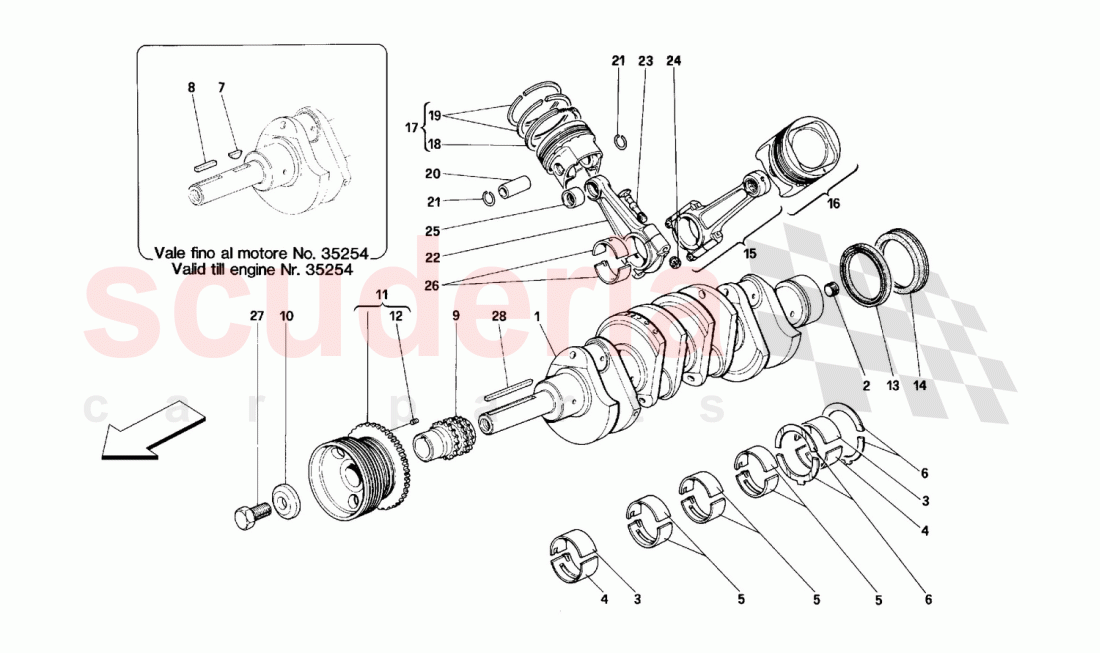

DRIVING SHAFT - CONNECTING RODS AND PISTONS of Ferrari Ferrari 348 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 106184
1st undersize 0,254 mm. on Ø
1st UNDERSIZE mm. 0,254 		- - Enquire
- 106185
2nd undersize 0,508 mm on Ø
2nd UNDERSIZE mm. 0,508 		- - Enquire
- 119537
Gudgeon pin
Valid for USA and CDN 		$97.46 (55.1% off) 8
- 100174
Ring for gudgeon pin
Valid for USA and CDN 		$5.14 (39.5% off) 16
- 109738
COMPLETE CONNECTING ROD AND CAP
Valid for USA and CDN 		$411.14 (51.2% off) 8
- 137980
PISTON WITH RINGS
Valid for USA and CDN 		$1,215.92 8
- 104025
2nd undersize 0,508 mm on Ø
BEARING / 2nd UNDERSIZE mm. 0,508 		$36.02 -
- 113984
SHIM 1st OVERSIZE mm 0.127
1st OVERSIZE mm. 0,127 		$80.75 -
- 100147
SHIM 2nd OVERSIZE mm 0.250
2nd OVERSIZE mm. 0,250 		$14.53 (26.6% off) -
- 100124
2nd undersize 0,508 mm on Ø
2nd UNDERSIZE mm. 0,508 		$42.94 -
- 153214
HALF BEARING SET - 1st UNDERSIZE mm. 0,254
BEARING / 1st UNDERSIZE mm. 0,254 		$263.49 -
- 100120
2nd undersize 0,508 mm on Ø
2nd UNDERSIZE mm. 0,508 		$46.67 -
- 100123
1st undersize 0,254 mm. on Ø
1st UNDERSIZE mm. 0,254 		$122.37 (44.4% off) -
- 100119
1st undersize 0,254 mm. on Ø
1st UNDERSIZE mm. 0,254 		$40.61 (42.4% off) -
1 138193
CRANKSHAFT 		$2,173.02 1
2 163528
THREADED PLUG
IN STOCK 		$3.70 (12.9% off) 1
3 100118
UPPER HALF BEARING 		$31.04 (31% off) 2
4 100122
LOWER HALF BEARING 		$32.33 (33.9% off) 2
5 104023
UPPER AND LOWER HALF BEARING
BEARING 		$32.33 (42.3% off) 6
6 4150813
Shim for rear support 		- 2 Enquire
7 10206020
Tongue
Till engine Nr. 35254 		$0.99 (72.8% off) 1
8 14723320
Tongue
Till engine Nr. 35254 		$0.53 1
9 132807
TIMING GEAR 		$80.54 (64.7% off) 1
10 138792
WASHER 		$4.58 1
11 153030
TOOTHED WHEEL AND PULLEY 		$420.85 1
12 10841010
DOWEL 		$0.68 1
13 148671
SEAL RING 		$16.49 1
14 183581
Rear Crankshaft Oil Seal
IN STOCK 		$182.52 (6.8% off) 1
15 156535
COMPLETE CONNECTING ROD AND CAP
Not for USA and CDN 		$89.46 8
16 157807
PISTON WITH RINGS
Not for USA and CDN 		$1,367.18 8
17 132959
PISTONS RINGS SET 		$124.90 (66.5% off) 8
20 157649
PIN
Not for USA and CDN 		$34.95 8
21 157873
STOP RING
Not for USA and CDN 		$5.63 16
23 100156
CONNECTING ROD TIGHTENING SCREW 		$16.52 (62.9% off) 16
24 104011
CONNECTING ROD TIGHTENING NUT 		$53.24 16
25 107100
Bush for gudgeon pin 		$39.52 8
26 106183
CONNECTING ROD HALF BEARING 		$24.09 16
27 138793
SCREW 		$87.27 1
28 151289
KEY
Valid from engine Nr. 35255 		$4.50 (24.4% off) 1
