Cooling System Radiators

Ferrari 348 (2.7 Motronic)

Find Your Part

Ferrari 348 (2.7 Motronic) - COOLING SYSTEM RADIATORS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
137619 WATER R.H. RADIATOR $602.43 To Order
Photo Part No Description Price (each) Stock
63370800 UPPER GASKET $3.46 To Order
Photo Part No Description Price (each) Stock
140403 COMPLETE R.H. ELECTROFAN $363.78 To Order
Photo Part No Description Price (each) Stock
143544 BLOWER $36.23 To Order
Photo Part No Description Price (each) Stock
143545 AIR CONVEYOR $20.79 To Order
Photo Part No Description Price (each) Stock
147577 RUBBER EDGE $14.80 To Order
Photo Part No Description Price (each) Stock
140808 COMPLETE ELECTROFAN $350.32 To Order
Photo Part No Description Price (each) Stock
147576 SUPPORT $2.88 To Order
Photo Part No Description Price (each) Stock
11944811 SCREW $0.78 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
62097900 R.H. AIR INLET $902.00 To Order
Photo Part No Description Price (each) Stock
15903970 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
14202580 BLOCK -Valid for GD- $0.40 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
137621 RADIATOR FASTENING BRACKET $13.48 To Order
Photo Part No Description Price (each) Stock
137630 RUBBER THICKNESS $9.27 To Order
Photo Part No Description Price (each) Stock
16104411 Selflocking nut $0.20 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.99 IN STOCK
Photo Part No Description Price (each) Stock
63370900 LOWER GASKET $0.70 To Order
Photo Part No Description Price (each) Stock
137617 WATER L.H. RADIATOR $598.11 To Order
Photo Part No Description Price (each) Stock
63370800 UPPER GASKET $3.46 To Order
Photo Part No Description Price (each) Stock
140404 COMPLETE L.H. ELECTROFAN $369.18 To Order
Photo Part No Description Price (each) Stock
147579 BLOWER $32.19 To Order
Photo Part No Description Price (each) Stock
147578 AIR CONVEYOR $41.47 To Order
Photo Part No Description Price (each) Stock
147580 O.R. GASKET $4.29 To Order
Photo Part No Description Price (each) Stock
140808 COMPLETE ELECTROFAN $350.32 To Order
Photo Part No Description Price (each) Stock
147581 SUPPORT $9.71 To Order
Photo Part No Description Price (each) Stock
10418301 BRACKET $0.46 To Order
Photo Part No Description Price (each) Stock
11944511 SCREW $1.38 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
62098000 L.H. AIR INLET $932.75 To Order
Photo Part No Description Price (each) Stock
15903970 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
14202580 BLOCK -Valid for GD- $0.40 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
140149 THREADED PLUG $1.39 To Order
Photo Part No Description Price (each) Stock
140150 O.R. GASKET $3.65 To Order
Photo Part No Description Price (each) Stock
137624 Vibration-damping buffer $3.08 To Order
Photo Part No Description Price (each) Stock
137621 RADIATOR FASTENING BRACKET $13.48 To Order
Photo Part No Description Price (each) Stock
137630 RUBBER THICKNESS $9.27 To Order
Photo Part No Description Price (each) Stock
16104411 Selflocking nut $0.20 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.99 IN STOCK
Photo Part No Description Price (each) Stock
63370900 LOWER GASKET $0.70 To Order
Photo Part No Description Price (each) Stock
10418801 BRACKET $0.54 To Order
Photo Part No Description Price (each) Stock
123298 SCREW $0.34 To Order
Photo Part No Description Price (each) Stock
63634400 L.H. AIR INLET $459.11 To Order
Photo Part No Description Price (each) Stock
63634300 R.H. AIR INLET $459.11 To Order
Photo Part No Description Price (each) Stock
155062 AIR INTAKE DUCT $102.28 To Order
Photo Part No Description Price (each) Stock
155040 R.H. CENTRAL DUCT $578.43 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $708.89 IN STOCK
Photo Part No Description Price (each) Stock
155061 R.H. AIR INLET PIPE $150.15 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
View All

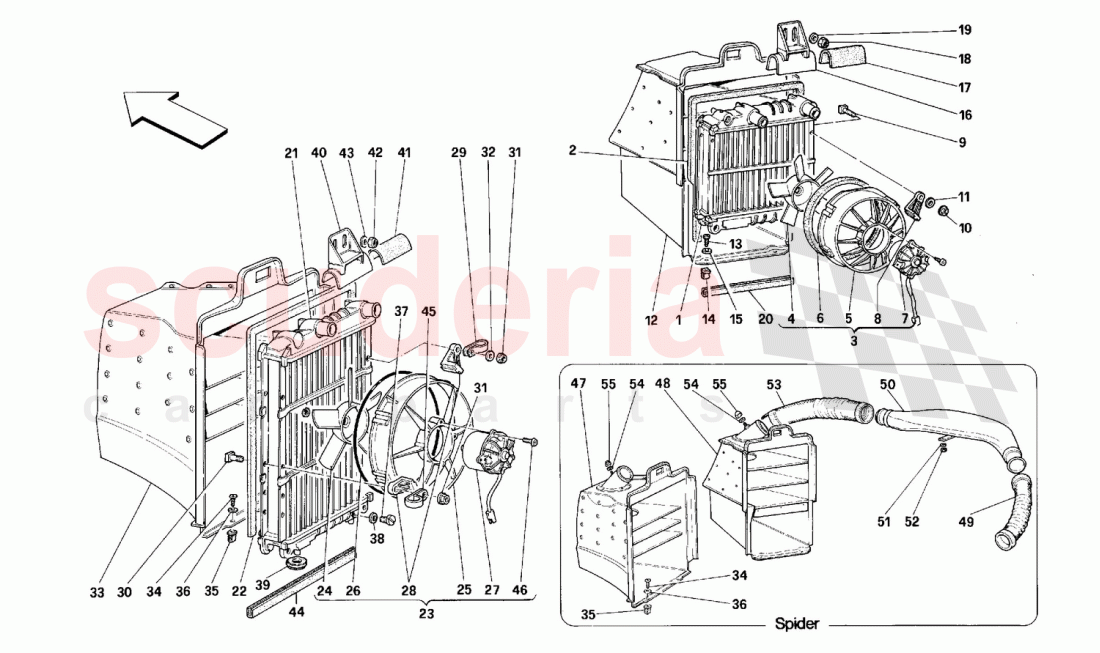

COOLING SYSTEM RADIATORS of Ferrari Ferrari 348 (2.7 Motronic) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 155059
L.H. AIR INLET PIPE
Valid for Spider 		$98.44 1
- 155038
L.H. CENTRAL DUCT
Valid for Spider 		$578.43 1
1 137619
WATER R.H. RADIATOR 		$602.43 1
2 63370800
UPPER GASKET 		$3.46 1
3 140403
COMPLETE R.H. ELECTROFAN 		$363.78 1
4 143544
BLOWER 		$36.23 1
5 143545
AIR CONVEYOR 		$20.79 1
6 147577
RUBBER EDGE 		$14.80 1
7 140808
COMPLETE ELECTROFAN 		$350.32 1
8 147576
SUPPORT 		$2.88 4
9 11944811
SCREW 		$0.78 4
10 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
11 12644424
WASHER
IN STOCK 		$0.06 (85% off) 4
12 62097900
R.H. AIR INLET
Not for Spider 		$902.00 (17.6% off) 1
13 15903970
SCREW 		$0.18 2
14 14202580
BLOCK -Valid for GD- 		$0.40 2
15 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 2
16 137621
RADIATOR FASTENING BRACKET 		$13.48 1
17 137630
RUBBER THICKNESS 		$9.27 2
18 16104411
Selflocking nut
IN STOCK 		$0.20 (78.3% off) 2
19 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.99 2
20 63370900
LOWER GASKET 		$0.70 1
21 137617
WATER L.H. RADIATOR 		$598.11 (52.4% off) 1
22 63370800
UPPER GASKET 		$3.46 1
23 140404
COMPLETE L.H. ELECTROFAN 		$369.18 1
24 147579
BLOWER 		$32.19 1
25 147578
AIR CONVEYOR 		$41.47 1
26 147580
O.R. GASKET 		$4.29 1
27 140808
COMPLETE ELECTROFAN 		$350.32 1
28 147581
SUPPORT 		$9.71 4
29 10418301
BRACKET 		$0.46 2
30 11944511
SCREW 		$1.38 4
31 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
32 12644424
WASHER
IN STOCK 		$0.06 (85% off) 2
33 62098000
L.H. AIR INLET
Not for Spider 		$932.75 1
34 15903970
SCREW 		$0.18 2
35 14202580
BLOCK -Valid for GD- 		$0.40 2
36 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 2
37 140149
THREADED PLUG 		$1.39 (93.9% off) 2
38 140150
O.R. GASKET 		$3.65 (74.1% off) 2
39 137624
Vibration-damping buffer 		$3.08 (45.1% off) 2
40 137621
RADIATOR FASTENING BRACKET 		$13.48 1
41 137630
RUBBER THICKNESS 		$9.27 1
42 16104411
Selflocking nut
IN STOCK 		$0.20 (78.3% off) 2
43 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.99 2
44 63370900
LOWER GASKET 		$0.70 1
45 10418801
BRACKET 		$0.54 2
46 123298
SCREW 		$0.34 8
47 63634400
L.H. AIR INLET
Valid for Spider 		$459.11 1
48 63634300
R.H. AIR INLET
Valid for Spider 		$459.11 1
49 155062
AIR INTAKE DUCT
Valid for Spider 		$102.28 2
50 155040
R.H. CENTRAL DUCT
Valid for Spider 		$578.43 1
51 12643724
WASHER
Valid for Spider
IN STOCK 		$0.06 (88% off) 2
52 319201
FUEL FILLER PIPE ASSEMBLY
Valid for Spider
IN STOCK 		$708.89 2
53 155061
R.H. AIR INLET PIPE
Valid for Spider 		$150.15 1
54 10519424
WASHER D.6.4 X 11.95 X 1.6
Valid for Spider
IN STOCK 		$0.02 (92% off) 2
55 14059290
FLANGED NUT M6
Valid for Spider
IN STOCK 		$1.32 2
