Name: POWER ELECTRONICS
Rating: 4.8 (1 reviews)

POWER ELECTRONICS of Ferrari Ferrari 296 GTB Europe

View All

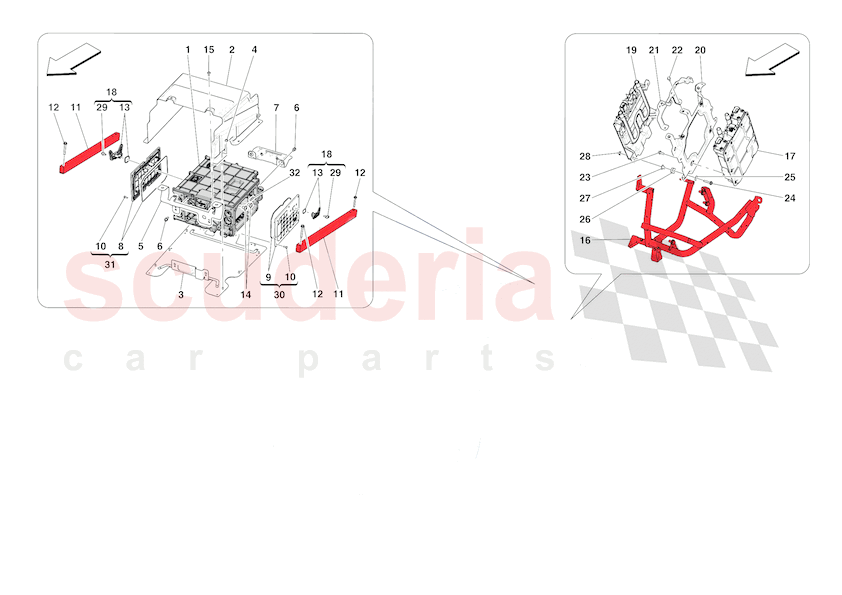

Ferrari 296 GTB Europe - POWER ELECTRONICS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	805892	P2 INVERTER HOUSING	$8,224.32	To Order

Photo	Part No	Description	Price (each)	Stock
	982815	UPPER INVERTER HEAT SHIELD	$83.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	982813	LOWER INVERTER HEAT SHIELD	$303.60	To Order
	911764	LOWER INVERTER HEAT SHIELD	$177.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	982455	FRONT INVERTER BRACKET	$97.40	To Order

Photo	Part No	Description	Price (each)	Stock
	323665	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	982712	REAR INVERTER BRACKET	$73.35	To Order

Photo	Part No	Description	Price (each)	Stock
	816864	MOTOR-P4 INVERTER COVER WITH GASKET	$215.05	To Order

Photo	Part No	Description	Price (each)	Stock
	871945	BATTERY INVERTER COVER AND GASKET	$101.20	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	$0.20	To Order

Photo	Part No	Description	Price (each)	Stock
	982763	COMPL. TUBULAR INVERTER MOUNT	$164.45	To Order

Photo	Part No	Description	Price (each)	Stock
	14305924	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	897647	HVIL HEATER AND GASKET	$45.53	To Order

Photo	Part No	Description	Price (each)	Stock
	935631	SCREW	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	980685	LH REAR ON-BOARD CHARGER TRELLIS FRAME	$619.88	To Order

Photo	Part No	Description	Price (each)	Stock
	897402	ON-BOARD CHARGER	$5,962.35	To Order

Photo	Part No	Description	Price (each)	Stock
	70005180	COMPL. HVIL KIT	$153.01	To Order

Photo	Part No	Description	Price (each)	Stock
	939193	DCDC	$3,002.04	To Order

Photo	Part No	Description	Price (each)	Stock
	804605	OBC-DCDC BRACKET	$240.35	To Order

Photo	Part No	Description	Price (each)	Stock
	791890	OBC-DCDC CABLE FASTENER BRACKET	$35.41	To Order

Photo	Part No	Description	Price (each)	Stock
	16281824	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	890771	SCREW	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	13837017	SCREW	$3.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	$2.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	898141	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	70005178	BATTERY CABLE COVER KIT	$330.77	To Order

Photo	Part No	Description	Price (each)	Stock
	70005179	MOTOR-P2 INVERTER CABLE COVER KIT	$332.28	To Order

Photo	Part No	Description	Price (each)	Stock
	962100	FUSE	$215.05	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	805892	P2 INVERTER HOUSING	805892 P2 INVERTER HOUSING Request ASM authorisation	$8,224.32	1
2	982815	UPPER INVERTER HEAT SHIELD IN STOCK	982815 UPPER INVERTER HEAT SHIELD IN STOCK	$83.48	1
3	982813	LOWER INVERTER HEAT SHIELD	982813 LOWER INVERTER HEAT SHIELD Applies until depletion	$303.60	1
3	911764	LOWER INVERTER HEAT SHIELD	911764 LOWER INVERTER HEAT SHIELD Applicable after depletion of 982813	$177.10	1
4	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 M 5 X 5 IN STOCK	$1.31	8
5	982455	FRONT INVERTER BRACKET	982455 FRONT INVERTER BRACKET	$97.40	1
6	323665	SCREW	323665 SCREW M6 X 14	$0.31	6
7	982712	REAR INVERTER BRACKET	982712 REAR INVERTER BRACKET	$73.35	1
8	816864	MOTOR-P4 INVERTER COVER WITH GASKET	816864 MOTOR-P4 INVERTER COVER WITH GASKET	$215.05	1
9	871945	BATTERY INVERTER COVER AND GASKET	871945 BATTERY INVERTER COVER AND GASKET	$101.20	1
10	13272011	SCREW	13272011 SCREW M4 X 12	$0.20	18
11	982763	COMPL. TUBULAR INVERTER MOUNT	982763 COMPL. TUBULAR INVERTER MOUNT	$164.45	1
12	14305924	SCREW	14305924 SCREW M6 X 45	$0.15	4
13	897647	HVIL HEATER AND GASKET	897647 HVIL HEATER AND GASKET	$45.53	2
14	935631	SCREW	935631 SCREW M8 X 12	$0.79	5
15	11566224	SCREW IN STOCK	11566224 SCREW M5 X 12 IN STOCK	$0.34	4
16	980685	LH REAR ON-BOARD CHARGER TRELLIS FRAME	980685 LH REAR ON-BOARD CHARGER TRELLIS FRAME	$619.88	1
17	897402	ON-BOARD CHARGER	897402 ON-BOARD CHARGER Request ASM authorisation	$5,962.35	1
18	70005180	COMPL. HVIL KIT	70005180 COMPL. HVIL KIT After depletion, order loose components; Applies until depletion	$153.01	2
19	939193	DCDC	939193 DCDC	$3,002.04	1
20	804605	OBC-DCDC BRACKET	804605 OBC-DCDC BRACKET	$240.35	1
21	791890	OBC-DCDC CABLE FASTENER BRACKET	791890 OBC-DCDC CABLE FASTENER BRACKET	$35.41	1
22	16281824	SCREW	16281824 SCREW M5 X 14	$0.35 MSRP: ~~1.00~~ (65% off)	2
23	890771	SCREW	890771 SCREW M6 X 18	$0.66	4
24	13837017	SCREW IN STOCK	13837017 SCREW M6 X 30 IN STOCK	$3.20	4
25	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	4
26	177576	CABLE GROMMET IN STOCK	177576 CABLE GROMMET IN STOCK	$2.20	4
27	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	4
28	14059211	NUT IN STOCK	14059211 NUT M6 IN STOCK	$0.06	4
29	898141	SCREW	898141 SCREW	$0.35	4
30	70005178	BATTERY CABLE COVER KIT	70005178 BATTERY CABLE COVER KIT After depletion, order loose components; Applies until depletion	$330.77	1
31	70005179	MOTOR-P2 INVERTER CABLE COVER KIT	70005179 MOTOR-P2 INVERTER CABLE COVER KIT After depletion, order loose components; Applies until depletion	$332.28	1
32	962100	FUSE	962100 FUSE	$215.05	1

Power Electronics

Ferrari 296 GTB Europe

Ferrari 296 GTB Europe - POWER ELECTRONICS
