Ferrari 296 GTB Europe - COOLING SYSTEM PIPES

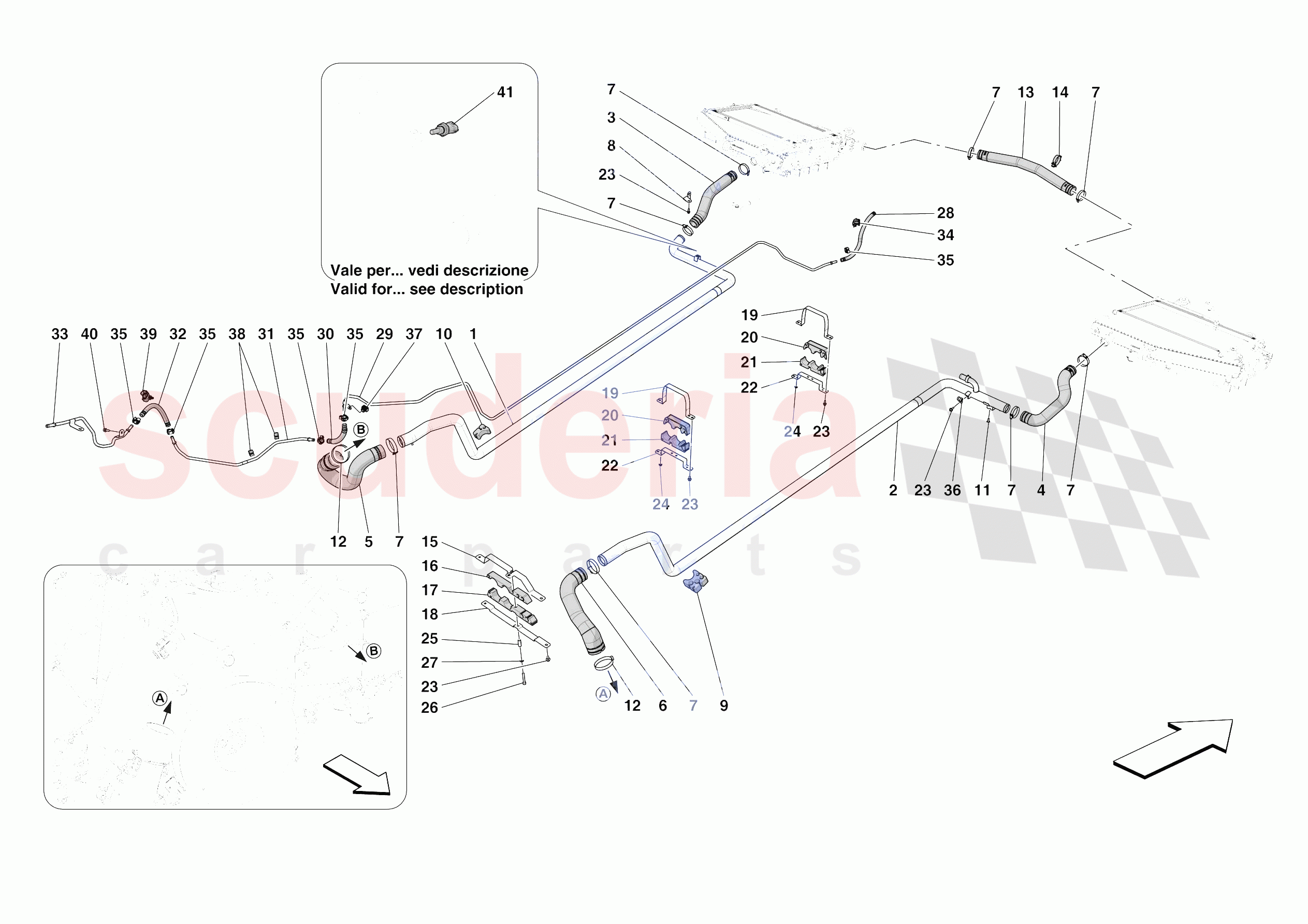

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	979556	UNDERBODY WATER DELIVERY PIPE	$340.21	To Order
	939292	UNDERBODY WATER DELIVERY PIPE	$415.81	To Order

Photo	Part No	Description	Price (each)	Stock
	868759	UNDERBODY WATER RETURN PIPE	$403.22	To Order

Photo	Part No	Description	Price (each)	Stock
	883346	RADIATOR INLET HOSE	$68.03	To Order

Photo	Part No	Description	Price (each)	Stock
	883348	RADIATOR OUTLET HOSE	$71.80	To Order

Photo	Part No	Description	Price (each)	Stock
	982265	RADIATOR WATER DELIVERY HOSE	$148.92	To Order

Photo	Part No	Description	Price (each)	Stock
	982266	RADIATOR WATER RETURN HOSE	$103.30	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	HOSE CLAMP	$1.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	900343	BRACKET FOR LH UNDERBODY WATER PIPE	$11.46	To Order

Photo	Part No	Description	Price (each)	Stock
	865752	RH PIPE SPACER	$20.15	To Order

Photo	Part No	Description	Price (each)	Stock
	865753	LH PIPE SPACER	$18.89	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	953345	RADIATOR CONNECTOR HOSE UNION	$93.23	To Order

Photo	Part No	Description	Price (each)	Stock
	292206	PIPE RETAINER CLIP	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	938728	UPPER BRACKET FOR RETAINER BLOCK OVER BATTERY	$46.61	To Order

Photo	Part No	Description	Price (each)	Stock
	866885	UPPER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY	$16.37	To Order

Photo	Part No	Description	Price (each)	Stock
	866887	LOWER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY	$16.37	To Order

Photo	Part No	Description	Price (each)	Stock
	938729	LOWER BRACKET FOR RETAINER BLOCK OVER BATTERY	$25.18	To Order

Photo	Part No	Description	Price (each)	Stock
	865620	UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	$25.18	To Order

Photo	Part No	Description	Price (each)	Stock
	865622	UPPER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	968995	LOWER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK	$16.37	To Order

Photo	Part No	Description	Price (each)	Stock
	968996	LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	$21.41	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	866938	BUSH	$6.03	To Order

Photo	Part No	Description	Price (each)	Stock
	925745	SCREW	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER D.5-14 X 2.5	$0.21	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	953303	VENT HOSE FROM RADIATOR TO DISCONNECTER UNION	$25.18	To Order

Photo	Part No	Description	Price (each)	Stock
	812385	UNDERBODY RADIATOR SELF-BLEEDING PIPE	$141.40	To Order

Photo	Part No	Description	Price (each)	Stock
	965947	BREATHER PIPE FROM UNDERBODY TO SUBFRAME	$40.30	To Order

Photo	Part No	Description	Price (each)	Stock
	965873	BREATHER PIPE FROM UNDERBODY TO LH FLANK	$42.82	To Order

Photo	Part No	Description	Price (each)	Stock
	785067	REAR RADIATOR BREATHER HOSE	$23.92	To Order

Photo	Part No	Description	Price (each)	Stock
	857035	REAR RIGID RADIATOR BREATHER PIPE	$135.38	To Order

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	868787	COLLAR	$2.60	To Order

Photo	Part No	Description	Price (each)	Stock
	10441490	BRACKET WITH SHEATH	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	256962	CLIP	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	199589	CLIP	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	287771	CLIP	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	797724	SCREW	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.34	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	979556	UNDERBODY WATER DELIVERY PIPE	979556 UNDERBODY WATER DELIVERY PIPE	$340.21	1
1	939292	UNDERBODY WATER DELIVERY PIPE	939292 UNDERBODY WATER DELIVERY PIPE	$415.81	1
2	868759	UNDERBODY WATER RETURN PIPE	868759 UNDERBODY WATER RETURN PIPE	$403.22	1
3	883346	RADIATOR INLET HOSE	883346 RADIATOR INLET HOSE	$68.03	1
4	883348	RADIATOR OUTLET HOSE	883348 RADIATOR OUTLET HOSE	$71.80	1
5	982265	RADIATOR WATER DELIVERY HOSE	982265 RADIATOR WATER DELIVERY HOSE	$148.92	1
6	982266	RADIATOR WATER RETURN HOSE	982266 RADIATOR WATER RETURN HOSE	$103.30	1
7	262114	HOSE CLAMP IN STOCK	262114 HOSE CLAMP IN STOCK	$1.05	8
8	900343	BRACKET FOR LH UNDERBODY WATER PIPE	900343 BRACKET FOR LH UNDERBODY WATER PIPE	$11.46	1
9	865752	RH PIPE SPACER	865752 RH PIPE SPACER	$20.15	1
10	865753	LH PIPE SPACER	865753 LH PIPE SPACER	$18.89	1
11	11566224	SCREW IN STOCK	11566224 SCREW M5 X 14 IN STOCK	$0.33	1
12	13000790	SCREW COLLAR IN STOCK	13000790 SCREW COLLAR IN STOCK	$0.70 MSRP: ~~2.25~~ (68.9% off)	2
13	953345	RADIATOR CONNECTOR HOSE UNION	953345 RADIATOR CONNECTOR HOSE UNION	$93.23	1
14	292206	PIPE RETAINER CLIP	292206 PIPE RETAINER CLIP	$0.81	1
15	938728	UPPER BRACKET FOR RETAINER BLOCK OVER BATTERY	938728 UPPER BRACKET FOR RETAINER BLOCK OVER BATTERY	$46.61	1
16	866885	UPPER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY	866885 UPPER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY	$16.37	1
17	866887	LOWER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY	866887 LOWER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY	$16.37	1
18	938729	LOWER BRACKET FOR RETAINER BLOCK OVER BATTERY	938729 LOWER BRACKET FOR RETAINER BLOCK OVER BATTERY	$25.18	1
19	865620	UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	865620 UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	$25.18	3
20	865622	UPPER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK	865622 UPPER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK	$17.63	3
21	968995	LOWER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK	968995 LOWER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK	$16.37	3
22	968996	LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	968996 LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	$21.41	3
23	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.33	12
24	13046011	NUT	13046011 NUT	$0.32	6
25	866938	BUSH	866938 BUSH	$6.03	1
26	925745	SCREW	925745 SCREW M5 X 35	$1.34	1
27	62769800	WASHER D.5-14 X 2.5 ARRIVING SOON	62769800 WASHER D.5-14 X 2.5 ARRIVING SOON	$0.21 MSRP: ~~0.30~~ (30% off)	1
28	953303	VENT HOSE FROM RADIATOR TO DISCONNECTER UNION	953303 VENT HOSE FROM RADIATOR TO DISCONNECTER UNION	$25.18	1
29	812385	UNDERBODY RADIATOR SELF-BLEEDING PIPE	812385 UNDERBODY RADIATOR SELF-BLEEDING PIPE	$141.40	1
30	965947	BREATHER PIPE FROM UNDERBODY TO SUBFRAME	965947 BREATHER PIPE FROM UNDERBODY TO SUBFRAME	$40.30	1
31	965873	BREATHER PIPE FROM UNDERBODY TO LH FLANK	965873 BREATHER PIPE FROM UNDERBODY TO LH FLANK	$42.82	1
32	785067	REAR RADIATOR BREATHER HOSE	785067 REAR RADIATOR BREATHER HOSE	$23.92	1
33	857035	REAR RIGID RADIATOR BREATHER PIPE	857035 REAR RIGID RADIATOR BREATHER PIPE	$135.38	1
34	198273	CLIP	198273 CLIP	$1.52	1
35	868787	COLLAR	868787 COLLAR	$2.60	6
36	10441490	BRACKET WITH SHEATH IN STOCK	10441490 BRACKET WITH SHEATH IN STOCK	$0.52	1
37	256962	CLIP	256962 CLIP D. 4.7 X 1	$0.59	1
38	199589	CLIP	199589 CLIP	$1.34	3
39	287771	CLIP	287771 CLIP	$0.93	1
40	797724	SCREW	797724 SCREW M5 X 14	$0.43	2
41	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.34 MSRP: ~~32.99~~ (14.1% off)	1
