Ferrari 296 GTB USA - COOLING SYSTEM PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
979556 UNDERBODY WATER DELIVERY PIPE $340.59 To Order
939292 UNDERBODY WATER DELIVERY PIPE $416.28 To Order
Photo Part No Description Price (each) Stock
868759 UNDERBODY WATER RETURN PIPE $403.67 To Order
Photo Part No Description Price (each) Stock
883346 RADIATOR INLET HOSE $68.11 To Order
Photo Part No Description Price (each) Stock
883348 RADIATOR OUTLET HOSE $71.88 To Order
Photo Part No Description Price (each) Stock
982265 RADIATOR WATER DELIVERY HOSE $149.09 To Order
Photo Part No Description Price (each) Stock
982266 RADIATOR WATER RETURN HOSE $103.42 To Order
Photo Part No Description Price (each) Stock
262114 HOSE CLAMP $1.05 IN STOCK
Photo Part No Description Price (each) Stock
900343 BRACKET FOR LH UNDERBODY WATER PIPE $11.47 To Order
Photo Part No Description Price (each) Stock
865752 RH PIPE SPACER $20.17 To Order
Photo Part No Description Price (each) Stock
865753 LH PIPE SPACER $18.91 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.70 IN STOCK
Photo Part No Description Price (each) Stock
953345 RADIATOR CONNECTOR HOSE UNION $93.33 To Order
Photo Part No Description Price (each) Stock
292206 PIPE RETAINER CLIP $0.81 To Order
Photo Part No Description Price (each) Stock
938728 UPPER BRACKET FOR RETAINER BLOCK OVER BATTERY $46.66 To Order
Photo Part No Description Price (each) Stock
866885 UPPER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY $16.38 To Order
Photo Part No Description Price (each) Stock
866887 LOWER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY $16.38 To Order
Photo Part No Description Price (each) Stock
938729 LOWER BRACKET FOR RETAINER BLOCK OVER BATTERY $25.21 To Order
Photo Part No Description Price (each) Stock
865620 UPPER BRACKET FOR UNDERBODY PILLORY BLOCK $25.21 To Order
Photo Part No Description Price (each) Stock
865622 UPPER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK $17.65 To Order
Photo Part No Description Price (each) Stock
968995 LOWER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK $16.38 To Order
Photo Part No Description Price (each) Stock
968996 LOWER BRACKET FOR UNDERBODY PILLORY BLOCK $21.44 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
13046011 NUT $0.32 To Order
Photo Part No Description Price (each) Stock
866938 BUSH $6.04 To Order
Photo Part No Description Price (each) Stock
925745 SCREW $1.34 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 ARRIVING SOON
Photo Part No Description Price (each) Stock
953303 VENT HOSE FROM RADIATOR TO DISCONNECTER UNION $25.21 To Order
Photo Part No Description Price (each) Stock
812385 UNDERBODY RADIATOR SELF-BLEEDING PIPE $141.56 To Order
Photo Part No Description Price (each) Stock
965947 BREATHER PIPE FROM UNDERBODY TO SUBFRAME $40.35 To Order
Photo Part No Description Price (each) Stock
965873 BREATHER PIPE FROM UNDERBODY TO LH FLANK $42.87 To Order
Photo Part No Description Price (each) Stock
785067 REAR RADIATOR BREATHER HOSE $23.95 To Order
Photo Part No Description Price (each) Stock
857035 REAR RIGID RADIATOR BREATHER PIPE $135.53 To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.52 To Order
Photo Part No Description Price (each) Stock
868787 COLLAR $2.60 To Order
Photo Part No Description Price (each) Stock
10441490 BRACKET WITH SHEATH $0.52 IN STOCK
Photo Part No Description Price (each) Stock
256962 CLIP $0.59 To Order
Photo Part No Description Price (each) Stock
199589 CLIP $1.34 To Order
Photo Part No Description Price (each) Stock
287771 CLIP $0.93 To Order
Photo Part No Description Price (each) Stock
797724 SCREW $0.43 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $28.37 IN STOCK
View All

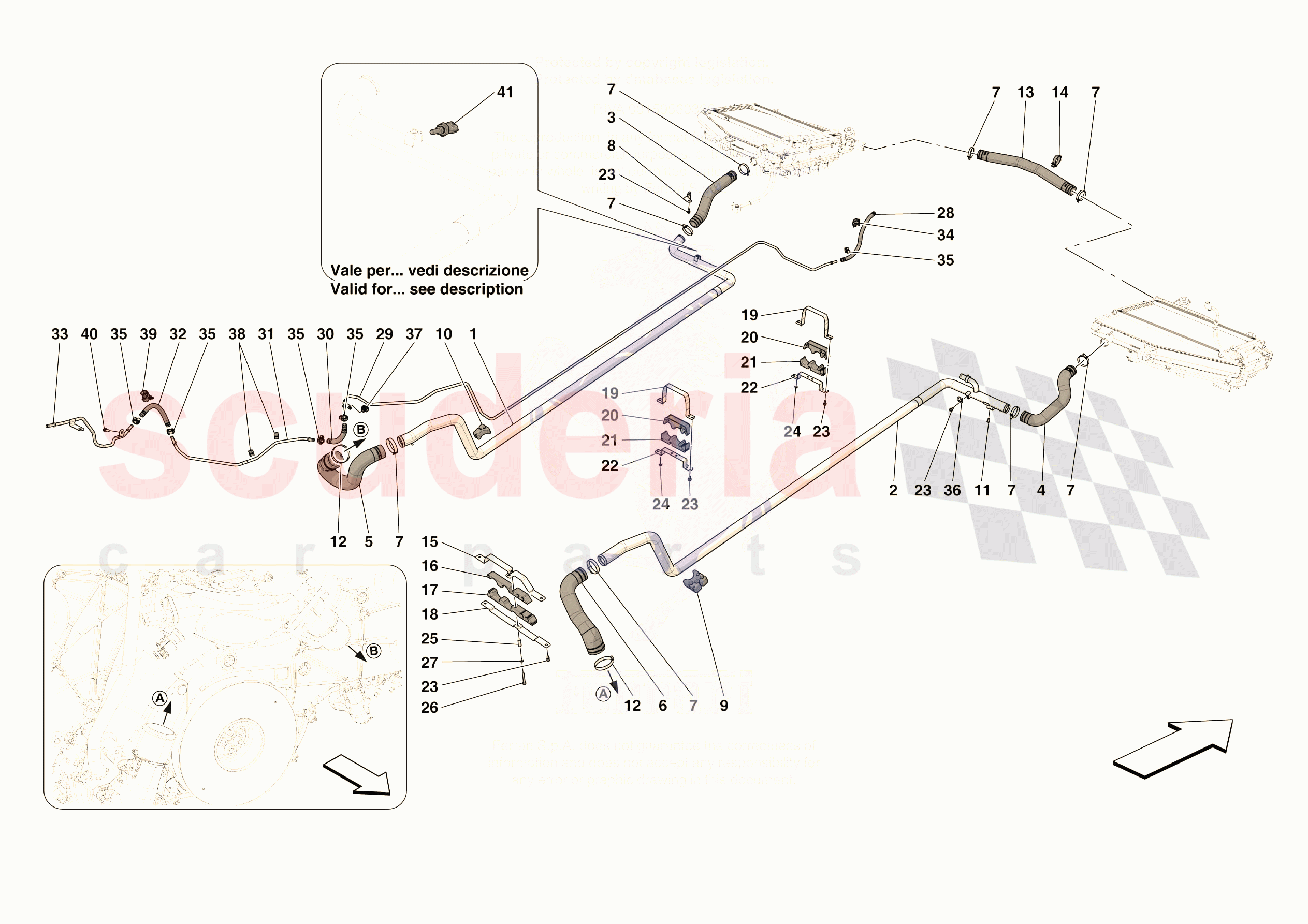

COOLING SYSTEM PIPES of Ferrari Ferrari 296 GTB USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 979556
UNDERBODY WATER DELIVERY PIPE 		$340.59 1
0001 939292
UNDERBODY WATER DELIVERY PIPE 		$416.28 1
0002 868759
UNDERBODY WATER RETURN PIPE 		$403.67 1
0003 883346
RADIATOR INLET HOSE 		$68.11 1
0004 883348
RADIATOR OUTLET HOSE 		$71.88 1
0005 982265
RADIATOR WATER DELIVERY HOSE 		$149.09 1
0006 982266
RADIATOR WATER RETURN HOSE 		$103.42 1
0007 262114
HOSE CLAMP
IN STOCK 		$1.05 8
0008 900343
BRACKET FOR LH UNDERBODY WATER PIPE 		$11.47 1
0009 865752
RH PIPE SPACER 		$20.17 1
0010 865753
LH PIPE SPACER 		$18.91 1
0011 11566224
SCREW
M5 X 14
IN STOCK 		$0.33 1
0012 13000790
SCREW COLLAR
IN STOCK 		$0.70 (68.9% off) 2
0013 953345
RADIATOR CONNECTOR HOSE UNION 		$93.33 1
0014 292206
PIPE RETAINER CLIP 		$0.81 1
0015 938728
UPPER BRACKET FOR RETAINER BLOCK OVER BATTERY 		$46.66 1
0016 866885
UPPER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY 		$16.38 1
0017 866887
LOWER RETAINER BLOCK FOR RETAINER BLOCK OVER BATTERY 		$16.38 1
0018 938729
LOWER BRACKET FOR RETAINER BLOCK OVER BATTERY 		$25.21 1
0019 865620
UPPER BRACKET FOR UNDERBODY PILLORY BLOCK 		$25.21 3
0020 865622
UPPER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK 		$17.65 3
0021 968995
LOWER RETAINER BLOCK FOR UNDERBODY RETAINER BLOCK 		$16.38 3
0022 968996
LOWER BRACKET FOR UNDERBODY PILLORY BLOCK 		$21.44 3
0023 11566224
SCREW
M5 X 16
IN STOCK 		$0.33 12
0024 13046011
NUT 		$0.32 6
0025 866938
BUSH 		$6.04 1
0026 925745
SCREW
M5 X 35 		$1.34 1
0027 62769800
WASHER D.5-14 X 2.5
ARRIVING SOON 		$0.21 (30% off) 1
0028 953303
VENT HOSE FROM RADIATOR TO DISCONNECTER UNION 		$25.21 1
0029 812385
UNDERBODY RADIATOR SELF-BLEEDING PIPE 		$141.56 1
0030 965947
BREATHER PIPE FROM UNDERBODY TO SUBFRAME 		$40.35 1
0031 965873
BREATHER PIPE FROM UNDERBODY TO LH FLANK 		$42.87 1
0032 785067
REAR RADIATOR BREATHER HOSE 		$23.95 1
0033 857035
REAR RIGID RADIATOR BREATHER PIPE 		$135.53 1
0034 198273
CLIP 		$1.52 1
0035 868787
COLLAR 		$2.60 6
0036 10441490
BRACKET WITH SHEATH
IN STOCK 		$0.52 1
0037 256962
CLIP
D. 4.7 X 1 		$0.59 1
0038 199589
CLIP 		$1.34 3
0039 287771
CLIP 		$0.93 1
0040 797724
SCREW
M5 X 14 		$0.43 2
0041 180137
TEMPERATURE SENSOR
IN STOCK 		$28.37 (14% off) 1
