Ferrari 296 GTB USA - FORCED INDUCTION SYSTEM PIPES

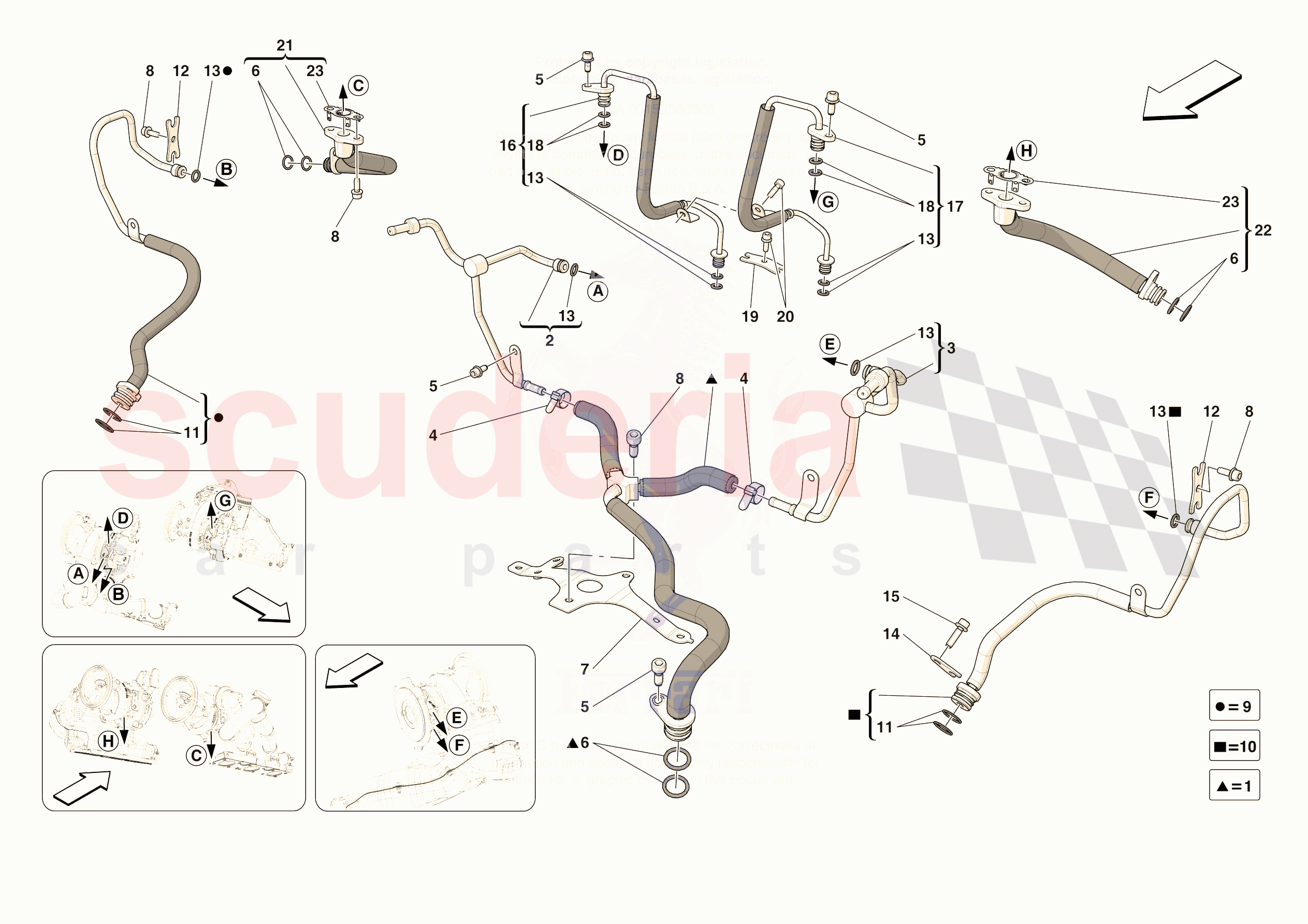

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
769578 WATER RETURN PIPE $364.78 To Order
Photo Part No Description Price (each) Stock
894837 WATER RETURN PIPE FROM RH TURBO $150.93 To Order
Photo Part No Description Price (each) Stock
783058 WATER RETURN PIPE FROM LH TURBO $163.52 To Order
Photo Part No Description Price (each) Stock
262107 SCREW COLLAR $1.43 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
287722 O-RING $6.08 IN STOCK
Photo Part No Description Price (each) Stock
825114 PIPE MOUNTING BRACKET $57.84 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
894855 WATER DELIVERY PIPE TO RH TURBO $226.41 To Order
Photo Part No Description Price (each) Stock
826626 WATER DELIVERY PIPE TO LH TURBO $213.84 To Order
Photo Part No Description Price (each) Stock
254644 O-RING $0.35 IN STOCK
Photo Part No Description Price (each) Stock
283437 PIPE RETAINER FORK $3.64 To Order
Photo Part No Description Price (each) Stock
127816 O-RING $3.29 IN STOCK
Photo Part No Description Price (each) Stock
986086 FORK $4.54 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
916504 OIL DELIVERY PIPE TO RH TURBO Enquire To Order
812191 OIL DELIVERY PIPE TO RH TURBO $402.52 To Order
Photo Part No Description Price (each) Stock
812206 OIL DELIVERY PIPE TO LH TURBO $402.52 To Order
Photo Part No Description Price (each) Stock
191269 GASKET $6.23 To Order
Photo Part No Description Price (each) Stock
940503 OIL PIPE FORK $10.30 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
908136 OIL RETURN PIPE FROM RH TURBO $251.56 To Order
Photo Part No Description Price (each) Stock
908137 OIL RETURN PIPE FROM LH TURBO $264.14 To Order
Photo Part No Description Price (each) Stock
308203 OIL RECOVERY PIPE SEAL $25.09 To Order
View All
FORCED INDUCTION SYSTEM PIPES of Ferrari Ferrari 296 GTB USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 769578
WATER RETURN PIPE 		$364.78 1
0002 894837
WATER RETURN PIPE FROM RH TURBO 		$150.93 1
0003 783058
WATER RETURN PIPE FROM LH TURBO 		$163.52 1
0004 262107
SCREW COLLAR 		$1.43 2
0005 248334
SCREW
M6 X 16
IN STOCK 		$0.58 9
0006 287722
O-RING
Also included in Short block gasket kit
IN STOCK 		$6.08 6
0007 825114
PIPE MOUNTING BRACKET 		$57.84 1
0008 248334
SCREW
M6 X 16
IN STOCK 		$0.58 9
0009 894855
WATER DELIVERY PIPE TO RH TURBO 		$226.41 1
0010 826626
WATER DELIVERY PIPE TO LH TURBO 		$213.84 1
0011 254644
O-RING
IN STOCK 		$0.35 (30% off) 4
0012 283437
PIPE RETAINER FORK 		$3.64 2
0013 127816
O-RING
Also included in Short block gasket kit
IN STOCK 		$3.29 (33.5% off) 8
0014 986086
FORK 		$4.54 1
0015 231619
SCREW
M6 X 22
IN STOCK 		$0.29 1
0016 916504
OIL DELIVERY PIPE TO RH TURBO
No longer supplied - Replaced by 812191 		- 1 Enquire
0016 812191
OIL DELIVERY PIPE TO RH TURBO 		$402.52 1
0017 812206
OIL DELIVERY PIPE TO LH TURBO 		$402.52 1
0018 191269
GASKET 		$6.23 4
0019 940503
OIL PIPE FORK 		$10.30 1
0020 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
0021 908136
OIL RETURN PIPE FROM RH TURBO 		$251.56 1
0022 908137
OIL RETURN PIPE FROM LH TURBO 		$264.14 1
0023 308203
OIL RECOVERY PIPE SEAL
Also included in Short block gasket kit 		$25.09 2
