Name: INVERTER COOLING
Rating: 4.6 (1 reviews)

INVERTER COOLING of Ferrari Ferrari 296 GTB Europe RH

View All

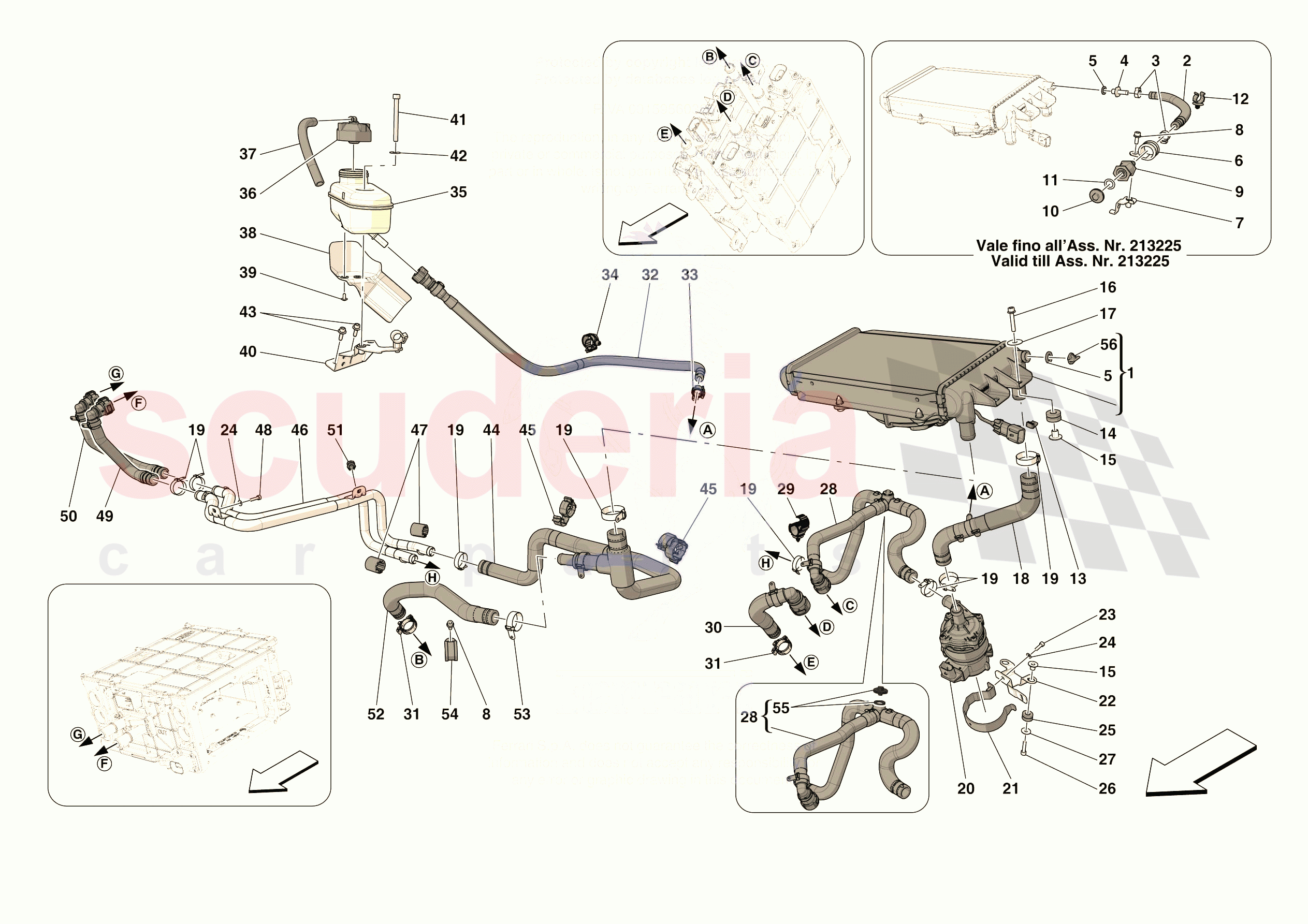

Ferrari 296 GTB Europe RH - INVERTER COOLING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	916353	COMPL. INVERTER COOLING WATER RADIATOR	$986.13	To Order

Photo	Part No	Description	Price (each)	Stock
	742233	RADIATOR BREATHER HOSE	$46.76	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	746792	RADIATOR SIDE HOSE	$17.69	To Order

Photo	Part No	Description	Price (each)	Stock
	746585	RADIATOR BREATHER GASKET	$4.76	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	$0.64	To Order

Photo	Part No	Description	Price (each)	Stock
	742124	BREATHER HOSE MOUNTING BRACKET	$22.73	To Order

Photo	Part No	Description	Price (each)	Stock
	797724	SCREW	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	746806	VALVE SIDE HOSE	$25.26	To Order

Photo	Part No	Description	Price (each)	Stock
	851664	BLEED SCREW	$30.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14457285	SEAL	Enquire	To Order
	784711	O-RING	$13.94	To Order

Photo	Part No	Description	Price (each)	Stock
	257273	CLIP	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	773116	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	$2.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	797730	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	12647778	WASHER	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	870715	HOSE FROM RADIATOR OUTLET TO PUMP	$112.51	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	908587	PUMP	$923.93	To Order

Photo	Part No	Description	Price (each)	Stock
	798517	U-BOLT FOR WATER PUMP	$39.17	To Order

Photo	Part No	Description	Price (each)	Stock
	960250	INVERTER PUMP MOUNTING BRACKET	$30.33	To Order

Photo	Part No	Description	Price (each)	Stock
	14304287	SCREW	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER D.5-14 X 2.5	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14305487	SCREW	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	BLACK WASHER D.6.45-18X1.5	$0.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	870714	HOSE FROM PUMP TO DISCONNECTOR	$227.56	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP 10 X 3.8 BLACK	$1.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	958817	HOSE	$83.43	To Order

Photo	Part No	Description	Price (each)	Stock
	292980	COLLAR	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	798460	HOSE	$176.99	To Order

Photo	Part No	Description	Price (each)	Stock
	868787	COLLAR	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	828986	INVERTER COOLING TANK	$189.62	To Order

Photo	Part No	Description	Price (each)	Stock
	374030103	TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791804	RUBBER PIPE	$45.50	To Order

Photo	Part No	Description	Price (each)	Stock
	777874	INVERTER COOLING TANK SHIELD	$97.34	To Order

Photo	Part No	Description	Price (each)	Stock
	15689501	SCREW	$0.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	951756	INVERTER COOLING TANK MOUNTING BRACKET	$123.88	To Order

Photo	Part No	Description	Price (each)	Stock
	14303834	SCREW	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	968516	RADIATOR INLET HOSE	$366.63	To Order

Photo	Part No	Description	Price (each)	Stock
	270085	CLIP	$1.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	928316	ALUMINIUM DELIVERY AND RETURN PIPES	$455.13	To Order

Photo	Part No	Description	Price (each)	Stock
	316986	SPACER	$7.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14304387	SCREW	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	958816	INVERTER OUTLET HOSE	$115.04	To Order

Photo	Part No	Description	Price (each)	Stock
	958821	INVERTER INLET HOSE	$144.89	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	788664	HOSE	$78.37	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	SCREW CLAMP	$1.39	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$4.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	799507	BLEED VALVE SCREW COMPL. WITH OR	$14.33	To Order

Photo	Part No	Description	Price (each)	Stock
	987355	CAP	$2.01	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	916353	COMPL. INVERTER COOLING WATER RADIATOR	916353 COMPL. INVERTER COOLING WATER RADIATOR	$986.13	1
0002	742233	RADIATOR BREATHER HOSE	742233 RADIATOR BREATHER HOSE After depletion, order cap 987355 ref. 56; Applies until depletion	$46.76	1
0003	13126970	COLLAR	13126970 COLLAR	$1.34	2
0004	746792	RADIATOR SIDE HOSE	746792 RADIATOR SIDE HOSE After depletion, order cap 987355 ref. 56; Applies until depletion	$17.69	1
0005	746585	RADIATOR BREATHER GASKET	746585 RADIATOR BREATHER GASKET	$4.76	1
0006	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH	$0.64 MSRP: ~~3.45~~ (81.4% off)	1
0007	742124	BREATHER HOSE MOUNTING BRACKET	742124 BREATHER HOSE MOUNTING BRACKET After depletion, order cap 987355 ref. 56; Applies until depletion	$22.73	1
0008	797724	SCREW	797724 SCREW M5 X 14	$0.43	2
0009	746806	VALVE SIDE HOSE	746806 VALVE SIDE HOSE After depletion, order cap 987355 ref. 56; Applies until depletion	$25.26	1
0010	851664	BLEED SCREW	851664 BLEED SCREW After depletion, order cap 987355 ref. 56; Applies until depletion	$30.33	1
0011	14457285	SEAL	14457285 SEAL After depletion, order cap 987355 ref. 56; No longer supplied - Replaced by 784711	-	1	Enquire
0011	784711	O-RING	784711 O-RING Applies until depletion	$13.94	1
0012	257273	CLIP	257273 CLIP	$1.10	1
0013	773116	PIN	773116 PIN No longer supplied	-	1	Enquire
0014	177576	CABLE GROMMET IN STOCK	177576 CABLE GROMMET IN STOCK	$2.20	3
0015	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	5
0016	797730	SCREW	797730 SCREW M5 X 30	$0.52	3
0017	12647778	WASHER	12647778 WASHER	$0.35 MSRP: ~~0.65~~ (46.2% off)	3
0018	870715	HOSE FROM RADIATOR OUTLET TO PUMP	870715 HOSE FROM RADIATOR OUTLET TO PUMP	$112.51	1
0019	262111	SCREW CLAMP	262111 SCREW CLAMP	$1.39	8
0020	908587	PUMP	908587 PUMP	$923.93	1
0021	798517	U-BOLT FOR WATER PUMP	798517 U-BOLT FOR WATER PUMP	$39.17	1
0022	960250	INVERTER PUMP MOUNTING BRACKET	960250 INVERTER PUMP MOUNTING BRACKET	$30.33	1
0023	14304287	SCREW IN STOCK	14304287 SCREW M5 X 16 IN STOCK	$0.32	1
0024	62769800	WASHER D.5-14 X 2.5 IN STOCK	62769800 WASHER D.5-14 X 2.5 IN STOCK	$0.21 MSRP: ~~0.30~~ (30% off)	3
0025	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.52	2
0026	14305487	SCREW	14305487 SCREW M6 X 25	$0.76	2
0027	12643778	BLACK WASHER D.6.45-18X1.5 IN STOCK	12643778 BLACK WASHER D.6.45-18X1.5 18 X 1.5 IN STOCK	$0.24 MSRP: ~~0.50~~ (52% off)	2
0028	870714	HOSE FROM PUMP TO DISCONNECTOR	870714 HOSE FROM PUMP TO DISCONNECTOR	$227.56	1
0029	248061	CLIP 10 X 3.8 BLACK IN STOCK	248061 CLIP 10 X 3.8 BLACK IN STOCK	$1.92 MSRP: ~~1.95~~ (1.5% off)	1
0030	958817	HOSE	958817 HOSE	$83.43	1
0031	292980	COLLAR	292980 COLLAR	$1.52	2
0032	798460	HOSE	798460 HOSE	$176.99	1
0033	868787	COLLAR	868787 COLLAR	$2.61	1
0034	259508	CLIP IN STOCK	259508 CLIP 1 compartment- IN STOCK	$0.53	1
0035	828986	INVERTER COOLING TANK	828986 INVERTER COOLING TANK	$189.62	1
0036	374030103	TANK PLUG	374030103 TANK PLUG	-	1	Enquire
0037	791804	RUBBER PIPE	791804 RUBBER PIPE	$45.50	1
0038	777874	INVERTER COOLING TANK SHIELD	777874 INVERTER COOLING TANK SHIELD	$97.34	1
0039	15689501	SCREW IN STOCK	15689501 SCREW IN STOCK	$0.26	2
0040	951756	INVERTER COOLING TANK MOUNTING BRACKET	951756 INVERTER COOLING TANK MOUNTING BRACKET	$123.88	1
0041	14303834	SCREW IN STOCK	14303834 SCREW M6 X 60 IN STOCK	$1.43	1
0042	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	1
0043	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.34	2
0044	968516	RADIATOR INLET HOSE	968516 RADIATOR INLET HOSE	$366.63	1
0045	270085	CLIP IN STOCK	270085 CLIP IN STOCK	$1.60	4
0046	928316	ALUMINIUM DELIVERY AND RETURN PIPES	928316 ALUMINIUM DELIVERY AND RETURN PIPES	$455.13	1
0047	316986	SPACER	316986 SPACER	$7.17	2
0048	14304387	SCREW	14304387 SCREW M5 X 20	$0.84	2
0049	958816	INVERTER OUTLET HOSE	958816 INVERTER OUTLET HOSE	$115.04	1
0050	958821	INVERTER INLET HOSE	958821 INVERTER INLET HOSE	$144.89	1
0051	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.44 MSRP: ~~32.99~~ (13.8% off)	1
0052	788664	HOSE	788664 HOSE	$78.37	1
0053	262111	SCREW CLAMP	262111 SCREW CLAMP D.17 - 25	$1.39	1
0054	291225	P clip Bracket With Sheath IN STOCK	291225 P clip Bracket With Sheath IN STOCK	$4.82	1
0055	799507	BLEED VALVE SCREW COMPL. WITH OR	799507 BLEED VALVE SCREW COMPL. WITH OR	$14.33	1
0056	987355	CAP	987355 CAP M10 X 15	$2.01	1

Inverter Cooling

Ferrari 296 GTB Europe RH
