Ferrari 288 GTO - Headlights Lifting Device and Sealed Beams

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
60570700 Left housing headlamp $525.32 To Order
60570600 Right housing headlamp $525.32 To Order
Photo Part No Description Price (each) Stock
60644600 Screw $1.45 To Order
Photo Part No Description Price (each) Stock
50087709 STOP BUFFER $4.92 To Order
Photo Part No Description Price (each) Stock
11087974 SNAP RING $0.17 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 IN STOCK
Photo Part No Description Price (each) Stock
60154804 Housing sealed beam $95.03 To Order
Photo Part No Description Price (each) Stock
60331402 UPPER GUARD FOR LIGHT LIFTING MOTOR $81.01 To Order
Photo Part No Description Price (each) Stock
13842411 Screw $0.54 To Order
Photo Part No Description Price (each) Stock
60331303 LOWER GUARD FOR LH LIGHT LIFTING MOTOR $14.52 To Order
60331204 LOWER GUARD FOR RH LIGHT LIFTING MOTOR $14.52 To Order
Photo Part No Description Price (each) Stock
172534 Lifting motor for R.H. headlamp $685.57 To Order

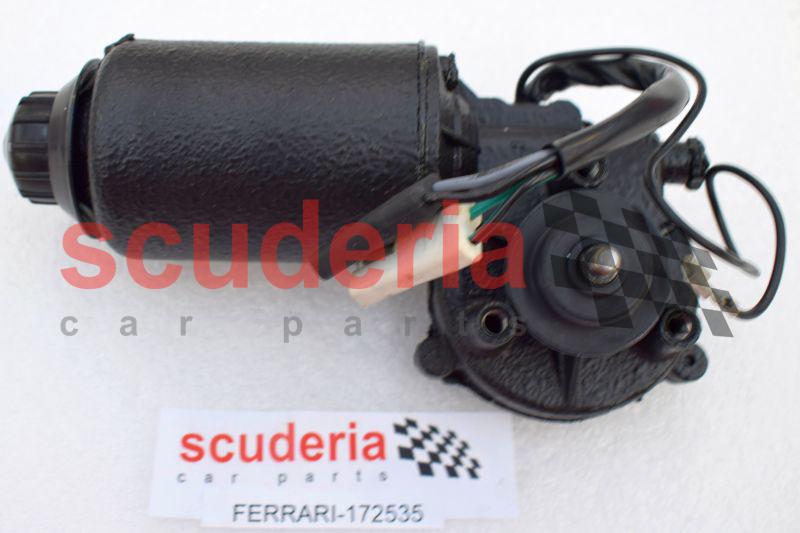

172535 Lifting motor for L.H. headlamp $685.57 To Order
Photo Part No Description Price (each) Stock
60645100 Connector protection $1.16 To Order
Photo Part No Description Price (each) Stock
61268600 Connecting rod $25.73 To Order
Photo Part No Description Price (each) Stock
50070507 Bush . $0.43 To Order
Photo Part No Description Price (each) Stock
50070606 Fulcrum pin $5.18 To Order
Photo Part No Description Price (each) Stock
61402200 Left support Enquire To Order
60648000 Right support $80.94 To Order
Photo Part No Description Price (each) Stock
40136707 CLIP $1.57 IN STOCK
Photo Part No Description Price (each) Stock
60570900 Left front covering $225.62 To Order
60570800 Right front covering $245.92 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10615774 WASHER $0.17 To Order
Photo Part No Description Price (each) Stock
12638601 WASHER $0.56 To Order
Photo Part No Description Price (each) Stock
133988 HEX NUT M10 X 1.25 X 8 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
61325900 Pin $24.28 To Order
Photo Part No Description Price (each) Stock
61017300 Bracket Dx $22.09 To Order
Photo Part No Description Price (each) Stock
60865200 Headlamp with bulb $150.04 To Order
60865000 Headlight( L.H.D.) $119.27 To Order
Photo Part No Description Price (each) Stock
109879 Bulb for headlamp $24.76 To Order
View All

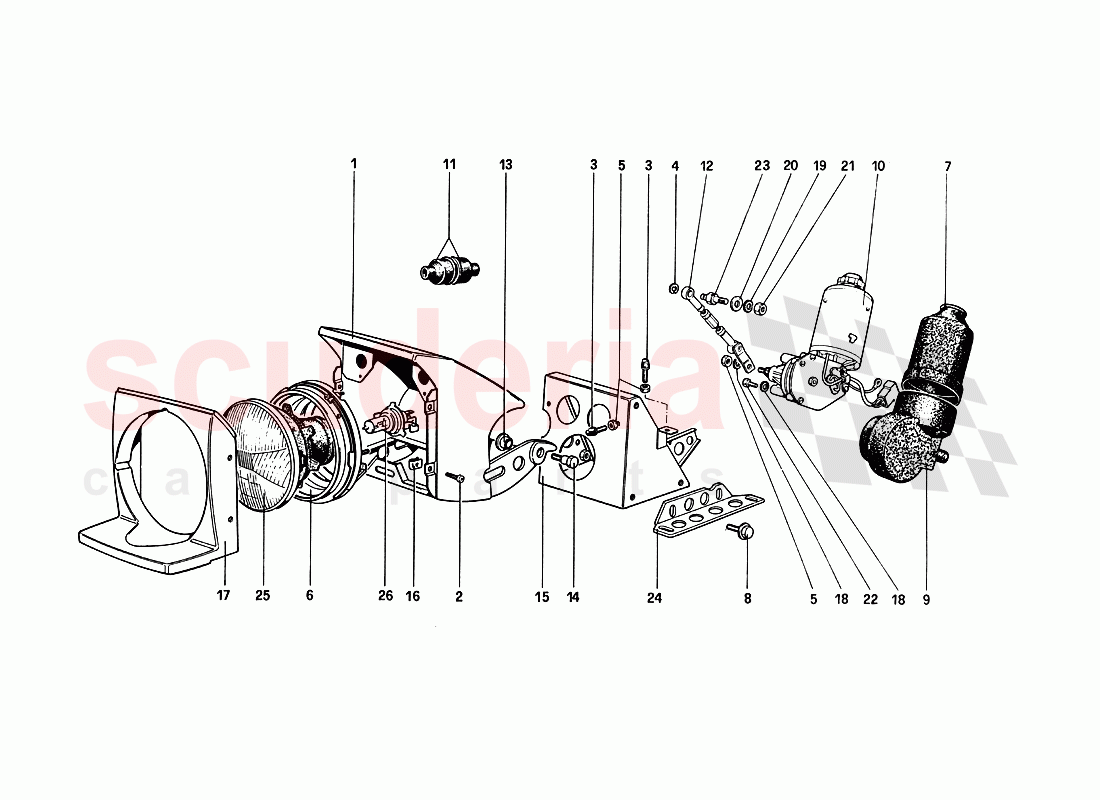

Headlights Lifting Device and Sealed Beams of Ferrari Ferrari 288 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 60570700
Left housing headlamp 		$525.32 1
1 60570600
Right housing headlamp 		$525.32 1
2 60644600
Screw 		$1.45 8
3 50087709
STOP BUFFER 		$4.92 (68.1% off) 6
4 11087974
SNAP RING
IN STOCK 		$0.17 (65.3% off) 2
5 14059290
FLANGED NUT M6
IN STOCK 		$1.33 6
6 60154804
Housing sealed beam 		$95.03 (77.8% off) 2
7 60331402
UPPER GUARD FOR LIGHT LIFTING MOTOR 		$81.01 2
8 13842411
Screw 		$0.54 16
9 60331303
LOWER GUARD FOR LH LIGHT LIFTING MOTOR 		$14.52 (59.2% off) 1
9 60331204
LOWER GUARD FOR RH LIGHT LIFTING MOTOR 		$14.52 (54.2% off) 1
10 172534
Lifting motor for R.H. headlamp 		$685.57 1
10 172535
Lifting motor for L.H. headlamp 		$685.57 1
11 60645100
Connector protection 		$1.16 2
12 61268600
Connecting rod 		$25.73 (82.9% off) 2
13 50070507
Bush . 		$0.43 (72.3% off) 4
14 50070606
Fulcrum pin 		$5.18 (44.6% off) 4
15 61402200
Left support 		- 1 Enquire
15 60648000
Right support 		$80.94 1
16 40136707
CLIP
IN STOCK 		$1.57 8
17 60570900
Left front covering 		$225.62 1
17 60570800
Right front covering 		$245.92 1
18 11197774
WASHER
IN STOCK 		$0.06 (80% off) 8
19 10615774
WASHER 		$0.17 2
20 12638601
WASHER 		$0.56 (44% off) 2
21 133988
HEX NUT M10 X 1.25 X 8
IN STOCK 		$0.20 (42.9% off) 2
22 897538
SCREW 		$1.53 6
23 61325900
Pin 		$24.28 2
24 61017300
Bracket Dx 		$22.09 2
25 60865200
Headlamp with bulb
Only for F 		$150.04 (53.4% off) 2
25 60865000
Headlight( L.H.D.)
Not for F-US-J-RHD 		$119.27 2
26 109879
Bulb for headlamp 		$24.76 2
