COMPLETE WHEELS of Ferrari Ferrari 12Cilindri

View All

Ferrari 12Cilindri - COMPLETE WHEELS

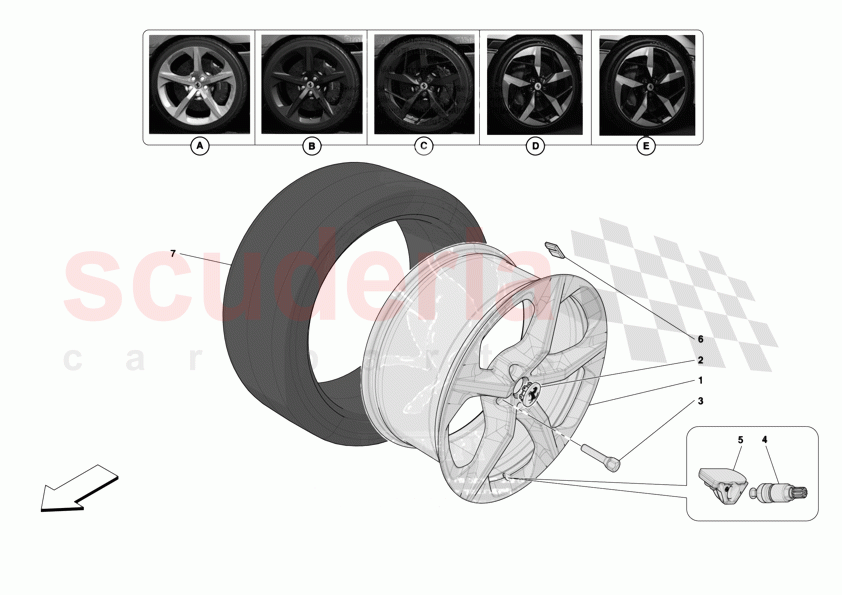

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	941831	FRONT WHEEL	$1,550.89	To Order
	775744	FRONT WHEEL	$1,906.91	To Order
	942044	LH FRONT WHEEL	$7,310.07	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	55059092	HUB CAP	$28.73	To Order
	889561	HUB CAP	$252.91	To Order
	744579	HUB CAP	$37.93	To Order

Photo	Part No	Description	Price (each)	Stock
	854397	WHEEL STUD BOLT	$60.68	To Order
	55031814	WHEEL STUD BOLT	$64.48	To Order
	854399	WHEEL STUD BOLT	$189.68	To Order

Photo	Part No	Description	Price (each)	Stock
	913102	VALVE	$13.63	To Order
	913104	VALVE	$17.28	To Order

Photo	Part No	Description	Price (each)	Stock
	939581	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	$223.06	To Order
	939582	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	$223.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11096693	ADHESIVE WHEEL BALANCER WEIGHT	$14.93	To Order
	308296	ADHESIVE WHEEL BALANCER WEIGHT	$14.93	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	941831	FRONT WHEEL	941831 FRONT WHEEL 10J X 21"; Cast, with gloss Silver paint finish - See box A - Modis code STANDARD	$1,550.89	2
1	775744	FRONT WHEEL	775744 FRONT WHEEL 10J X 21"; Cast matte Corsa grey - See box B - Modis code RMSC	$1,906.91	2
1	942044	LH FRONT WHEEL	942044 LH FRONT WHEEL 10J X 21"; Forged, Grigio Orbit - See box C - Modis code RMSO	$7,310.07	1
1	775862	LH FRONT WHEEL	775862 LH FRONT WHEEL 10J X 21"; Forged, diamond cut with gloss black paint finish - See box D - Modis code RSFB	$7,605.59	1
1	775789	LH FRONT WHEEL	775789 LH FRONT WHEEL 10J X 21"; Forged, diamond cut with matte black paint finish - See box E - Modis code RIFB	$7,605.59	1
1	942045	RH FRONT WHEEL	942045 RH FRONT WHEEL 10J X 21"; Forged, Grigio Orbit - See box C - Modis code RMSO	$7,310.07	1
1	775863	RH FRONT WHEEL	775863 RH FRONT WHEEL 10J X 21"; Forged, diamond cut with gloss black paint finish - See box D - Modis code RSFB	$7,605.59	1
1	775790	RH FRONT WHEEL	775790 RH FRONT WHEEL 10J X 21"; Forged, diamond cut with matte black paint finish - See box E - Modis code RIFB	$7,605.59	1
1	941832	REAR WHEEL	941832 REAR WHEEL 11.5J X 21"; Cast, with gloss Silver paint finish - See box A - Modis code STANDARD	$1,673.06	2
1	775745	REAR WHEEL	775745 REAR WHEEL 11.5J X 21"; Cast matte Corsa grey - See box B - Modis code RMSC	$2,037.22	2
1	942046	LH REAR WHEEL	942046 LH REAR WHEEL 11.5J X 21"; Forged, Grigio Orbit - See box C - Modis code RMSO	$7,384.54	1
1	775864	LH REAR WHEEL	775864 LH REAR WHEEL 11.5J X 21"; Forged, diamond cut with gloss black paint finish - See box D - Modis code RSFB	$7,643.99	1
1	775791	LH REAR WHEEL	775791 LH REAR WHEEL 11.5J X 21"; Forged, diamond cut with matte black paint finish - See box E - Modis code RIFB	$7,643.99	1
1	942047	RH REAR WHEEL	942047 RH REAR WHEEL 11.5J X 21"; Forged, Grigio Orbit - See box C - Modis code RMSO	$7,384.54	1
1	775865	RH REAR WHEEL	775865 RH REAR WHEEL 11.5J X 21"; Forged, diamond cut with gloss black paint finish - See box D - Modis code RSFB	$7,643.99	1
1	775792	RH REAR WHEEL	775792 RH REAR WHEEL 11.5J X 21"; Forged, diamond cut with matte black paint finish - See box E - Modis code RIFB	$7,643.99	1
2	55059092	HUB CAP	55059092 HUB CAP	$28.73	4
2	889561	HUB CAP	889561 HUB CAP Carbon	$252.91	4
2	744579	HUB CAP	744579 HUB CAP Version with Cavallino emblem on black background	$37.93	4
3	854397	WHEEL STUD BOLT	854397 WHEEL STUD BOLT Not applicable for: NIRL	$60.68	20
3	55031814	WHEEL STUD BOLT	55031814 WHEEL STUD BOLT	$64.48	20
3	854399	WHEEL STUD BOLT	854399 WHEEL STUD BOLT Titanium	$189.68	20
4	913102	VALVE	913102 VALVE Applicable for base cast wheels,Â RMSC	$13.63	4
4	913104	VALVE	913104 VALVE Black; Applicable for RMSO, RSFB and RIFB forged wheels	$17.28	4
5	939581	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	939581 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Not applicable for: J-GS, J-GD	$223.06	4
5	939582	TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR	939582 TYRE PRESSURE MONITORING SYSTEM WHEEL SENSOR Applicable for: J-GS, J-GD	$223.06	4
6	11096693	ADHESIVE WHEEL BALANCER WEIGHT	11096693 ADHESIVE WHEEL BALANCER WEIGHT Applicable for base cast wheels,Â RMSC	$14.93	8
6	308296	ADHESIVE WHEEL BALANCER WEIGHT	308296 ADHESIVE WHEEL BALANCER WEIGHT Applicable for RMSO, RSFB and RIFB forged wheels	$14.93	8
