Ferrari 12Cilindri - GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
841334 ENGINE SIDE UNDERBODY WATER RETURN PIPE $211.35 To Order
Photo Part No Description Price (each) Stock
842585 ENGINE SIDE UNDERBODY WATER DELIVERY PIPE $301.93 To Order
Photo Part No Description Price (each) Stock
842587 MULTI-WAY INLET HOSE $35.87 To Order
Photo Part No Description Price (each) Stock
990083 MULTI-WAY DELIVERY HOSE $89.72 To Order
Photo Part No Description Price (each) Stock
775279 MULTI-WAY PIPE COMPLETE WITH HOSES AND FLANGE $569.04 To Order
55044389 MULTI-WAY PIPE COMPLETE WITH HOSES AND FLANGE $556.38 To Order
Photo Part No Description Price (each) Stock
996458 METAL DELIVERY PIPE ON ENGINE $513.30 To Order
Photo Part No Description Price (each) Stock
841305 ENGINE SIDE RETURN HOSE Enquire To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
320600 CLIP $2.10 To Order
Photo Part No Description Price (each) Stock
841306 MULTI-WAY HOSE MOUNTING BRACKET $21.49 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
250888 GASKET $0.64 To Order
Photo Part No Description Price (each) Stock
329366 RETAINER BLOCK PLATE $6.07 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
329368 RETAINER BLOCK BUSH $0.67 To Order
Photo Part No Description Price (each) Stock
841314 REAR MULTI-WAY HOSE MOUNTING BRACKET $46.77 To Order
Photo Part No Description Price (each) Stock
790973 CABLE GUIDES $7.67 To Order
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
329367 RETAINER BLOCK $7.82 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
329367 RETAINER BLOCK $7.82 To Order
View All

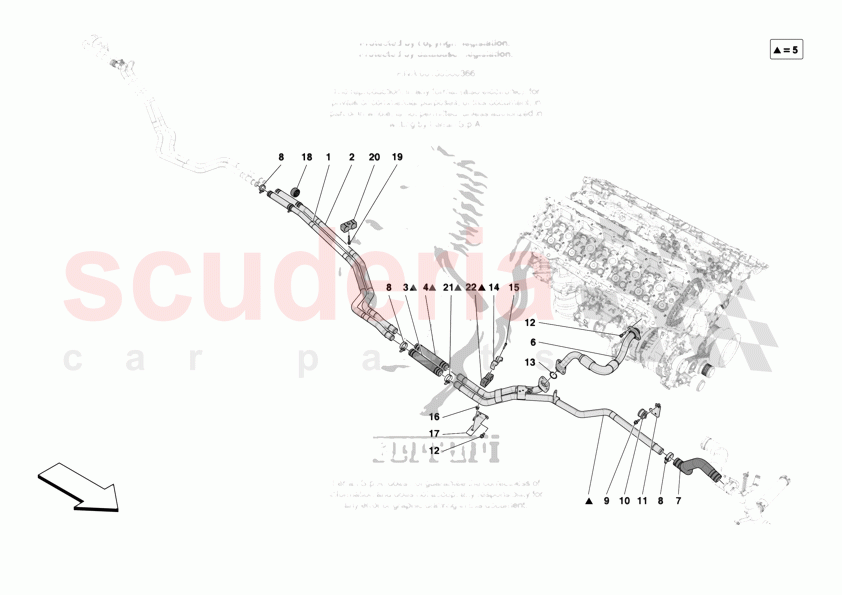

GEARBOX OIL HEAT EXCHANGER AND PIPES - FRONT-UNDERBODY PIPES of Ferrari Ferrari 12Cilindri Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 841334
ENGINE SIDE UNDERBODY WATER RETURN PIPE 		$211.35 1
2 842585
ENGINE SIDE UNDERBODY WATER DELIVERY PIPE 		$301.93 1
3 842587
MULTI-WAY INLET HOSE 		$35.87 1
4 990083
MULTI-WAY DELIVERY HOSE 		$89.72 1
5 775279
MULTI-WAY PIPE COMPLETE WITH HOSES AND FLANGE
Not applicable for: NIRL 		$569.04 1
5 55044389
MULTI-WAY PIPE COMPLETE WITH HOSES AND FLANGE 		$556.38 1
6 996458
METAL DELIVERY PIPE ON ENGINE 		$513.30 1
7 841305
ENGINE SIDE RETURN HOSE 		- 1 Enquire
8 262111
SCREW CLAMP 		$1.39 6
9 248334
SCREW
M6 X 16
IN STOCK 		$0.58 1
10 320600
CLIP 		$2.10 1
11 841306
MULTI-WAY HOSE MOUNTING BRACKET 		$21.49 1
12 231619
SCREW
M6 X 22
IN STOCK 		$0.29 7
13 250888
GASKET 		$0.64 2
14 329366
RETAINER BLOCK PLATE 		$6.07 4
15 231622
SCREW
M6 X 35
IN STOCK 		$0.34 (32% off) 1
16 329368
RETAINER BLOCK BUSH 		$0.67 8
17 841314
REAR MULTI-WAY HOSE MOUNTING BRACKET 		$46.77 1
18 790973
CABLE GUIDES 		$7.67 1
19 231625
SCREW
L. 40 mm
IN STOCK 		$0.56 3
20 329367
RETAINER BLOCK 		$7.82 3
21 262111
SCREW CLAMP 		$1.39 2
22 329367
RETAINER BLOCK 		$7.82 1
