Complete Cylinder Head (Without Camshaft) Cylinder Head Cover Cylinder Head Gasket…

Bentley New Flying Spur (2020-2024)

Illustration Number: 103020

Find Your Part

Bentley New Flying Spur (2020-2024) - Complete cylinder head (without camshaft) cylinder head cover Cylinder head gasket Retainer for... (103020)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7P103470J cylinder head cover also use: $1,269.71 To Order
Photo Part No Description Price (each) Stock
7P103469N cylinder head cover also use: $1,269.71 To Order
Photo Part No Description Price (each) Stock
7P109091C Seal $32.78 To Order
Photo Part No Description Price (each) Stock
7P103517 Seal $32.78 To Order
Photo Part No Description Price (each) Stock
N10700201 Hexagon socket head bolt $1.53 IN STOCK
Photo Part No Description Price (each) Stock
N10700201 Hexagon socket head bolt $1.53 IN STOCK
Photo Part No Description Price (each) Stock
7P103149E Cylinder head gasket If required use also item: $100.28 To Order
Photo Part No Description Price (each) Stock
7P103148E Cylinder head gasket If required use also item: $100.28 To Order
Photo Part No Description Price (each) Stock
N90502601 dowel sleeve $1.11 To Order
Photo Part No Description Price (each) Stock
7P103794 Complete cylinder head (without camshaft) Item/items not included: Use also from illustration: D >> - 20.03.2023 $4,232.41 To Order
7P103794A Complete cylinder head (without camshaft) Item/items not included: Use also from illustration: D - 20.03.2023>> $4,232.41 To Order
Photo Part No Description Price (each) Stock
7P103793 Complete cylinder head (without camshaft) Item/items not included: Use also from illustration: D >> - 20.03.2023 $4,232.41 To Order
7P103793A Complete cylinder head (without camshaft) Item/items not included: Use also from illustration: D - 20.03.2023>> $4,232.41 To Order
Photo Part No Description Price (each) Stock
N90279006 Hexagon collar nut $1.20 IN STOCK
Photo Part No Description Price (each) Stock
30103397A Threaded pin $3.09 To Order
Photo Part No Description Price (each) Stock
N90332701 spring pin $0.70 To Order
Photo Part No Description Price (each) Stock
N0145555 Threaded pin also use: $2.14 To Order
Photo Part No Description Price (each) Stock
WHT004782 Threaded pin also use: $1.28 To Order
Photo Part No Description Price (each) Stock
N90898202 End cap $1.93 To Order
Photo Part No Description Price (each) Stock
7P103392F Retainer for motor transport $17.82 To Order
Photo Part No Description Price (each) Stock
7P103392H Retainer for motor transport $17.82 To Order
Photo Part No Description Price (each) Stock
N91048804 Socket head collared bolt with inner multipoint head $1.97 To Order
Photo Part No Description Price (each) Stock
WHT005265 Socket head bolt with inner multipoint head $1.88 IN STOCK
WHT005265 Socket head bolt with inner multipoint head $1.88 IN STOCK
Photo Part No Description Price (each) Stock
WHT003707 Socket head bolt with inner multipoint head $3.08 IN STOCK
Photo Part No Description Price (each) Stock
D176501A1 Silicon sealant $22.65 To Order
Photo Part No Description Price (each) Stock
3SA198057 Repair set for cylinder head $5,145.60 To Order
View All

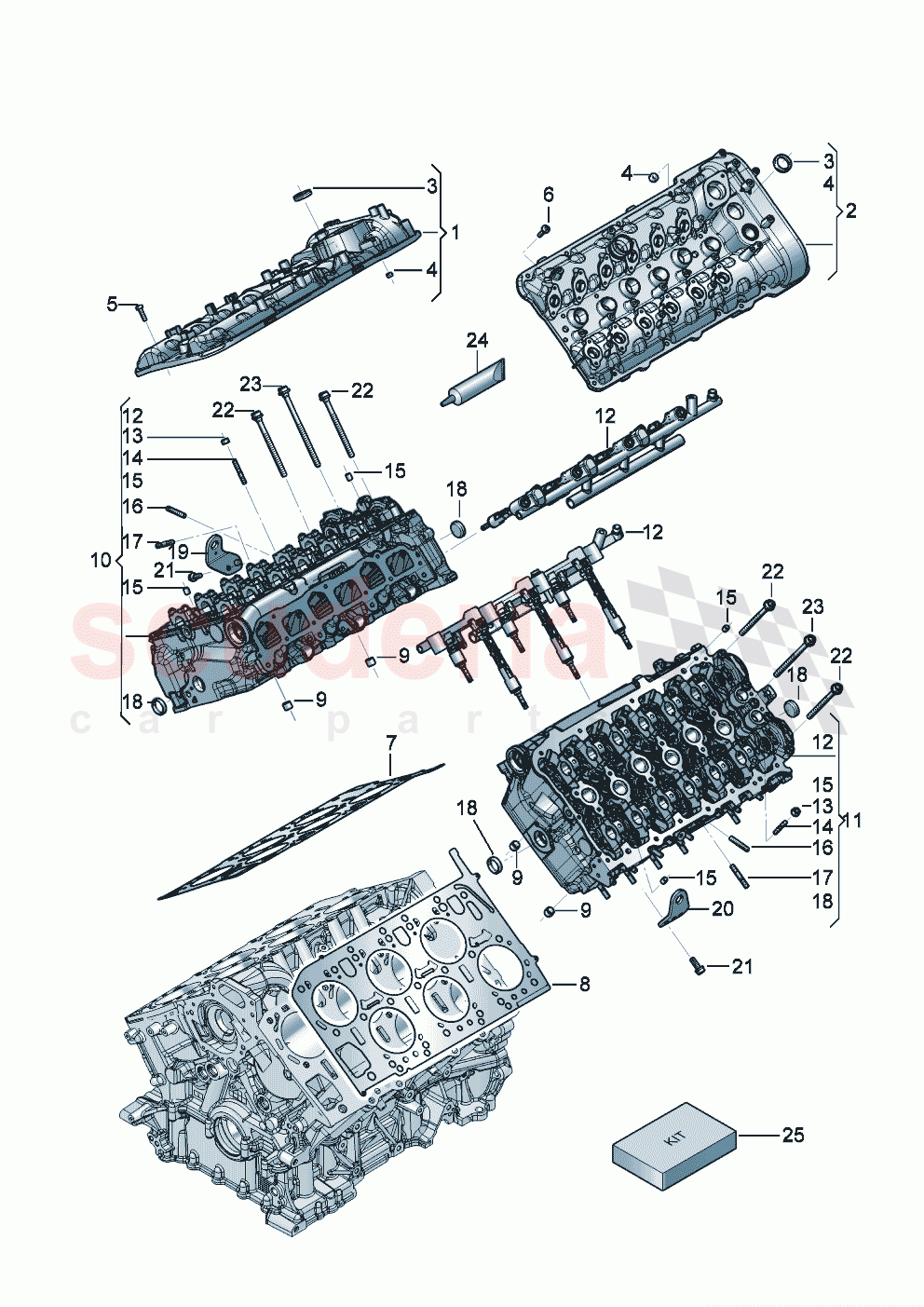

Complete cylinder head (without camshaft) cylinder head cover Cylinder head gasket Retainer for motor transport of Bentley Bentley New Flying Spur (2020-2024) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 7P103470J
cylinder head cover also use:
Cylinder 1-6 D 176 501 A1 		$1,269.71 1
2 7P103469N
cylinder head cover also use:
cylinders 7-12 D 176 501 A1 		$1,269.71 1
3 7P109091C
Seal 		$32.78 4
4 7P103517
Seal 		$32.78 2
5 N10700201
Hexagon socket head bolt
M6X22
IN STOCK 		$1.53 22
6 N10700201
Hexagon socket head bolt
M6X22
IN STOCK 		$1.53 23
7 7P103149E
Cylinder head gasket If required use also item:
Cylinder 1-6 13 		$100.28 1
8 7P103148E
Cylinder head gasket If required use also item:
cylinders 7-12 13 		$100.28 1
9 N90502601
dowel sleeve
14X12 		$1.11 4
10 7P103794
Complete cylinder head (without camshaft) Item/items not included: Use also from illustration: D >> - 20.03.2023
Cylinder 1-6 12 133-040,17 		$4,232.41 1
10 7P103794A
Complete cylinder head (without camshaft) Item/items not included: Use also from illustration: D - 20.03.2023>>
Cylinder 1-6 12 133-040,17 		$4,232.41 1
11 7P103793
Complete cylinder head (without camshaft) Item/items not included: Use also from illustration: D >> - 20.03.2023
cylinders 7-12 12 133-040,17 		$4,232.41 1
11 7P103793A
Complete cylinder head (without camshaft) Item/items not included: Use also from illustration: D - 20.03.2023>>
cylinders 7-12 12 133-040,17 		$4,232.41 1
13 N90279006
Hexagon collar nut
M7
IN STOCK 		$1.20 58
14 30103397A
Threaded pin
M7X45 		$3.09 58
15 N90332701
spring pin
9X11,8 		$0.70 4
16 N0145555
Threaded pin also use:
M8X44 LOCTITE 272 		$2.14 16
17 WHT004782
Threaded pin also use:
M8X34 LOCTITE 272 		$1.28 12
18 N90898202
End cap
D=30MM 		$1.93 4
19 7P103392F
Retainer for motor transport
Cylinder 1-6 upper rear 		$17.82 1
20 7P103392H
Retainer for motor transport
cylinders 7-12 upper front 		$17.82 1
21 N91048804
Socket head collared bolt with inner multipoint head
M8X20 		$1.97 2
22 WHT005265
Socket head bolt with inner multipoint head
M9X115X80 Cylinder 1-6
IN STOCK 		$1.88 13
22 WHT005265
Socket head bolt with inner multipoint head
M9X115X80 cylinders 7-12
IN STOCK 		$1.88 14
23 WHT003707
Socket head bolt with inner multipoint head
M9X145
IN STOCK 		$3.08 14
24 D176501A1
Silicon sealant
50ml 		$22.65 -
25 3SA198057
Repair set for cylinder head 		$5,145.60 1
