Air Supply Unit Pressure Accumulator Air Line Connecting Parts For Self- Levelling

Bentley New Flying Spur (2020-2024)

Illustration Number: 616015

Find Your Part

Bentley New Flying Spur (2020-2024) - Air supply unit Pressure accumulator Air line connecting parts for self- levelling (616015)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
971616202 Pressure accumulator $541.40 To Order
Photo Part No Description Price (each) Stock
7L0616758 Connection piece $35.79 To Order
7L0616757 push-on connector $27.02 To Order
Photo Part No Description Price (each) Stock
971616711B Air line $55.93 To Order
N10158605 bolt,hex.hd.with shoul.(combi) $0.86 To Order
Photo Part No Description Price (each) Stock
971616006G Compressor single parts see: D - 01.09.2020>> - 03.10.2023 $2,861.72 To Order
971616006H Compressor single parts see: D - 04.10.2023>> $2,861.72 To Order
971616006G Compressor single parts see: D - 01.09.2020>> - 03.10.2023 $2,861.72 To Order
Photo Part No Description Price (each) Stock
N90887703 Hexagon flange nut, self-locking $1.29 IN STOCK
Photo Part No Description Price (each) Stock
3SE616675A Air line $175.30 To Order
3SE616715A Air pipe $174.00 To Order
3SE616647A Air line $90.56 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
971616795C Hose $49.31 To Order
N90757901 Hexagon collar nut $1.03 To Order
Photo Part No Description Price (each) Stock
971010 retaining plate for cable binder (self-adhesive) $3.35 To Order
N10772901 toothed lock washer $1.89 To Order
Photo Part No Description Price (each) Stock
N90681601 Corrugated tube clip $0.24 To Order
971616711 Air line $49.14 To Order
Photo Part No Description Price (each) Stock
99951265109 Hose clamp $3.18 To Order
3SE616675 Air line $175.30 To Order
3SE616715 Air pipe $203.02 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4F0616241 Connection piece $35.79 To Order
Photo Part No Description Price (each) Stock
3SE616795 Intake hose Enquire To Order
4B0616751 Connection piece $35.79 To Order
7L0616758 Connection piece $35.79 To Order
Photo Part No Description Price (each) Stock
3W0854551 Edge protection $6.57 To Order
Photo Part No Description Price (each) Stock
3D0971838M cable tie with terminal socket $1.64 IN STOCK
3SA616795 Intake hose $35.45 To Order
Photo Part No Description Price (each) Stock
4F0616241 Connection piece $35.79 To Order
3D0971838L cable tie with terminal socket $1.98 IN STOCK
Photo Part No Description Price (each) Stock
4B0616751 Connection piece $35.79 To Order
5M0971838A cable tie with terminal socket $1.54 To Order
Photo Part No Description Price (each) Stock
99951265109 Hose clamp $3.18 To Order
View All

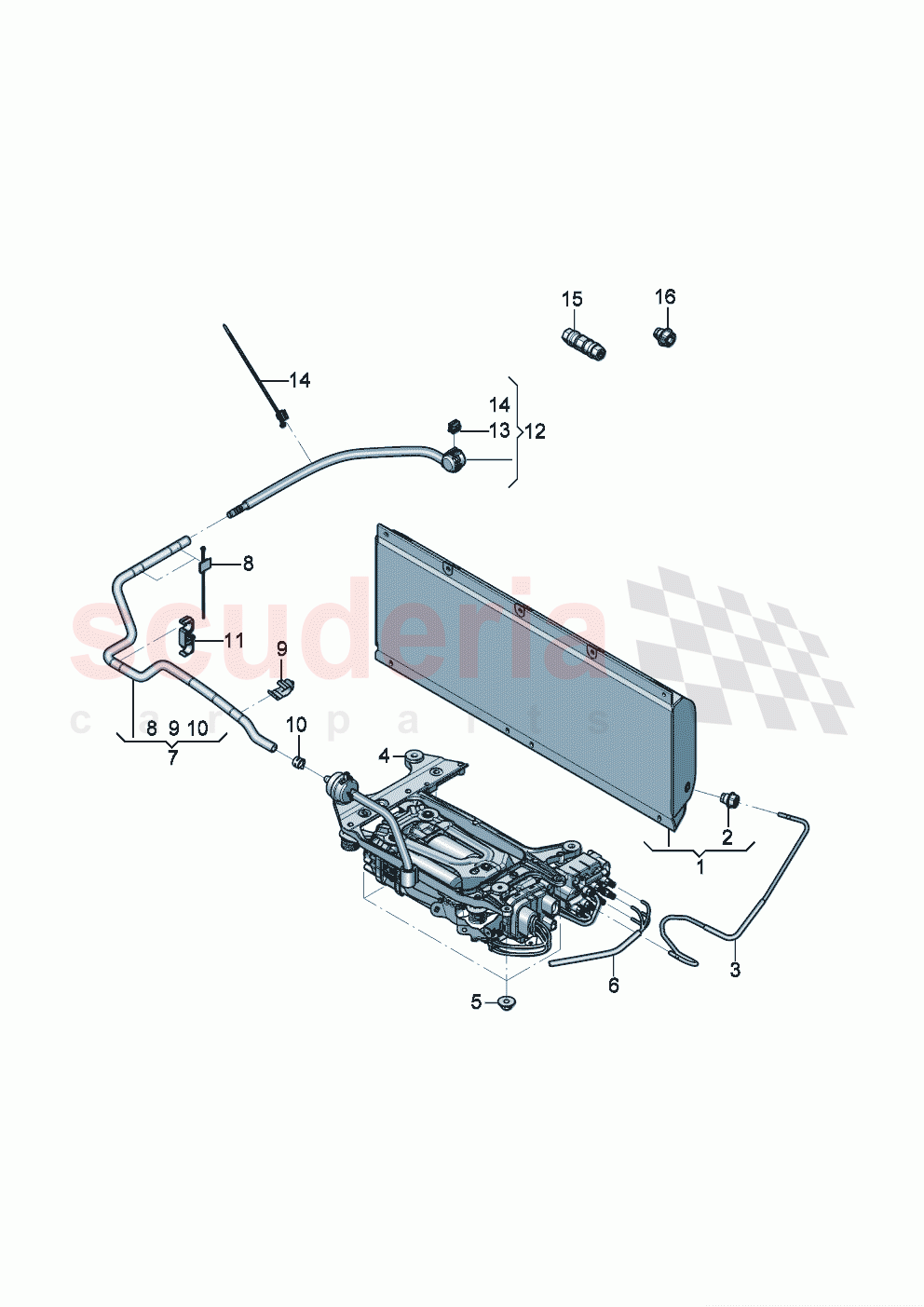

Air supply unit Pressure accumulator Air line connecting parts for self- levelling of Bentley Bentley New Flying Spur (2020-2024) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 971616202
Pressure accumulator 		$541.40 1
2 7L0616758
Connection piece
M10X1 		$35.79 1
2 7L0616757
push-on connector
M10X1 		$27.02 1
3 971616711B
Air line 		$55.93 1
3 N10158605
bolt,hex.hd.with shoul.(combi)
M6X16 		$0.86 3
4 971616006G
Compressor single parts see: D - 01.09.2020>> - 03.10.2023
616-020 		$2,861.72 1
4 971616006H
Compressor single parts see: D - 04.10.2023>>
616-020 		$2,861.72 1
4 971616006G
Compressor single parts see: D - 01.09.2020>> - 03.10.2023
616-020 		$2,861.72 1
5 N90887703
Hexagon flange nut, self-locking
IN STOCK 		$1.29 4
6 3SE616675A
Air line
left front red 7585MM 		$175.30 1
6 3SE616715A
Air pipe
right front green 9100MM 		$174.00 1
6 3SE616647A
Air line
left rear black 1300MM 		$90.56 1
6 3SE616649A
Air line
right rear blue 1950MM 		$100.79 1
6 3SA616141A
Retainer for air filter 		$14.94 1
7 971616795C
Hose 		$49.31 1
7 N90757901
Hexagon collar nut
M6X20 		$1.03 1
8 971010
retaining plate for cable binder (self-adhesive) 		$3.35 2
8 N10772901
toothed lock washer
15X25X30 		$1.89 1
9 N90681601
Corrugated tube clip
13 		$0.24 1
9 971616711
Air line
6MM 		$49.14 1
10 99951265109
Hose clamp
15X12 		$3.18 1
10 3SE616675
Air line
left front red 7645MM 		$175.30 1
10 3SE616715
Air pipe
right front green 9135MM 		$203.02 1
10 3SE616647
Air line
left rear black 1224MM 		$90.56 1
10 3SE616649
Air line
right rear blue 1842MM 		$100.79 1
11 4F0616241
Connection piece
4MM 		$35.79 -
12 3SE616795
Intake hose 		- 1 Enquire
12 4B0616751
Connection piece
M8X1 		$35.79 -
12 7L0616758
Connection piece
M10X1 		$35.79 -
13 3W0854551
Edge protection 		$6.57 1
14 3D0971838M
cable tie with terminal socket
4,6X200
IN STOCK 		$1.64 1
14 3SA616795
Intake hose 		$35.45 1
15 4F0616241
Connection piece 		$35.79 -
15 3D0971838L
cable tie with terminal socket
4,6X200
IN STOCK 		$1.98 1
16 4B0616751
Connection piece
M8X1 		$35.79 -
16 5M0971838A
cable tie with terminal socket
1-3MM vertical outer 		$1.54 1
17 99951265109
Hose clamp
15X12 		$3.18 1
