High-Voltage Battery D - 08.11.2021>>

Bentley New Flying Spur (2020-2024)

Illustration Number: 915055

Find Your Part

Bentley New Flying Spur (2020-2024) - High-voltage battery D - 08.11.2021>> (915055)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
971915099F Battery $24,186.64 To Order
971915099G Battery $24,186.64 To Order
Photo Part No Description Price (each) Stock
971804918B Console High-voltage battery $567.37 To Order
Photo Part No Description Price (each) Stock
N91151101 hexagon head bolt (combi) $3.42 To Order
Photo Part No Description Price (each) Stock
N10695701 Hex collared bolt $2.05 To Order
Photo Part No Description Price (each) Stock
N90920301 rivetted cap nut Included in position: $1.03 To Order
Photo Part No Description Price (each) Stock
N10831701 Screw with int. serrations $2.05 To Order
Photo Part No Description Price (each) Stock
N91157202 Socket head collared bolt with inner multipoint head $2.04 To Order
Photo Part No Description Price (each) Stock
N10717001 Socket head bolt with inner multipoint head $1.88 To Order
Photo Part No Description Price (each) Stock
971802245A Console High-voltage battery contains: $117.56 To Order
Photo Part No Description Price (each) Stock
971803454 Console High-voltage battery contains: $110.73 To Order
Photo Part No Description Price (each) Stock
971802246A Console High-voltage battery contains: $117.56 To Order
Photo Part No Description Price (each) Stock
N91021102 Flat head multi-point socket bolt $1.19 To Order
Photo Part No Description Price (each) Stock
971804835 Pressure accumulator Console $225.57 To Order
Photo Part No Description Price (each) Stock
N10714801 Oval hexagon socket head bolt $0.86 To Order
Photo Part No Description Price (each) Stock
971804264C Reinforcement High-voltage battery $423.81 To Order
Photo Part No Description Price (each) Stock
N91235101 Oval head locating bolt with multi-point socket head $1.63 To Order
Photo Part No Description Price (each) Stock
N91151101 hexagon head bolt (combi) $3.42 To Order
Photo Part No Description Price (each) Stock
N10717001 Socket head bolt with inner multipoint head $1.88 To Order
Photo Part No Description Price (each) Stock
971971235C Earth line High-voltage battery $58.43 To Order
Photo Part No Description Price (each) Stock
N90737804 Socket head bolt with inner multipoint head $0.69 To Order
Photo Part No Description Price (each) Stock
4M0915254AD relay plate High-voltage battery $3,370.14 To Order
4M0915254AE relay plate High-voltage battery $3,370.14 To Order
Photo Part No Description Price (each) Stock
4M4915233K Control unit for battery monitoring $337.74 To Order
View All

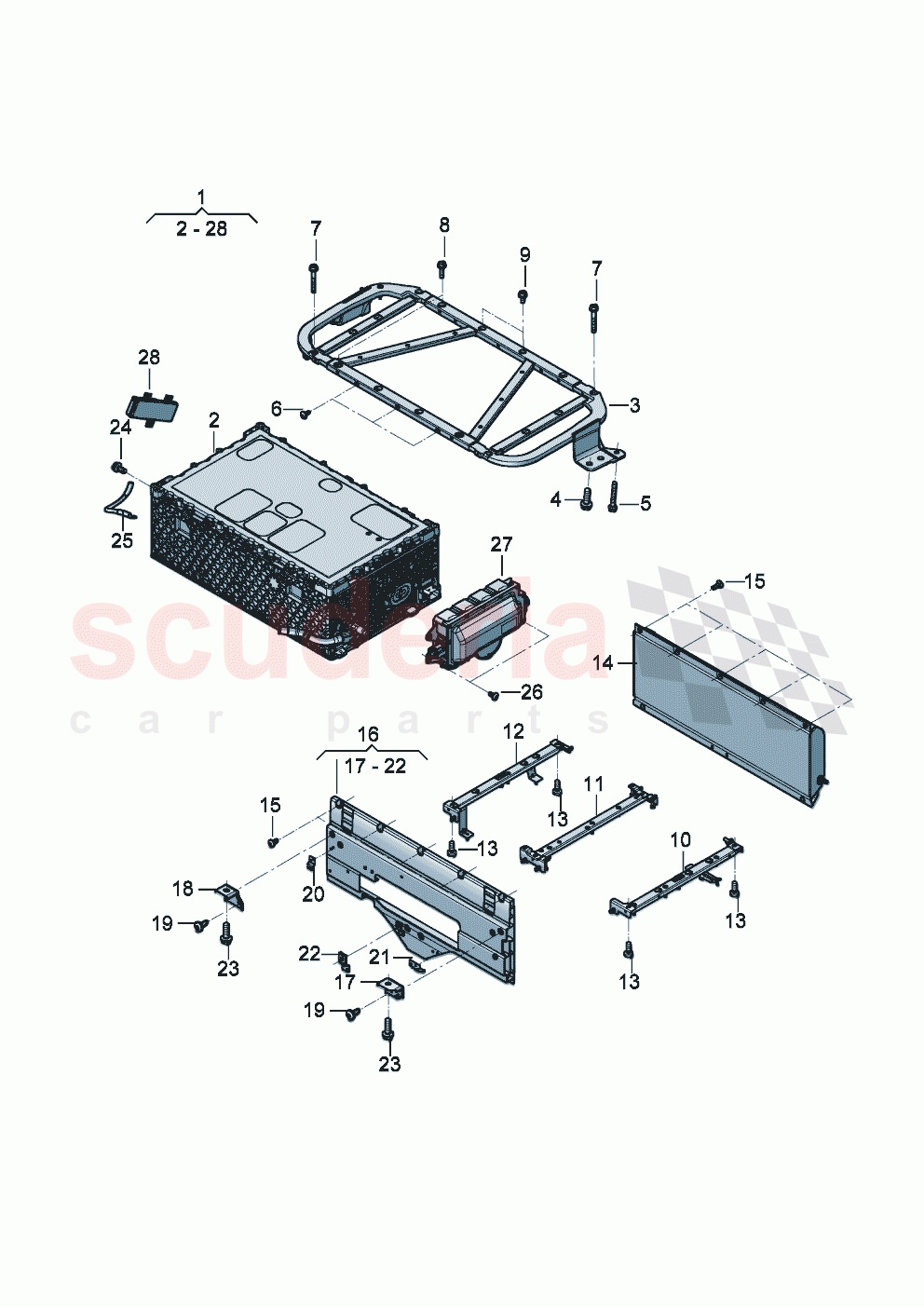

High-voltage battery D - 08.11.2021>> of Bentley Bentley New Flying Spur (2020-2024) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 971915099F
Battery
ROW 		$24,186.64 1
1 971915099G
Battery
China 		$24,186.64 1
3 971804918B
Console High-voltage battery
upper 		$567.37 1
4 N91151101
hexagon head bolt (combi)
M12X1,5X42 		$3.42 4
5 N10695701
Hex collared bolt
M8X65 		$2.05 2
6 N90920301
rivetted cap nut Included in position:
M6/0,5-3 3 		$1.03 6
7 N10831701
Screw with int. serrations
M8X60 		$2.05 4
8 N91157202
Socket head collared bolt with inner multipoint head
M8X30 		$2.04 4
9 N10717001
Socket head bolt with inner multipoint head
M8X18 		$1.88 8
10 971802245A
Console High-voltage battery contains:
lower left N 911 010 01 		$117.56 12
11 971803454
Console High-voltage battery contains:
lower center N 911 010 01 		$110.73 14
12 971802246A
Console High-voltage battery contains:
lower right N 911 010 01 		$117.56 12
13 N91021102
Flat head multi-point socket bolt
M8X25 		$1.19 4
14 971804835
Pressure accumulator Console 		$225.57 1
15 N10714801
Oval hexagon socket head bolt
M6X16 		$0.86 18
16 971804264C
Reinforcement High-voltage battery
Front 		$423.81 1
19 N91235101
Oval head locating bolt with multi-point socket head
M8X20 		$1.63 4
23 N91151101
hexagon head bolt (combi)
M12X1,5X42 		$3.42 2
24 N10717001
Socket head bolt with inner multipoint head
M8X18 		$1.88 1
25 971971235C
Earth line High-voltage battery 		$58.43 1
26 N90737804
Socket head bolt with inner multipoint head
M6X14.0 		$0.69 5
27 4M0915254AD
relay plate High-voltage battery
PR:B0A,B0E, B0L,B0M,B0R, B0T,B2H 		$3,370.14 1
27 4M0915254AE
relay plate High-voltage battery
China ,PR:B1P 		$3,370.14 1
28 4M4915233K
Control unit for battery monitoring 		$337.74 1
