Name: Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil level sensor
Rating: 4.7 (1 reviews)

Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil level sensor of Bentley Bentley New Continental Convertible (2019-2024)

View All

Bentley New Continental Convertible (2019-2024) - Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil... (103000)

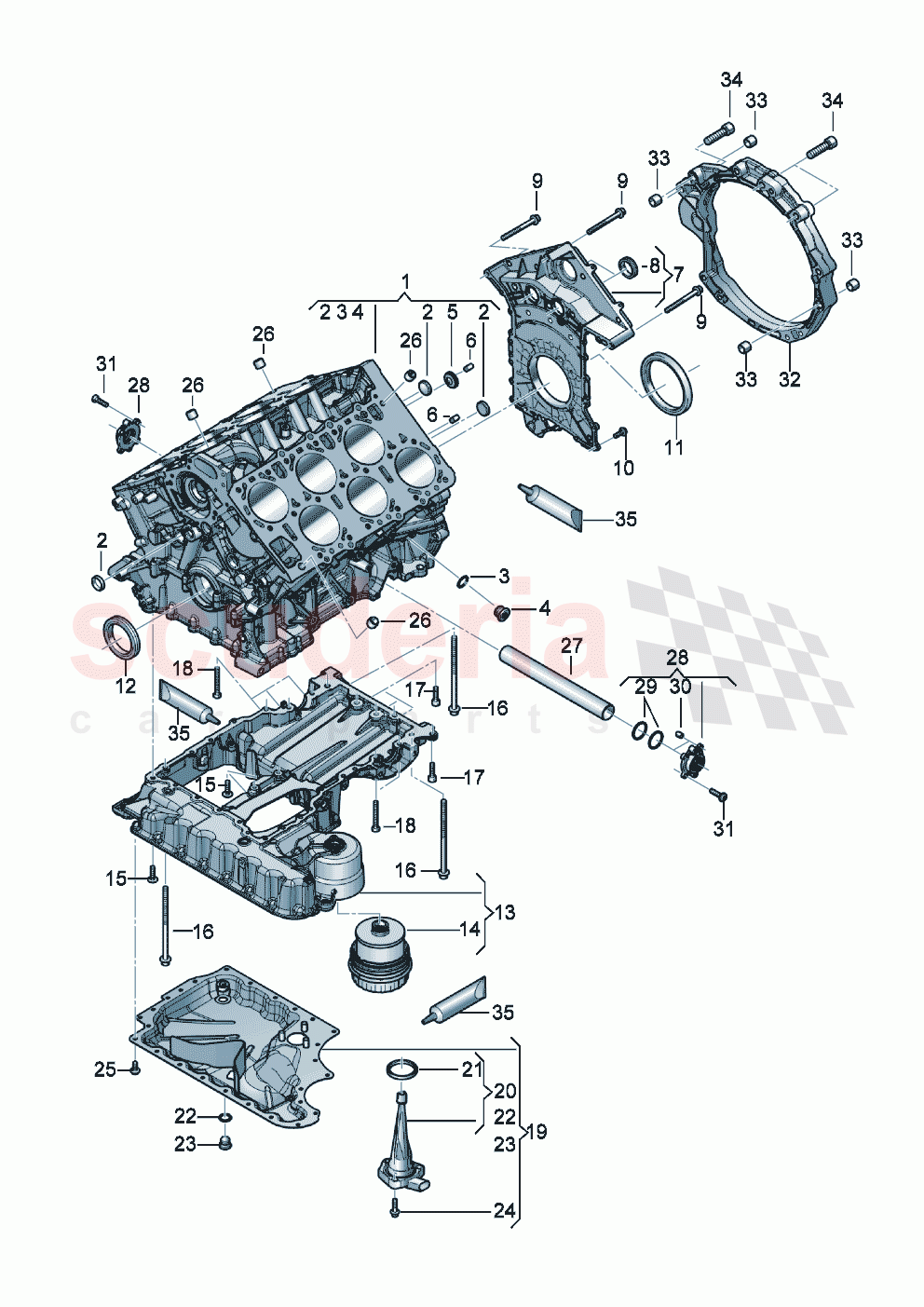

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	N0119149	End cap	$1.33	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138321	seal ring	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	N91196501	sealing plug	$5.84	To Order

Photo	Part No	Description	Price (each)	Stock
	7C103381D	sealing plug	$11.15	To Order

Photo	Part No	Description	Price (each)	Stock
	N0131911	Cylinder pin	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	7P103171H	Sealing flange also use: D - 21.05.2018>>	$556.78	To Order

Photo	Part No	Description	Price (each)	Stock
	7P109091C	Seal	$32.94	To Order

Photo	Part No	Description	Price (each)	Stock
	N91165101	Hexagon socket flat head bolt	$1.89	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91168701	Hexalobular flange screw	$1.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	21103051C	shaft oil seal	$69.25	To Order

Photo	Part No	Description	Price (each)	Stock
	7P103085A	Shaft oil seal	$120.08	To Order

Photo	Part No	Description	Price (each)	Stock
	7P103803AE	Engine oil sump upper part also use: D - 26.03.2018>>	$547.76	To Order

Photo	Part No	Description	Price (each)	Stock
	N10644404	Hexagon socket flat head bolt	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	N10627901	Socket head bolt with inner multipoint head (Kombi)	$5.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91021502	round hd. screw	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	N10562603	round hd. screw	$1.20	To Order

Photo	Part No	Description	Price (each)	Stock
	7P103800J	Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>>	$642.70	To Order

Photo	Part No	Description	Price (each)	Stock
	7P907660	oil level sensor	$134.03	To Order

Photo	Part No	Description	Price (each)	Stock
	38103196B	seal ring	$8.37	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138157	seal ring use only in conjunction with: D - 07.12.2018>>	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91167901	sealing plug	$4.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91180401	Hexalobular flange screw to be used for item:	$1.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91126102	Hexagon socket flat head bolt	$1.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90502601	dowel sleeve	$1.12	To Order

Photo	Part No	Description	Price (each)	Stock
	6M103689D	Tube	$24.98	To Order

Photo	Part No	Description	Price (each)	Stock
	7P103191A	Cover with seal also use:	$74.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N90713203	O-ring	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	N91020801	dowel sleeve	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	N10700201	Hexagon socket head bolt	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7P103551A	Intermediate plate	$154.64	To Order

Photo	Part No	Description	Price (each)	Stock
	22103139B	dowel sleeve	$4.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10624601	Socket head bolt with inner multipoint head	$22.67	To Order

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	$22.77	To Order

View All

Diagram Tap to enlarge

Crankcase Housing Sealing Flange Engine Oil Sump Upper Part Engine Oil Sump Lower …

Bentley New Continental Convertible (2019-2024)

Illustration Number: 103000

Bentley New Continental Convertible (2019-2024) - Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil... (103000)

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	N0119149	End cap	N0119149 End cap D=24MM	$1.33	5
3	N0138321	seal ring	N0138321 seal ring 18X22 ALU	$2.23	1
4	N91196501	sealing plug	N91196501 sealing plug M18X1,5	$5.84	1
5	7C103381D	sealing plug	7C103381D sealing plug	$11.15	1
6	N0131911	Cylinder pin	N0131911 Cylinder pin 8X14,5	$0.71	2
7	7P103171H	Sealing flange also use: D - 21.05.2018>>	7P103171H Sealing flange also use: D - 21.05.2018>> lower rear D 176 501 A1	$556.78	11
8	7P109091C	Seal	7P109091C Seal	$32.94	2
9	N91165101	Hexagon socket flat head bolt IN STOCK	N91165101 Hexagon socket flat head bolt M6X70 IN STOCK	$1.89	3
10	N91168701	Hexalobular flange screw IN STOCK	N91168701 Hexalobular flange screw M6X18 IN STOCK	$1.81	19
11	21103051C	shaft oil seal	21103051C shaft oil seal rear	$69.25	1
12	7P103085A	Shaft oil seal	7P103085A Shaft oil seal 58X70X7	$120.08	1
13	7P103803AE	Engine oil sump upper part also use: D - 26.03.2018>>	7P103803AE Engine oil sump upper part also use: D - 26.03.2018>> D 176 501 A1	$547.76	11
15	N10644404	Hexagon socket flat head bolt	N10644404 Hexagon socket flat head bolt M6X22	$1.03	18
16	N10627901	Socket head bolt with inner multipoint head (Kombi) IN STOCK	N10627901 Socket head bolt with inner multipoint head (Kombi) M8X138,4 IN STOCK	$5.07	3
17	N91021502	round hd. screw	N91021502 round hd. screw M8X25	$1.37	5
18	N10562603	round hd. screw	N10562603 round hd. screw M6X60	$1.20	5
19	7P103800J	Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>>	7P103800J Engine oil sump lower part with oil level sensor use only in conjunction with: also use: D - 07.12.2018>> D 176 501 A1	$642.70	11
20	7P907660	oil level sensor	7P907660 oil level sensor	$134.03	1
21	38103196B	seal ring	38103196B seal ring	$8.37	1
22	N0138157	seal ring use only in conjunction with: D - 07.12.2018>> IN STOCK	N0138157 seal ring use only in conjunction with: D - 07.12.2018>> 14X20X2 IN STOCK	$2.23	1
23	N91167901	sealing plug IN STOCK	N91167901 sealing plug M14X1,5 IN STOCK	$4.38	1
24	N91180401	Hexalobular flange screw to be used for item: IN STOCK	N91180401 Hexalobular flange screw to be used for item: M6X22 IN STOCK	$1.81	3
25	N91126102	Hexagon socket flat head bolt IN STOCK	N91126102 Hexagon socket flat head bolt M6X14 IN STOCK	$1.03	26
26	N90502601	dowel sleeve	N90502601 dowel sleeve 14X12	$1.12	4
27	6M103689D	Tube	6M103689D Tube	$24.98	1
28	7P103191A	Cover with seal also use:	7P103191A Cover with seal also use: D 176 501 A1	$74.47	21
29	N90713203	O-ring	N90713203 O-ring 31X3	$2.84	4
30	N91020801	dowel sleeve	N91020801 dowel sleeve	$0.81	4
31	N10700201	Hexagon socket head bolt IN STOCK	N10700201 Hexagon socket head bolt M6X22 IN STOCK	$1.54	8
32	7P103551A	Intermediate plate	7P103551A Intermediate plate	$154.64	1
33	22103139B	dowel sleeve IN STOCK	22103139B dowel sleeve 16X13,5 IN STOCK	$4.52	4
34	N10624601	Socket head bolt with inner multipoint head	N10624601 Socket head bolt with inner multipoint head M12X45	$22.67	3
35	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml	$22.77	-

Crankcase Housing Sealing Flange Engine Oil Sump Upper Part Engine Oil Sump Lower …

Bentley New Continental Convertible (2019-2024)

Illustration Number: 103000

Bentley New Continental Convertible (2019-2024) - Crankcase housing Sealing flange Engine oil sump upper part Engine oil sump lower part with oil... (103000)
