Find Your Part

View All

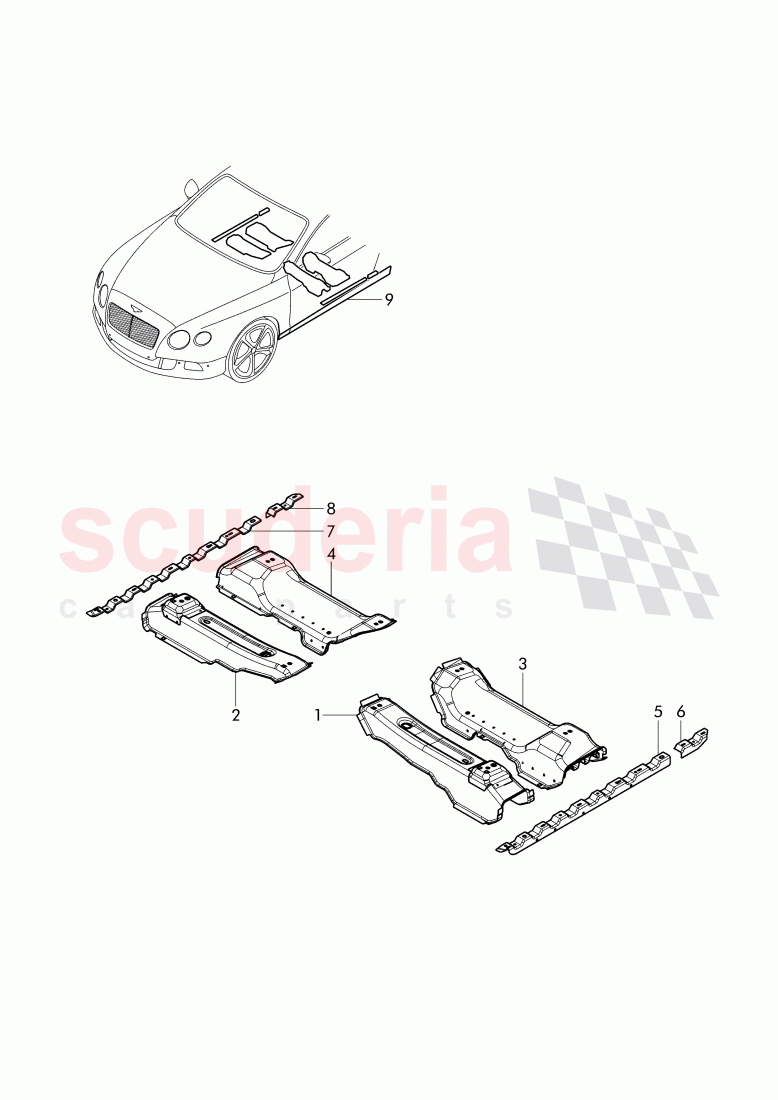

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8803173A	retaining plate for seat, attachment	$566.95	To Order

Photo	Part No	Description	Price (each)	Stock
	3W8803174A	retaining plate for seat, attachment	$566.95	To Order

Photo	Part No	Description	Price (each)	Stock
	3W8803141B	retaining plate for seat, attachment	$418.76	To Order

Photo	Part No	Description	Price (each)	Stock
	3W8803142B	retaining plate for seat, attachment	$566.95	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0802307	reinforcement plate	$39.93	To Order

Photo	Part No	Description	Price (each)	Stock
	3W8802311	reinforcement plate	$20.09	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0802308	reinforcement plate	$38.00	To Order

Photo	Part No	Description	Price (each)	Stock
	3W8802312	reinforcement plate	$20.60	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3W8803173A	retaining plate for seat, attachment	3W8803173A retaining plate for seat, attachment left front,	$566.95	1
2	3W8803174A	retaining plate for seat, attachment	3W8803174A retaining plate for seat, attachment right front,	$566.95	1
3	3W8803141B	retaining plate for seat, attachment	3W8803141B retaining plate for seat, attachment left rear,	$418.76	1
4	3W8803142B	retaining plate for seat, attachment	3W8803142B retaining plate for seat, attachment right rear,	$566.95	1
5	3D0802307	reinforcement plate	3D0802307 reinforcement plate left front,	$39.93	1
6	3W8802311	reinforcement plate	3W8802311 reinforcement plate left rear,	$20.09	1
7	3D0802308	reinforcement plate	3D0802308 reinforcement plate right front,	$38.00	1
8	3W8802312	reinforcement plate	3W8802312 reinforcement plate right rear,	$20.60	1
