Name: sub-frame, with rubber mounting
Rating: 4.8 (1 reviews)

View All

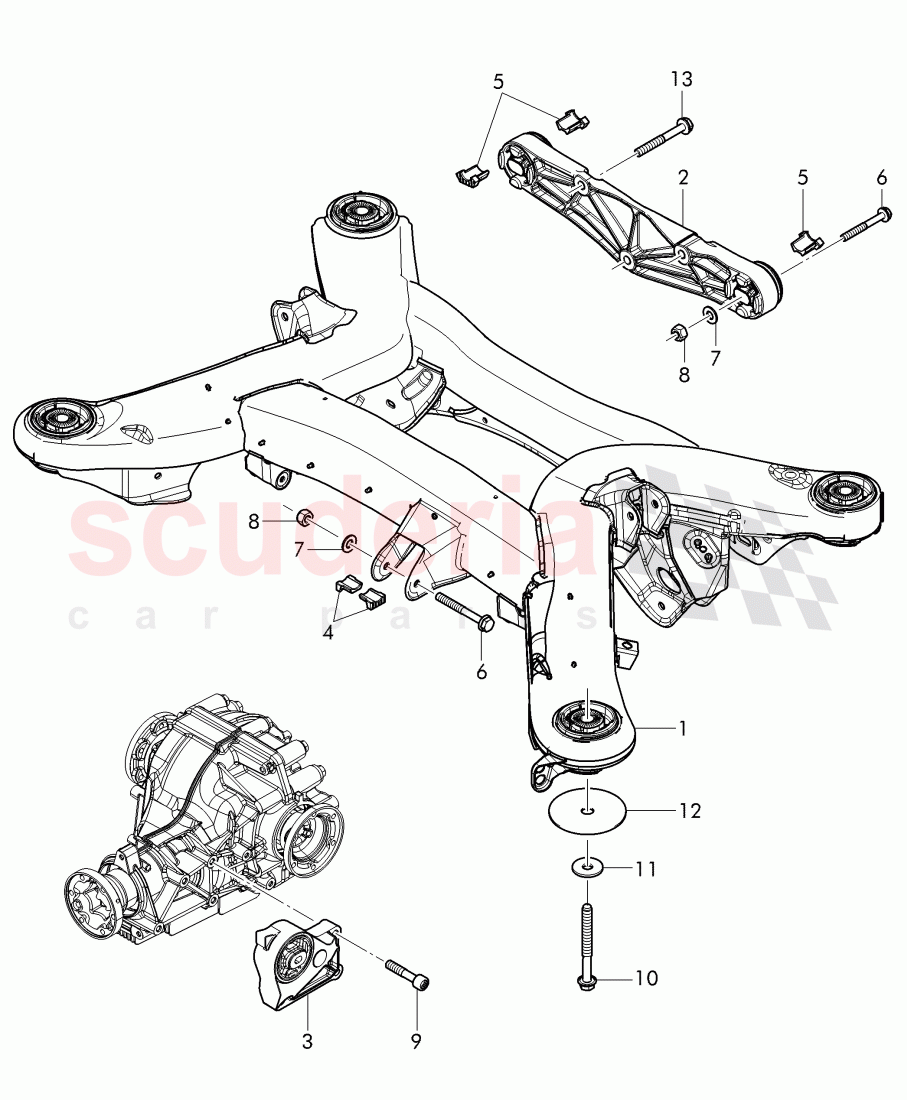

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8505235	sub frame, D - 01.10.2012>>	$4,205.67	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0599285A	cross member, D - 24.08.2015>>	$459.98	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0599125E	support for transmission	$335.86	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0599337	insert	$12.77	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0505209	insert	$60.45	To Order

Photo	Part No	Description	Price (each)	Stock
	N10232904	hexagon head bolt (combi)	$2.66	To Order

Photo	Part No	Description	Price (each)	Stock
	N01152721	washer	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	N10209009	hexagon nut, self-locking	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	N90668204	socket head bolt with inner multipoint head	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	N90975302	bolt, hex. hd. with shoulder	$6.36	To Order

Photo	Part No	Description	Price (each)	Stock
	N90625003	washer	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0505189	stop, D - 31.10.2011>>	$14.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10452902	socket head bolt with hexagon socket head (combination)	$3.01	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3W8505235	sub frame, D - 01.10.2012>>	3W8505235 sub frame, D - 01.10.2012>>	$4,205.67	1
2	3W0599285A	cross member, D - 24.08.2015>>	3W0599285A cross member, D - 24.08.2015>>	$459.98	1
3	3D0599125E	support for transmission	3D0599125E support for transmission	$335.86	1
4	3W0599337	insert	3W0599337 insert	$12.77	2
5	3W0505209	insert	3W0505209 insert	$60.45	2
6	N10232904	hexagon head bolt (combi)	N10232904 hexagon head bolt (combi) M10X83,	$2.66	3
7	N01152721	washer	N01152721 washer	$1.37	3
8	N10209009	hexagon nut, self-locking	N10209009 hexagon nut, self-locking M10,	$1.29	3
9	N90668204	socket head bolt with inner multipoint head	N90668204 socket head bolt with inner multipoint head M10X48,	$2.49	4
10	N90975302	bolt, hex. hd. with shoulder	N90975302 bolt, hex. hd. with shoulder M14X135,	$6.36	4
11	N90625003	washer	N90625003 washer	$1.46	4
12	3D0505189	stop, D - 31.10.2011>> IN STOCK	3D0505189 stop, D - 31.10.2011>> IN STOCK	$14.88	4
13	N10452902	socket head bolt with hexagon socket head (combination)	N10452902 socket head bolt with hexagon socket head (combination) M12X42,5,	$3.01	3

Sub-Frame, With Rubber Mounting

Bentley Continental Supersports (2017+)
