Find Your Part

View All

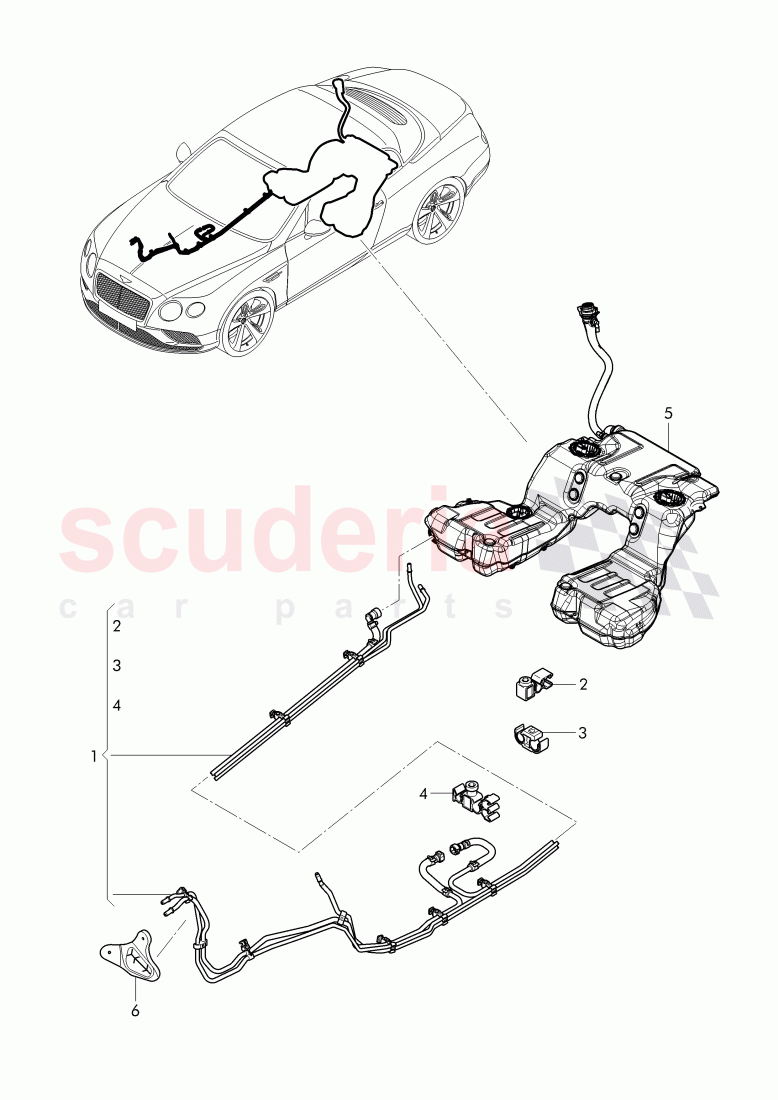

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W8201059D	fuel line with, breather and vacuum, pipe, D - 26.03.2012>>	$773.94	To Order

Photo	Part No	Description	Price (each)	Stock
	3W8201278	clamp	$22.66	To Order

Photo	Part No	Description	Price (each)	Stock
	1H0201449C	clamp, D - 26.03.2012>>	$3.56	To Order

Photo	Part No	Description	Price (each)	Stock
	3W8201679	clamp	$26.79	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0201180	Grommet for fuel supply, line, D - 23.05.2012>>	$18.39	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3W8201059D	fuel line with, breather and vacuum, pipe, D - 26.03.2012>>	3W8201059D fuel line with, breather and vacuum, pipe, D - 26.03.2012>>	$773.94	1
2	3W8201278	clamp	3W8201278 clamp (single pipe), 8 + 10MM,	$22.66	1
3	1H0201449C	clamp, D - 26.03.2012>>	1H0201449C clamp, D - 26.03.2012>> 8MM+10MM,	$3.56	2
4	3W8201679	clamp	3W8201679 clamp (single pipe), 2X8 + 10 + 7MM,	$26.79	6
6	3W0201180	Grommet for fuel supply, line, D - 23.05.2012>>	3W0201180 Grommet for fuel supply, line, D - 23.05.2012>>	$18.39	1
