Find Your Part

View All

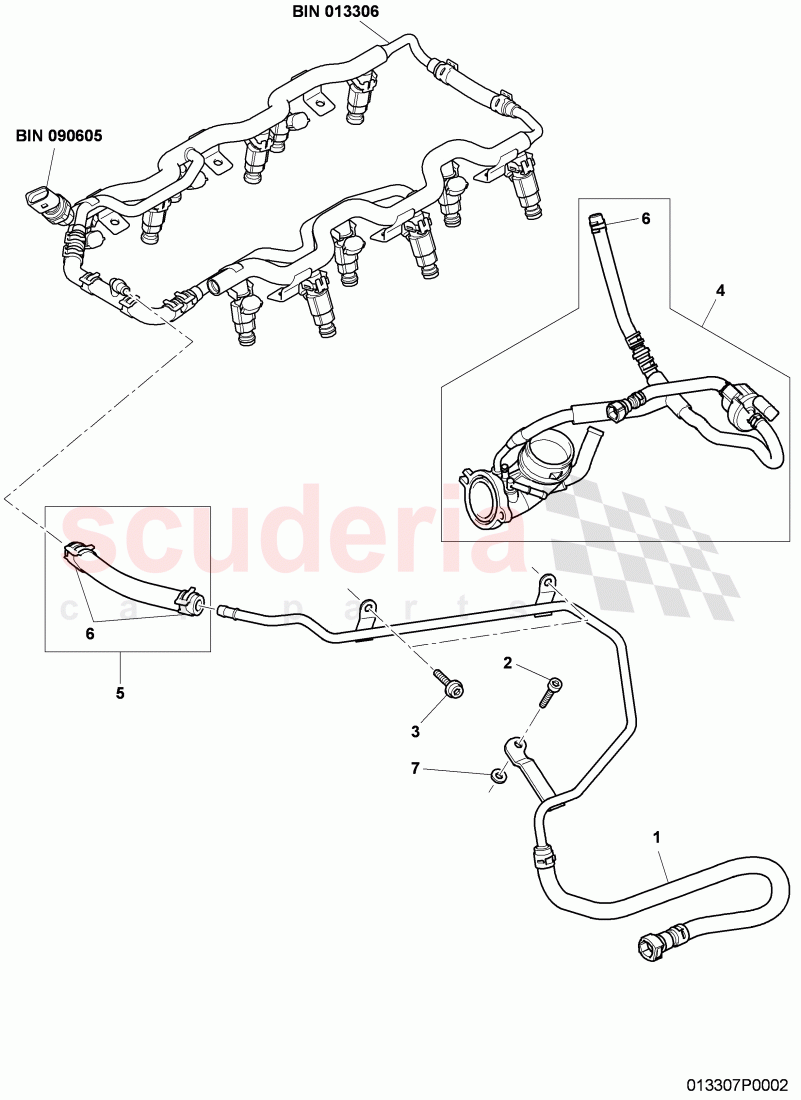

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0133986AA	Fuel supply line, Engine bay, contains:, sealing washer	$274.87	To Order

Photo	Part No	Description	Price (each)	Stock
	N10451410	socket head bolt with inner, hex round head	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10406504	Oval hexagon socket head bolt	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0133515D	valve for charcoal, cannister, D - 27.03.2017>>	$1,226.64	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0133997B	fuel hose	$37.09	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686701	Spring band clamp	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3W0198675	support washer, see workshop manual	$2.77	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3W0133986AA	Fuel supply line, Engine bay, contains:, sealing washer	3W0133986AA Fuel supply line, Engine bay, contains:, sealing washer supply, 3W0 198 675,	$274.87	1
2	N10451410	socket head bolt with inner, hex round head IN STOCK	N10451410 socket head bolt with inner, hex round head IN STOCK	$0.61	1
3	N10406504	Oval hexagon socket head bolt	N10406504 Oval hexagon socket head bolt M6X12,	$1.03	2
4	3W0133515D	valve for charcoal, cannister, D - 27.03.2017>>	3W0133515D valve for charcoal, cannister, D - 27.03.2017>>	$1,226.64	1
5	3W0133997B	fuel hose	3W0133997B fuel hose	$37.09	1
6	N90686701	Spring band clamp IN STOCK	N90686701 Spring band clamp 14X12, IN STOCK	$1.12	3
7	3W0198675	support washer, see workshop manual IN STOCK	3W0198675 support washer, see workshop manual QTY-12, IN STOCK	$2.77	1
