Seat Belts, D >> - Mj 2015

Bentley Continental GTC (2011+)

Find Your Part

Bentley Continental GTC (2011+) - seat belts, D >> - MJ 2015

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3W1857705F three-point automatic seat belt with belt tensioner Enquire To Order
3W1857706F three-point automatic seat belt with belt tensioner Enquire To Order
3W2857706E three-point automatic seat belt with belt tensioner Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WHT003233 Hexagon flange screw $0.94 To Order
Photo Part No Description Price (each) Stock
3W7880303A seat belt guide $1,175.31 To Order
3W7880304A seat belt guide $384.08 To Order
Photo Part No Description Price (each) Stock
WHT003233 Hexagon flange screw $0.94 To Order
Photo Part No Description Price (each) Stock
N91097001 Hexagon socket flat head bolt $0.51 IN STOCK
Photo Part No Description Price (each) Stock
3W7857827 bracket, belt guide, also use: $6.89 To Order
3W7857828 bracket, belt guide, also use: $6.26 To Order
Photo Part No Description Price (each) Stock
3W3859761B carrier arm, For seat belt, D - 24.02.2014>> $281.66 To Order
3W3859762B carrier arm, For seat belt, D - 24.02.2014>> $278.46 To Order
Photo Part No Description Price (each) Stock
3W3857756E press button buckle $428.89 To Order
Photo Part No Description Price (each) Stock
3W3857755C press button buckle $300.86 To Order
3W3857755C press button buckle $300.86 To Order
Photo Part No Description Price (each) Stock
WHT003233 Hexagon flange screw $0.94 To Order
Photo Part No Description Price (each) Stock
3W7857825A guide rail, For seat belt $137.63 To Order
3W7857826A guide rail, For seat belt $137.63 To Order
Photo Part No Description Price (each) Stock
3W7880365A bracket, guide rail $56.32 To Order
Photo Part No Description Price (each) Stock
WHT003233 Hexagon flange screw $0.94 To Order
Photo Part No Description Price (each) Stock
N98923602 round hd. screw $4.52 To Order
Photo Part No Description Price (each) Stock
8F0857759 belt ready motor $211.66 To Order
8F0857760 belt ready motor $211.66 To Order
Photo Part No Description Price (each) Stock
N10644401 hexagon socket flat head bolt $1.02 To Order
Photo Part No Description Price (each) Stock
N0116556 Washer $1.02 To Order
Photo Part No Description Price (each) Stock
3W7857958A drain cover $87.05 To Order
3W7857957A drain cover $87.05 To Order
Photo Part No Description Price (each) Stock
431723820 bearing bush $3.90 To Order
Photo Part No Description Price (each) Stock
3W7867800A grommet, guide rail $8.83 To Order
Photo Part No Description Price (each) Stock
3W7867293B trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>> $13.56 To Order
3W7867293B trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>> $13.56 To Order
3W7867294B trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>> $25.38 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3W7868359A trim plate for, seat belt guide $14.32 To Order
3W7868359B trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>> $14.32 To Order
3W7868359B trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>> $14.32 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3W7863275A grommet, guide rail, F 3W-D-086 066>>, F ZA-D-086 066>> $14.21 To Order
Photo Part No Description Price (each) Stock
3W3880117 sleeve, press button buckle $430.16 To Order
3W3880118 sleeve, press button buckle $430.16 To Order
Photo Part No Description Price (each) Stock
3W7857078A adjustment element $69.12 To Order
Photo Part No Description Price (each) Stock
3W7857781A guide, For seat belt, D - 03.10.2011>> $103.77 To Order
3W7857782A guide, For seat belt, D - 03.10.2011>> $4.34 To Order
Photo Part No Description Price (each) Stock
N90215805 shouldered hex. nut, Discont./New add.+FULU calc. $2.05 IN STOCK
Photo Part No Description Price (each) Stock
5M1971581 round connector hsg with cable $108.81 To Order
5M1971581B round connector hsg with cable $76.89 To Order
Photo Part No Description Price (each) Stock
3W0887707B clamp, D - 04.11.2013>> $17.91 To Order
3W0887708B clamp, D - 04.11.2013>> $17.91 IN STOCK
View All

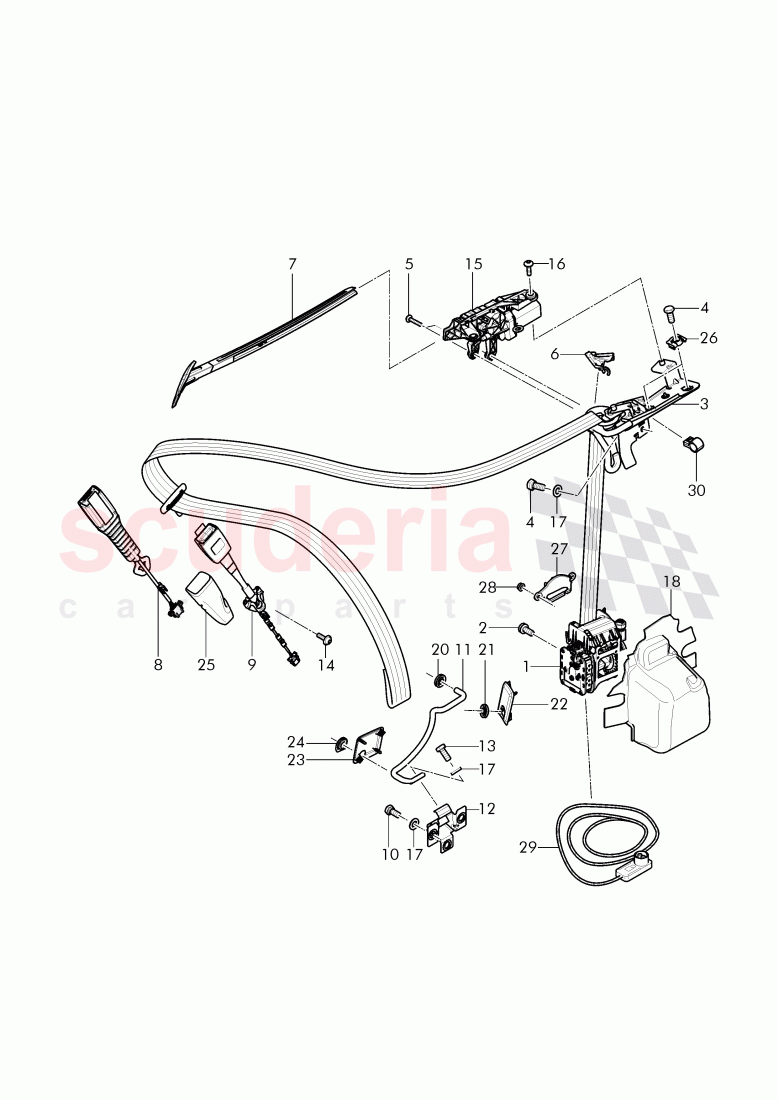

seat belts, D >> - MJ 2015 of Bentley Bentley Continental GTC (2011+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3W1857705F
three-point automatic seat belt with belt tensioner
front lhd, drivers side, 		- 1 Enquire
1 3W1857706F
three-point automatic seat belt with belt tensioner
front lhd, passenger side, 		- 1 Enquire
1 3W2857706E
three-point automatic seat belt with belt tensioner
front rhd, drivers side, 		- 1 Enquire
1 3W2857705E
three-point automatic seat belt with belt tensioner
front rhd, passenger side, 		- 1 Enquire
2 WHT003233
Hexagon flange screw
7/16-20 UNFX1, 		$0.94 2
3 3W7880303A
seat belt guide
left front, 		$1,175.31 1
3 3W7880304A
seat belt guide
right front, 		$384.08 1
4 WHT003233
Hexagon flange screw
7/16-20 UNFX1, 		$0.94 6
5 N91097001
Hexagon socket flat head bolt
M6X30,
IN STOCK 		$0.51 4
6 3W7857827
bracket, belt guide, also use:
left front, 30, 		$6.89 1
6 3W7857828
bracket, belt guide, also use:
right front, 30, 		$6.26 1
7 3W3859761B
carrier arm, For seat belt, D - 24.02.2014>>
side left, 		$281.66 1
7 3W3859762B
carrier arm, For seat belt, D - 24.02.2014>>
side right, 		$278.46 1
8 3W3857756E
press button buckle
right front, north american, area, PR-4UM 		$428.89 1
9 3W3857755C
press button buckle
left front, north american, area, PR-4UM 		$300.86 1
9 3W3857755C
press button buckle
left a. right, all countries,, except:, north american, area, PR-4UF 		$300.86 2
10 WHT003233
Hexagon flange screw
7/16-20 UNFX1, 		$0.94 6
11 3W7857825A
guide rail, For seat belt
left front, 		$137.63 1
11 3W7857826A
guide rail, For seat belt
right front, 		$137.63 1
12 3W7880365A
bracket, guide rail 		$56.32 2
13 WHT003233
Hexagon flange screw
7/16-20 UNFX1, 		$0.94 2
14 N98923602
round hd. screw 		$4.52 2
15 8F0857759
belt ready motor
left, 		$211.66 1
15 8F0857760
belt ready motor
right, 		$211.66 1
16 N10644401
hexagon socket flat head bolt
M6X22, 		$1.02 2
17 N0116556
Washer
11,5X21X1, 		$1.02 2
18 3W7857958A
drain cover
right, 		$87.05 1
18 3W7857957A
drain cover
left, 		$87.05 1
20 431723820
bearing bush
plastic, 		$3.90 2
21 3W7867800A
grommet, guide rail
rear, 		$8.83 2
22 3W7867293B
trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>>
left rear, 		$13.56 1
22 3W7867293B
trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>>
left rear, black,, grained, 		$13.56 1
22 3W7867294B
trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>>
right rear, 		$25.38 1
22 3W7867294B
trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>>
right rear, black,, grained, 		$25.38 1
23 3W7868359A
trim plate for, seat belt guide
left front, 		$14.32 1
23 3W7868359B
trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>> 		$14.32 1
23 3W7868359B
trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>>
left front, black,, grained, 		$14.32 1
23 3W7868360A
trim plate for, seat belt guide
right front, 		$14.32 1
23 3W7868360B
trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>>
right front, 		$12.16 1
23 3W7868360B
trim plate for, seat belt guide, F 3W-D-086 066>>, F ZA-D-086 066>>
right front, black,, grained, 		$12.16 1
24 3W7863275A
grommet, guide rail, F 3W-D-086 066>>, F ZA-D-086 066>>
front, 		$14.21 2
25 3W3880117
sleeve, press button buckle
left front, 		$430.16 1
25 3W3880118
sleeve, press button buckle
right front, 		$430.16 1
26 3W7857078A
adjustment element 		$69.12 4
27 3W7857781A
guide, For seat belt, D - 03.10.2011>>
left front, 		$103.77 1
27 3W7857782A
guide, For seat belt, D - 03.10.2011>>
right front, 		$4.34 1
28 N90215805
shouldered hex. nut, Discont./New add.+FULU calc.
M6,
IN STOCK 		$2.05 4
29 5M1971581
round connector hsg with cable
yellow/black, 1550MM, 		$108.81 -
29 5M1971581B
round connector hsg with cable
yellow, 1154MM, 		$76.89 -
30 3W0887707B
clamp, D - 04.11.2013>>
side left, 		$17.91 1
30 3W0887708B
clamp, D - 04.11.2013>>
side right,
IN STOCK 		$17.91 1
