Name: sub-frame, with rubber mounting
Rating: 4.1 (1 reviews)

sub-frame, with rubber mounting of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - sub-frame, with rubber mounting

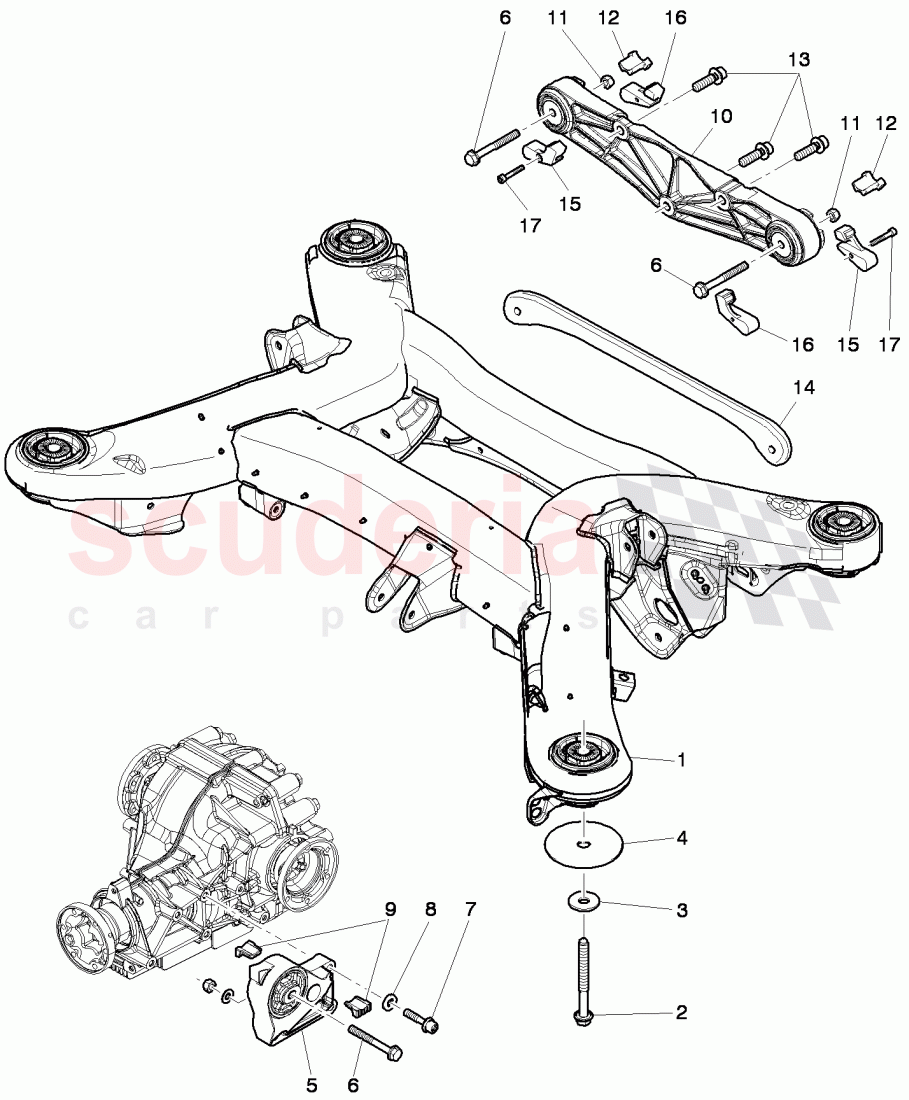

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W7505235E	sub-frame, with rubber mounting, D - 18.02.2013>>	$4,214.02	To Order

Photo	Part No	Description	Price (each)	Stock
	N90975302	bolt, hex. hd. with shoulder	$6.29	To Order

Photo	Part No	Description	Price (each)	Stock
	N90625003	washer	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0505193	Washer, D >> - 31.10.2011	$9.22	To Order
	3D0505189	stop, D - 31.10.2011>>	$14.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3D0599125E	support for transmission	$332.18	To Order

Photo	Part No	Description	Price (each)	Stock
	N10232904	hexagon head bolt (combi)	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	N90668204	socket head bolt with inner multipoint head	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	N90807502	washer	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0599337	insert	$12.63	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0599285A	cross member, D - 24.08.2015>>	$454.95	To Order

Photo	Part No	Description	Price (each)	Stock
	N10209009	hexagon nut, self-locking	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0505209	insert	$59.79	To Order

Photo	Part No	Description	Price (each)	Stock
	N10452902	socket head bolt with hexagon socket head (combination)	$2.98	To Order

Photo	Part No	Description	Price (each)	Stock
	3W5505479	cross support	$1,427.32	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0505191	vibration damper, D >> - 21.11.2011	$176.70	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0505192	vibration damper, threaded insert, D >> - 21.11.2011	$176.70	To Order

Photo	Part No	Description	Price (each)	Stock
	N0147597	bolt, with hex. socket, hd., D >> - 21.11.2011	$1.02	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3W7505235E	sub-frame, with rubber mounting, D - 18.02.2013>>	3W7505235E sub-frame, with rubber mounting, D - 18.02.2013>> rear,	$4,214.02	1
2	N90975302	bolt, hex. hd. with shoulder	N90975302 bolt, hex. hd. with shoulder M14X135,	$6.29	4
3	N90625003	washer	N90625003 washer M15,	$1.44	4
4	4E0505193	Washer, D >> - 31.10.2011	4E0505193 Washer, D >> - 31.10.2011 105X60X9,	$9.22	4
4	3D0505189	stop, D - 31.10.2011>> IN STOCK	3D0505189 stop, D - 31.10.2011>> 105X60X9, IN STOCK	$14.71	4
5	3D0599125E	support for transmission	3D0599125E support for transmission	$332.18	1
6	N10232904	hexagon head bolt (combi)	N10232904 hexagon head bolt (combi)	$2.63	3
7	N90668204	socket head bolt with inner multipoint head	N90668204 socket head bolt with inner multipoint head	$2.46	4
8	N90807502	washer	N90807502 washer	$0.50	4
9	3W0599337	insert	3W0599337 insert	$12.63	2
10	3W0599285A	cross member, D - 24.08.2015>>	3W0599285A cross member, D - 24.08.2015>>	$454.95	1
11	N10209009	hexagon nut, self-locking	N10209009 hexagon nut, self-locking	$1.27	2
12	3W0505209	insert	3W0505209 insert	$59.79	2
13	N10452902	socket head bolt with hexagon socket head (combination)	N10452902 socket head bolt with hexagon socket head (combination) M12X42,5,	$2.98	3
14	3W5505479	cross support	3W5505479 cross support	$1,427.32	1
15	3W0505191	vibration damper, D >> - 21.11.2011	3W0505191 vibration damper, D >> - 21.11.2011	$176.70	2
16	3W0505192	vibration damper, threaded insert, D >> - 21.11.2011	3W0505192 vibration damper, threaded insert, D >> - 21.11.2011	$176.70	2
17	N0147597	bolt, with hex. socket, hd., D >> - 21.11.2011	N0147597 bolt, with hex. socket, hd., D >> - 21.11.2011	$1.02	2

Sub-Frame, With Rubber Mounting

Bentley Continental GTC (2011+)

Bentley Continental GTC (2011+) - sub-frame, with rubber mounting

Add to Shopping Cart
