Name: elbow, throttle valve, D >> - MJ 2015
Rating: 4.3 (1 reviews)

elbow, throttle valve, D >> - MJ 2015 of Bentley Bentley Continental GTC (2011+)

View All

Bentley Continental GTC (2011+) - elbow, throttle valve, D >> - MJ 2015

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7C133185BS	intake manifold D - 18.09.2006>>	$6,212.36	To Order

Photo	Part No	Description	Price (each)	Stock
	7C133221AT	elbow, D - 27.03.2017>>	$2,397.74	To Order

Photo	Part No	Description	Price (each)	Stock
	7C133263T	intake manifold	$2,084.39	To Order

Photo	Part No	Description	Price (each)	Stock
	7C133262AD	elbow, D - 27.03.2017>>	$2,234.26	To Order

Photo	Part No	Description	Price (each)	Stock
	7C133062C	throttle valve	$3,039.75	To Order

Photo	Part No	Description	Price (each)	Stock
	21133073D	gasket, throttle valve	$12.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	36129846B	ball head	$8.98	To Order

Photo	Part No	Description	Price (each)	Stock
	7C133204R	intake manifold - lower part, D - 27.03.2017>>	$3,242.40	To Order

Photo	Part No	Description	Price (each)	Stock
	7C129717D	gasket, intake manifold - lower part	$108.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10527801	cylinder pin	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	7C133588D	Decoupling element	$6.30	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000355	Ball screw	$3.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7C133332	bracket, engine cover plate, contains:, spring clip	$30.37	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0612391AC	bracket, engine cover plate, contains:, spring clip	$41.12	To Order

Photo	Part No	Description	Price (each)	Stock
	N10554004	socket head bolt with inner multipoint head	$6.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10158203	socket head bolt with hexagon socket head (combination)	$2.81	To Order

Photo	Part No	Description	Price (each)	Stock
	7C133594A	gasket, intake manifold - upper part	$149.42	To Order

Photo	Part No	Description	Price (each)	Stock
	7C133238F	Intake Manifold Gasket	$13.40	To Order

Photo	Part No	Description	Price (each)	Stock
	N10170303	round hd. screw	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10127005	socket head bolt with hexagon socket head (combination)	$20.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6B905379G	temperature sensor, D - 18.09.2006>>	$54.22	To Order

Photo	Part No	Description	Price (each)	Stock
	N10227805	socket head bolt with hexagon socket head (combination)	$1.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10527801	cylinder pin	$0.80	To Order

View All

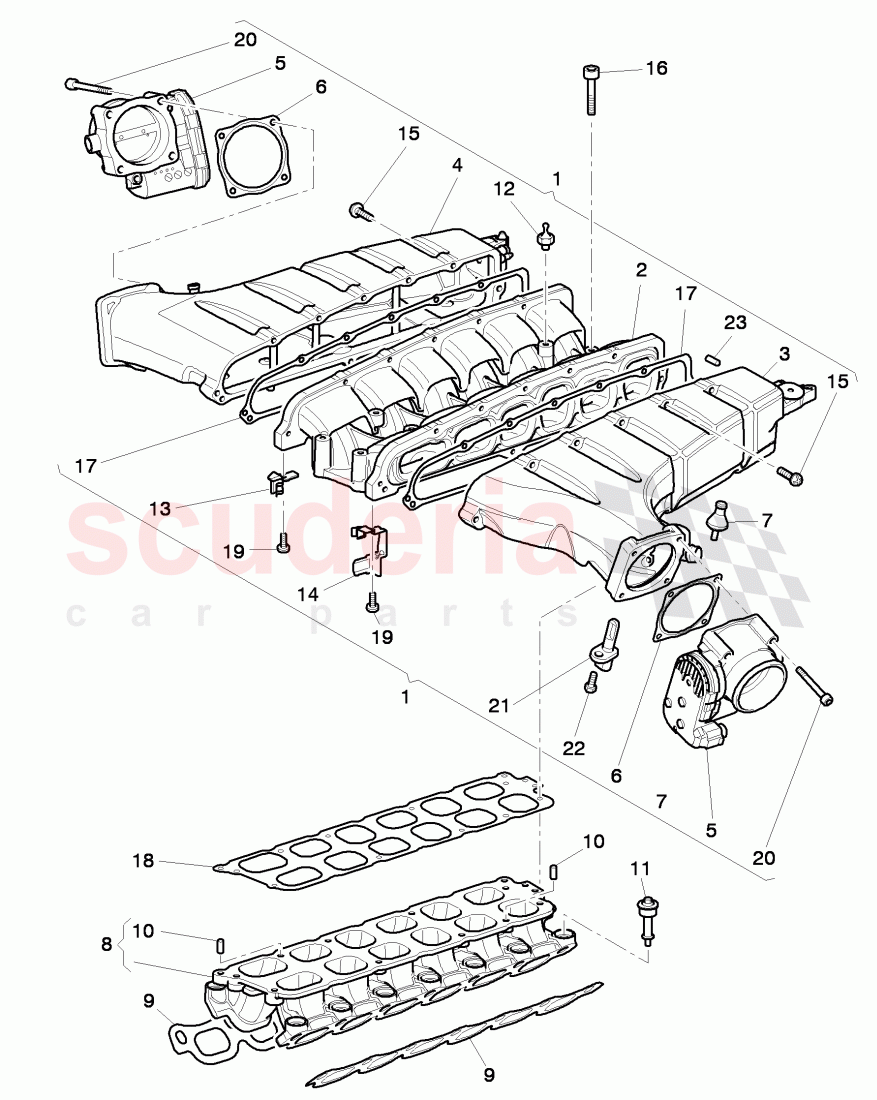

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	7C133185BS	intake manifold D - 18.09.2006>>	7C133185BS intake manifold D - 18.09.2006>> upper,	$6,212.36	1
2	7C133221AT	elbow, D - 27.03.2017>>	7C133221AT elbow, D - 27.03.2017>> center upper,	$2,397.74	1
3	7C133263T	intake manifold	7C133263T intake manifold left upper,	$2,084.39	1
4	7C133262AD	elbow, D - 27.03.2017>>	7C133262AD elbow, D - 27.03.2017>> right upper,	$2,234.26	1
5	7C133062C	throttle valve	7C133062C throttle valve	$3,039.75	2
6	21133073D	gasket, throttle valve IN STOCK	21133073D gasket, throttle valve IN STOCK	$12.16	2
7	36129846B	ball head	36129846B ball head	$8.98	2
8	7C133204R	intake manifold - lower part, D - 27.03.2017>>	7C133204R intake manifold - lower part, D - 27.03.2017>>	$3,242.40	1
9	7C129717D	gasket, intake manifold - lower part IN STOCK	7C129717D gasket, intake manifold - lower part IN STOCK	$108.46	2
10	N10527801	cylinder pin	N10527801 cylinder pin 6X12,	$0.80	2
11	7C133588D	Decoupling element	7C133588D Decoupling element	$6.30	14
12	WHT000355	Ball screw IN STOCK	WHT000355 Ball screw IN STOCK	$3.84	6
13	7C133332	bracket, engine cover plate, contains:, spring clip	7C133332 bracket, engine cover plate, contains:, spring clip right front, N 910 091 01,	$30.37	1
14	3W0612391AC	bracket, engine cover plate, contains:, spring clip	3W0612391AC bracket, engine cover plate, contains:, spring clip left front, N 910 091 01,	$41.12	1
15	N10554004	socket head bolt with inner multipoint head IN STOCK	N10554004 socket head bolt with inner multipoint head M6X35, IN STOCK	$6.22	18
16	N10158203	socket head bolt with hexagon socket head (combination)	N10158203 socket head bolt with hexagon socket head (combination) M6X60,	$2.81	8
17	7C133594A	gasket, intake manifold - upper part	7C133594A gasket, intake manifold - upper part	$149.42	2
18	7C133238F	Intake Manifold Gasket	7C133238F Intake Manifold Gasket upper/lower,	$13.40	1
19	N10170303	round hd. screw IN STOCK	N10170303 round hd. screw M6X10, IN STOCK	$1.02	2
20	N10127005	socket head bolt with hexagon socket head (combination) IN STOCK	N10127005 socket head bolt with hexagon socket head (combination) M6X55, IN STOCK	$20.10	8
21	6B905379G	temperature sensor, D - 18.09.2006>>	6B905379G temperature sensor, D - 18.09.2006>>	$54.22	2
22	N10227805	socket head bolt with hexagon socket head (combination) IN STOCK	N10227805 socket head bolt with hexagon socket head (combination) M6X20, IN STOCK	$1.53	2
23	N10527801	cylinder pin	N10527801 cylinder pin 6X12,	$0.80	4

Elbow, Throttle Valve, D >> - Mj 2015

Bentley Continental GTC (2011+)

Bentley Continental GTC (2011+) - elbow, throttle valve, D >> - MJ 2015

Add to Shopping Cart
