Disc Brakes, For Vehicles With Ceramic, Brake Disc

Bentley Continental GTC (2006-2010)

Find Your Part

Bentley Continental GTC (2006-2010) - disc brakes, for vehicles with ceramic, brake disc

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
3W0616825A bolt, guide pin, F 3W-9-057 480>> 3W-B-068 169 $6.55 To Order
Photo Part No Description Price (each) Stock
3W0615207 dust cap $4.83 IN STOCK
Photo Part No Description Price (each) Stock
1K0615273C breather valve $14.36 To Order
Photo Part No Description Price (each) Stock
3W0698996D Electronic parking brake, operating mechanism, Service kit $1,449.93 To Order
Photo Part No Description Price (each) Stock
3D0615231 retaining spring $17.44 To Order
Photo Part No Description Price (each) Stock
N90961103 self-locking screw, D - MJ 2007>> $6.44 IN STOCK
Photo Part No Description Price (each) Stock
3W0615601H ceramic brake disc, (vented), D - 09.04.2012>> $9,093.89 To Order
3W0615602D ceramic brake disc, (vented), D - 09.04.2012>> $9,093.89 To Order
3W0615601H ceramic brake disc, (vented), D - 09.04.2012>> $9,093.89 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4E0615611G splash shield for brake disc $334.38 To Order
4E0615612G splash shield for brake disc, automat. Entfallb./Neuanlage $281.37 To Order
Photo Part No Description Price (each) Stock
3W0698679FQB7 brake caliper housing D - >> MJ 2011 $4,683.96 To Order
3W0698680FQB7 brake caliper housing D - >> MJ 2011 $5,082.61 To Order
3W0698679F brake caliper housing D - MJ 2011>> Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
N10335206 Hexagon socket flat head bolt $1.76 To Order
Photo Part No Description Price (each) Stock
3W0698451N SET BRAKE PADS WITH WEAR INDICATOR $334.13 To Order
Photo Part No Description Price (each) Stock
3W0698470B guide pin, dust cover, Service kit $28.56 IN STOCK
Photo Part No Description Price (each) Stock
3W0698671B set of gaskets for brake caliper housing $260.36 To Order
Photo Part No Description Price (each) Stock
N90961103 self-locking screw, D - MJ 2007>> $6.44 IN STOCK
Photo Part No Description Price (each) Stock

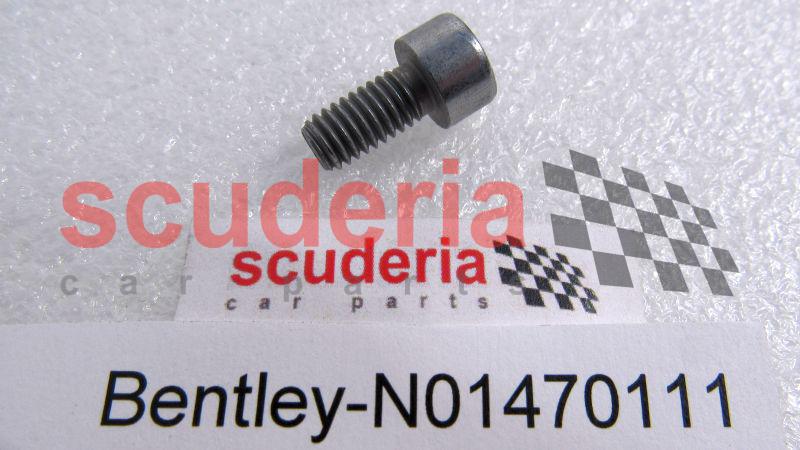

N01470111 bolt, with hex. socket, hd., D >> - 14.02.2011 $1.46 IN STOCK
Photo Part No Description Price (each) Stock

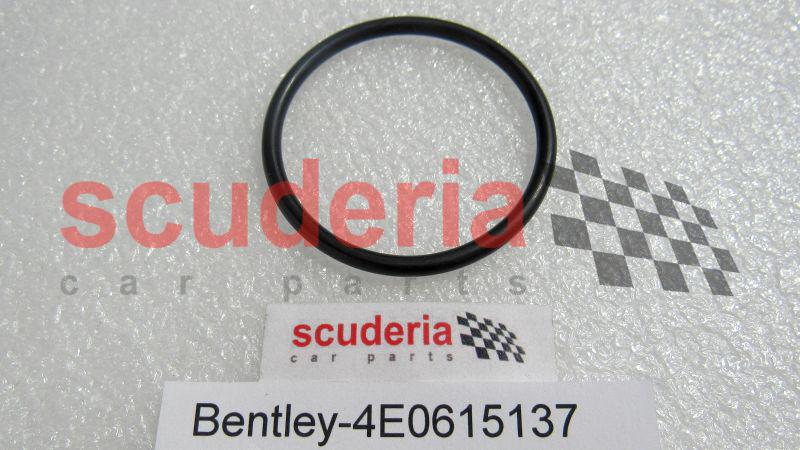

4E0615137 o-ring $6.32 IN STOCK
Photo Part No Description Price (each) Stock

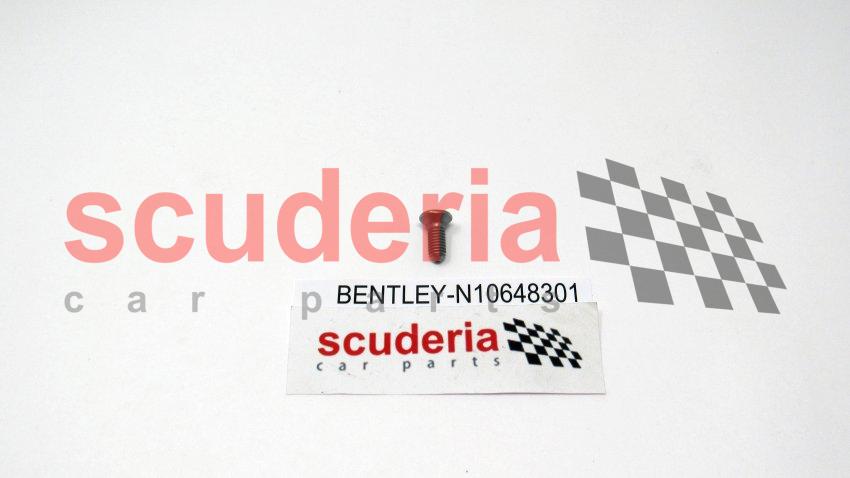

N10648301 hex socket countersunk bolt $0.98 IN STOCK
Photo Part No Description Price (each) Stock
4E0615375D bracket $117.23 To Order
4E0615376D bracket $117.23 To Order
View All

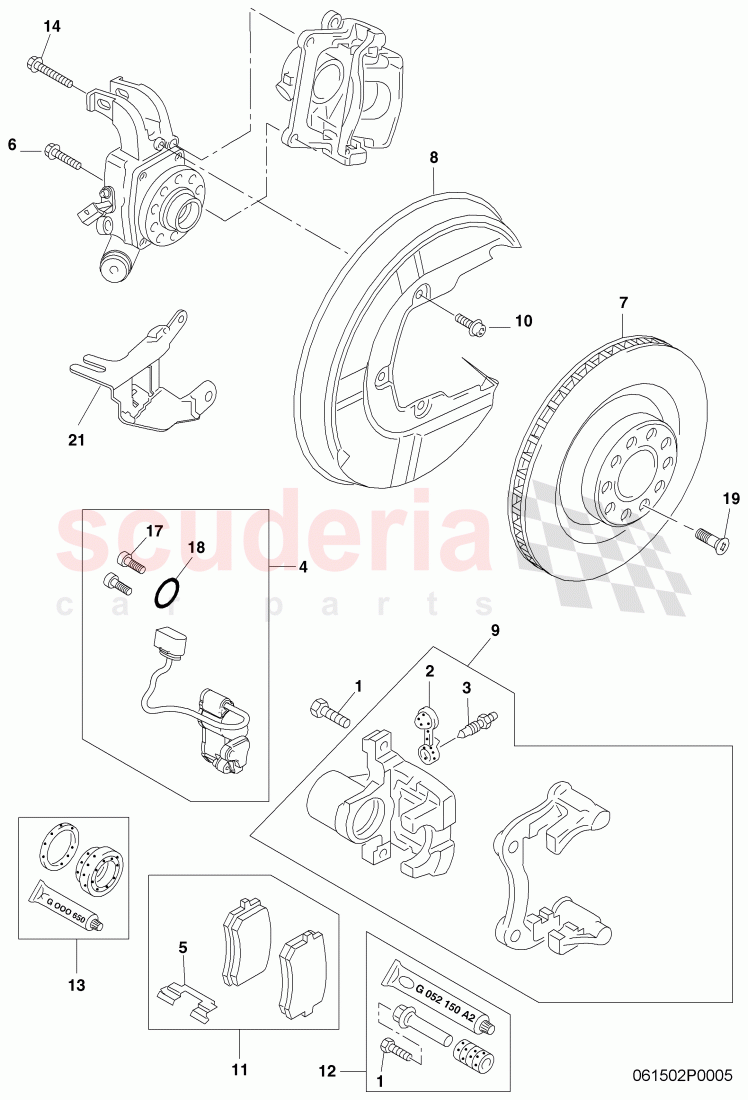

disc brakes, for vehicles with ceramic, brake disc of Bentley Bentley Continental GTC (2006-2010) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3W0616825A
bolt, guide pin, F 3W-9-057 480>> 3W-B-068 169 		$6.55 2
2 3W0615207
dust cap
IN STOCK 		$4.83 1
3 1K0615273C
breather valve 		$14.36 1
4 3W0698996D
Electronic parking brake, operating mechanism, Service kit
PR-1KU 		$1,449.93 1
5 3D0615231
retaining spring 		$17.44 2
6 N90961103
self-locking screw, D - MJ 2007>>
M12X1,50X75,
IN STOCK 		$6.44 1
7 3W0615601H
ceramic brake disc, (vented), D - 09.04.2012>>
left, left rear, 		$9,093.89 1
7 3W0615602D
ceramic brake disc, (vented), D - 09.04.2012>>
right, right rear, 		$9,093.89 1
7 3W0615601H
ceramic brake disc, (vented), D - 09.04.2012>>
356X28MM 5/112, left rear, 		$9,093.89 1
7 3W0615602D
ceramic brake disc, (vented), D - 09.04.2012>>
356X28MM 5/112, right rear, 		$9,093.89 1
8 4E0615611G
splash shield for brake disc
left, PR-1KU 		$334.38 1
8 4E0615612G
splash shield for brake disc, automat. Entfallb./Neuanlage
right, PR-1KU 		$281.37 1
9 3W0698679FQB7
brake caliper housing D - >> MJ 2011
left, PR-1KU 		$4,683.96 1
9 3W0698680FQB7
brake caliper housing D - >> MJ 2011
right, PR-1KU 		$5,082.61 1
9 3W0698679F
brake caliper housing D - MJ 2011>>
left, PR-1KU 		- 1 Enquire
9 3W0698680F
brake caliper housing D - MJ 2012>>
right, PR-1KU 		- 1 Enquire
10 N10335206
Hexagon socket flat head bolt
M6X12, 		$1.76 3
11 3W0698451N
SET BRAKE PADS WITH WEAR INDICATOR
PR-1KU 		$334.13 1
12 3W0698470B
guide pin, dust cover, Service kit
rear,
IN STOCK 		$28.56 1
13 3W0698671B
set of gaskets for brake caliper housing 		$260.36 1
14 N90961103
self-locking screw, D - MJ 2007>>
M12X1,50X75,
IN STOCK 		$6.44 1
17 N01470111
bolt, with hex. socket, hd., D >> - 14.02.2011
M6X12,
IN STOCK 		$1.46 2
18 4E0615137
o-ring
IN STOCK 		$6.32 1
19 N10648301
hex socket countersunk bolt
M6X16,
IN STOCK 		$0.98 2
21 4E0615375D
bracket
left, 		$117.23 1
21 4E0615376D
bracket
right, 		$117.23 1
