Name: sub-frame, with rubber mounting
Rating: 4.4 (1 reviews)

View All

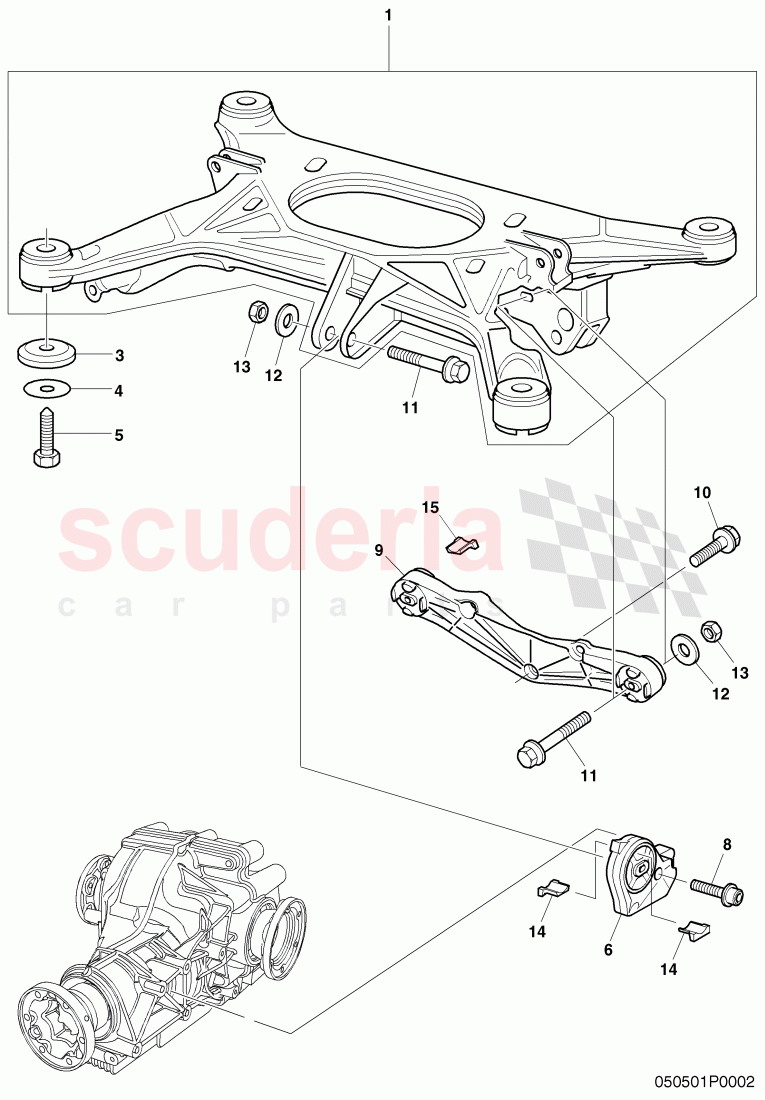

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W7505235E	sub-frame, with rubber mounting, D - 18.02.2013>>	$4,232.59	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0505193	Washer, D >> - 31.10.2011	$9.26	To Order

Photo	Part No	Description	Price (each)	Stock
	N90625003	washer	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	N90975302	bolt, hex. hd. with shoulder	$6.32	To Order

Photo	Part No	Description	Price (each)	Stock
	3D0599125E	support for transmission	$333.65	To Order

Photo	Part No	Description	Price (each)	Stock
	N90668204	socket head bolt with inner multipoint head	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0599285A	cross member, D - 24.08.2015>>	$456.95	To Order

Photo	Part No	Description	Price (each)	Stock
	N10452902	socket head bolt with hexagon socket head (combination)	$2.99	To Order

Photo	Part No	Description	Price (each)	Stock
	N10232904	hexagon head bolt (combi)	$2.64	To Order

Photo	Part No	Description	Price (each)	Stock
	N01152721	washer	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	N10209009	hexagon nut, self-locking	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0599337	insert	$12.69	To Order

Photo	Part No	Description	Price (each)	Stock
	3W0505209	insert	$60.05	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	3W7505235E	sub-frame, with rubber mounting, D - 18.02.2013>>	3W7505235E sub-frame, with rubber mounting, D - 18.02.2013>> rear,	$4,232.59	1
3	4E0505193	Washer, D >> - 31.10.2011	4E0505193 Washer, D >> - 31.10.2011 105X60X9,	$9.26	4
4	N90625003	washer	N90625003 washer M15,	$1.45	4
5	N90975302	bolt, hex. hd. with shoulder	N90975302 bolt, hex. hd. with shoulder M14X135,	$6.32	4
6	3D0599125E	support for transmission	3D0599125E support for transmission	$333.65	1
8	N90668204	socket head bolt with inner multipoint head	N90668204 socket head bolt with inner multipoint head	$2.47	4
9	3W0599285A	cross member, D - 24.08.2015>>	3W0599285A cross member, D - 24.08.2015>>	$456.95	1
10	N10452902	socket head bolt with hexagon socket head (combination)	N10452902 socket head bolt with hexagon socket head (combination) M12X42,5,	$2.99	3
11	N10232904	hexagon head bolt (combi)	N10232904 hexagon head bolt (combi)	$2.64	3
12	N01152721	washer	N01152721 washer	$1.36	3
13	N10209009	hexagon nut, self-locking	N10209009 hexagon nut, self-locking	$1.28	3
14	3W0599337	insert	3W0599337 insert	$12.69	2
15	3W0505209	insert	3W0505209 insert	$60.05	2

Sub-Frame, With Rubber Mounting

Bentley Continental GTC (2006-2010)
