Fuel Delivery Unit With Separately Supported Fuel, Gauge Sender, Suction Jet Pump With Hose, D - Mj...

Bentley Continental GTC (2006-2010)

Find Your Part

Bentley Continental GTC (2006-2010) - fuel delivery unit with separately supported fuel, gauge sender, suction jet pump with hose, D - MJ...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock

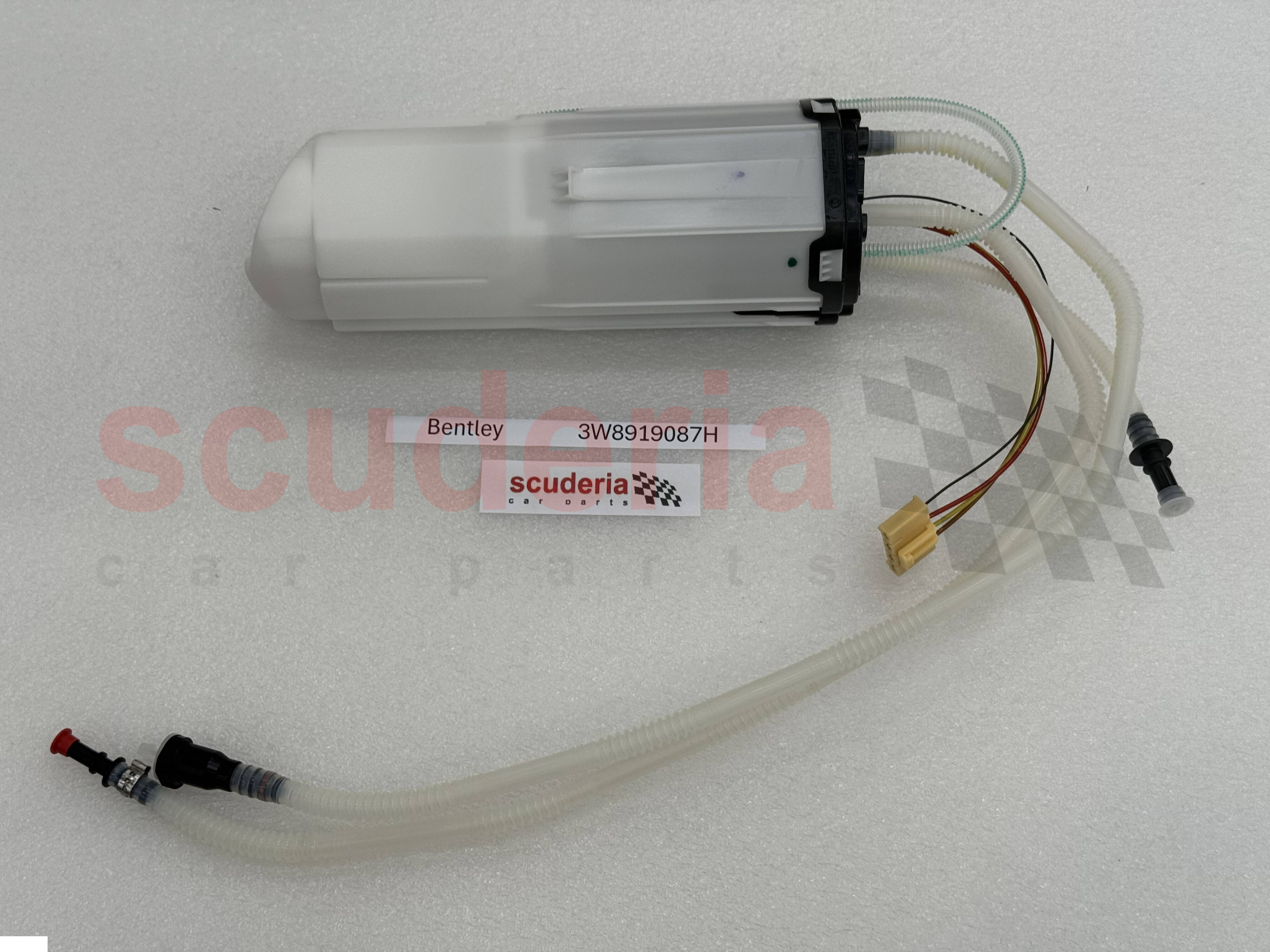

3W8919087H fuel supply module, D - 12.09.2014>> $1,313.13 To Order
3W8919087G fuel supply module, D - 12.09.2014>> $1,313.13 To Order
Photo Part No Description Price (each) Stock
1J0919133B seal ring $14.71 IN STOCK
Photo Part No Description Price (each) Stock
3D0919133E seal ring, F 3W-7-041 500>>, F ZA-A-062 464>> $27.67 To Order
Photo Part No Description Price (each) Stock
3W8919673 sender for fuel gauge . $256.46 To Order
3W8919673A sender for fuel gauge . $256.46 To Order
Photo Part No Description Price (each) Stock
3D0919673F sender for fuel gauge . $261.82 To Order

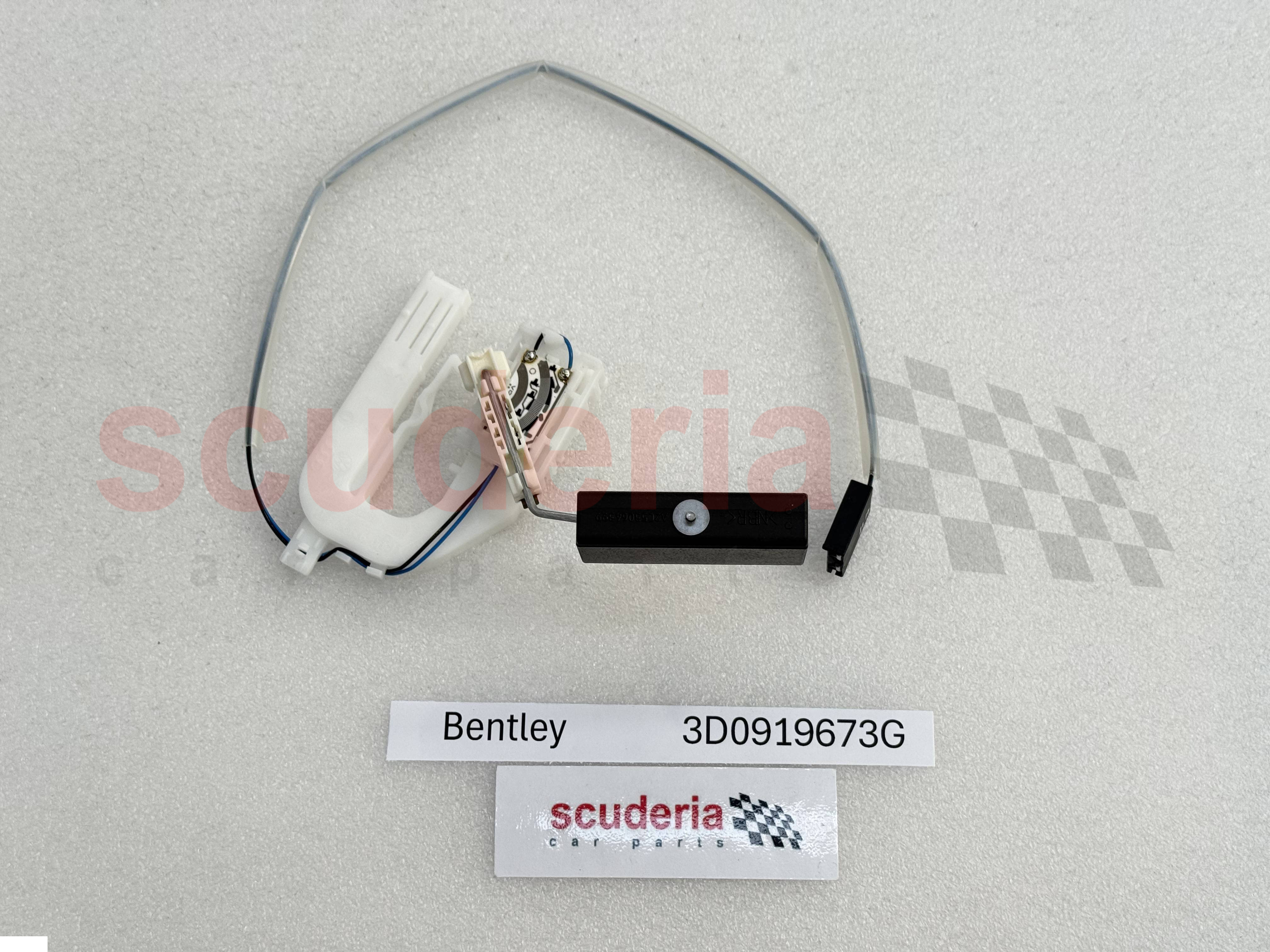

3D0919673G sender for fuel gauge . $226.64 IN STOCK
Photo Part No Description Price (each) Stock
3W8919679 flange, fuel line $111.36 To Order
Photo Part No Description Price (each) Stock
3W8919679B flange, fuel line $150.21 To Order
Photo Part No Description Price (each) Stock
3W8919715C suction pump, D - 12.09.2014>> $103.15 To Order
3W8919715C suction pump, D - 12.09.2014>> $103.15 To Order
Photo Part No Description Price (each) Stock
1K0201375 Union nut Bayonet catch $6.19 IN STOCK
Photo Part No Description Price (each) Stock
3W8201294C fuel line, D - 01.10.2012>> $440.14 To Order
Photo Part No Description Price (each) Stock
3W8201293A fuel line $215.91 To Order
Photo Part No Description Price (each) Stock
WHT000506 union nut, D - 11.04.2005>> $22.49 To Order
Photo Part No Description Price (each) Stock
3W8201398A retaining clip, clamp $6.29 To Order
Photo Part No Description Price (each) Stock
3W8201142A earthing strap $93.77 To Order
Photo Part No Description Price (each) Stock
3W8201142B earthing strap $93.77 To Order
View All

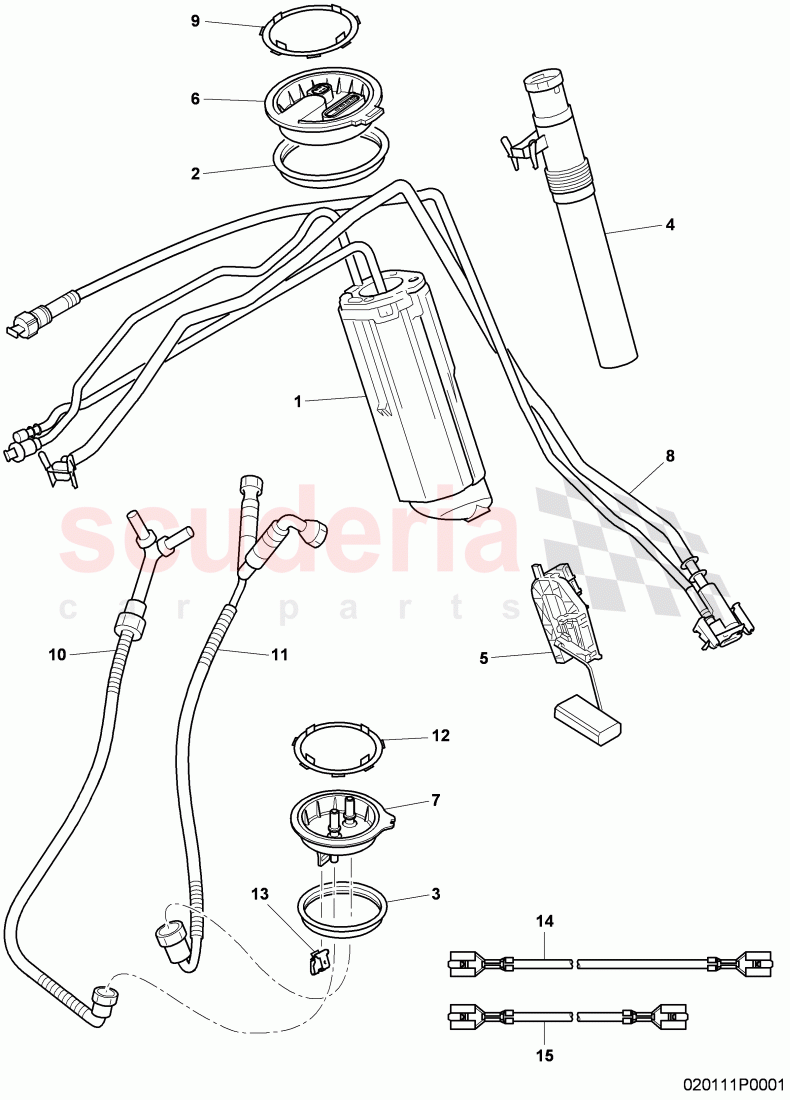

fuel delivery unit with separately supported fuel, gauge sender, suction jet pump with hose, D - MJ 2011>> - MJ 2011 of Bentley Bentley Continental GTC (2006-2010) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 3W8919087H
fuel supply module, D - 12.09.2014>>
left, Flex Fuel, 		$1,313.13 1
1 3W8919087G
fuel supply module, D - 12.09.2014>>
right, Flex Fuel, 		$1,313.13 1
2 1J0919133B
seal ring
IN STOCK 		$14.71 2
3 3D0919133E
seal ring, F 3W-7-041 500>>, F ZA-A-062 464>> 		$27.67 1
4 3W8919673
sender for fuel gauge .
left upper, 		$256.46 1
4 3W8919673A
sender for fuel gauge .
right upper, 		$256.46 1
5 3D0919673F
sender for fuel gauge .
left, 		$261.82 1
5 3D0919673G
sender for fuel gauge .
right,
IN STOCK 		$226.64 1
6 3W8919679
flange, fuel line
upper, 		$111.36 2
7 3W8919679B
flange, fuel line
lower, supply/return, 		$150.21 1
8 3W8919715C
suction pump, D - 12.09.2014>>
left, 		$103.15 1
8 3W8919715C
suction pump, D - 12.09.2014>>
right, 		$103.15 1
9 1K0201375
Union nut Bayonet catch
IN STOCK 		$6.19 2
10 3W8201294C
fuel line, D - 01.10.2012>> 		$440.14 1
11 3W8201293A
fuel line 		$215.91 1
12 WHT000506
union nut, D - 11.04.2005>> 		$22.49 1
13 3W8201398A
retaining clip, clamp 		$6.29 6
14 3W8201142A
earthing strap 		$93.77 2
15 3W8201142B
earthing strap 		$93.77 1
