Floor Assembly

Bentley Bentayga (2015-2020)

Find Your Part

Bentley Bentayga (2015-2020) - floor assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4M0803093F floor pan $269.21 To Order
Photo Part No Description Price (each) Stock
4M0803135E end plate, D >> - 10.09.2016 $74.95 To Order
4M0803135E end plate, D >> - 10.09.2016 $74.95 To Order
Photo Part No Description Price (each) Stock
4M0804773D cross member $262.39 To Order
Photo Part No Description Price (each) Stock
4M0802763D bracket $84.49 To Order
4M0802764D bracket $84.49 To Order
Photo Part No Description Price (each) Stock
4M0802081 rear apron $422.56 To Order
Photo Part No Description Price (each) Stock
4M0803729 Extension, tunnel, D - 19.09.2016>> $64.05 To Order
4M0803730 Extension, tunnel, D - 19.09.2016>> $64.05 To Order
Photo Part No Description Price (each) Stock
4M0802015 floor pan $429.36 To Order
4M0802016 floor pan $427.24 To Order
Photo Part No Description Price (each) Stock
4M0803173E seat support $181.02 To Order
4M0803174F seat support $181.02 To Order
Photo Part No Description Price (each) Stock
4M0803141D seat support $130.84 To Order
4M0803142C seat support $153.33 To Order
Photo Part No Description Price (each) Stock
4M0804301 tunnel $1,071.75 To Order
Photo Part No Description Price (each) Stock
4M0802245B bracket, propeller shaft $59.28 To Order
4M0802246B bracket, propeller shaft $62.69 To Order
Photo Part No Description Price (each) Stock
4M0803779AF sill, D - 12.09.2016>> $304.13 To Order
4M0803780AF sill, D - 12.09.2016>> $304.13 To Order
Photo Part No Description Price (each) Stock
4M0801387F reinforcement, D - 26.06.2017>> $89.77 To Order
Photo Part No Description Price (each) Stock
N10697801 Hexagon flange screw, (combi) $2.13 To Order
Photo Part No Description Price (each) Stock
4M0805778B cover for sender unit $19.20 To Order
Photo Part No Description Price (each) Stock
WHT005348 Oval hexagon socket head bolt $0.50 To Order
Photo Part No Description Price (each) Stock
4M0804035A reinforcement $61.33 To Order
4M0804036A reinforcement $61.33 To Order
Photo Part No Description Price (each) Stock
4M0810299 foam underlayment $8.44 To Order
4M0810300 foam underlayment $8.44 To Order
Photo Part No Description Price (each) Stock
4M0810525 foam underlayment $6.53 To Order
4M0810526 foam underlayment $6.53 To Order
Photo Part No Description Price (each) Stock
4M0801337 cross support $59.28 To Order
Photo Part No Description Price (each) Stock
N10402904 Hexagon collar nut $2.82 To Order
Photo Part No Description Price (each) Stock
4M0806103 Deadener (expanding) $4.75 To Order
4M0806104 Deadener (expanding) $4.75 To Order
View All

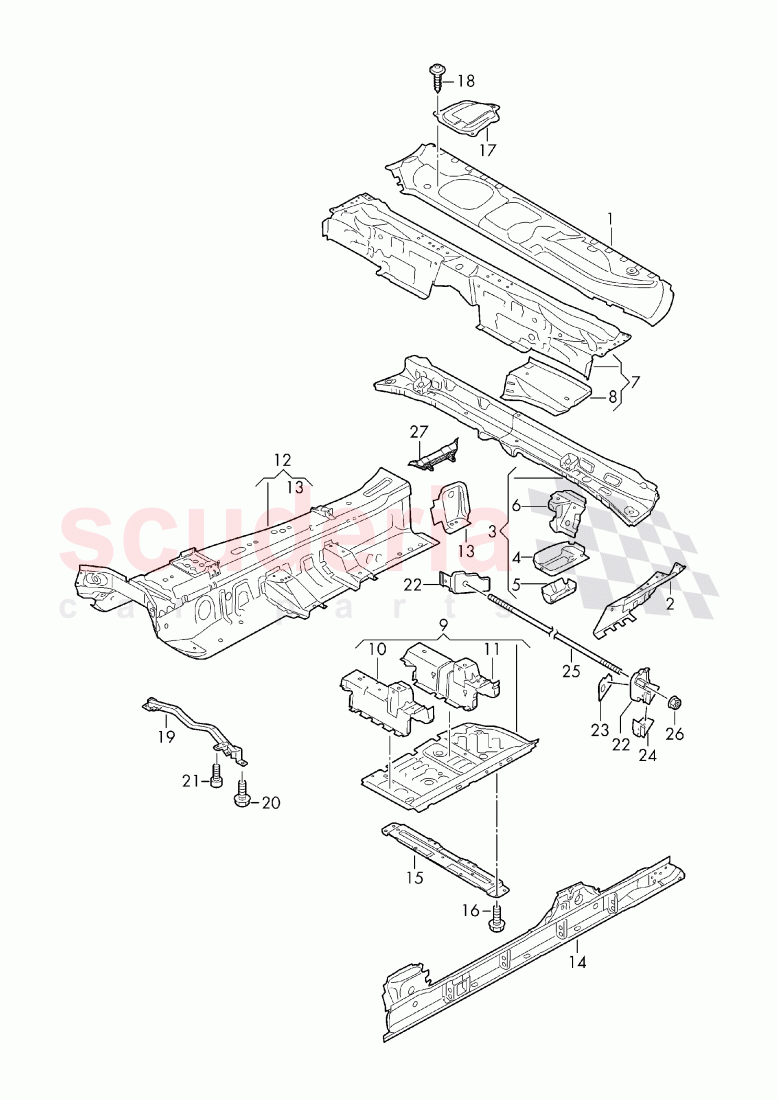

floor assembly of Bentley Bentley Bentayga (2015-2020) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4M0803093F
floor pan 		$269.21 1
2 4M0803135E
end plate, D >> - 10.09.2016
left, 		$74.95 1
2 4M0803135E
end plate, D >> - 10.09.2016
right, 		$74.95 1
3 4M0804773D
cross member
center, 		$262.39 1
4 4M0802763D
bracket
left, 		$84.49 1
4 4M0802764D
bracket
right, 		$84.49 1
7 4M0802081
rear apron 		$422.56 1
8 4M0803729
Extension, tunnel, D - 19.09.2016>>
left, 		$64.05 1
8 4M0803730
Extension, tunnel, D - 19.09.2016>>
right, 		$64.05 1
9 4M0802015
floor pan
left, 		$429.36 1
9 4M0802016
floor pan
right, 		$427.24 1
10 4M0803173E
seat support
left front, 		$181.02 1
10 4M0803174F
seat support
right front, 		$181.02 1
11 4M0803141D
seat support
left rear, 		$130.84 1
11 4M0803142C
seat support
right rear, 		$153.33 1
12 4M0804301
tunnel 		$1,071.75 1
13 4M0802245B
bracket, propeller shaft
left, 		$59.28 1
13 4M0802246B
bracket, propeller shaft
right, 		$62.69 1
14 4M0803779AF
sill, D - 12.09.2016>>
left inner, 		$304.13 1
14 4M0803780AF
sill, D - 12.09.2016>>
right inner, 		$304.13 1
15 4M0801387F
reinforcement, D - 26.06.2017>> 		$89.77 1
16 N10697801
Hexagon flange screw, (combi)
M10X30, 		$2.13 10
17 4M0805778B
cover for sender unit
right, 		$19.20 1
18 WHT005348
Oval hexagon socket head bolt
ST4,2X9,5, 		$0.50 3
22 4M0804035A
reinforcement
left rear, 		$61.33 1
22 4M0804036A
reinforcement
right rear, 		$61.33 1
23 4M0810299
foam underlayment
left, 		$8.44 1
23 4M0810300
foam underlayment
right, 		$8.44 1
24 4M0810525
foam underlayment
left, 		$6.53 1
24 4M0810526
foam underlayment
right, 		$6.53 1
25 4M0801337
cross support
rear, 		$59.28 1
26 N10402904
Hexagon collar nut
M12, 		$2.82 1
27 4M0806103
Deadener (expanding)
left, 		$4.75 1
27 4M0806104
Deadener (expanding)
right, 		$4.75 1
