Name: Gearbox mounting, for 8-speed automatic gearbox
Rating: 4.2 (1 reviews)

Gearbox mounting, for 8-speed automatic gearbox of Bentley Bentley Bentayga (2015-2020)

View All

Bentley Bentayga (2015-2020) - Gearbox mounting, for 8-speed automatic gearbox

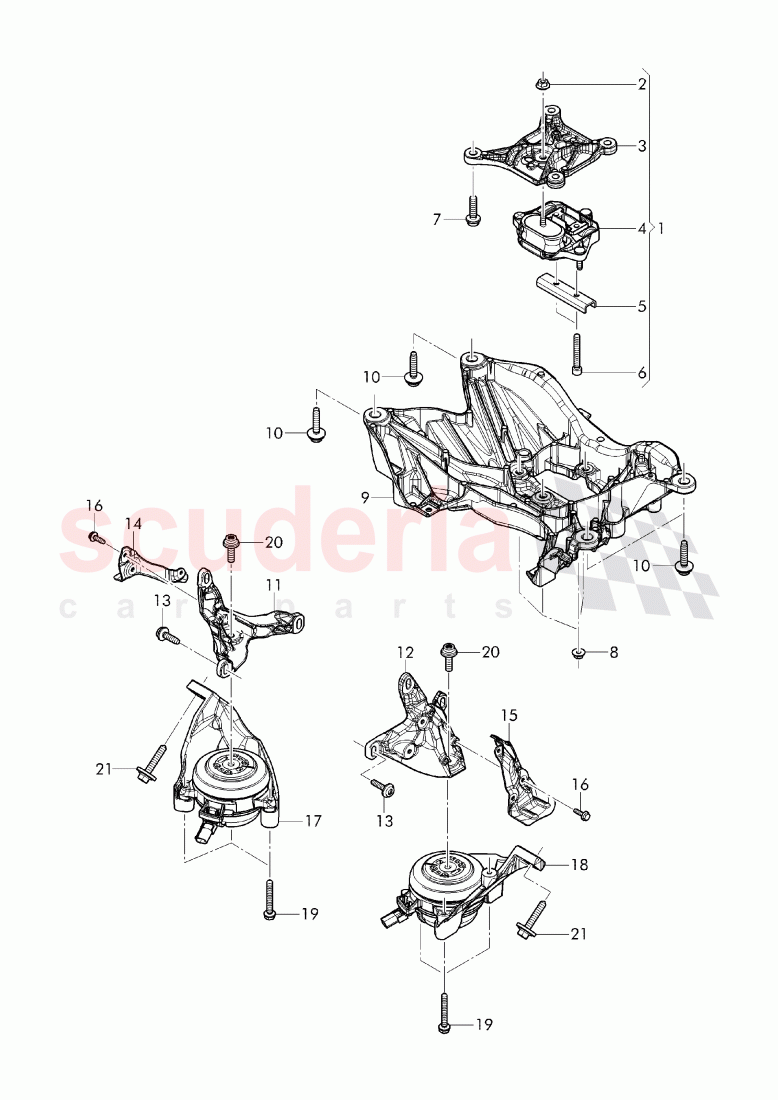

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8W0399156BLN10724701X24M0399118K8W0399292N	Gearbox mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91157401	hexagon nut, shouldered	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	N10724701	socket hd. screw with polygon, socket	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	N10720402	socket hd. screw with polygon, socket	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N91157401	hexagon nut, shouldered	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0399262C	cross member	$239.59	To Order

Photo	Part No	Description	Price (each)	Stock
	N91240001	Int. serration flange screw, (combi-instrument)	$3.25	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0399114B	mounting bracket for gearbox	$54.45	To Order

Photo	Part No	Description	Price (each)	Stock
	4N0399113	mounting bracket for gearbox, D - 25.09.2017>>	$66.79	To Order

Photo	Part No	Description	Price (each)	Stock
	N91049102	bolt, with polygon socket hd.	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0399308C	heatshield	$9.55	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0399307F	heatshield, D - 17.10.2016>>	$9.55	To Order
	4M0399307F	heatshield, D - 17.10.2016>>	$9.55	To Order

Photo	Part No	Description	Price (each)	Stock
	N90724603	bolt, hex. hd. (combi.)	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0399202L	hydro-mounting	$370.28	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0399201L	hydro-mounting	$370.28	To Order

Photo	Part No	Description	Price (each)	Stock
	N10344302	bolt, hex. hd. (combi.)	$3.25	To Order

Photo	Part No	Description	Price (each)	Stock
	N91153001	bolt, with polygon socket hd., (combi.)	$2.47	To Order

Photo	Part No	Description	Price (each)	Stock
	N91252601	hexagon screw with washer	$4.02	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8W0399156BLN10724701X24M0399118K8W0399292N	Gearbox mounting	8W0399156BLN10724701X24M0399118K8W0399292N Gearbox mounting centre/rear,	-	1	Enquire
2	N91157401	hexagon nut, shouldered	N91157401 hexagon nut, shouldered M8,	$1.19	1
6	N10724701	socket hd. screw with polygon, socket	N10724701 socket hd. screw with polygon, socket M8X60,	$1.28	2
7	N10720402	socket hd. screw with polygon, socket	N10720402 socket hd. screw with polygon, socket M10X40,	$2.47	4
8	N91157401	hexagon nut, shouldered	N91157401 hexagon nut, shouldered M8,	$1.19	4
9	4M0399262C	cross member	4M0399262C cross member centre/rear,	$239.59	1
10	N91240001	Int. serration flange screw, (combi-instrument)	N91240001 Int. serration flange screw, (combi-instrument) M10X50,	$3.25	4
11	4M0399114B	mounting bracket for gearbox	4M0399114B mounting bracket for gearbox right front,	$54.45	1
12	4N0399113	mounting bracket for gearbox, D - 25.09.2017>>	4N0399113 mounting bracket for gearbox, D - 25.09.2017>> left front,	$66.79	1
13	N91049102	bolt, with polygon socket hd.	N91049102 bolt, with polygon socket hd. M8X32,	$2.22	6
14	4M0399308C	heatshield	4M0399308C heatshield side right,	$9.55	1
15	4M0399307F	heatshield, D - 17.10.2016>>	4M0399307F heatshield, D - 17.10.2016>> side left,	$9.55	1
15	4M0399307F	heatshield, D - 17.10.2016>>	4M0399307F heatshield, D - 17.10.2016>> left,	$9.55	1
16	N90724603	bolt, hex. hd. (combi.)	N90724603 bolt, hex. hd. (combi.) M6X22,	$1.11	6
17	4M0399202L	hydro-mounting	4M0399202L hydro-mounting right front,	$370.28	1
18	4M0399201L	hydro-mounting	4M0399201L hydro-mounting left front,	$370.28	1
19	N10344302	bolt, hex. hd. (combi.)	N10344302 bolt, hex. hd. (combi.) M8X60,	$3.25	6
20	N91153001	bolt, with polygon socket hd., (combi.)	N91153001 bolt, with polygon socket hd., (combi.) M10X35,	$2.47	2
21	N91252601	hexagon screw with washer	N91252601 hexagon screw with washer M10X55,	$4.02	2

Gearbox Mounting, For 8-Speed Automatic Gearbox

Bentley Bentayga (2015-2020)

Bentley Bentayga (2015-2020) - Gearbox mounting, for 8-speed automatic gearbox

Add to Shopping Cart
