Timing Chain, Guide Rail

Bentley Bentayga (2015-2020)

Find Your Part

Bentley Bentayga (2015-2020) - timing chain, guide rail

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
57109252C drive chain, D - 10.08.2017>> $250.33 To Order
Photo Part No Description Price (each) Stock
N90893202 fitted bolt, hex. head $2.05 To Order
Photo Part No Description Price (each) Stock
59109469AB guide rail $23.07 To Order
Photo Part No Description Price (each) Stock
59109513N guide rail $20.96 To Order
Photo Part No Description Price (each) Stock
57109507E tensioner - chain $192.28 To Order
Photo Part No Description Price (each) Stock
N91068001 Hexagon socket flat head bolt $1.02 To Order
Photo Part No Description Price (each) Stock
59109514N guide rail $20.96 To Order
Photo Part No Description Price (each) Stock
59109426T axle $2.89 IN STOCK
Photo Part No Description Price (each) Stock
59109116G sprocket $45.70 To Order
Photo Part No Description Price (each) Stock
N91052201 hexagonal socket head, screw $1.80 To Order
Photo Part No Description Price (each) Stock
57109509F guide rail $27.05 To Order
Photo Part No Description Price (each) Stock
N10124306 Hexagon socket flat head bolt $1.02 IN STOCK
Photo Part No Description Price (each) Stock
59109510Q guide rail $42.72 To Order
Photo Part No Description Price (each) Stock
59109467AP tensioner - chain $147.04 To Order
Photo Part No Description Price (each) Stock
59109229AJ timing chain, D - 10.08.2017>> $311.99 To Order
Photo Part No Description Price (each) Stock
57109426A pivot pin $8.55 To Order
Photo Part No Description Price (each) Stock
59109171S intermediate wheel $142.21 To Order
Photo Part No Description Price (each) Stock
N10672001 bolt, with polygon socket hd. $2.22 To Order
Photo Part No Description Price (each) Stock
57109467G tensioner - chain, see illustration, item: $58.80 To Order
Photo Part No Description Price (each) Stock
57109135C spacer bushing $8.55 To Order
Photo Part No Description Price (each) Stock
N10582103 oval head countersunk bolt with multi-point socket head $1.11 IN STOCK
Photo Part No Description Price (each) Stock
59109429D jet $34.82 To Order
Photo Part No Description Price (each) Stock
N10170303 round hd. screw $1.02 IN STOCK
View All

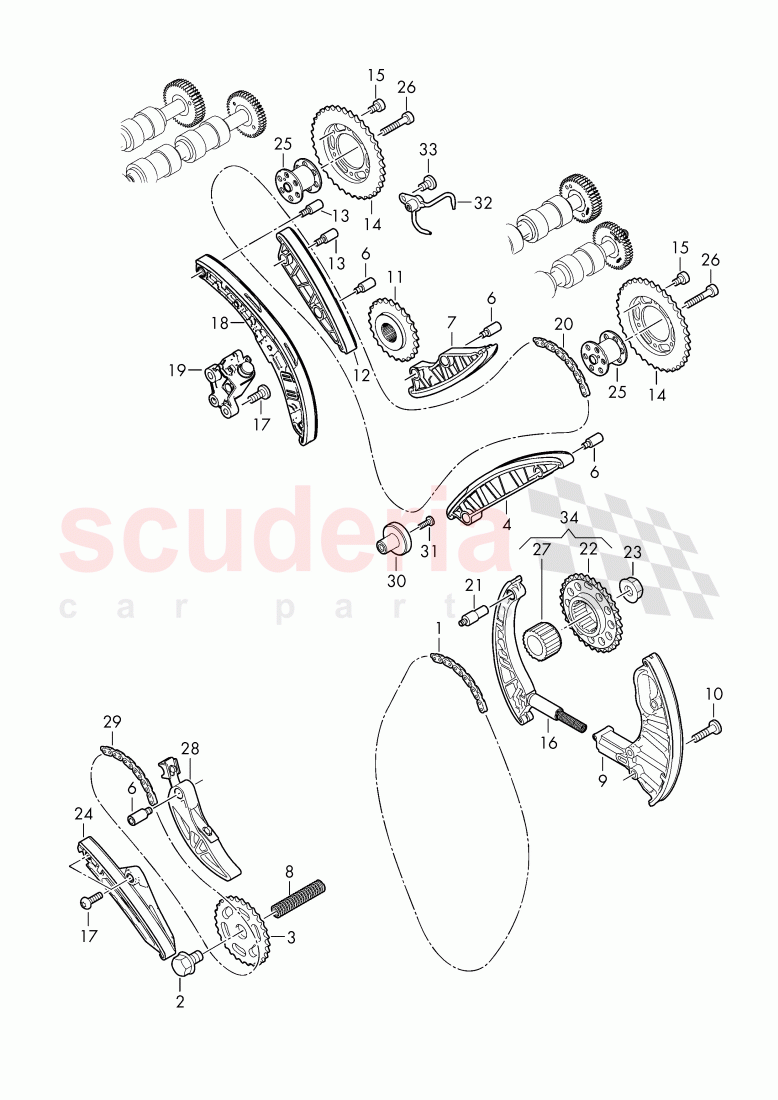

timing chain, guide rail of Bentley Bentley Bentayga (2015-2020) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 57109252C
drive chain, D - 10.08.2017>> 		$250.33 1
2 N90893202
fitted bolt, hex. head
M10X20, 		$2.05 1
4 59109469AB
guide rail 		$23.07 1
7 59109513N
guide rail 		$20.96 1
9 57109507E
tensioner - chain 		$192.28 1
10 N91068001
Hexagon socket flat head bolt
M6X28, 		$1.02 1
12 59109514N
guide rail 		$20.96 1
13 59109426T
axle
IN STOCK 		$2.89 2
14 59109116G
sprocket
left a. right, 		$45.70 2
15 N91052201
hexagonal socket head, screw
M8X12, 		$1.80 12
16 57109509F
guide rail 		$27.05 1
17 N10124306
Hexagon socket flat head bolt
M6X20,
IN STOCK 		$1.02 2
18 59109510Q
guide rail 		$42.72 1
19 59109467AP
tensioner - chain 		$147.04 1
20 59109229AJ
timing chain, D - 10.08.2017>> 		$311.99 1
21 57109426A
pivot pin 		$8.55 1
25 59109171S
intermediate wheel
left a. right, 		$142.21 2
26 N10672001
bolt, with polygon socket hd.
M8X50, 		$2.22 2
28 57109467G
tensioner - chain, see illustration, item:
115-060,21, 		$58.80 1
30 57109135C
spacer bushing 		$8.55 1
31 N10582103
oval head countersunk bolt with multi-point socket head
M6X40,
IN STOCK 		$1.11 1
32 59109429D
jet 		$34.82 1
33 N10170303
round hd. screw
M6X10,
IN STOCK 		$1.02 1
