Front Heated Seat Assembly

Aston Martin Virage

Find Your Part

Aston Martin Virage - Front Heated Seat Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8D3360008BAW ASSY FRONT SEAT RHS $16,436.02 To Order
8D3360009BAW ASSY FRONT SEAT LHS $11,604.13 To Order
Photo Part No Description Price (each) Stock
8D3360136BAW FRONT SEAT SQUAB RH TRIMMED ASSY Enquire To Order
8D3360137BAW FRONT SEAT SQUAB LH TRIMMED ASSY $6,859.16 To Order
Photo Part No Description Price (each) Stock
8D3360050BAW FRONT SEAT CUSHION TRIMMED ASSY RH $7,986.67 To Order
8D3360051BAW COVER ASSY FRONT SEAT CUSHION LH $4,391.66 To Order
Photo Part No Description Price (each) Stock
CG4364800AC Squab Frame, Front Seat, RH, Memory $4,348.97 To Order
CG4364802AC Squab Frame, Front Seat, LH, Memory $4,348.97 To Order
Photo Part No Description Price (each) Stock
BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting $3,162.80 To Order
BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting $3,162.80 To Order
Photo Part No Description Price (each) Stock
7G43L60344CB Cushion Frame, Front Seat, Non Height Adjusting, OCS $3,639.77 To Order
Photo Part No Description Price (each) Stock
7G43625B02AB Sensor, passenger seat weight Enquire To Order
Photo Part No Description Price (each) Stock
7G43625B00CC Module, Passenger Seat Weight $146.14 IN STOCK
Photo Part No Description Price (each) Stock
4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT $0.71 To Order
Photo Part No Description Price (each) Stock
706423 SCREW-M8 x 25 HF PI $1.49 IN STOCK
Photo Part No Description Price (each) Stock
4G43613K22BD Buckle Assembly, Front Seatbelt $267.60 To Order
Photo Part No Description Price (each) Stock
ptofitem11 Screw, part of buckle assy Enquire To Order
Photo Part No Description Price (each) Stock
7G4314E693AA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH $354.57 To Order
7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH $394.31 To Order
Photo Part No Description Price (each) Stock
7G43N014740AA Screw, M6 x 16, Socket Head $1.11 To Order
Photo Part No Description Price (each) Stock
4G437410690 Airbag, Side, RH $371.64 To Order
4G437410689 Airbag, Side, LH $371.64 To Order
Photo Part No Description Price (each) Stock
6G33062A00BB GLOVEBOX SWITCH $391.41 To Order
Photo Part No Description Price (each) Stock
7G43605W00ACW Strap, Squab Release, Manual Override $33.28 To Order
Photo Part No Description Price (each) Stock
8G3365532AA Pump, Lumbar Support Air $174.21 To Order
Photo Part No Description Price (each) Stock
8G3365524AA Valve, Lumbar Support Air $212.45 To Order
Photo Part No Description Price (each) Stock
4G437410127 Kit, Squab Motor $142.47 To Order
Photo Part No Description Price (each) Stock
8G3365500AA LUMBAR SUPPORT BAG $427.61 To Order
Photo Part No Description Price (each) Stock
7G4314B426AB Sensor, seat track position $43.59 To Order
Photo Part No Description Price (each) Stock
92057 SEAT ECU-DRIVER $956.92 To Order
Photo Part No Description Price (each) Stock
AD3364572BAW COVER ASSY SPORTS SEAT $4,462.62 To Order
AD3364573BAW COVER ASSY SQUAB SPORTS SEAT $3,936.99 To Order
Photo Part No Description Price (each) Stock
7G434D9514AB SEAT BACK FOAM LH $436.31 To Order
7G434D9513AB SQUAB FOAM RH $436.31 To Order
Photo Part No Description Price (each) Stock
7G4314D696AB Heating Element, Squab $124.84 To Order
Photo Part No Description Price (each) Stock
8D3362900BAW COVER ASSY FRONT SEAT CUSHION RH $2,798.35 To Order
8D3362901BAW COVER ASSY FRONT SEAT CUSHION LH $2,798.35 To Order
Photo Part No Description Price (each) Stock
8G439515AD Foam, cushion, RH Enquire To Order
8G439516AD Foam, cushion, LH Enquire To Order
Photo Part No Description Price (each) Stock
7G437411070 SEAT HARNESS $129.86 To Order
7G4314D698AC Element, Seat Base Heater $308.18 IN STOCK
View All

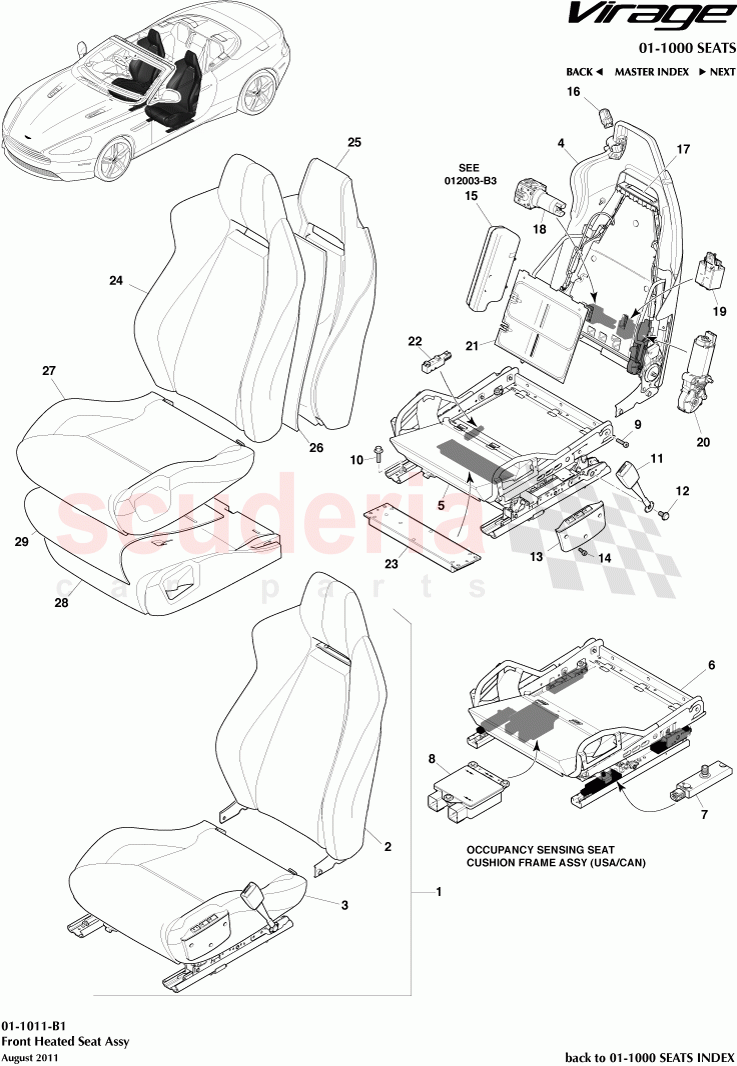

Front Heated Seat Assembly of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8D3360008BAW
ASSY FRONT SEAT RHS 		$16,436.02 1
1 8D3360009BAW
ASSY FRONT SEAT LHS 		$11,604.13 1
2 8D3360136BAW
FRONT SEAT SQUAB RH TRIMMED ASSY 		- 1 Enquire
2 8D3360137BAW
FRONT SEAT SQUAB LH TRIMMED ASSY 		$6,859.16 1
3 8D3360050BAW
FRONT SEAT CUSHION TRIMMED ASSY RH 		$7,986.67 1
3 8D3360051BAW
COVER ASSY FRONT SEAT CUSHION LH 		$4,391.66 1
4 CG4364800AC
Squab Frame, Front Seat, RH, Memory 		$4,348.97 1
4 CG4364802AC
Squab Frame, Front Seat, LH, Memory 		$4,348.97 1
5 BG43L60344AA
Cushion Frame Assembly, Front Seat, Height Adjusting
USA/Can 		$3,162.80 1
5 BG43L60344AA
Cushion Frame Assembly, Front Seat, Height Adjusting
ROW 		$3,162.80 2
6 7G43L60344CB
Cushion Frame, Front Seat, Non Height Adjusting, OCS
USA/Can 		$3,639.77 1
7 7G43625B02AB
Sensor, passenger seat weight
USA/Can 		- 1 Enquire
8 7G43625B00CC
Module, Passenger Seat Weight
USA/Can
IN STOCK 		$146.14 1
9 4G4361538AB
M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT 		$0.71 4
10 706423
SCREW-M8 x 25 HF PI
IN STOCK 		$1.49 4
11 4G43613K22BD
Buckle Assembly, Front Seatbelt 		$267.60 2
12 ptofitem11
Screw, part of buckle assy 		- 2 Enquire
13 7G4314E693AA
SWITCH PACK ASSY FRT SEAT HEAT LUMBAR LH 		$354.57 1
13 7G4314E693BA
SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH 		$394.31 2
14 7G43N014740AA
Screw, M6 x 16, Socket Head 		$1.11 3
15 4G437410690
Airbag, Side, RH 		$371.64 1
15 4G437410689
Airbag, Side, LH 		$371.64 1
16 6G33062A00BB
GLOVEBOX SWITCH 		$391.41 1
17 7G43605W00ACW
Strap, Squab Release, Manual Override 		$33.28 2
18 8G3365532AA
Pump, Lumbar Support Air 		$174.21 1
19 8G3365524AA
Valve, Lumbar Support Air 		$212.45 1
20 4G437410127
Kit, Squab Motor 		$142.47 1
21 8G3365500AA
LUMBAR SUPPORT BAG 		$427.61 1
22 7G4314B426AB
Sensor, seat track position 		$43.59 1
23 92057
SEAT ECU-DRIVER 		$956.92 1
24 AD3364572BAW
COVER ASSY SPORTS SEAT 		$4,462.62 1
24 AD3364573BAW
COVER ASSY SQUAB SPORTS SEAT 		$3,936.99 1
25 7G434D9514AB
SEAT BACK FOAM LH 		$436.31 1
25 7G434D9513AB
SQUAB FOAM RH 		$436.31 1
26 7G4314D696AB
Heating Element, Squab 		$124.84 2
27 8D3362900BAW
COVER ASSY FRONT SEAT CUSHION RH 		$2,798.35 1
27 8D3362901BAW
COVER ASSY FRONT SEAT CUSHION LH 		$2,798.35 1
28 8G439515AD
Foam, cushion, RH 		- 1 Enquire
28 8G439516AD
Foam, cushion, LH 		- 1 Enquire
29 7G437411070
SEAT HARNESS
Not illustrated 		$129.86 1
29 7G4314D698AC
Element, Seat Base Heater
IN STOCK 		$308.18 2
