Aston Martin Virage - Fuel Tank Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BG339C133AA TNK& CNSTER FUEL $6,370.16 To Order
Photo Part No Description Price (each) Stock
KY639074CA PLATE ASY FU TANK CV $70.33 IN STOCK
Photo Part No Description Price (each) Stock
4G439C055CA COVER - FUEL TANK SERVICE $19.67 To Order
Photo Part No Description Price (each) Stock
4G4332133BA Clamp Plate, Fuel Tank $15.29 IN STOCK
Photo Part No Description Price (each) Stock
703169 NUT - M6 HEX FLANGE CHROME FREE $0.52 IN STOCK
Photo Part No Description Price (each) Stock
4G439073AA Gasket, Fuel Tank Service Cover $27.49 IN STOCK
Photo Part No Description Price (each) Stock
4G439D653AA CARBON CANNISTER $315.78 To Order
Photo Part No Description Price (each) Stock
4G439C133aPIA03 Tie-wrap Enquire To Order
Photo Part No Description Price (each) Stock
6G334090AB Tube, assy, fuel vap to cannister Enquire To Order
Photo Part No Description Price (each) Stock
7G4314407AB FUEL TANK HARNESS $136.20 To Order
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.11 IN STOCK
Photo Part No Description Price (each) Stock
4G433710041 ELECTRICAL CONNECTOR-6 WAY SUMITOMO $61.98 To Order
Photo Part No Description Price (each) Stock
4G439E275AA Sensor - Fuel Tank Sender $103.63 IN STOCK
Photo Part No Description Price (each) Stock
8G439B260AC LH FUEL PUMP & RESERVOIR $862.89 IN STOCK
Photo Part No Description Price (each) Stock
6G339B260CC Fuel Pump and Reservoir RH $893.98 IN STOCK
Photo Part No Description Price (each) Stock
8G439155AA Fuel Filter LH $251.13 To Order
Photo Part No Description Price (each) Stock
6G339155AB Fuel Filter RH $403.07 To Order
Photo Part No Description Price (each) Stock
6G339B260BD Module Assy, Jet Pump $356.28 IN STOCK
Photo Part No Description Price (each) Stock
4G439012APIA01 TIE WRAP - FIR TREE Aprx 18cm/180mm (L) $17.41 To Order
View All

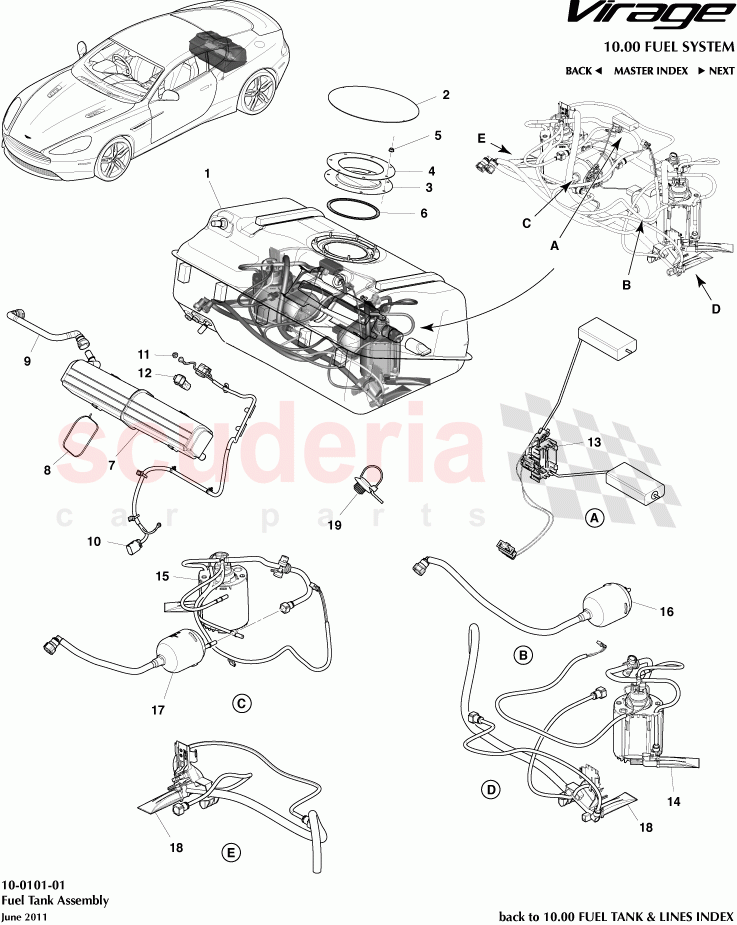

Fuel Tank Assembly of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BG339C133AA
TNK& CNSTER FUEL 		$6,370.16 1
2 KY639074CA
PLATE ASY FU TANK CV
Includes cover plate gasket
IN STOCK 		$70.33 1
3 4G439C055CA
COVER - FUEL TANK SERVICE 		$19.67 1
4 4G4332133BA
Clamp Plate, Fuel Tank
IN STOCK 		$15.29 1
5 703169
NUT - M6 HEX FLANGE CHROME FREE
IN STOCK 		$0.52 8
6 4G439073AA
Gasket, Fuel Tank Service Cover
Replace each time Cover Plate is removed.
IN STOCK 		$27.49 1
7 4G439D653AA
CARBON CANNISTER 		$315.78 1
8 4G439C133aPIA03
Tie-wrap
Cannister Assy 		- 1 Enquire
9 6G334090AB
Tube, assy, fuel vap to cannister 		- 1 Enquire
10 7G4314407AB
FUEL TANK HARNESS 		$136.20 1
11 703163
Nut, M6, Hex Flange Head, Locking
IN STOCK 		$0.11 1
12 4G433710041
ELECTRICAL CONNECTOR-6 WAY SUMITOMO
without ??ring 		$61.98 1
13 4G439E275AA
Sensor - Fuel Tank Sender
IN STOCK 		$103.63 1
14 8G439B260AC
LH FUEL PUMP & RESERVOIR
IN STOCK 		$862.89 1
15 6G339B260CC
Fuel Pump and Reservoir RH
IN STOCK 		$893.98 1
16 8G439155AA
Fuel Filter LH 		$251.13 1
17 6G339155AB
Fuel Filter RH 		$403.07 1
18 6G339B260BD
Module Assy, Jet Pump
IN STOCK 		$356.28 2
19 4G439012APIA01
TIE WRAP - FIR TREE Aprx 18cm/180mm (L) 		$17.41 4
