Premium Speaker Assembly - B&o

Aston Martin Virage

Find Your Part

Aston Martin Virage - Premium Speaker Assembly - B&O

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
9D3318C956AC Sub Enclosure $1,088.90 To Order
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.18 IN STOCK
Photo Part No Description Price (each) Stock
703164 M6 LOCKNUT FLANGE NY LON CHROM FREE $0.44 To Order
Photo Part No Description Price (each) Stock
9D336696XBA Speaker Box, Front Door, RH $420.58 To Order
9D336696YBA Speaker Box, Front Door, LH $420.58 To Order
Photo Part No Description Price (each) Stock
700607 Screw Hex Flange Head M6 x 16mm $0.19 To Order
Photo Part No Description Price (each) Stock
9D3346684BA Speaker, Rear, RH Volante $319.34 To Order
9D3346685BA Speaker, Rear, LH Volante $319.34 To Order
9D3346684AA DB9 COUPE RR SPEAKER RH $288.68 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
703735 Screw, M5 x 12, Pan Head $0.50 To Order
Photo Part No Description Price (each) Stock
9D3318D801AB ACOUSTIC LENS TWEETER-BASALT $2,081.63 To Order
Photo Part No Description Price (each) Stock
9D3346662AA Washer, 14mm, 43 ID 14 OD 0.8 Thk $0.09 To Order
Photo Part No Description Price (each) Stock
707613 SCREW M4.2 X 13 FLANGE BLACK $0.88 IN STOCK
Photo Part No Description Price (each) Stock
9D3370451AB Speaker Box Assy, Centre $435.56 To Order
Photo Part No Description Price (each) Stock
703736 Screw Self Tapping, 4.2 x 19, Washer Head $0.11 To Order
Photo Part No Description Price (each) Stock
9D336696XAC Speaker Box, Footwell, RH $476.87 To Order
Photo Part No Description Price (each) Stock
9D336696YAC Speaker Box, Footwell, LH $476.87 To Order
Photo Part No Description Price (each) Stock
703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) $4.78 IN STOCK
Photo Part No Description Price (each) Stock
9D3319080AA Mounting Bracket, Loudspeaker $16.53 To Order
Photo Part No Description Price (each) Stock
9D332B100AC Bracket, Foot Well Speaker Box, RH $24.86 To Order
Photo Part No Description Price (each) Stock
4G432B099AD Mounting Bracket, Accelerator Scuff Plate, LH $41.12 To Order
View All

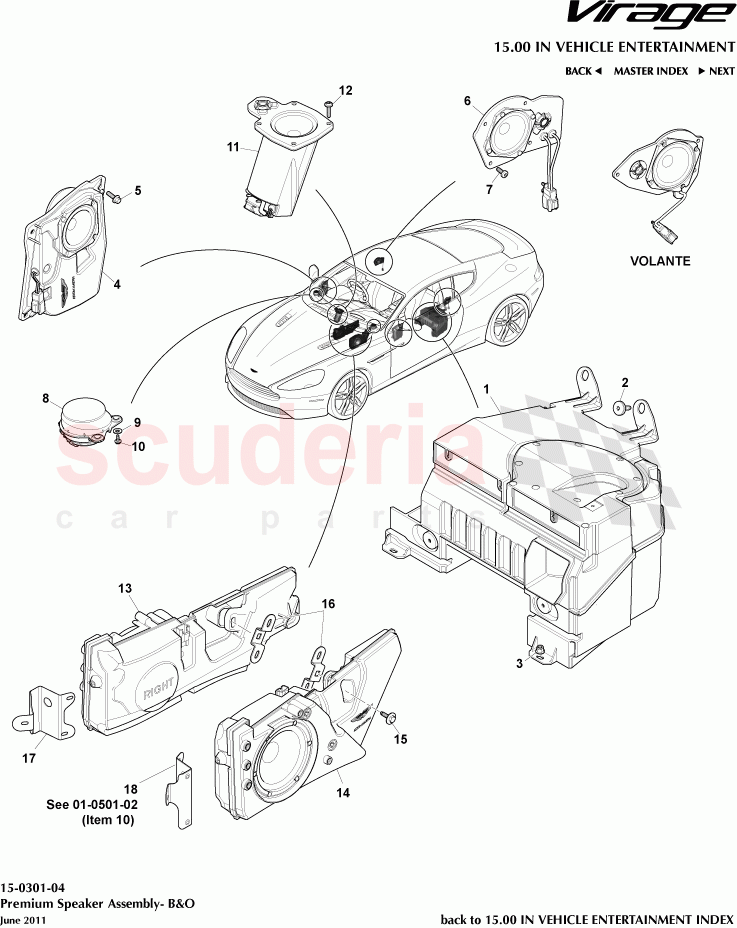

Premium Speaker Assembly - B&O of Aston Martin Aston Martin Virage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 9D3318C956AC
Sub Enclosure 		$1,088.90 1
2 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.18 2
3 703164
M6 LOCKNUT FLANGE NY LON CHROM FREE 		$0.44 2
4 9D336696XBA
Speaker Box, Front Door, RH 		$420.58 1
4 9D336696YBA
Speaker Box, Front Door, LH 		$420.58 1
5 700607
Screw Hex Flange Head M6 x 16mm 		$0.19 4
6 9D3346684BA
Speaker, Rear, RH Volante 		$319.34 1
6 9D3346685BA
Speaker, Rear, LH Volante 		$319.34 1
6 9D3346684AA
DB9 COUPE RR SPEAKER RH 		$288.68 1
6 9D3346685AA
DB9 COUPE RR SPEAKER LH 		$288.68 1
7 703735
Screw, M5 x 12, Pan Head 		$0.50 4
8 9D3318D801AB
ACOUSTIC LENS TWEETER-BASALT 		$2,081.63 2
9 9D3346662AA
Washer, 14mm, 43 ID 14 OD 0.8 Thk 		$0.09 3
10 707613
SCREW M4.2 X 13 FLANGE BLACK
IN STOCK 		$0.88 3
11 9D3370451AB
Speaker Box Assy, Centre 		$435.56 1
12 703736
Screw Self Tapping, 4.2 x 19, Washer Head 		$0.11 1
13 9D336696XAC
Speaker Box, Footwell, RH 		$476.87 1
14 9D336696YAC
Speaker Box, Footwell, LH 		$476.87 1
15 703152PK
Screw & Washer M6 x 20 Hex Head (Pack of 10)
IN STOCK 		$4.78 2
16 9D3319080AA
Mounting Bracket, Loudspeaker 		$16.53 2
17 9D332B100AC
Bracket, Foot Well Speaker Box, RH 		$24.86 1
18 4G432B099AD
Mounting Bracket, Accelerator Scuff Plate, LH 		$41.12 1
