Coolant Hoses And Reservoirs

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Coolant Hoses and Reservoirs

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G338333AC HOSE - RADIATOR $277.79 To Order
Photo Part No Description Price (each) Stock
701172 Clip, 16 x 2.8 - 3.3 $0.40 IN STOCK
Photo Part No Description Price (each) Stock
6G332A155BA BRACKET - RAD INLET HOSE ASSY $5.23 To Order
Photo Part No Description Price (each) Stock
6G338C363EA Hose Assy, radiator degas Enquire To Order
703734 Bolt and Washer M6x25 hex hd $1.15 To Order
Photo Part No Description Price (each) Stock
6G338C363BA HOSE - RADIATOR DEGAS ASSY $129.21 To Order
Photo Part No Description Price (each) Stock
6G338C363EC RAD DEGAS HOSE $113.46 To Order
Photo Part No Description Price (each) Stock
4G438C363DA HOSE - RADIATOR DEGAS ASSY $30.61 To Order
Photo Part No Description Price (each) Stock
702904 Spring Clamp, Hose, 17 x 15 $1.82 IN STOCK
Photo Part No Description Price (each) Stock
6G338C350AB MAKE UP HOSE ASSY $87.27 To Order
Photo Part No Description Price (each) Stock
702567 HOSE CLIP $1.11 To Order
Photo Part No Description Price (each) Stock
702902 HEAVY DUTY SPRING BAND CLAMP 27 x 15mm $2.09 To Order
Photo Part No Description Price (each) Stock
1R123710166 Switch, Coolant Level $72.65 IN STOCK
4G4319B518AE Tank assy, expansion Enquire To Order
4G438101BB PRESSURE CAP 150KPA $124.92 IN STOCK
Photo Part No Description Price (each) Stock
703151 Screw M6x16 Washer Hex HD Chrome Free $0.47 IN STOCK
Photo Part No Description Price (each) Stock
6G331660AC SPACER-COOLANT RESERVOIR ASSY $10.76 To Order
Photo Part No Description Price (each) Stock
703612 Nut & Washer, M6, HVAC to XCB $0.44 IN STOCK
Photo Part No Description Price (each) Stock
6G338N029AB HOSE - RADIAOTR OVERFLOW EXT $53.17 To Order
Photo Part No Description Price (each) Stock
702568 17MM DIA 'C' CLIP $2.28 To Order
Photo Part No Description Price (each) Stock
6G338B081AB HOSE - RADIATOR SUPPLY TANK OVERFLOW $74.58 To Order
Photo Part No Description Price (each) Stock
6G33TBD2BA Reservoir, Coolant Expansion $56.45 To Order
Photo Part No Description Price (each) Stock
6G338003EC ENGINE DEGAS HOSE $575.27 To Order
Photo Part No Description Price (each) Stock
6G338003DA HOSE THERMOSTAT HOUSING CROSSOVER BLEED $56.01 To Order
Photo Part No Description Price (each) Stock
6G338003CA PIPE CROSSOVER BLEED $15.99 To Order
702904 Spring Clamp, Hose, 17 x 15 $1.82 IN STOCK
Photo Part No Description Price (each) Stock
6G3318663BB HOSE OUTLET HEATER TO WATER PUMP $59.98 To Order
6G3318663AC HOSE OUTLET HEATER TO WATER PUMP $113.35 To Order
Photo Part No Description Price (each) Stock
701335 Clip, Hose Spring, 20 x 15 $1.06 To Order
Photo Part No Description Price (each) Stock
6G3318696BC HEATER INLET HOSE ASY $107.00 To Order
6G3318696AB HOSE HEATER INLET ASSY $109.76 To Order
Photo Part No Description Price (each) Stock
6G332A155AB BRACKET - HOSE CLIP $7.95 To Order
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
Photo Part No Description Price (each) Stock
702569 C-CLIP $1.86 IN STOCK
Photo Part No Description Price (each) Stock
6G338C289AC HOSE - ENGINE COOL RETURN $75.54 IN STOCK
Photo Part No Description Price (each) Stock
6G331861AB TIE WRAP $10.48 IN STOCK
1R12322666AAPK COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12 $225.98 To Order
View All

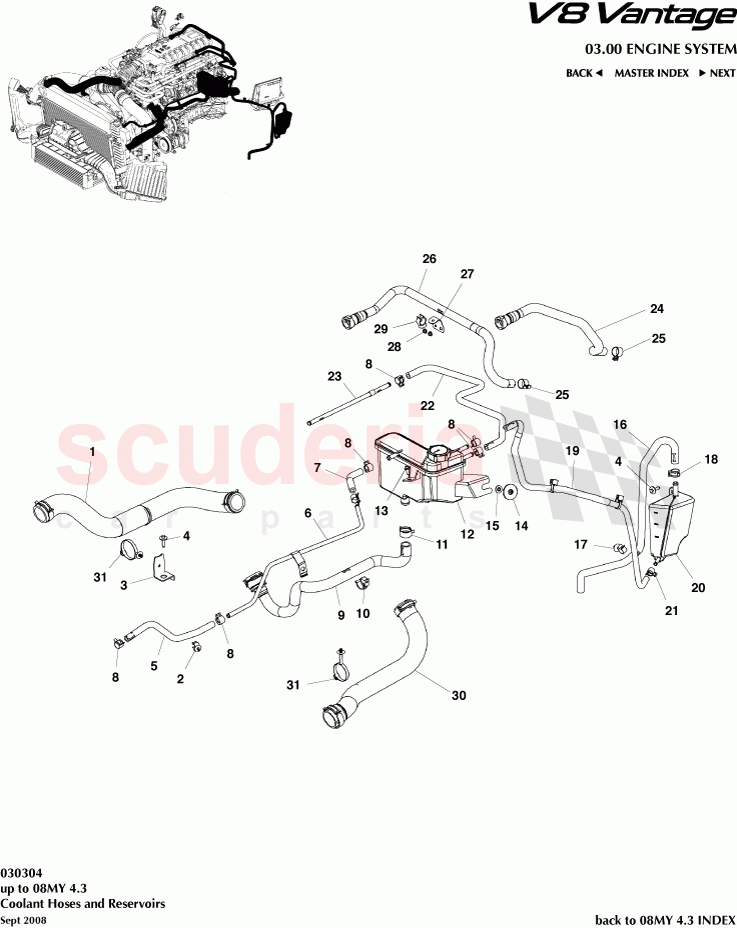

Coolant Hoses and Reservoirs of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G338333AC
HOSE - RADIATOR 		$277.79 1
2 701172
Clip, 16 x 2.8 - 3.3
IN STOCK 		$0.40 2
3 6G332A155BA
BRACKET - RAD INLET HOSE ASSY 		$5.23 1
4 6G338C363EA
Hose Assy, radiator degas
Rad to Coolant Res. 		- 1 Enquire
4 703734
Bolt and Washer M6x25 hex hd 		$1.15 3
5 6G338C363BA
HOSE - RADIATOR DEGAS ASSY 		$129.21 1
6 6G338C363EC
RAD DEGAS HOSE 		$113.46 1
7 4G438C363DA
HOSE - RADIATOR DEGAS ASSY 		$30.61 1
8 702904
Spring Clamp, Hose, 17 x 15
IN STOCK 		$1.82 4
9 6G338C350AB
MAKE UP HOSE ASSY 		$87.27 1
10 702567
HOSE CLIP 		$1.11 1
11 702902
HEAVY DUTY SPRING BAND CLAMP 27 x 15mm 		$2.09 1
12 1R123710166
Switch, Coolant Level
IN STOCK 		$72.65 1
12 4G4319B518AE
Tank assy, expansion 		- 1 Enquire
12 4G438101BB
PRESSURE CAP 150KPA
IN STOCK 		$124.92 1
13 703151
Screw M6x16 Washer Hex HD Chrome Free
IN STOCK 		$0.47 1
14 6G331660AC
SPACER-COOLANT RESERVOIR ASSY 		$10.76 1
15 703612
Nut & Washer, M6, HVAC to XCB
IN STOCK 		$0.44 1
16 6G338N029AB
HOSE - RADIAOTR OVERFLOW EXT 		$53.17 1
17 702568
17MM DIA 'C' CLIP 		$2.28 1
19 6G338B081AB
HOSE - RADIATOR SUPPLY TANK OVERFLOW 		$74.58 1
20 6G33TBD2BA
Reservoir, Coolant Expansion 		$56.45 1
21 6G338003EC
ENGINE DEGAS HOSE 		$575.27 1
22 6G338003DA
HOSE THERMOSTAT HOUSING CROSSOVER BLEED 		$56.01 1
23 6G338003CA
PIPE CROSSOVER BLEED 		$15.99 1
23 702904
Spring Clamp, Hose, 17 x 15
IN STOCK 		$1.82 2
24 6G3318663BB
HOSE OUTLET HEATER TO WATER PUMP 		$59.98 1
24 6G3318663AC
HOSE OUTLET HEATER TO WATER PUMP 		$113.35 1
25 701335
Clip, Hose Spring, 20 x 15 		$1.06 2
26 6G3318696BC
HEATER INLET HOSE ASY 		$107.00 1
26 6G3318696AB
HOSE HEATER INLET ASSY 		$109.76 1
27 6G332A155AB
BRACKET - HOSE CLIP 		$7.95 1
28 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 2
29 702569
C-CLIP
IN STOCK 		$1.86 1
30 6G338C289AC
HOSE - ENGINE COOL RETURN
IN STOCK 		$75.54 1
31 6G331861AB
TIE WRAP
IN STOCK 		$10.48 1
31 1R12322666AAPK
COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12 		$225.98 -
