Basic Engine Structure

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Basic Engine Structure

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
BG339C663CB MANIFOLD INTAKE $3,379.50 To Order
BG339C663DB MANIFOLD - INTAKE Enquire To Order
9G339C663CA Manifold assy, intake, upper 4.7 Enquire To Order
Photo Part No Description Price (each) Stock

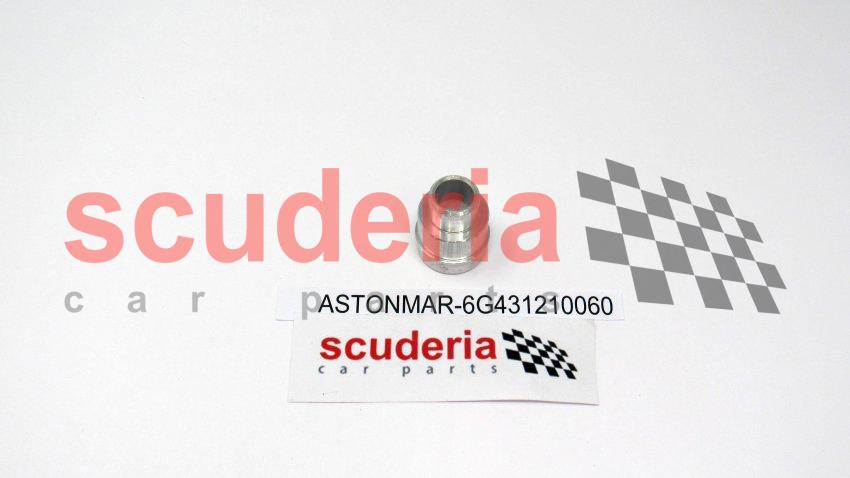

6G431210060 PCV Breather Stub Pipe $38.29 To Order
Photo Part No Description Price (each) Stock
702526 Bolt M8 x 30 Hex Flange Head $0.54 IN STOCK
Photo Part No Description Price (each) Stock
4G43001B46BB MANIFOLD BADGE $104.25 To Order
Photo Part No Description Price (each) Stock
EG330810726 SENSOR-AIR TEMPERATURE $12.43 IN STOCK
Photo Part No Description Price (each) Stock

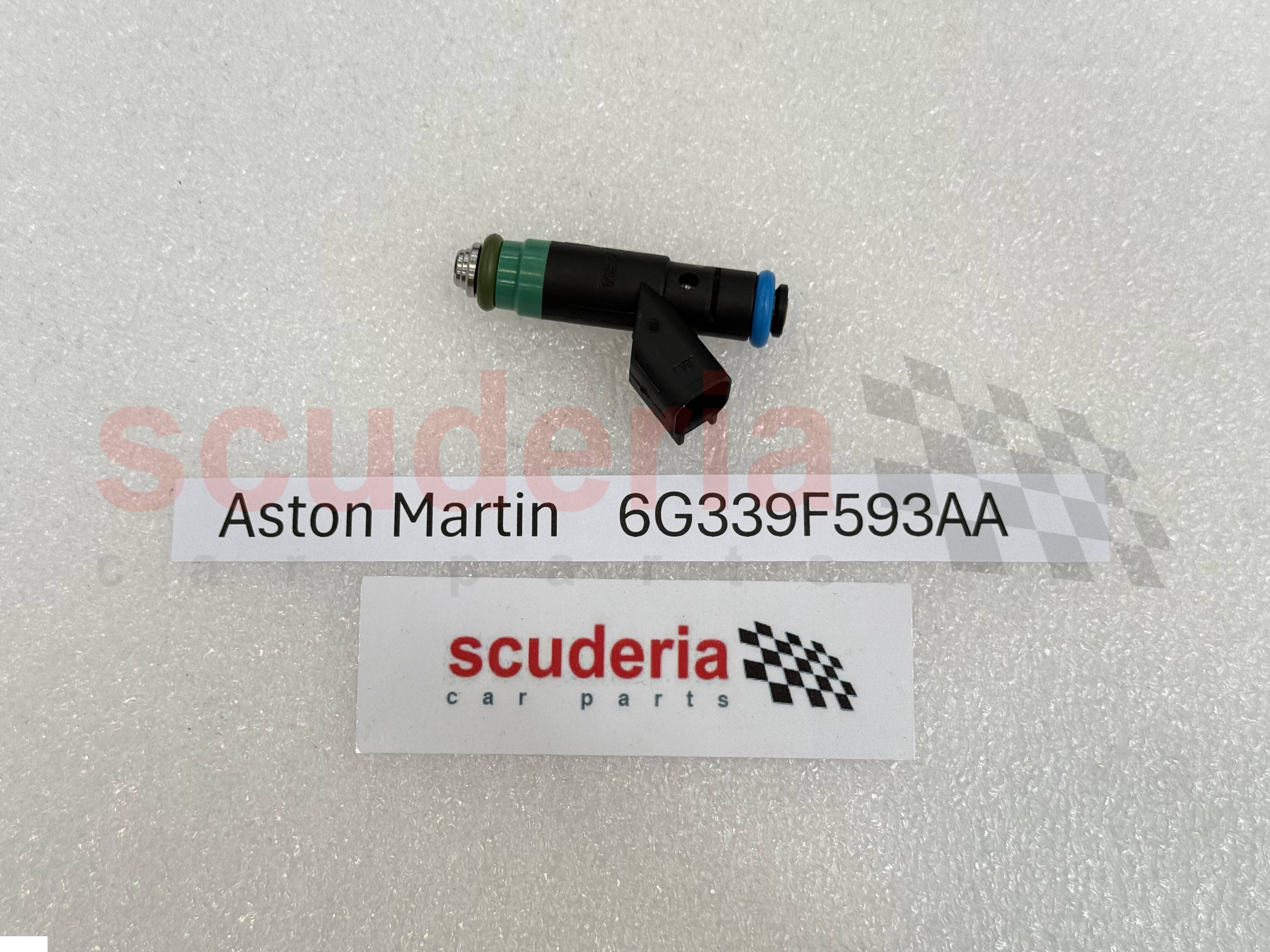

6G339F593AA Fuel Injector Assembly $62.03 IN STOCK
Photo Part No Description Price (each) Stock
6G433410062 Clip, Fuel Injector $12.17 IN STOCK
Photo Part No Description Price (each) Stock
6G339S441AF MANF ASY FU/INJ SPLY $3,057.95 To Order
Photo Part No Description Price (each) Stock
701553 Screw, M6 x 16, Pan Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
2W939F775AA Dampener assy, injection pulse Enquire To Order
Photo Part No Description Price (each) Stock

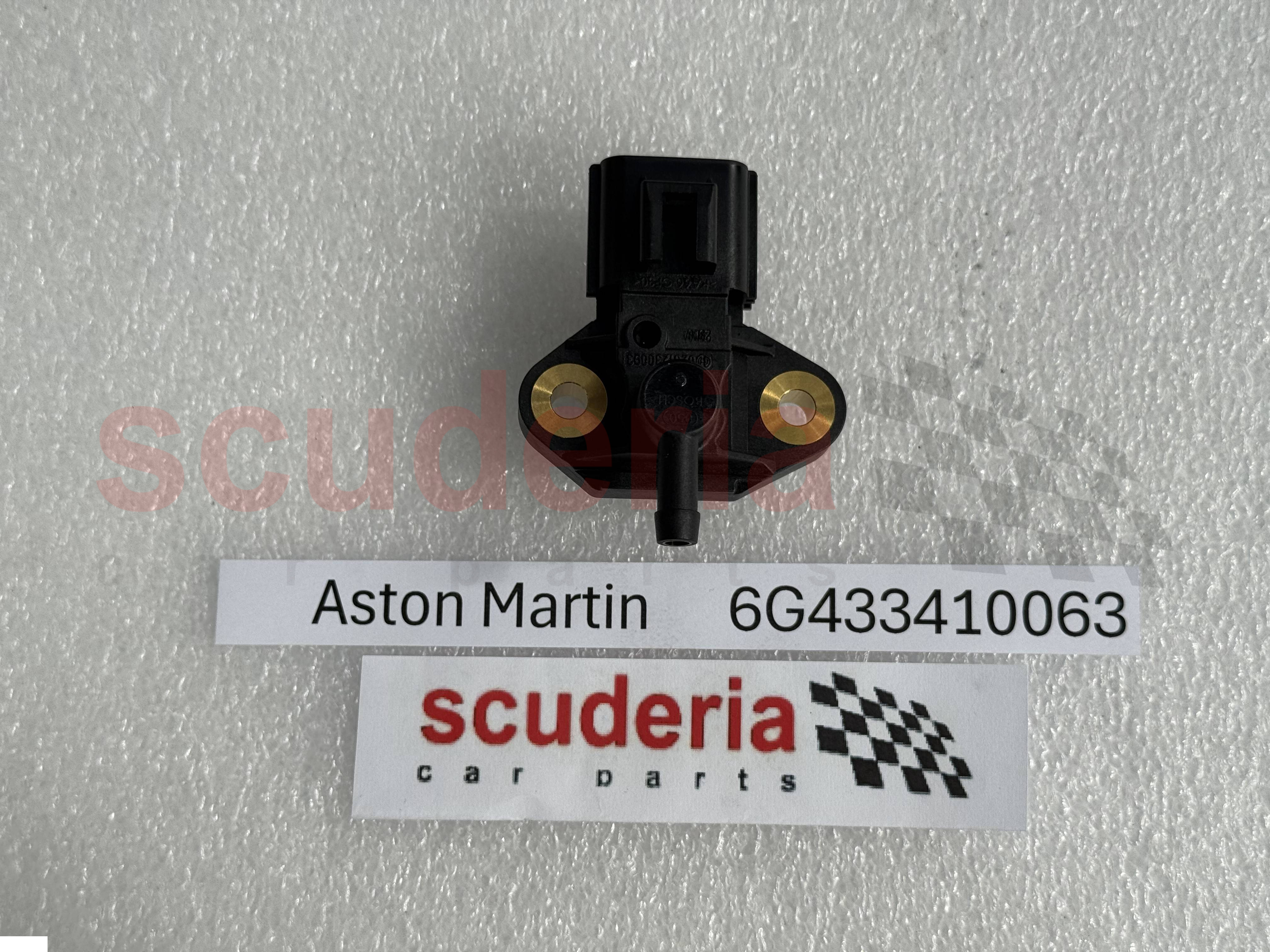

6G433410063 Sensor Temperature/Pressure $255.04 ARRIVING SOON
Photo Part No Description Price (each) Stock
700107 SCREW M5 X 20 FLG HEX HEAD GRD 8.8 ZINC PLATE $2.17 To Order
Photo Part No Description Price (each) Stock
8G438979AA WASHER M5 x 20 x 1.5 THK ST/STEEL BLK $0.36 IN STOCK
Photo Part No Description Price (each) Stock
9G336L074AC BLK & BED PLATE $13,358.49 To Order
9G336011AA Short block Enquire To Order
9G336006AA Long block Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
6G430110070 DWL CYL BLK TO FRT CVR $0.41 To Order
Photo Part No Description Price (each) Stock
6G430110113 RING DOWEL $19.45 To Order
Photo Part No Description Price (each) Stock
6G430110114 BOLT - M8 x 60 $2.35 To Order
Photo Part No Description Price (each) Stock
6G430110075 BOLT M8 x 110 $14.81 IN STOCK
Photo Part No Description Price (each) Stock
6G430110112 BOLT M10 x 114 $10.88 IN STOCK
Photo Part No Description Price (each) Stock
6G430110070 DWL CYL BLK TO FRT CVR $0.41 To Order
Photo Part No Description Price (each) Stock
6G430110067 DOWEL CYL HD TO BLK $0.65 IN STOCK
Photo Part No Description Price (each) Stock
6G430110118 RING DOWEL $28.85 To Order
Photo Part No Description Price (each) Stock
6G430110068 CVR CYL TOP $21.54 To Order
Photo Part No Description Price (each) Stock
702529 PLUG - FLANGED M30 $4.38 To Order
Photo Part No Description Price (each) Stock
3286515 WASHER-SEALING $7.15 To Order
Photo Part No Description Price (each) Stock
702531 PLUG 28/28.052 DIA $0.22 To Order
Photo Part No Description Price (each) Stock
702528 PLUG - M30 X 12 $1.79 To Order
Photo Part No Description Price (each) Stock
6G430410077 VLV ASY-ENG PST OIL COOL $17.81 To Order
Photo Part No Description Price (each) Stock
91996 CYLINDER HEAD M/C - RH $7,989.82 To Order
702536 SCREW M6 x 14 $0.10 To Order
Photo Part No Description Price (each) Stock
91995 CYLINDER HEAD M/C - LH $8,302.21 To Order
Photo Part No Description Price (each) Stock
6G430610353 BOLT CYLINDER HEAD $2.59 IN STOCK
Photo Part No Description Price (each) Stock
702683 BOLT M8 X 90 $8.56 IN STOCK
Photo Part No Description Price (each) Stock

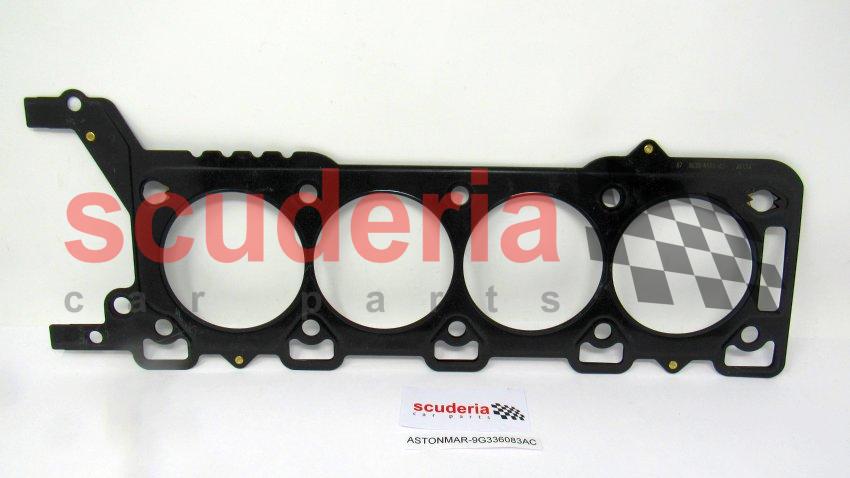

9G336083AC Gasket Cylinder Head LH $262.66 IN STOCK

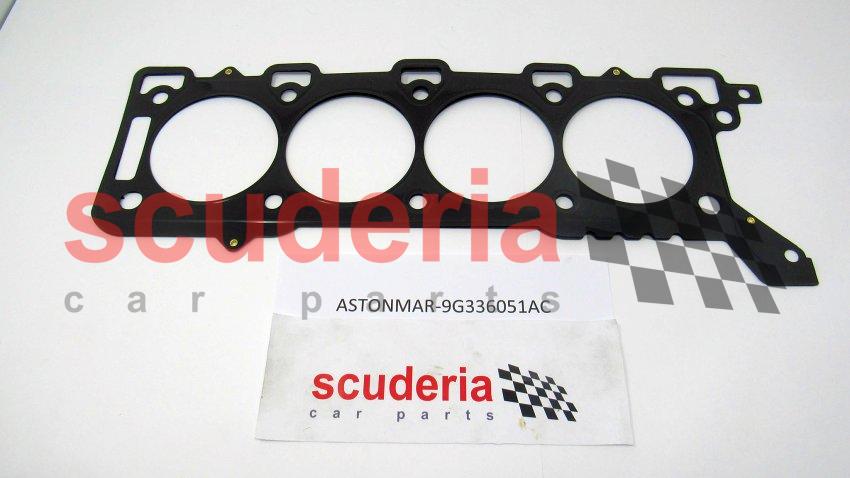

9G336051AC Gasket Cylinder Head RH $262.66 IN STOCK
Photo Part No Description Price (each) Stock
6G430610065 CAMSHAFT BEARING CAP $4.36 To Order
Photo Part No Description Price (each) Stock

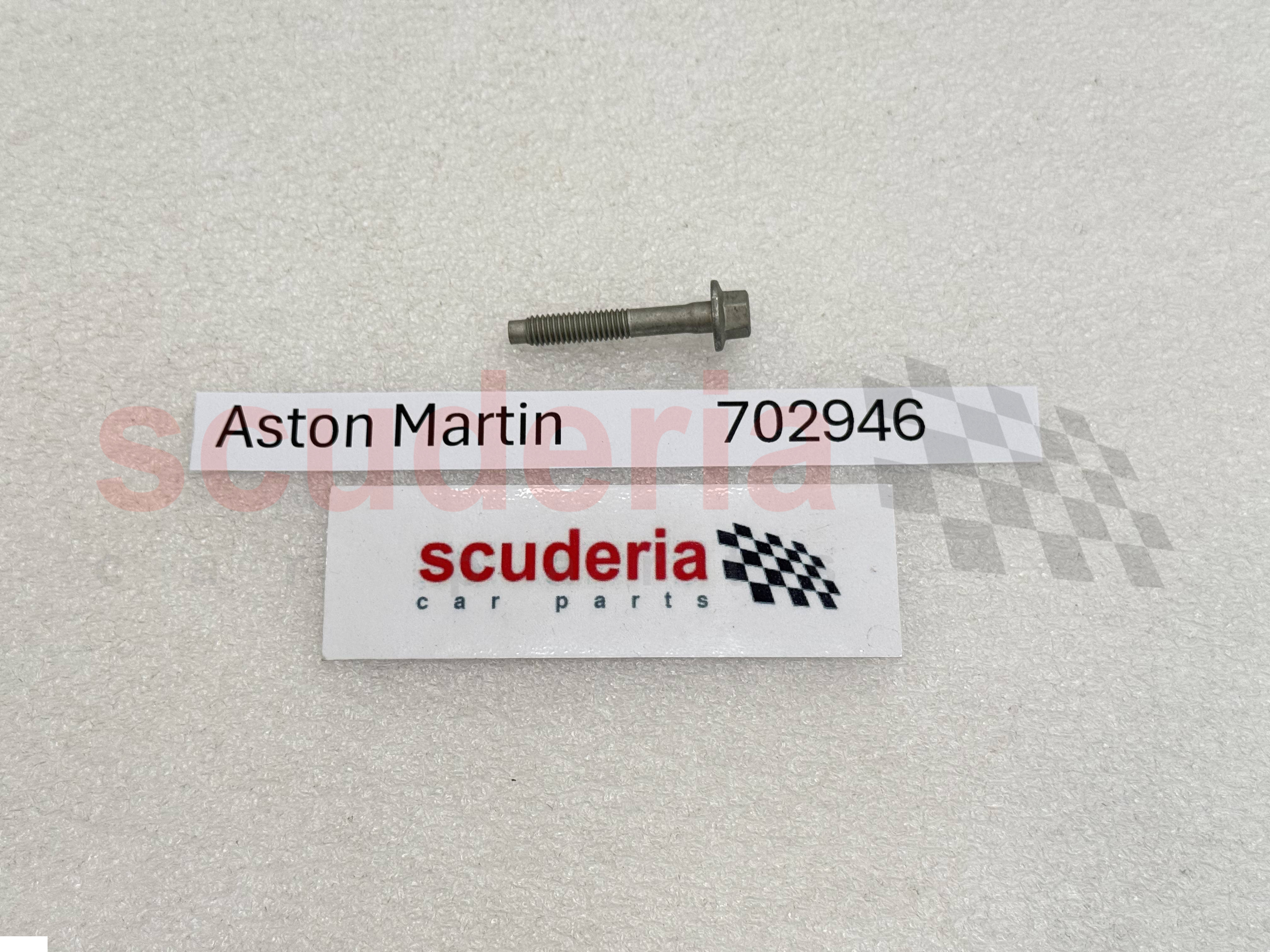

702946 Bolt, M6 x 35, Hex Head $0.71 IN STOCK
Photo Part No Description Price (each) Stock
702527 STUD - EXHAUST MANIFOLD M8X16 + M8X20 PIL 10 $3.92 IN STOCK
Photo Part No Description Price (each) Stock

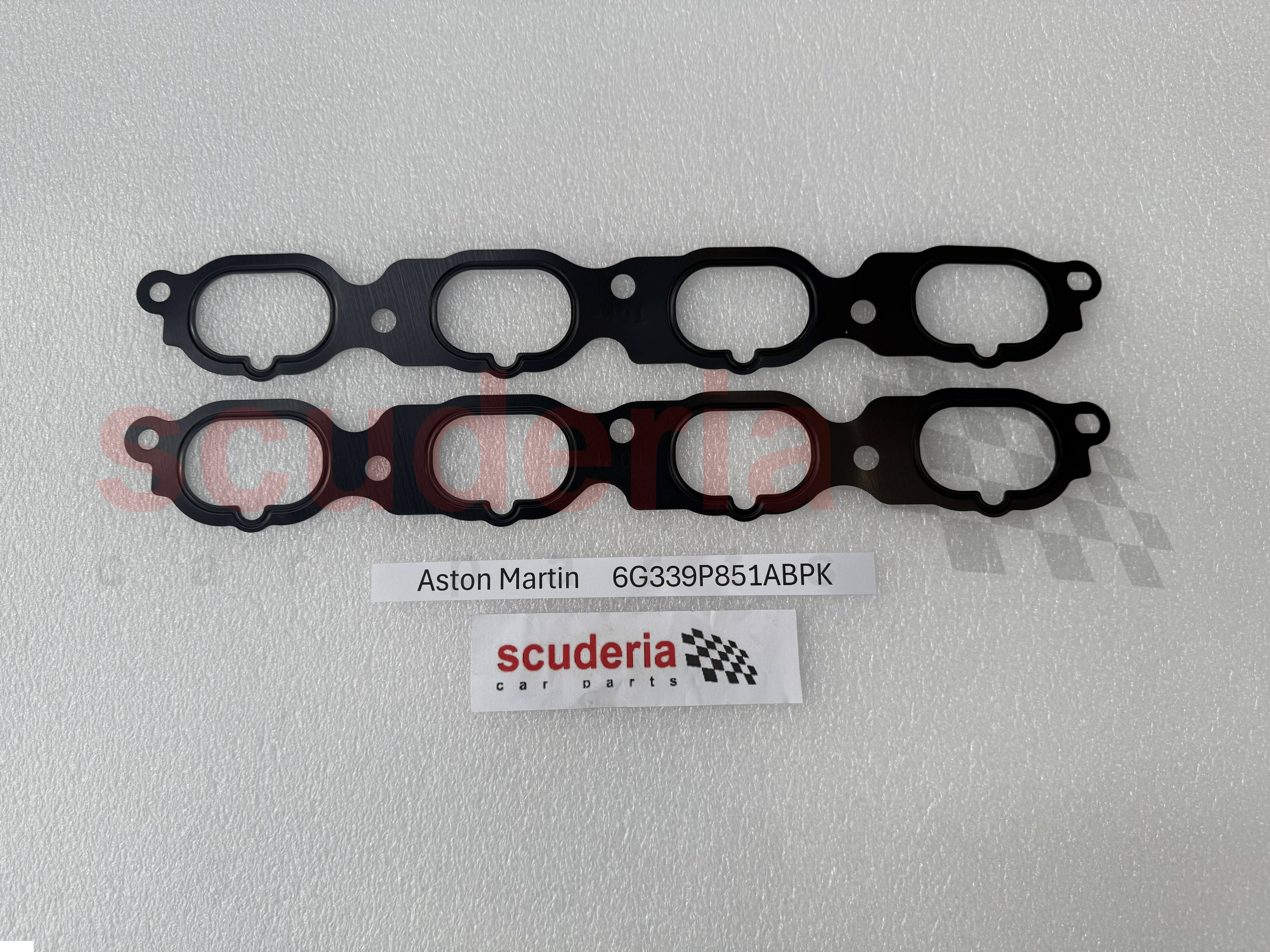

6G339P851ABPK Intake Manifold Gasket (Pack of 2) $24.76 ARRIVING SOON
Photo Part No Description Price (each) Stock

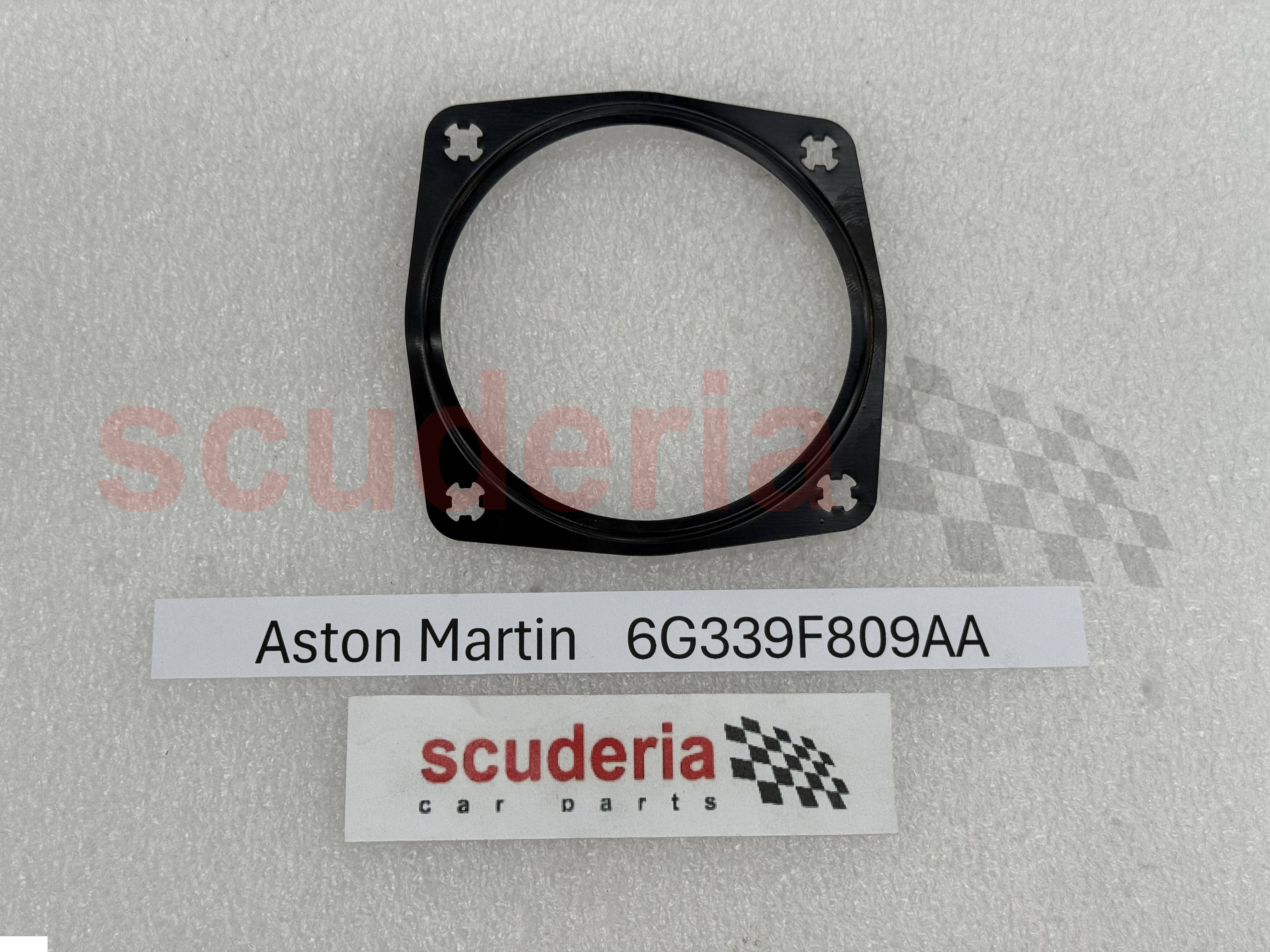

6G339F809AA Gasket - Throttle to Adaptor $7.18 IN STOCK
View All
Basic Engine Structure of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 9G330810850
ENG LONG BLOCK-4.7lt
V8 'S' 		$57,339.06 1
- BG339424CB
INTAKE MANIFOLD ASSY
V8 'S' 		- 1 Enquire
- 9G330810850
ENG LONG BLOCK-4.7lt
11 MY 		$57,339.06 1
- BG339424DB
INTAKE MANIFOLD
11MY 		- 1 Enquire
- 9G330810850
ENG LONG BLOCK-4.7lt 		$57,339.06 1
- 9G339424AA
Manifold assy, intake, 4.7 		- 1 Enquire
1 BG339C663CB
MANIFOLD INTAKE
V8 'S' 		$3,379.50 1
1 BG339C663DB
MANIFOLD - INTAKE
11MY 		- 1 Enquire
1 9G339C663CA
Manifold assy, intake, upper 4.7 		- 1 Enquire
2 6G431210060
PCV Breather Stub Pipe 		$38.29 1
3 702526
Bolt M8 x 30 Hex Flange Head
IN STOCK 		$0.54 10
4 4G43001B46BB
MANIFOLD BADGE 		$104.25 1
5 EG330810726
SENSOR-AIR TEMPERATURE
IN STOCK 		$12.43 1
6 6G339F593AA
Fuel Injector Assembly
IN STOCK 		$62.03 8
7 6G433410062
Clip, Fuel Injector
IN STOCK 		$12.17 8
8 6G339S441AF
MANF ASY FU/INJ SPLY 		$3,057.95 1
9 701553
Screw, M6 x 16, Pan Head
IN STOCK 		$0.19 4
10 2W939F775AA
Dampener assy, injection pulse 		- 2 Enquire
11 6G433410063
Sensor Temperature/Pressure
ARRIVING SOON 		$255.04 1
12 700107
SCREW M5 X 20 FLG HEX HEAD GRD 8.8 ZINC PLATE 		$2.17 2
13 8G438979AA
WASHER M5 x 20 x 1.5 THK ST/STEEL BLK
IN STOCK 		$0.36 2
14 9G336L074AC
BLK & BED PLATE 		$13,358.49 1
14 9G336011AA
Short block 		- 1 Enquire
14 9G336006AA
Long block 		- 1 Enquire
14 9G336055AB
Sleeve, cylinder bore 		- 8 Enquire
15 6G430110070
DWL CYL BLK TO FRT CVR 		$0.41 1
16 6G430110113
RING DOWEL 		$19.45 2
17 6G430110114
BOLT - M8 x 60 		$2.35 12
18 6G430110075
BOLT M8 x 110
IN STOCK 		$14.81 12
19 6G430110112
BOLT M10 x 114
IN STOCK 		$10.88 10
20 6G430110070
DWL CYL BLK TO FRT CVR 		$0.41 2
21 6G430110067
DOWEL CYL HD TO BLK
IN STOCK 		$0.65 4
22 6G430110118
RING DOWEL 		$28.85 1
23 6G430110068
CVR CYL TOP 		$21.54 1
24 702529
PLUG - FLANGED M30 		$4.38 2
25 3286515
WASHER-SEALING 		$7.15 2
26 702531
PLUG 28/28.052 DIA 		$0.22 4
27 702528
PLUG - M30 X 12 		$1.79 1
28 6G430410077
VLV ASY-ENG PST OIL COOL 		$17.81 4
29 91996
CYLINDER HEAD M/C - RH 		$7,989.82 1
29 702536
SCREW M6 x 14 		$0.10 4
30 91995
CYLINDER HEAD M/C - LH 		$8,302.21 1
31 6G430610353
BOLT CYLINDER HEAD
IN STOCK 		$2.59 20
32 702683
BOLT M8 X 90
IN STOCK 		$8.56 4
33 9G336083AC
Gasket Cylinder Head LH
IN STOCK 		$262.66 1
33 9G336051AC
Gasket Cylinder Head RH
IN STOCK 		$262.66 1
34 6G430610065
CAMSHAFT BEARING CAP 		$4.36 20
35 702946
Bolt, M6 x 35, Hex Head
IN STOCK 		$0.71 40
36 702527
STUD - EXHAUST MANIFOLD M8X16 + M8X20 PIL 10
IN STOCK 		$3.92 16
37 6G339P851ABPK
Intake Manifold Gasket (Pack of 2)
pack of 2
ARRIVING SOON 		$24.76 1
38 6G339F809AA
Gasket - Throttle to Adaptor
IN STOCK 		$7.18 1
