Rear Brakes Sub System

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Rear Brakes Sub System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
7G432C465EA CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS $575.83 To Order
7G432C465FA CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS $575.83 To Order
7G432C464EA CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS $575.83 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G432C564AB Bolt M12 x 1.5 x 80 Brk CLPR to KNL $2.87 IN STOCK
Photo Part No Description Price (each) Stock
7G432C562AA Rear Brake Pad Kit $570.09 IN STOCK
Photo Part No Description Price (each) Stock
AD432C588AA FRT SPRING & PIN PAD KIT $108.01 IN STOCK
4G432C588BA Pins and Spring Kit Rear Caliper $68.55 IN STOCK
Photo Part No Description Price (each) Stock
6G332282AC Hose, Rear Wheel Brake $251.19 IN STOCK
Photo Part No Description Price (each) Stock
6G33JYC10088AB E Clip Bowed, Nom 16mm $1.43 IN STOCK
Photo Part No Description Price (each) Stock
6G332D009AB Pad Wear Lead, Rear $59.04 IN STOCK
Photo Part No Description Price (each) Stock
4G432810266 Rear Brake Disc $318.92 IN STOCK
Photo Part No Description Price (each) Stock
4G432N389AA Screw, M8 x 14, Flat Head Countersunk $0.27 IN STOCK
Photo Part No Description Price (each) Stock
8D332C029AA SHIELD - REAR BRAKE DISC LH $58.39 To Order
8D332C028AA SHIELD - REAR BRAKE DISC RH $58.39 IN STOCK
Photo Part No Description Price (each) Stock
4G4313D026AA Screw, retaining disc shield $0.62 IN STOCK
Photo Part No Description Price (each) Stock
4G439010039 Sensor, Wheel Speed $160.94 IN STOCK
Photo Part No Description Price (each) Stock
4G4313D026BA Screw, wheel speed sensor $1.19 To Order
Photo Part No Description Price (each) Stock
4G4332610AA Kit, Dust Boot, Rear Caliper $48.85 To Order
Photo Part No Description Price (each) Stock
4G432C563AA Kit, Bleed Screw $16.72 IN STOCK
4G4333693AA Cap, Bleed Screw $27.48 IN STOCK
View All

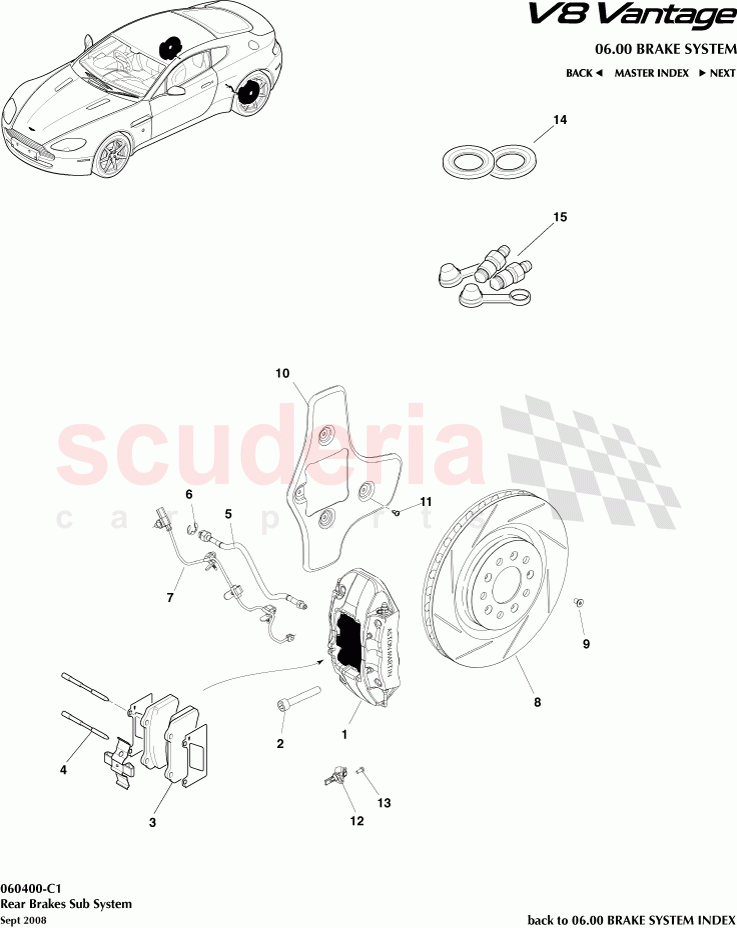

Rear Brakes Sub System of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 7G432C465EA
CALIPER ASSY SILVER - REAR WHEEL BRAKE LH - NOT INC PADS 		$575.83 1
1 7G432C465FA
CALIPER ASSY YELLOW REAR WHEEL BRAKE LH NOT INC PADS 		$575.83 1
1 7G432C464EA
CALIPER ASSY SILVER - REAR WHEEL BRAKE RH - NOT INC PADS 		$575.83 1
1 7G432C464FA
CALIPER ASSY YELLOW REAR WHEEL BRAKE RH NOT INC PADS 		$575.83 1
1 7G432C465CA
CALIPER ASSY BLACK - REAR WHEEL BRAKE LH NOT INC PADS 		$563.05 1
1 7G432C464CA
CALIPER ASSY BLACK - REAR WHEEL BRAKE RH NOT INC PADS 		$563.05 1
1 7G432C465AA
CALIPER ASSY GREY - REAR WHEEL BRAKE LH NOT INC PADS 		$575.83 1
1 7G432C464AA
CALIPER ASSY GREY - REAR WHEEL BRAKE RH - NOT INC PADS 		$575.83 1
1 7G432C465DA
CALIPER ASSY RED - REAR WHEEL BRAKE LH - NOT INC PADS 		$575.83 1
1 7G432C464DA
CALIPER ASSY RED - REAR WHEEL BRAKE RH NOT INC PADS 		$575.83 1
2 4G432C564AB
Bolt M12 x 1.5 x 80 Brk CLPR to KNL
IN STOCK 		$2.87 4
3 7G432C562AA
Rear Brake Pad Kit
IN STOCK 		$570.09 1
4 AD432C588AA
FRT SPRING & PIN PAD KIT
Per caliper, V8S/ 12.25MY
IN STOCK 		$108.01 1
4 4G432C588BA
Pins and Spring Kit Rear Caliper
Per caliper
IN STOCK 		$68.55 1
5 6G332282AC
Hose, Rear Wheel Brake
IN STOCK 		$251.19 2
6 6G33JYC10088AB
E Clip Bowed, Nom 16mm
IN STOCK 		$1.43 2
7 6G332D009AB
Pad Wear Lead, Rear
IN STOCK 		$59.04 2
8 4G432810266
Rear Brake Disc
IN STOCK 		$318.92 2
9 4G432N389AA
Screw, M8 x 14, Flat Head Countersunk
IN STOCK 		$0.27 4
10 8D332C029AA
SHIELD - REAR BRAKE DISC LH 		$58.39 1
10 8D332C028AA
SHIELD - REAR BRAKE DISC RH
IN STOCK 		$58.39 1
11 4G4313D026AA
Screw, retaining disc shield
IN STOCK 		$0.62 10
12 4G439010039
Sensor, Wheel Speed
IN STOCK 		$160.94 2
13 4G4313D026BA
Screw, wheel speed sensor 		$1.19 2
14 4G4332610AA
Kit, Dust Boot, Rear Caliper
Per caliper 		$48.85 1
15 4G432C563AA
Kit, Bleed Screw
Per caliper
IN STOCK 		$16.72 1
15 4G4333693AA
Cap, Bleed Screw
IN STOCK 		$27.48 2
