Washer Bottle, Non Headlamp Wash

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Washer Bottle, Non Headlamp Wash

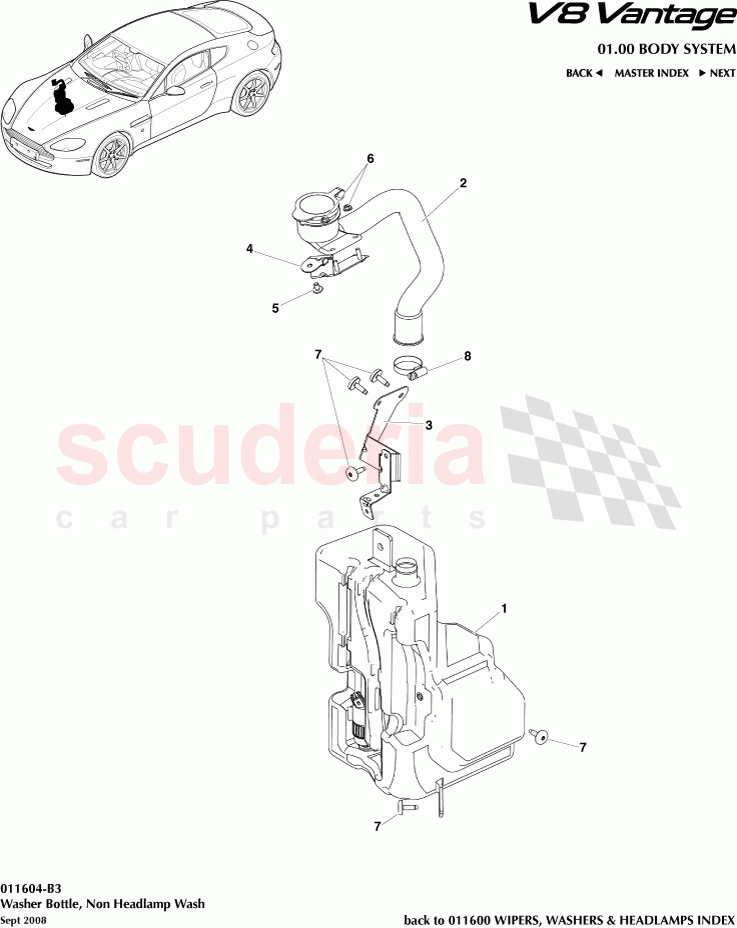

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G3317B614BF RESERVOIR MOTOR ASSY- NON HEADLAMP WASH $243.85 To Order
Photo Part No Description Price (each) Stock
4G4313K175AA Filler neck assy, w/shield washer resvr Enquire To Order
Photo Part No Description Price (each) Stock
4G4317614AB Bracket Assembly, Windshield Washer Reservoir Mounting $25.97 To Order
Photo Part No Description Price (each) Stock
4G4317C625AC Bracket, Filler Neck $26.57 To Order
Photo Part No Description Price (each) Stock
703266 Screw M6 x 10 Pan Head Torx $0.80 IN STOCK
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head $0.09 IN STOCK
Photo Part No Description Price (each) Stock
6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) $19.14 IN STOCK
Photo Part No Description Price (each) Stock
4G433711549 WINDSCREEN WASHER MOTOR/PUMP $279.84 IN STOCK
4G433710236 Water Low Level Sensor $56.17 IN STOCK
701562 Clamp, Worm Drive 30-45mm $1.23 To Order
...and 1 more part variants. See table on right for more details.
View All
Washer Bottle, Non Headlamp Wash of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G3317B614BF
RESERVOIR MOTOR ASSY- NON HEADLAMP WASH 		$243.85 1
2 4G4313K175AA
Filler neck assy, w/shield washer resvr 		- 1 Enquire
3 4G4317614AB
Bracket Assembly, Windshield Washer Reservoir Mounting 		$25.97 1
4 4G4317C625AC
Bracket, Filler Neck 		$26.57 1
5 703266
Screw M6 x 10 Pan Head Torx
IN STOCK 		$0.80 1
6 702295
Nut, M5, Hex Flange Head
IN STOCK 		$0.09 2
7 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
IN STOCK 		$19.14 5
8 4G433711549
WINDSCREEN WASHER MOTOR/PUMP
IN STOCK 		$279.84 1
8 4G433710236
Water Low Level Sensor
IN STOCK 		$56.17 1
8 701562
Clamp, Worm Drive 30-45mm 		$1.23 5
8 4G43M8B17BA
Fluid, Windshield Washer, 1.0 Litre 		- - Enquire
