Name: Coolant Hoses
Rating: 4.4 (1 reviews)

Coolant Hoses of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

Aston Martin V12 Vantage (upto 2016) - Coolant Hoses

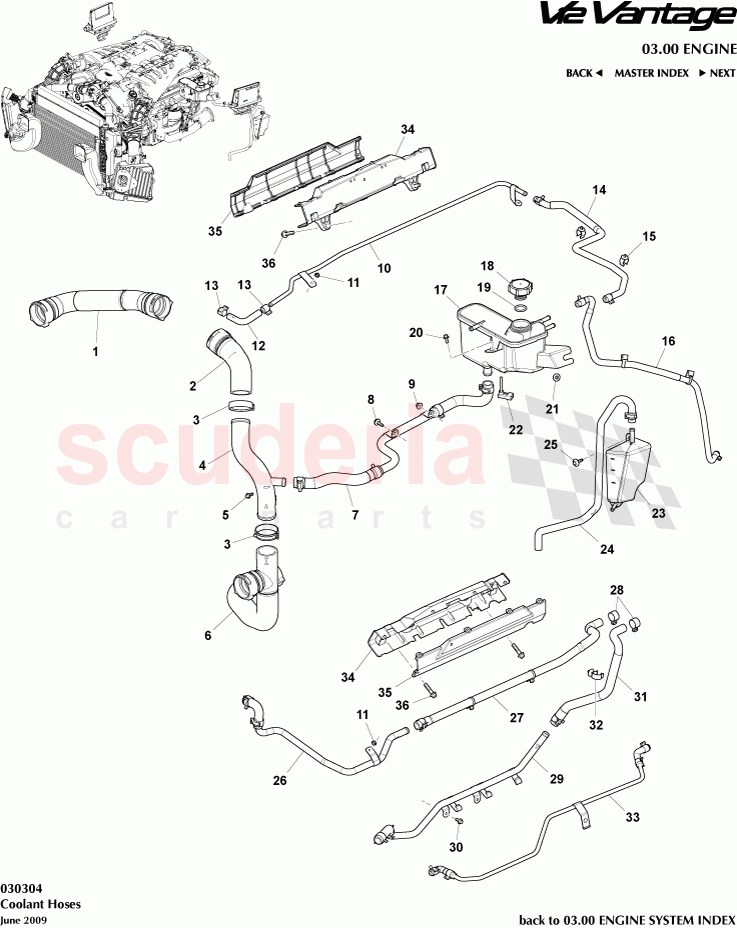

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD238333AC	Bypass tube assy	Enquire	To Order
	AD238333AB	Hose, Radiator Inlet	$768.76	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238555EA	HOSE ASSY - BYPASS TUBE TO RADIATOR MODULE	$377.30	To Order

Photo	Part No	Description	Price (each)	Stock
	702903	Heavy Duty Spring Band Clamp 55 x 15	$4.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD238555FA	HOSE ASSY - BYPASS TUBE TO THERMOSTAT	$1,109.07	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD238555BB	Hose Bypass Tube to Water Pump	$832.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD238C350AB	Hose, Coolant Return	$706.53	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10)	$5.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	$64.05	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	$0.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	$64.05	To Order

Photo	Part No	Description	Price (each)	Stock
	720904	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438063AE	Hose, Engine to Supply Tank	$81.96	To Order

Photo	Part No	Description	Price (each)	Stock
	701172	Clip, 16 x 2.8 - 3.3	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G338B081AB	HOSE - RADIATOR SUPPLY TANK OVERFLOW	$74.58	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319B518BD	RADIATOR EXPANSION TANK	$456.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438101BB	PRESSURE CAP 150KPA	$124.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	$0.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R123710166	Switch, Coolant Level	$72.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33TBD2BA	Reservoir, Coolant Expansion	$56.45	To Order

Photo	Part No	Description	Price (each)	Stock
	6G338N029AB	HOSE - RADIAOTR OVERFLOW EXT	$53.17	To Order

Photo	Part No	Description	Price (each)	Stock
	701667	Bolt and Washer, M6 x 25	$0.33	To Order

Photo	Part No	Description	Price (each)	Stock
	ED238584AA	HOS ASY THERMO UPR	$597.06	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D334BC	HEATER INLET HOSE ASSY - RHD	$107.60	To Order
	4G4318D334AC	HEATER INLET HOSE ASSY - LHD	$285.26	To Order

Photo	Part No	Description	Price (each)	Stock
	701335	Clip, Hose Spring, 20 x 15	$1.06	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2318674CA	Tube assy, heater outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4318D359BC	HEATER OUTLET HOSE ASSY - RHD	$42.19	To Order
	4G4318D359AC	HEATER OUTLET HOSE ASSY - LHD	$193.59	To Order

Photo	Part No	Description	Price (each)	Stock
	701570	Clip, Swivel 20-24.5mm	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238C363AB	Hose Assy, Radiator Degas	$1,201.64	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434867BA	Cover assy, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436793BB	Top Cover, Engine Harness	$13.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703731	Bolt, M8 x 35, Hex Flange Head	$0.65	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD238333AC	Bypass tube assy	AD238333AC Bypass tube assy Includes items 2, 3, 4, 5 & 6	-	1	Enquire
1	AD238333AB	Hose, Radiator Inlet	AD238333AB Hose, Radiator Inlet	$768.76	1
2	AD238555EA	HOSE ASSY - BYPASS TUBE TO RADIATOR MODULE	AD238555EA HOSE ASSY - BYPASS TUBE TO RADIATOR MODULE	$377.30	1
3	702903	Heavy Duty Spring Band Clamp 55 x 15 IN STOCK	702903 Heavy Duty Spring Band Clamp 55 x 15 IN STOCK	$4.28	2
4	AD238555FA	HOSE ASSY - BYPASS TUBE TO THERMOSTAT	AD238555FA HOSE ASSY - BYPASS TUBE TO THERMOSTAT	$1,109.07	1
5	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	$0.66	4
6	AD238555BB	Hose Bypass Tube to Water Pump IN STOCK	AD238555BB Hose Bypass Tube to Water Pump IN STOCK	$832.17	1
7	AD238C350AB	Hose, Coolant Return	AD238C350AB Hose, Coolant Return	$706.53	1
8	702839PK	SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10) IN STOCK	702839PK SCREW & WASHER M6 X 10 HEX HEAD (PACK OF 10) IN STOCK	$5.21	1
9	703749	Nut, M6, Hex Flange Head IN STOCK	703749 Nut, M6, Hex Flange Head IN STOCK	$0.63	1
10	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	4G438003CA Hose, Thermo Housing, Cross Over Bleed	$64.05	1
11	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	$0.09	2
12	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	4G438003CA Hose, Thermo Housing, Cross Over Bleed	$64.05	1
13	720904	Clamp	720904 Clamp	-	2	Enquire
14	4G438063AE	Hose, Engine to Supply Tank	4G438063AE Hose, Engine to Supply Tank	$81.96	1
15	701172	Clip, 16 x 2.8 - 3.3 IN STOCK	701172 Clip, 16 x 2.8 - 3.3 IN STOCK	$0.40	2
16	6G338B081AB	HOSE - RADIATOR SUPPLY TANK OVERFLOW	6G338B081AB HOSE - RADIATOR SUPPLY TANK OVERFLOW	$74.58	1
17	4G4319B518BD	RADIATOR EXPANSION TANK IN STOCK	4G4319B518BD RADIATOR EXPANSION TANK IN STOCK	$456.47	1
18	4G438101BB	PRESSURE CAP 150KPA IN STOCK	4G438101BB PRESSURE CAP 150KPA IN STOCK	$124.92	1
20	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD -Expansion Tank IN STOCK	$0.66	1
21	703612	Nut & Washer, M6, HVAC to XCB IN STOCK	703612 Nut & Washer, M6, HVAC to XCB IN STOCK	$0.44	1
22	1R123710166	Switch, Coolant Level IN STOCK	1R123710166 Switch, Coolant Level IN STOCK	$72.65	1
23	6G33TBD2BA	Reservoir, Coolant Expansion	6G33TBD2BA Reservoir, Coolant Expansion	$56.45	1
24	6G338N029AB	HOSE - RADIAOTR OVERFLOW EXT	6G338N029AB HOSE - RADIAOTR OVERFLOW EXT	$53.17	1
25	701667	Bolt and Washer, M6 x 25	701667 Bolt and Washer, M6 x 25	$0.33	2
26	ED238584AA	HOS ASY THERMO UPR	ED238584AA HOS ASY THERMO UPR	$597.06	1
27	4G4318D334BC	HEATER INLET HOSE ASSY - RHD	4G4318D334BC HEATER INLET HOSE ASSY - RHD RHD	$107.60	1
27	4G4318D334AC	HEATER INLET HOSE ASSY - LHD	4G4318D334AC HEATER INLET HOSE ASSY - LHD LHD	$285.26	1
28	701335	Clip, Hose Spring, 20 x 15	701335 Clip, Hose Spring, 20 x 15	$1.06	2
29	AD2318674CA	Tube assy, heater outlet	AD2318674CA Tube assy, heater outlet	-	1	Enquire
30	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	$0.66	2
31	4G4318D359BC	HEATER OUTLET HOSE ASSY - RHD	4G4318D359BC HEATER OUTLET HOSE ASSY - RHD RHD	$42.19	1
31	4G4318D359AC	HEATER OUTLET HOSE ASSY - LHD	4G4318D359AC HEATER OUTLET HOSE ASSY - LHD LHD	$193.59	1
32	701570	Clip, Swivel 20-24.5mm	701570 Clip, Swivel 20-24.5mm Heater Outlet Pipe	$0.74	1
33	AD238C363AB	Hose Assy, Radiator Degas	AD238C363AB Hose Assy, Radiator Degas	$1,201.64	1
34	4G434867BA	Cover assy, bottom	4G434867BA Cover assy, bottom	-	2	Enquire
35	4G436793BB	Top Cover, Engine Harness IN STOCK	4G436793BB Top Cover, Engine Harness IN STOCK	$13.37	2
36	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head	$0.65	4
