Front Sport Seat Assembly

Aston Martin V12 Vantage (upto 2016)

Find Your Part

Aston Martin V12 Vantage (upto 2016) - Front Sport Seat Assembly

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD2360008BAW ASSY FRONT SEAT RH $9,644.96 To Order
AD2360009BAW ASSY FRONT SEAT LHS Enquire To Order
Photo Part No Description Price (each) Stock
7G4360050AGW FRONT SEAT CUSHION TRIMMED ASSY RH $5,134.28 To Order
7G4360051AFW CSHN ASY FRT ST $5,134.28 To Order
Photo Part No Description Price (each) Stock
AD2360136BAW FRONT SEAT SQUAB RH TRIMMED ASSY $3,338.19 To Order
AD2360137BAW FRONT SEAT SQUAB LH TRIMMED ASSY Enquire To Order
Photo Part No Description Price (each) Stock
CG4364800AC Squab Frame, Front Seat, RH, Memory $4,338.18 To Order
CG4364802AC Squab Frame, Front Seat, LH, Memory $4,338.18 To Order
Photo Part No Description Price (each) Stock
BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting $3,154.95 To Order
Photo Part No Description Price (each) Stock
4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT $0.71 To Order
Photo Part No Description Price (each) Stock
706423 SCREW-M8 x 25 HF PI $1.48 IN STOCK
Photo Part No Description Price (each) Stock
4G43613K22BD Buckle Assembly, Front Seatbelt $266.93 To Order
Photo Part No Description Price (each) Stock
7G4314E693CA SWITCH PACK ASSY FRT SEAT LUMBAR LH $317.03 To Order
7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH $393.33 To Order
Photo Part No Description Price (each) Stock
7G43N014740AA Screw, M6 x 16, Socket Head $1.11 To Order
Photo Part No Description Price (each) Stock
4G437410690 Airbag, Side, RH $370.71 To Order
4G437410689 Airbag, Side, LH $370.71 To Order
Photo Part No Description Price (each) Stock
6G33062A00BB GLOVEBOX SWITCH $390.44 To Order
Photo Part No Description Price (each) Stock
7G43605W00ACW Strap, Squab Release, Manual Override $33.20 To Order
Photo Part No Description Price (each) Stock
8G3365532AA Pump, Lumbar Support Air $173.78 To Order
Photo Part No Description Price (each) Stock
8G3365524AA Valve, Lumbar Support Air $211.92 To Order
Photo Part No Description Price (each) Stock
8G3365500AA LUMBAR SUPPORT BAG $426.54 To Order
Photo Part No Description Price (each) Stock
4G437410127 Kit, Squab Motor $142.11 To Order
Photo Part No Description Price (each) Stock
4G437410116 Track Assembly, Front Lightweight Seat $4,030.59 To Order
Photo Part No Description Price (each) Stock
7G434D9513AB SQUAB FOAM RH $435.23 To Order
7G434D9514AB SEAT BACK FOAM LH $435.23 To Order
Photo Part No Description Price (each) Stock
AD2364572BAW Cover Assy, Front Seat Squab, RH $3,613.87 To Order
AD2364573BAW Cover Assy, Front Seat Squab, LH $3,613.87 To Order
Photo Part No Description Price (each) Stock
7G4314D696AB Heating Element, Squab $124.53 To Order
Photo Part No Description Price (each) Stock
7G3362900AFW FRONT SEAT CUSHION RH COVER ASSY $6,489.74 To Order
7G3362901AFW FRONT SEAT CUSHION LH COVER ASSY $2,310.22 To Order
Photo Part No Description Price (each) Stock
8G439515AA FRT ST CUSH FOAM RH $399.24 To Order
8G439516AA FRT ST CUSH FOAM LH $399.24 To Order
Photo Part No Description Price (each) Stock
7G4314D698AC Element, Seat Base Heater $307.41 IN STOCK
Photo Part No Description Price (each) Stock
6G3361L16BA RING SNAP MAG $7.82 To Order
Photo Part No Description Price (each) Stock
6G3361L16CA PIN MAG SMALL $3.66 To Order
Photo Part No Description Price (each) Stock
6G3361L16DA LATCH MAG LARGE $20.41 To Order
Photo Part No Description Price (each) Stock
7G33611A11AAW Guide, seat belt, upper, Not illustrated $100.29 To Order
6G3361L16EA WASHER LARGE MAG $3.66 To Order
View All

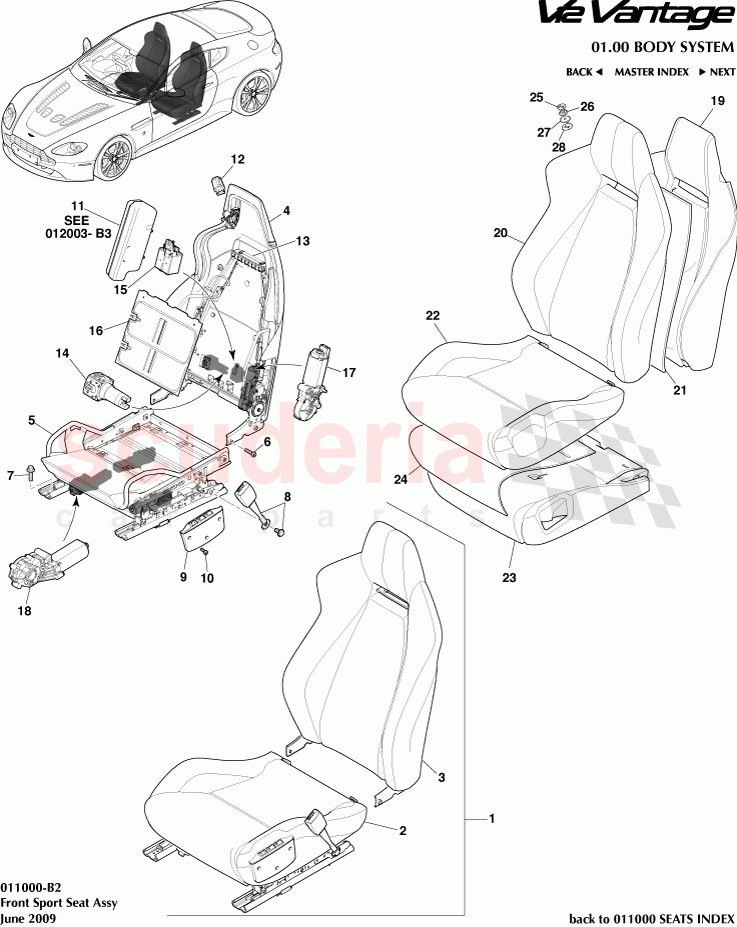

Front Sport Seat Assembly of Aston Martin Aston Martin V12 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD2360008BAW
ASSY FRONT SEAT RH 		$9,644.96 1
1 AD2360009BAW
ASSY FRONT SEAT LHS 		- 1 Enquire
2 7G4360050AGW
FRONT SEAT CUSHION TRIMMED ASSY RH 		$5,134.28 1
2 7G4360051AFW
CSHN ASY FRT ST 		$5,134.28 1
3 AD2360136BAW
FRONT SEAT SQUAB RH TRIMMED ASSY 		$3,338.19 1
3 AD2360137BAW
FRONT SEAT SQUAB LH TRIMMED ASSY 		- 1 Enquire
4 CG4364800AC
Squab Frame, Front Seat, RH, Memory 		$4,338.18 1
4 CG4364802AC
Squab Frame, Front Seat, LH, Memory 		$4,338.18 1
5 BG43L60344AA
Cushion Frame Assembly, Front Seat, Height Adjusting 		$3,154.95 2
6 4G4361538AB
M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT
4 per frame 		$0.71 8
7 706423
SCREW-M8 x 25 HF PI
4 per frame
IN STOCK 		$1.48 8
8 4G43613K22BD
Buckle Assembly, Front Seatbelt
1 per frame, includes screw 		$266.93 2
9 7G4314E693CA
SWITCH PACK ASSY FRT SEAT LUMBAR LH 		$317.03 1
9 7G4314E693BA
SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH 		$393.33 1
10 7G43N014740AA
Screw, M6 x 16, Socket Head
3 per switch pack 		$1.11 6
11 4G437410690
Airbag, Side, RH 		$370.71 1
11 4G437410689
Airbag, Side, LH 		$370.71 1
12 6G33062A00BB
GLOVEBOX SWITCH 		$390.44 1
13 7G43605W00ACW
Strap, Squab Release, Manual Override
1 per squab assy 		$33.20 2
14 8G3365532AA
Pump, Lumbar Support Air
1 per squab assy 		$173.78 2
15 8G3365524AA
Valve, Lumbar Support Air
1 per squab assy 		$211.92 2
16 8G3365500AA
LUMBAR SUPPORT BAG
1 per squab assy 		$426.54 2
17 4G437410127
Kit, Squab Motor
1 per squab assy 		$142.11 2
18 4G437410116
Track Assembly, Front Lightweight Seat
3 per cushion frame assy- N.S.S. 		$4,030.59 6
19 7G434D9513AB
SQUAB FOAM RH 		$435.23 1
19 7G434D9514AB
SEAT BACK FOAM LH 		$435.23 1
20 AD2364572BAW
Cover Assy, Front Seat Squab, RH 		$3,613.87 1
20 AD2364573BAW
Cover Assy, Front Seat Squab, LH 		$3,613.87 1
21 7G4314D696AB
Heating Element, Squab
1 per squab assy 		$124.53 2
22 7G3362900AFW
FRONT SEAT CUSHION RH COVER ASSY 		$6,489.74 1
22 7G3362901AFW
FRONT SEAT CUSHION LH COVER ASSY 		$2,310.22 1
23 8G439515AA
FRT ST CUSH FOAM RH 		$399.24 1
23 8G439516AA
FRT ST CUSH FOAM LH 		$399.24 1
24 7G4314D698AC
Element, Seat Base Heater
1 per cushion assy
IN STOCK 		$307.41 2
25 6G3361L16BA
RING SNAP MAG
1 per seat assy 		$7.82 2
26 6G3361L16CA
PIN MAG SMALL
1 per seat assy 		$3.66 2
27 6G3361L16DA
LATCH MAG LARGE
1 per seat assy 		$20.41 2
28 7G33611A11AAW
Guide, seat belt, upper, Not illustrated
1 per seat assy 		$100.29 2
28 6G3361L16EA
WASHER LARGE MAG
1 per seat assy 		$3.66 2
