Rear Brakes Sub System

Aston Martin V12 Vantage (upto 2016)

Find Your Part

Aston Martin V12 Vantage (upto 2016) - Rear Brakes Sub System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ED232810108 BR DISC &PADS SET-RR $12,569.06 To Order
Photo Part No Description Price (each) Stock
4G432N389AA Screw, M8 x 14, Flat Head Countersunk $0.27 IN STOCK
Photo Part No Description Price (each) Stock
AD232C464FA Caliper Assy, Rear, No Pads, RH, Inc Bolts $1,029.61 To Order
AD232C465FA CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS $1,029.61 To Order
AD232C464CB CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS $998.87 To Order
...and 7 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
8D332C562BB BRAKE PAD KIT REAR $1,133.11 IN STOCK
Photo Part No Description Price (each) Stock
8D332C588BA KIT PAD SPRING AND PIN REAR (PER CALIPER) $80.83 To Order
Photo Part No Description Price (each) Stock
4G4332610AA Kit, Dust Boot, Rear Caliper $48.88 To Order
Photo Part No Description Price (each) Stock
4G4333693AA Cap, Bleed Screw $27.50 IN STOCK
4G432C563AA Kit, Bleed Screw $16.73 IN STOCK
Photo Part No Description Price (each) Stock
8D332C564AA Brake Bolt, M12 x 95, Caliper to Knuckle $10.45 IN STOCK
Photo Part No Description Price (each) Stock
8D332B128AB Spacer, caliper to knuckle $199.81 IN STOCK
Photo Part No Description Price (each) Stock
6G332282AC Hose, Rear Wheel Brake $251.36 IN STOCK
Photo Part No Description Price (each) Stock
6G33JYC10088AB E Clip Bowed, Nom 16mm $1.43 IN STOCK
Photo Part No Description Price (each) Stock
6G332D009AB Pad Wear Lead, Rear $59.08 To Order
Photo Part No Description Price (each) Stock
8D332C028AA SHIELD - REAR BRAKE DISC RH $58.43 IN STOCK
8D332C029AA SHIELD - REAR BRAKE DISC LH $58.43 To Order
Photo Part No Description Price (each) Stock
4G4313D026AA Screw, retaining disc shield $0.62 IN STOCK
Photo Part No Description Price (each) Stock
4G439010039 Sensor, Wheel Speed $161.05 To Order
Photo Part No Description Price (each) Stock
4G4313D026BA Screw, wheel speed sensor $1.19 To Order
View All
Rear Brakes Sub System of Aston Martin Aston Martin V12 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ED232810108
BR DISC &PADS SET-RR 		$12,569.06 2
2 4G432N389AA
Screw, M8 x 14, Flat Head Countersunk
IN STOCK 		$0.27 4
3 AD232C464FA
Caliper Assy, Rear, No Pads, RH, Inc Bolts
12MY, inc bolts, Non Lacquer 		$1,029.61 1
3 AD232C465FA
CALIPER ASSY RR LH YELLOW W/O PADS INC BOLTS
12MY, inc bolts, Non Lacquer 		$1,029.61 1
3 AD232C464CB
CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS
11MY, inc bolts, Non Lacquer 		$998.87 1
3 AD232C465CB
CALIPER ASSY REAR LH BLACK W/O PADS INC BOLTS
11MY, inc bolts, Non Lacquer 		$998.87 1
3 AD232C464AB
CALIPER ASSY REAR RH GREY W/O PADS INC BOLTS
12MY, inc bolts, Non Lacquer 		$1,029.61 1
3 AD232C465AB
CALIPER ASSY REAR LH GREY W/O PADS INC BOLTS
12MY, inc bolts, Non Lacquer 		$1,029.61 1
3 AD232C464DA
CALIPER ASSY REAR RH RED W/O PADS INC INC BOLTS
12MY, inc bolts, Non Lacquer 		$1,029.61 1
3 AD232C465DA
CALIPER ASSY REAR LH RED W/O PADS INC BOLTS
12MY, inc bolts, Non Lacquer 		$1,029.61 1
3 AD232C464CB
CALIPER ASSY REAR RH BLACK W/O PADS INC BOLTS
- Includes bolts 		$998.87 1
3 AD232C465CB
CALIPER ASSY REAR LH BLACK W/O PADS INC BOLTS
Includes bolts 		$998.87 1

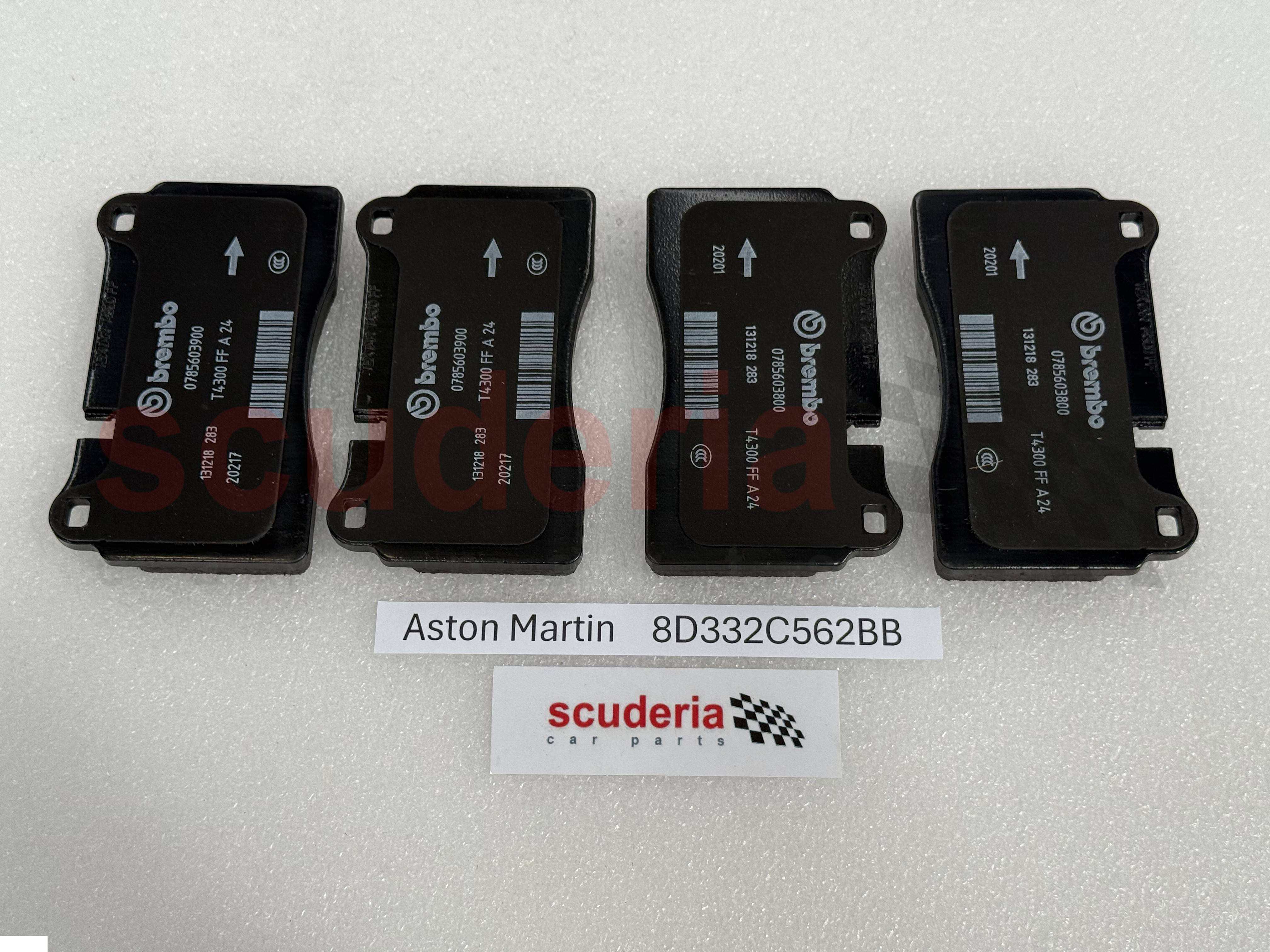

5 8D332C562BB
BRAKE PAD KIT REAR
Per axle set
IN STOCK 		$1,133.11 1
6 8D332C588BA
KIT PAD SPRING AND PIN REAR (PER CALIPER)
Per caliper 		$80.83 1
7 4G4332610AA
Kit, Dust Boot, Rear Caliper
Per caliper 		$48.88 2
8 4G4333693AA
Cap, Bleed Screw
Per caliper
IN STOCK 		$27.50 1
8 4G432C563AA
Kit, Bleed Screw
Per caliper
IN STOCK 		$16.73 2
9 8D332C564AA
Brake Bolt, M12 x 95, Caliper to Knuckle
IN STOCK 		$10.45 4
10 8D332B128AB
Spacer, caliper to knuckle
IN STOCK 		$199.81 2
11 6G332282AC
Hose, Rear Wheel Brake
IN STOCK 		$251.36 2
12 6G33JYC10088AB
E Clip Bowed, Nom 16mm
IN STOCK 		$1.43 2

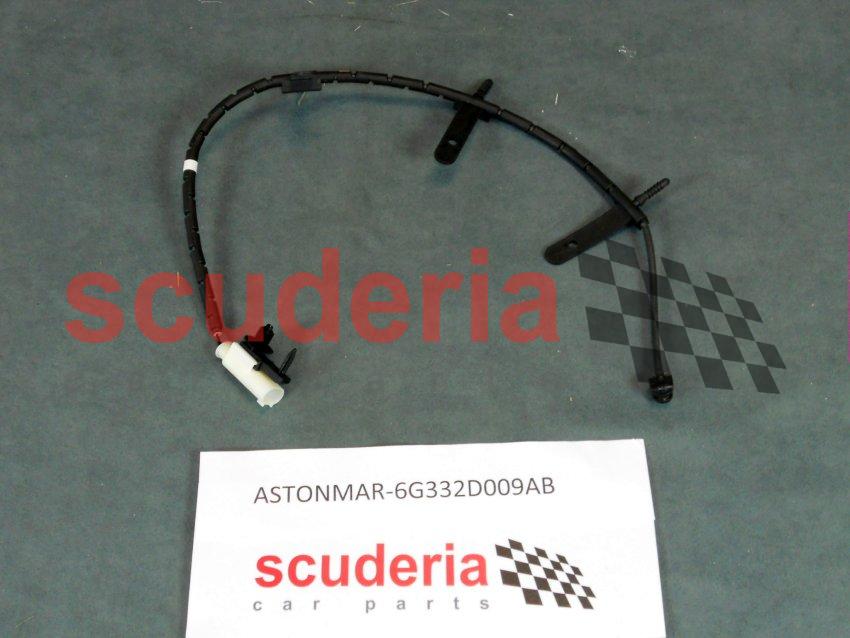

13 6G332D009AB
Pad Wear Lead, Rear 		$59.08 2
14 8D332C028AA
SHIELD - REAR BRAKE DISC RH
IN STOCK 		$58.43 1
14 8D332C029AA
SHIELD - REAR BRAKE DISC LH 		$58.43 1
15 4G4313D026AA
Screw, retaining disc shield
IN STOCK 		$0.62 8
16 4G439010039
Sensor, Wheel Speed 		$161.05 2
17 4G4313D026BA
Screw, wheel speed sensor 		$1.19 2
