Aston Martin Vanquish (2012+) - Automatic Transaxle

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CD334210010 Housing, Gearbox $2,422.31 To Order
Photo Part No Description Price (each) Stock
4G434210273 Oil Sump $252.45 IN STOCK
Photo Part No Description Price (each) Stock
4G434210274 Screw, Torx Head $8.86 IN STOCK
Photo Part No Description Price (each) Stock
4G434210277 SCREW PLUG -OIL SUMP $6.94 IN STOCK
Photo Part No Description Price (each) Stock
8G4314C247AA HARDWARE TRANS CONTROL MODULE (ZF 6HP26) $6,410.13 To Order
Photo Part No Description Price (each) Stock
4G43807199DA Screw, M6 x 20, Torx Head $1.07 To Order
Photo Part No Description Price (each) Stock
4G43807199CA Screw, M6 x 59, Torx Head $1.07 To Order
Photo Part No Description Price (each) Stock
4G437F183AA Guide Sleeve, Transmission Controller $15.37 IN STOCK
Photo Part No Description Price (each) Stock
4G436K375AA FLEX PLATE - REAR $118.55 To Order
Photo Part No Description Price (each) Stock
4G43HYG10549AA SCREW M10 X 1.5X13 PAN HEAD TORX T-50 GD 10 BLACK $2.10 IN STOCK
Photo Part No Description Price (each) Stock
CD334210012 Torque Converter Enquire To Order
Photo Part No Description Price (each) Stock
4G434210021 PLUG-T/CONV ACCESS TORQUE TUBE $6.12 IN STOCK
Photo Part No Description Price (each) Stock
4G434210276 SCREW PLUG $4.60 To Order
Photo Part No Description Price (each) Stock
4G437A245AA TUBE ASSY - AUTO TRANSMISSION BREATHE $10.01 To Order
Photo Part No Description Price (each) Stock
4G437A245BA TUBE AUTOMATIC DIFFERENTIAL BREATHER $10.01 To Order
Photo Part No Description Price (each) Stock
701565 CLIP 4-6 DUx6.5 $0.85 To Order
Photo Part No Description Price (each) Stock
4G437179AA Plug, Transmission Breather $11.32 To Order
Photo Part No Description Price (each) Stock
4G432860AB CLIP P LOCK DISENGAGE CABLE $0.82 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
703183 BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE $0.74 To Order
Photo Part No Description Price (each) Stock
703182 BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE $1.13 To Order
Photo Part No Description Price (each) Stock
4G437J271AB O Ring, Transmission Adapter Plate, Rear $15.02 IN STOCK
Photo Part No Description Price (each) Stock
4G434210979 Oil Seal, 60 x 44 x 7mm $74.11 To Order
Photo Part No Description Price (each) Stock
4G434211251 Shaft, Output $709.18 To Order
Photo Part No Description Price (each) Stock
4G434210977 Screw M10x50, adaptor plate Enquire To Order
Photo Part No Description Price (each) Stock
4G434210978 Usit ring Enquire To Order
Photo Part No Description Price (each) Stock
4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10 $7.96 To Order
Photo Part No Description Price (each) Stock
4G434210278 SCREW PLUG $8.67 To Order
Photo Part No Description Price (each) Stock
4G434210279 SCREW PLUG $17.05 IN STOCK
Photo Part No Description Price (each) Stock
9D337J168CB BRKT ASSY AUTO PARK BRAKE RELEASE $243.43 To Order
Photo Part No Description Price (each) Stock
9D337J167CB Cable Assy, Park Brake Release $98.62 To Order
Photo Part No Description Price (each) Stock
700606 Screw, M6 x 12, Hex Flange Head $0.19 IN STOCK
Photo Part No Description Price (each) Stock
703749 Nut, M6, Hex Flange Head $0.63 IN STOCK
Photo Part No Description Price (each) Stock
4G437A257AB Lever Arm, Auto Transmission to Disengage P Lock $2.93 To Order
Photo Part No Description Price (each) Stock
703158 Nut, M8, Hex Flange Head $1.28 To Order
Photo Part No Description Price (each) Stock
4G431861AA CLIP $0.27 IN STOCK
Photo Part No Description Price (each) Stock
9G437B147AA Clamp, Oil Cooler Pipes $11.73 To Order
Photo Part No Description Price (each) Stock
703189 BOLT M8x16 HEX FLG CHROME FREE $0.33 To Order
Photo Part No Description Price (each) Stock
CD336K375AC Flex Plate, Rear Enquire To Order
Photo Part No Description Price (each) Stock
4G439912553AA BOLT M8 X 80 CAP SKT HD GD 10 $7.96 To Order
View All

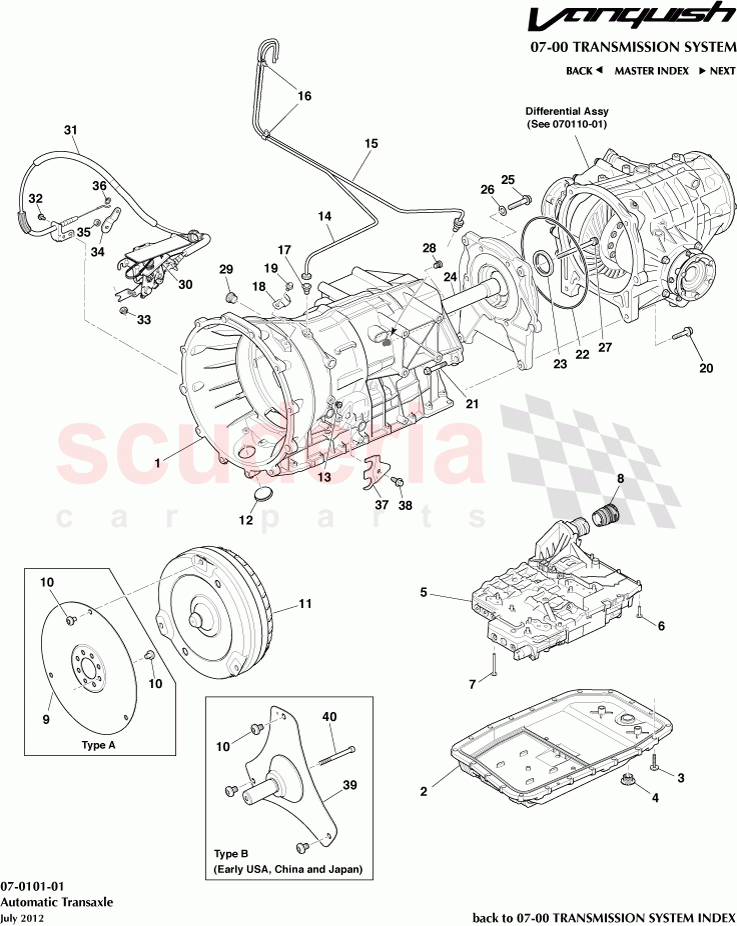

Automatic Transaxle of Aston Martin Aston Martin Vanquish (2012+) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 91821
Transmission, Automatic
Includes Torque Converter, Item 27 Must Also be Ordered 		$13,399.88 1
- 4G4319A509AAS
Fluid, Auto Transmission, 1ltr 		$96.83 A/R
1 CD334210010
Housing, Gearbox 		$2,422.31 1
2 4G434210273
Oil Sump
IN STOCK 		$252.45 1
3 4G434210274
Screw, Torx Head
IN STOCK 		$8.86 21
4 4G434210277
SCREW PLUG -OIL SUMP
IN STOCK 		$6.94 1
5 8G4314C247AA
HARDWARE TRANS CONTROL MODULE (ZF 6HP26) 		$6,410.13 1
6 4G43807199DA
Screw, M6 x 20, Torx Head 		$1.07 3
7 4G43807199CA
Screw, M6 x 59, Torx Head 		$1.07 7
8 4G437F183AA
Guide Sleeve, Transmission Controller
IN STOCK 		$15.37 1
9 4G436K375AA
FLEX PLATE - REAR
Type A 		$118.55 1
10 4G43HYG10549AA
SCREW M10 X 1.5X13 PAN HEAD TORX T-50 GD 10 BLACK
Type A Qty 11, Type B Qty 3
IN STOCK 		$2.10 A/R
11 CD334210012
Torque Converter 		- 1 Enquire
12 4G434210021
PLUG-T/CONV ACCESS TORQUE TUBE
IN STOCK 		$6.12 2
13 4G434210276
SCREW PLUG 		$4.60 1
14 4G437A245AA
TUBE ASSY - AUTO TRANSMISSION BREATHE 		$10.01 1
15 4G437A245BA
TUBE AUTOMATIC DIFFERENTIAL BREATHER 		$10.01 1
16 701565
CLIP 4-6 DUx6.5 		$0.85 2
17 4G437179AA
Plug, Transmission Breather 		$11.32 1
18 4G432860AB
CLIP P LOCK DISENGAGE CABLE 		$0.82 1
19 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 1
20 703183
BOLT M10 x 45 HEX FLANGE HEX HEAD CHROME FREE 		$0.74 4
21 703182
BOLT M10 x 65 FLANGE HEX HEAD CHROME FREE 		$1.13 1
22 4G437J271AB
O Ring, Transmission Adapter Plate, Rear
IN STOCK 		$15.02 1
23 4G434210979
Oil Seal, 60 x 44 x 7mm 		$74.11 1
24 4G434211251
Shaft, Output 		$709.18 1
25 4G434210977
Screw M10x50, adaptor plate 		- 5 Enquire
26 4G434210978
Usit ring 		- 5 Enquire
27 4G439912553AA
BOLT M8 X 80 CAP SKT HD GD 10 		$7.96 1
28 4G434210278
SCREW PLUG 		$8.67 1
29 4G434210279
SCREW PLUG
IN STOCK 		$17.05 1
30 9D337J168CB
BRKT ASSY AUTO PARK BRAKE RELEASE 		$243.43 1
31 9D337J167CB
Cable Assy, Park Brake Release 		$98.62 1
32 700606
Screw, M6 x 12, Hex Flange Head
IN STOCK 		$0.19 2
33 703749
Nut, M6, Hex Flange Head
IN STOCK 		$0.63 3
34 4G437A257AB
Lever Arm, Auto Transmission to Disengage P Lock 		$2.93 1
35 703158
Nut, M8, Hex Flange Head 		$1.28 1
36 4G431861AA
CLIP
IN STOCK 		$0.27 1
37 9G437B147AA
Clamp, Oil Cooler Pipes 		$11.73 1
38 703189
BOLT M8x16 HEX FLG CHROME FREE 		$0.33 1
39 CD336K375AC
Flex Plate, Rear
Type B 		- 1 Enquire
40 4G439912553AA
BOLT M8 X 80 CAP SKT HD GD 10
Type B 		$7.96 1
