Oil Cooling Axle

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Oil Cooling Axle

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12442719AG TUBE ASSY - JOINT TO GEARBOX $668.71 To Order
Photo Part No Description Price (each) Stock
1R12441994AG TUBE ASSY - GEARBOX TO PUMP (SUCTION) $632.87 To Order
Photo Part No Description Price (each) Stock
1R12415723AA Pipe, transmission cooler to return pipe Enquire To Order
Photo Part No Description Price (each) Stock
1R12415722AA PIPE RADIATIOR TO TRANS COOLER $313.02 To Order
Photo Part No Description Price (each) Stock
1R12245732AA HOSE ASSY - COOLER TO PAS BOTTLE MIDDLE EAST $287.36 To Order
Photo Part No Description Price (each) Stock
1R12245731AA HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST $361.01 To Order
Photo Part No Description Price (each) Stock
1R12442891AA DOWTY BONDED SEAL M14 $1.78 To Order
Photo Part No Description Price (each) Stock
1R12442890AA Male hose tail, M14 x 1.5 Enquire To Order
Photo Part No Description Price (each) Stock
699547 Clamp, Hose $2.95 IN STOCK
Photo Part No Description Price (each) Stock
1R12415734AA BRACKET HOSE - GEARBOX MOUNT MIDDLE EAST $54.98 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK
Photo Part No Description Price (each) Stock
32122742AA OIL PUMP MANUAL TRANSMISSION $1,202.91 To Order
Photo Part No Description Price (each) Stock
694891 P-CLIP $3.84 To Order
Photo Part No Description Price (each) Stock
1R12443287AA BRACKET TRANS COOLER PIPES TO SUMP $138.94 To Order
Photo Part No Description Price (each) Stock
1R12275726AA PIPE AXLE COOLER TO FILTER $198.97 To Order
Photo Part No Description Price (each) Stock
1R12275725AA PIPE GEARBOX TO AXLE COOLER $235.75 To Order
Photo Part No Description Price (each) Stock
1R12445724AA AXLE COOLER MIDDLE EAST $3,208.28 To Order
Photo Part No Description Price (each) Stock
699693 ASSY CLIP $2.25 To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG $2.98 To Order
Photo Part No Description Price (each) Stock
1R12275728AA PIPE PUMP TO AXLE COOLER $834.98 To Order
Photo Part No Description Price (each) Stock
1R12275729AA PIPE AXLE COOLER TO AXLE $325.00 To Order
Photo Part No Description Price (each) Stock
1R12415764AA Bracket Enquire To Order
Photo Part No Description Price (each) Stock
699699 'P' CLIP - 16 $2.18 To Order
Photo Part No Description Price (each) Stock
1R12275727AA PIPE-AXLE TO PUMP $95.73 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.34 IN STOCK
Photo Part No Description Price (each) Stock
703163 Nut, M6, Hex Flange Head, Locking $0.12 IN STOCK
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head $0.20 IN STOCK
Photo Part No Description Price (each) Stock
5R134C083AA MALE-MALE CONNECTOR M16X1.5 / - 6 JIC $18.34 To Order
5R137W093AA TUNNEL PIPE (RETURN) DIFF TO COOLER $434.60 To Order
5R137A095AA ASSY - DIFF AND TRANS COOLER $3,094.02 To Order
...and 17 more part variants. See table on right for more details.
View All

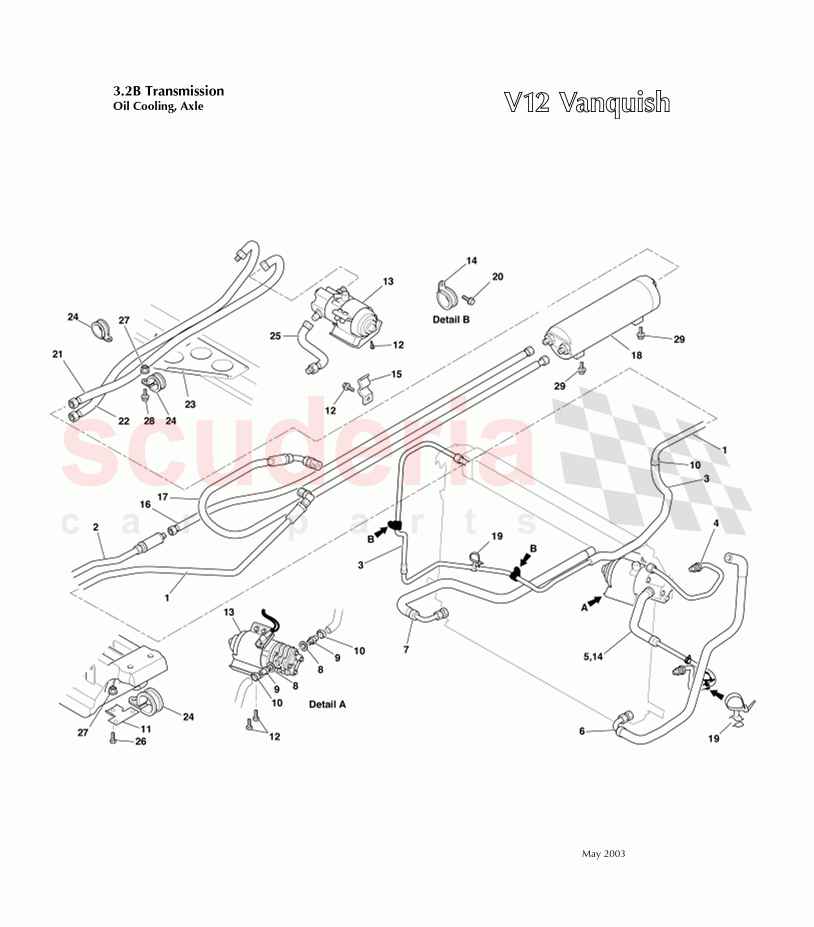

Oil Cooling Axle of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 1R12442719AG
TUBE ASSY - JOINT TO GEARBOX 		$668.71 1
2 1R12441994AG
TUBE ASSY - GEARBOX TO PUMP (SUCTION) 		$632.87 1
3 1R12415723AA
Pipe, transmission cooler to return pipe
Middle East cars 		- 1 Enquire
4 1R12415722AA
PIPE RADIATIOR TO TRANS COOLER
Middle East cars 		$313.02 1
5 1R12441995AE
TUBE ASSY - PUMP TO RAD PACK (LOWER) 		$350.24 1
6 1R12245732AA
HOSE ASSY - COOLER TO PAS BOTTLE MIDDLE EAST 		$287.36 1
7 1R12245731AA
HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST 		$361.01 1
8 1R12442891AA
DOWTY BONDED SEAL M14
Middle East cars 		$1.78 2
9 1R12442890AA
Male hose tail, M14 x 1.5
Middle East cars 		- 2 Enquire
10 699547
Clamp, Hose
Middle East cars
IN STOCK 		$2.95 2
11 1R12415734AA
BRACKET HOSE - GEARBOX MOUNT MIDDLE EAST
Middle East cars 		$54.98 2
12 703265
Screw, M6 x 16, Hex Flange Head
Middle East cars
IN STOCK 		$0.34 4
13 32122742AA
OIL PUMP MANUAL TRANSMISSION
Middle East cars 		$1,202.91 1
14 694891
P-CLIP
Middle East cars 		$3.84 3
15 1R12443287AA
BRACKET TRANS COOLER PIPES TO SUMP
Middle East cars 		$138.94 1
16 1R12275726AA
PIPE AXLE COOLER TO FILTER
Middle East cars 		$198.97 1
17 1R12275725AA
PIPE GEARBOX TO AXLE COOLER
Middle East cars 		$235.75 1
18 1R12445724AA
AXLE COOLER MIDDLE EAST
Middle East cars 		$3,208.28 1
19 699693
ASSY CLIP
Middle East cars 		$2.25 2
20 700126
SCREW M6x20 HEX FLG
Middle East cars 		$2.98 2
21 1R12275728AA
PIPE PUMP TO AXLE COOLER
Middle East cars 		$834.98 1
22 1R12275729AA
PIPE AXLE COOLER TO AXLE
Middle East cars 		$325.00 1
23 1R12415764AA
Bracket
Middle East cars 		- 1 Enquire
24 699699
'P' CLIP - 16
Middle East cars 		$2.18 4
25 1R12275727AA
PIPE-AXLE TO PUMP
Middle East cars 		$95.73 1
26 703265
Screw, M6 x 16, Hex Flange Head
Middle East cars
IN STOCK 		$0.34 2
27 703163
Nut, M6, Hex Flange Head, Locking
Middle East cars
IN STOCK 		$0.12 3
28 703025
Screw, M6 x 25, Hex Flange Head
Middle East cars
IN STOCK 		$0.20 1
29 5R134C083AA
MALE-MALE CONNECTOR M16X1.5 / - 6 JIC
Vanquish S From (V) 501506 		$18.34 1
29 5R137W093AA
TUNNEL PIPE (RETURN) DIFF TO COOLER
Vanquish S From (V) 501506 		$434.60 1
29 5R137A095AA
ASSY - DIFF AND TRANS COOLER
Vanquish S From (V) 501506 		$3,094.02 1
29 5R134N249AB
FRT PIPE (RETURN) DIFF TO COOLER
Vanquish S From (V) 501506 		$173.07 1
29 5R137W093BA
TUNNEL PIPE (FEED) COOLER TO DIFF
Vanquish S From (V) 501506 		$423.59 1
29 5R134N249BB
FRT PIPE (FEED) COOLER TO DIFF
Vanquish S From (V) 501506 		$206.27 1
29 5R13326E0AA
PIPE (FEED) COOLER TO DIFF
Vanquish S From (V) 501506 		$349.87 1
29 1R12275728AA
PIPE PUMP TO AXLE COOLER
Vanquish S From (V) 501506 		$834.98 1
29 1R12275727AA
PIPE-AXLE TO PUMP
Vanquish S From (V) 501506 		$95.73 1
29 703163
Nut, M6, Hex Flange Head, Locking
Vanquish S From (V) 501506
IN STOCK 		$0.12 1
29 703025
Screw, M6 x 25, Hex Flange Head
Vanquish S From (V) 501506
IN STOCK 		$0.20 1
29 32122742AA
OIL PUMP MANUAL TRANSMISSION
Vanquish S From (V) 501506 		$1,202.91 1
29 1R12445764AA
BRACKET AXLE COOLER PIPE CLIP - MIDDLE EAST
Vanquish S From (V) 501506 		$49.01 1
29 1R12442891AA
DOWTY BONDED SEAL M14
Vanquish S From (V) 501506 		$1.78 2
29 703265
Screw, M6 x 16, Hex Flange Head
Vanquish S From (V) 501506
IN STOCK 		$0.34 2
29 699699
'P' CLIP - 16
Vanquish S From (V) 501506 		$2.18 2
29 697274PK
TIE STRAP(PK OF 100)
Vanquish S From (V) 501506 		$63.07 5
29 45120459AA
LUBRICANT-TRANSMISSN
Vanquish S From (V) 501506 		$26.46 -
29 696819
Oil, Mobil
Vanquish S From (V) 501506 		- - Enquire
29 703202
Screw,  M8  x 12, Flange Hd
Middle East cars 		$0.35 2
