Power Steering

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Power Steering

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91543 STEERING UNIT-RHD $2,761.93 To Order
4R12256285AA ASSY - STEERING RACK COMP -LHD $5,119.53 To Order
91542 STEERING UNIT-RHD $2,761.93 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
699874 BOLT & WASHER HEX M12 x 151.7 $3.71 To Order
Photo Part No Description Price (each) Stock
700988 BOLT M12 x 90 FLG HD $7.80 To Order
Photo Part No Description Price (each) Stock
1R122410711 TRACK ROD END-RH $138.40 To Order
Photo Part No Description Price (each) Stock
4R12246141AA TRACK ROD END $595.83 IN STOCK
1R122410712 TRACK ROD END-LH $138.40 To Order
Photo Part No Description Price (each) Stock
703136PK Nut M14 x 1.5 Nylon Insert (Pack of 2) $7.06 IN STOCK
703565 NUT-M12 HEX FLANGE $1.12 IN STOCK
Photo Part No Description Price (each) Stock
1R133A696AD PUMP & PLY ASSY PS $984.13 To Order
Photo Part No Description Price (each) Stock
2485419 Pulley, power steering pump Enquire To Order
Photo Part No Description Price (each) Stock
699131 BOLT M8 x 70 x 1.25 $2.69 To Order
Photo Part No Description Price (each) Stock
1R12240484AF HOSE ASSY PAS RESERVOIR TO PUMP SUCTION $112.19 To Order
Photo Part No Description Price (each) Stock
699094 Clip, Hose, Spring Loaded, 16-25 $6.87 IN STOCK
Photo Part No Description Price (each) Stock
1R12384568AA RESERVOIR - HYDRAULIC OIL $219.43 To Order
Photo Part No Description Price (each) Stock
1R12242415AB BRACKET ASSY - PAS RESERVOIR $38.59 To Order
703265 Screw, M6 x 16, Hex Flange Head $0.31 IN STOCK
Photo Part No Description Price (each) Stock
703199 Bolt M6x30 HEX FLG Chrome Free $0.39 IN STOCK
Photo Part No Description Price (each) Stock
3280356 GROMMET $5.16 To Order
Photo Part No Description Price (each) Stock
700119 SPACER $1.07 To Order
Photo Part No Description Price (each) Stock
5R133D746AA ASSY - PAS COOLER $1,935.20 To Order
1R12442060AA MATRIX OIL COOLER - TRANSMISSION $1,983.75 To Order
Photo Part No Description Price (each) Stock
700149 SCREW M8x30 HEX FLG $17.16 To Order
Photo Part No Description Price (each) Stock
700150 WASHER M8 X 19 X 3 PLAIN ZINC BRT $0.79 To Order
Photo Part No Description Price (each) Stock
5R133A713AA HOSE ASSY - RACK TUBE TO PAS COOLER $1,105.76 To Order
1R12245731AA HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST $338.67 To Order
1R12243791AB HOSE ASSY-RACK TUBE TO PAS COOLER $605.28 To Order
Photo Part No Description Price (each) Stock
699721 HOSE CLAMP DIA 21 $2.52 To Order
Photo Part No Description Price (each) Stock
1R12240482AE TUBE ASSY-PAS RACK RETURN RHD $109.14 To Order
1R12241388AE TUBE ASY - PAS RACK RETURN LHD $124.40 To Order
Photo Part No Description Price (each) Stock
5R133E525AA HOSE ASSY - COOLER TO PAS BOTTLE $234.98 To Order
1R12245732AC Hose assy, cooler to PAS bottle Enquire To Order
1R12243790AC HOSE ASSY - COOLER TO PAS BOTTLE $851.04 To Order
Photo Part No Description Price (each) Stock
699721 HOSE CLAMP DIA 21 $2.52 To Order
Photo Part No Description Price (each) Stock
1R12240485AE HOSE ASSY-PAS PRESSURE LINE RHD $233.93 To Order
1R12241387AE HOSE ASY - PAS PRESSURE LINE LHD $692.18 To Order
Photo Part No Description Price (each) Stock
699710 CLIP - PAS PIPES TO CROSSMEMBER $0.91 To Order
Photo Part No Description Price (each) Stock
699711 ‘P Clip, 23 x 15 x M6 $1.79 To Order
Photo Part No Description Price (each) Stock
9361476 ISOLATOR - HOOD PUMP $12.30 To Order
Photo Part No Description Price (each) Stock
699877 NUT M6 HEX FLG $0.20 To Order
Photo Part No Description Price (each) Stock
4R12256292AA STEERING RACK TRAVEL RESTRICTOR $20.65 To Order
1R12254453AB Tie rod assy, short $1,156.25 To Order
1R12254452AB Tie rod assy, long Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R122410105 SWITCH-P/S PMP PRESS $322.87 To Order
Photo Part No Description Price (each) Stock
4R133494AA TUBE ASSY - PAS PUMP TO JOINT $307.57 To Order
700004 HOSE CLAMP $1.45 To Order
699547 Clamp, Hose $2.77 IN STOCK
...and 1 more part variants. See table on right for more details.
View All

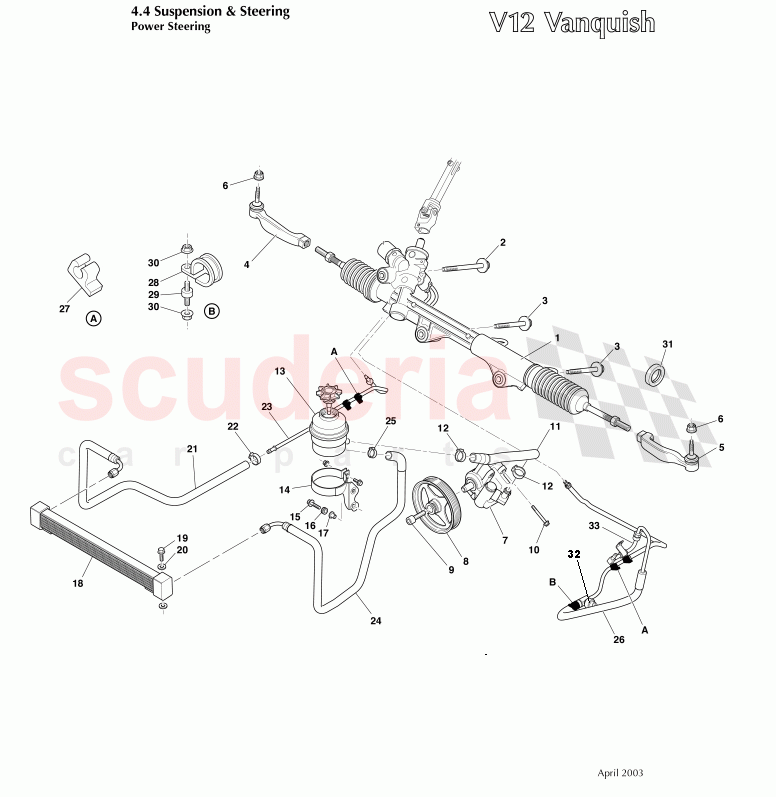

Power Steering of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91543
STEERING UNIT-RHD
(SVO option)/Vanquish S From (V) 501506 		$2,761.93 1
1 4R12256285AA
ASSY - STEERING RACK COMP -LHD
(SVO option)/Vanquish S From (V) 501506 		$5,119.53 1
1 91542
STEERING UNIT-RHD
RHD 		$2,761.93 1
1 1R12242289AD
ASSY - STEERING RACK COMPLETE LHD
LHD 		$2,894.44 1
2 699874
BOLT & WASHER HEX M12 x 151.7 		$3.71 1
3 700988
BOLT M12 x 90 FLG HD 		$7.80 2
4 1R122410711
TRACK ROD END-RH 		$138.40 1
5 4R12246141AA
TRACK ROD END
(SVO option)/Vanquish S From (V) 501506
IN STOCK 		$595.83 2
5 1R122410712
TRACK ROD END-LH 		$138.40 1
6 703136PK
Nut M14 x 1.5 Nylon Insert (Pack of 2)
(SVO option)/Vanquish S
IN STOCK 		$7.06 1
6 703565
NUT-M12 HEX FLANGE
IN STOCK 		$1.12 2
7 1R133A696AD
PUMP & PLY ASSY PS 		$984.13 1
8 2485419
Pulley, power steering pump 		- 1 Enquire
10 699131
BOLT M8 x 70 x 1.25
P/S pump to cylinder block 		$2.69 4
11 1R12240484AF
HOSE ASSY PAS RESERVOIR TO PUMP SUCTION 		$112.19 1
12 699094
Clip, Hose, Spring Loaded, 16-25
IN STOCK 		$6.87 2
13 1R12384568AA
RESERVOIR - HYDRAULIC OIL 		$219.43 1
14 1R12242415AB
BRACKET ASSY - PAS RESERVOIR 		$38.59 1
14 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.31 1
15 703199
Bolt M6x30 HEX FLG Chrome Free
IN STOCK 		$0.39 2
16 3280356
GROMMET 		$5.16 2
17 700119
SPACER 		$1.07 2
18 5R133D746AA
ASSY - PAS COOLER
Vanquish S From (V) 501506 		$1,935.20 1
18 1R12442060AA
MATRIX OIL COOLER - TRANSMISSION 		$1,983.75 1
19 700149
SCREW M8x30 HEX FLG 		$17.16 2
20 700150
WASHER M8 X 19 X 3 PLAIN ZINC BRT 		$0.79 2
21 5R133A713AA
HOSE ASSY - RACK TUBE TO PAS COOLER
Vanquish S From (V) 501506 		$1,105.76 1
21 1R12245731AA
HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST
Middle East cars 		$338.67 1
21 1R12243791AB
HOSE ASSY-RACK TUBE TO PAS COOLER 		$605.28 1
22 699721
HOSE CLAMP DIA 21 		$2.52 1
23 1R12240482AE
TUBE ASSY-PAS RACK RETURN RHD
RHD 		$109.14 1
23 1R12241388AE
TUBE ASY - PAS RACK RETURN LHD
LHD 		$124.40 1
24 5R133E525AA
HOSE ASSY - COOLER TO PAS BOTTLE
Vanquish S From (V) 501506 		$234.98 1
24 1R12245732AC
Hose assy, cooler to PAS bottle
Middle East cars 		- 1 Enquire
24 1R12243790AC
HOSE ASSY - COOLER TO PAS BOTTLE 		$851.04 1
25 699721
HOSE CLAMP DIA 21 		$2.52 1
26 1R12240485AE
HOSE ASSY-PAS PRESSURE LINE RHD
RHD 		$233.93 1
26 1R12241387AE
HOSE ASY - PAS PRESSURE LINE LHD
LHD 		$692.18 1
27 699710
CLIP - PAS PIPES TO CROSSMEMBER 		$0.91 4
28 699711
‘P Clip, 23 x 15 x M6 		$1.79 1
29 9361476
ISOLATOR - HOOD PUMP 		$12.30 1
30 699877
NUT M6 HEX FLG 		$0.20 3
31 4R12256292AA
STEERING RACK TRAVEL RESTRICTOR
(SVO option)/Vanquish S From (V) 501506 		$20.65 2
31 1R12254453AB
Tie rod assy, short 		$1,156.25 1
31 1R12254452AB
Tie rod assy, long 		- 1 Enquire
31 1R12254454AB
TRAVEL RESTRICTOR STEERING RACK 		$95.23 2
32 1R122410105
SWITCH-P/S PMP PRESS 		$322.87 1
33 4R133494AA
TUBE ASSY - PAS PUMP TO JOINT 		$307.57 1
33 700004
HOSE CLAMP 		$1.45 1
33 699547
Clamp, Hose
IN STOCK 		$2.77 1
33 699999S
POWER STEERING FLUID COLD CLIMATE 20 LTR DRUM 		$297.67 -
