Fuel Filler Pipe

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Fuel Filler Pipe

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1R12341853AC SEAL - FUEL FILLER PIPE $8.71 To Order
Photo Part No Description Price (each) Stock
1R12341161AD HOSE-FILLER TO TANK $169.19 To Order
Photo Part No Description Price (each) Stock
699598 CLAMP - STEPLESS DIA 30-36 $16.51 To Order
Photo Part No Description Price (each) Stock
1R12341157AA CLAMP - HOSE FILLER PIPE $10.73 To Order
Photo Part No Description Price (each) Stock
1R12340683AE FUEL FILLER PIPE ASSY $609.09 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock
697163 WASHER M8 X 20.5 PLAIN FORM C $0.08 To Order
Photo Part No Description Price (each) Stock
1R12342718AE ASSY CAP FUEL FILLER $726.86 To Order
Photo Part No Description Price (each) Stock
1R12341054AE GROMMET - FUEL FILLER PIPE $321.28 To Order
Photo Part No Description Price (each) Stock
1R12342886AB HOSE - FUEL GROMMET $18.33 To Order
Photo Part No Description Price (each) Stock
1R12342667AA CLIP-FUEL FILLER GROMMET HOSE Enquire To Order
Photo Part No Description Price (each) Stock
699233PK TIE-STRAP HT RES-100 $87.96 To Order
Photo Part No Description Price (each) Stock
1R12342885AB CONNECTOR ID 7x63 $1.61 To Order
Photo Part No Description Price (each) Stock
1R12343261AC PROTECTOR - OUTER FUEL FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
1R12343262AC PROTECTOR - INNER FUEL FILLER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
1R12343982AA FILTER DRAIN TUBE FUEL FILLER BOWL $14.25 To Order
View All

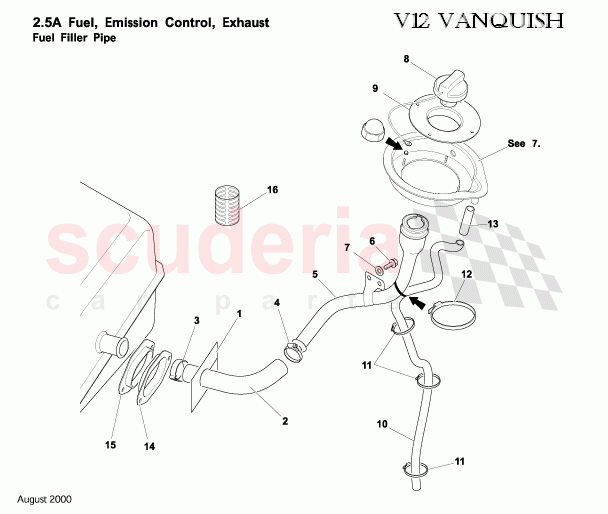

Fuel Filler Pipe of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- GG339030AA
CAP FUEL TANK
From (V) 501286 Up to (V) 501433 		$264.37 1
- 4R12341054AA
GROMMET - FUEL FILLER PIPE
From (V) 501434 		$69.41 1
- 4R12340683AC
FUEL FILLER PIPE ASSY
From (V) 501434 		$142.28 1
- GG339030AA
CAP FUEL TANK
From (V) 501434 		$264.37 1
- 1R12341301AA
Grommet, in tank check valve 		- 1 Enquire
- 1R12340688AB
Check valve in filler pipe 		- 1 Enquire
- 699598
CLAMP - STEPLESS DIA 30-36 		$16.51 2
1 1R12341853AC
SEAL - FUEL FILLER PIPE 		$8.71 2
2 1R12341161AD
HOSE-FILLER TO TANK 		$169.19 1
3 699598
CLAMP - STEPLESS DIA 30-36 		$16.51 1
4 1R12341157AA
CLAMP - HOSE FILLER PIPE 		$10.73 1
5 1R12340683AE
FUEL FILLER PIPE ASSY
Up to (V) 501433 		$609.09 1
6 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 2
7 697163
WASHER M8 X 20.5 PLAIN FORM C 		$0.08 2
8 1R12342718AE
ASSY CAP FUEL FILLER
Up to (V) 501285 		$726.86 1
9 1R12341054AE
GROMMET - FUEL FILLER PIPE
Up to (V) 501433 		$321.28 1
10 1R12342886AB
HOSE - FUEL GROMMET 		$18.33 1
11 1R12342667AA
CLIP-FUEL FILLER GROMMET HOSE 		- 2 Enquire
12 699233PK
TIE-STRAP HT RES-100 		$87.96 1
13 1R12342885AB
CONNECTOR ID 7x63 		$1.61 1
14 1R12343261AC
PROTECTOR - OUTER FUEL FILLER PIPE 		- 1 Enquire
15 1R12343262AC
PROTECTOR - INNER FUEL FILLER PIPE 		- 1 Enquire
16 1R12343982AA
FILTER DRAIN TUBE FUEL FILLER BOWL 		$14.25 1
