Aston Martin Vanquish (2001-2007) - Front Cover - Chains and Sprockets

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G4E6D080AA Front cover Enquire To Order
385063 FRONT COVER $926.64 To Order
Photo Part No Description Price (each) Stock
385064 Gasket Engine Front Cover LH $97.45 IN STOCK
Photo Part No Description Price (each) Stock
385065 GASKET FRONT ENGINE COVER CENTRE $109.30 IN STOCK
Photo Part No Description Price (each) Stock
385066 Gasket Engine Front Cover RH $109.30 IN STOCK
Photo Part No Description Price (each) Stock
W701525S437 Bolt and washer, M8 X 47.5, hex flg Enquire To Order
Photo Part No Description Price (each) Stock
W701232S437 Bolt and washer, M8 X 32, hex flg Enquire To Order
Photo Part No Description Price (each) Stock
385067 Oil Seal - Crankshaft Front $29.45 IN STOCK
Photo Part No Description Price (each) Stock
4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T $60.19 IN STOCK
Photo Part No Description Price (each) Stock
1R120710720 SENSOR RING-IGNITION $44.58 To Order
Photo Part No Description Price (each) Stock
1R120710378 SPROCKET-CAMSHAFT INLET RH $124.24 To Order
785070 Sprocket, camshaft, intake, RH Enquire To Order
Photo Part No Description Price (each) Stock
1R120710379 SPROCKET-CAMSHAFT EXH RH $124.24 To Order
785071 Sprocket, camshaft, exhaust, RH Enquire To Order
Photo Part No Description Price (each) Stock
1R120710376 SPROCKET-CAMSHAFT INLET LH $129.48 To Order
785072 Sprocket, camshaft, intake, LH Enquire To Order
Photo Part No Description Price (each) Stock
1R120710377 SPROCKET-CAMSHAFT EXH LH $129.48 To Order
785073 Sprocket, camshaft, exhaust, LH Enquire To Order
Photo Part No Description Price (each) Stock
785074 CAM SPROCKET WASHER $15.56 To Order
Photo Part No Description Price (each) Stock
697739 BOLT-M12 x 52.5 $3.99 To Order
Photo Part No Description Price (each) Stock
1R120310483 Chain, Timing $100.56 IN STOCK
1R120310483 Chain, Timing $100.56 IN STOCK
Photo Part No Description Price (each) Stock
1R120310069 Guide, Timing Chain, RH $66.11 IN STOCK
Photo Part No Description Price (each) Stock
697749 BOLT-M8 x 32 FLG $14.03 To Order
Photo Part No Description Price (each) Stock
1R120310070 Guide, Timing Chain, LH $66.11 IN STOCK
Photo Part No Description Price (each) Stock
697741 BOLT-M8 x 49.3 FLG $0.83 To Order
Photo Part No Description Price (each) Stock
4G430310013 Arm Assembly, Timing Chain Tensioner $51.59 IN STOCK
Photo Part No Description Price (each) Stock
1R120310071 Tensioner - Timing Chain $251.82 IN STOCK
Photo Part No Description Price (each) Stock
697741 BOLT-M8 x 49.3 FLG $0.83 To Order
Photo Part No Description Price (each) Stock
1R123910475 Sensor, Crankshaft, Front $39.87 IN STOCK
Photo Part No Description Price (each) Stock
702542 BOLT M6 x 20 HF PIL 8 $1.18 To Order
4G433910014 Sensor, Crankshaft, Rear $614.92 IN STOCK
785755 Sensor, Crankshaft Timing $249.54 IN STOCK
View All

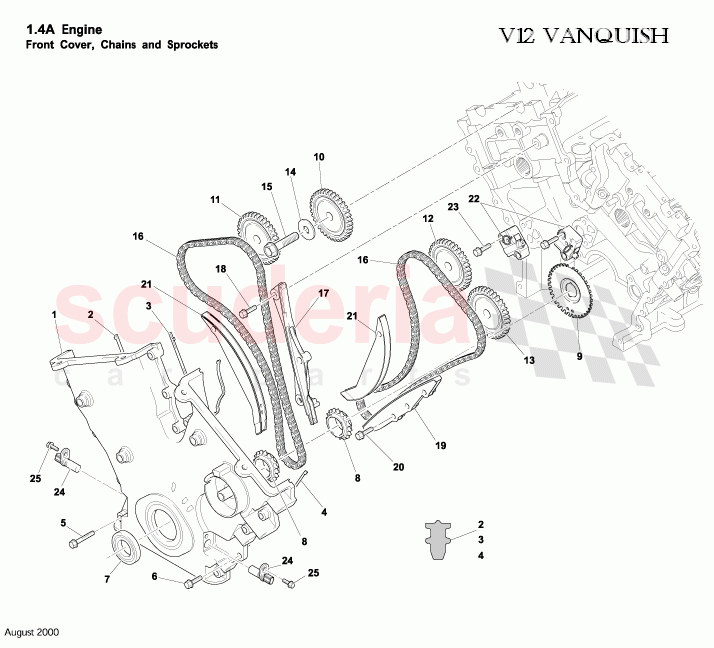

Front Cover - Chains and Sprockets of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G4E6D080AA
Front cover
Vanquish S From (V) 501506 		- 1 Enquire
1 385063
FRONT COVER 		$926.64 1
2 385064
Gasket Engine Front Cover LH
IN STOCK 		$97.45 1
3 385065
GASKET FRONT ENGINE COVER CENTRE
IN STOCK 		$109.30 1
4 385066
Gasket Engine Front Cover RH
IN STOCK 		$109.30 1
5 W701525S437
Bolt and washer, M8 X 47.5, hex flg
Front cover to cylinder block 		- 14 Enquire
6 W701232S437
Bolt and washer, M8 X 32, hex flg 		- 1 Enquire
7 385067
Oil Seal - Crankshaft Front
IN STOCK 		$29.45 1
8 4G430210012
CRANKSHAFT SPROCKET-DOUBLE - 21T
IN STOCK 		$60.19 2
9 1R120710720
SENSOR RING-IGNITION 		$44.58 1
10 1R120710378
SPROCKET-CAMSHAFT INLET RH
Vanquish S From (V) 501506 		$124.24 1
10 785070
Sprocket, camshaft, intake, RH 		- 1 Enquire
11 1R120710379
SPROCKET-CAMSHAFT EXH RH
Vanquish S From (V) 501506 		$124.24 1
11 785071
Sprocket, camshaft, exhaust, RH 		- 1 Enquire
12 1R120710376
SPROCKET-CAMSHAFT INLET LH
Vanquish S From (V) 501506 		$129.48 1
12 785072
Sprocket, camshaft, intake, LH 		- 1 Enquire
13 1R120710377
SPROCKET-CAMSHAFT EXH LH
Vanquish S From (V) 501506 		$129.48 1
13 785073
Sprocket, camshaft, exhaust, LH 		- 1 Enquire
14 785074
CAM SPROCKET WASHER 		$15.56 4
15 697739
BOLT-M12 x 52.5 		$3.99 4
16 1R120310483
Chain, Timing
Vanquish S From (V) 501506
IN STOCK 		$100.56 2
16 1R120310483
Chain, Timing
IN STOCK 		$100.56 2
17 1R120310069
Guide, Timing Chain, RH
IN STOCK 		$66.11 1
18 697749
BOLT-M8 x 32 FLG
Chain guide, RH attach 		$14.03 2
19 1R120310070
Guide, Timing Chain, LH
IN STOCK 		$66.11 1
20 697741
BOLT-M8 x 49.3 FLG
Chain guide, LH attach 		$0.83 2
21 4G430310013
Arm Assembly, Timing Chain Tensioner
IN STOCK 		$51.59 2
22 1R120310071
Tensioner - Timing Chain
IN STOCK 		$251.82 2
23 697741
BOLT-M8 x 49.3 FLG
Tensioner assy attach 		$0.83 4
24 1R123910475
Sensor, Crankshaft, Front
IN STOCK 		$39.87 2
25 702542
BOLT M6 x 20 HF PIL 8
Sensor to front cover 		$1.18 2
25 4G433910014
Sensor, Crankshaft, Rear
IN STOCK 		$614.92 1
25 785755
Sensor, Crankshaft Timing
IN STOCK 		$249.54 1
