Rear Brakes

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Rear Brakes

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
5R132A097AB DISC AY RR RH(520HP) $1,548.99 To Order
4R12285953AA Disc assy, ventilated, rear, LH (SVO option) Enquire To Order
4R12285952AA Disc assy, ventilated, rear, RH (SVO option) Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4R12286255AA ASSY CALIPER BRAKE RR - BLACK LH $1,301.51 To Order
4R12286254AA ASSY CALIPER BRAKE RR - BLACK RH $1,301.51 To Order
4R12286259AA ASSY CALIPER BRAKE RR-GRAPHITE LH $1,301.51 To Order
...and 23 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R122810740 BOLT, CAP HEAD M12X60 $12.68 IN STOCK
1R12283578AA BOLT - REAR CALIPER TO KNUCKLE M12x67 $34.52 To Order
701885 LOCTITE 243-10ml BTL $26.92 To Order
Photo Part No Description Price (each) Stock
1R122810428PK REAR BRAKE PADS $698.58 IN STOCK
1R122810291PK BRAKE PAD SET-REAR $546.51 IN STOCK
4R122810401PK BRAKE PAD SET RR 04 $772.33 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
3026952 WASHER - COPPER $5.96 To Order
1R12280465AH ASSY BRAKE HOSE REAR $59.63 To Order
Photo Part No Description Price (each) Stock
4G431K024BD Nut, Wheel, M14 x 2.0 $27.87 IN STOCK
1R123610006PK WHL NUT M12x1.5 (5) $68.28 To Order
Photo Part No Description Price (each) Stock
1R129010479 ABS SENSOR REAR LH $185.17 To Order
1R129010408 ABS SENSOR-REAR RH $57.01 To Order
Photo Part No Description Price (each) Stock
1R12282323AA BRACKET - REAR ABS SENSOR CABLE LH $117.45 To Order
1R12282322AA BRACKET-REAR ABS SENSOR CABLE RH $18.73 To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG $2.80 To Order
Photo Part No Description Price (each) Stock
697398 TIESTRAP-RELEASEABLE 4.6 x 165 $1.31 To Order
Photo Part No Description Price (each) Stock
703141 SCREW M8 x 16 CHROME FREE $2.10 IN STOCK
699878 NUT M12 RETAINER $9.67 IN STOCK
View All

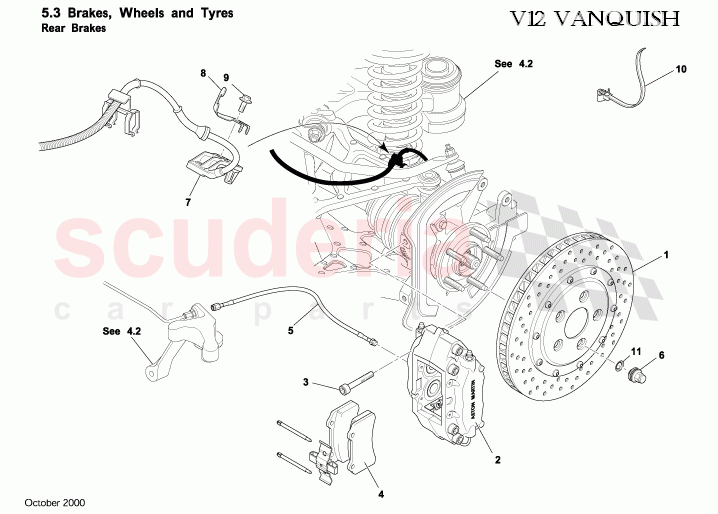

Rear Brakes of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 5R132A097AB
DISC AY RR RH(520HP)
Vanquish S From (V) 501506 		$1,548.99 1
1 4R12285953AA
Disc assy, ventilated, rear, LH (SVO option)
For uprated brakes 		- 1 Enquire
1 4R12285952AA
Disc assy, ventilated, rear, RH (SVO option)
For uprated brakes 		- 1 Enquire
1 1R12280467AC
ASSY DISC VENTED REAR LH
Up to (V) 501285
IN STOCK 		$891.05 1
1 1R12280466AC
ASSY DISC VENTED REAR RH
Up to (V) 501285
IN STOCK 		$1,048.29 1
1 4R12280467AA
ASSY DISC VENTED REAR LH
From (V) 501286 		$1,396.26 1
1 4R12280466AA
ASSY DISC VENTED REAR RH
From (V) 501286 		$1,396.26 1
2 4R12286255AA
ASSY CALIPER BRAKE RR - BLACK LH
For uprated brakes/Vanquish S From (V) 501506 		$1,301.51 1
2 4R12286254AA
ASSY CALIPER BRAKE RR - BLACK RH
For uprated brakes/Vanquish S From (V) 501506 		$1,301.51 1
2 4R12286259AA
ASSY CALIPER BRAKE RR-GRAPHITE LH
For uprated brakes/Vanquish S From (V) 501506 		$1,301.51 1
2 4R12286258AA
ASSY CALIPER BRAKE RR - GRAPHITE RH
For uprated brakes/Vanquish S From (V) 501506 		$1,301.51 1
2 4R12286257AA
ASSY CALIPER BRAKE RR - RED LH
For uprated brakes/Vanquish S From (V) 501506 		$1,301.51 1
2 4R12286256AA
ASSY CALIPER BRAKE RR-RED RH
For uprated brakes/Vanquish S From (V) 501506 		$1,301.51 1
2 5R132K327AA
ASSY CALIPER BRAKE - RR SILVER (520HP)LH
Vanquish S From (V) 501506 		$1,336.34 1
2 5R132K328AA
ASSY CALIPER BRAKE - RR SILVER (520HP) RH
Vanquish S From (V) 501506 		$1,336.34 1
2 4R12286307AA
ASSY CALIPER BRAKE RR GOLD LH
For uprated brakes 		$1,301.51 1
2 4R12286306AA
ASSY CALIPER BRAKE RH - GOLD RH
For uprated brakes 		$1,301.51 1
2 1R12283366AB
ASSY CALIPER BRAKE REAR (BLACK) RH
Up to (V) 501285 		$730.46 1
2 1R12283367AB
ASSY CALIPER BRAKE REAR (BLACK) LH
Up to (V) 501285 		$730.46 1
2 1R12283369AB
ASSY CALIPER BRAKE REAR (GOLD) LH
Up to (V) 501285 		$730.46 1
2 1R12283368AB
ASSY CALIPER BRAKE REAR (GOLD) RH
Up to (V) 501285 		$730.46 1
2 1R12283371AB
ASSY CALIPER BRAKE REAR (RED) LH
Up to (V) 501285 		$730.46 1
2 1R12283370AB
ASSY CALIPER BRAKE REAR (RED) RH
Up to (V) 501285 		$730.46 1
2 1R12280469AD
ASSY CALIPER BRAKE REAR LH
Up to (V) 501285 		$811.68 1
2 1R12280468AD
ASSY CALIPER BRAKE REAR RH
Up to (V) 501285 		$811.68 1
2 4R12283366AA
ASSY CALIPER BRAKE REAR (BLACK) RH
From (V) 501286 		$956.61 1
2 4R12283367AA
ASSY CALIPER BRAKE REAR (BLACK) LH
From (V) 501286 		$956.61 1
2 4R12283369AA
ASSY CALIPER BRAKE REAR (GOLD) LH
From (V) 501286 		$956.61 1
2 4R12283368AA
ASSY CALIPER BRAKE REAR (GOLD) RH
From (V) 501286 		$956.61 1
2 4R12283371AA
ASSY CALIPER BRAKE REAR (RED) LH
From (V) 501286 		$956.61 1
2 4R12283370AA
ASSY CALIPER BRAKE REAR (RED) RH
From (V) 501286 		$956.61 1
2 4R12280469AA
ASSY CALIPER BRAKE REAR LH
From (V) 501286 		$836.98 1
2 4R12280468AA
ASSY CALIPER BRAKE REAR RH
From (V) 501286 		$927.60 1
3 1R122810740
BOLT, CAP HEAD M12X60
For uprated brakes/Vanquish S From (V) 501506
IN STOCK 		$12.68 4
3 1R12283578AA
BOLT - REAR CALIPER TO KNUCKLE M12x67 		$34.52 4
3 701885
LOCTITE 243-10ml BTL 		$26.92 -
4 1R122810428PK
REAR BRAKE PADS
For uprated brakes/Vanquish S
IN STOCK 		$698.58 4
4 1R122810291PK
BRAKE PAD SET-REAR
Up to (V) 501285
IN STOCK 		$546.51 2
4 4R122810401PK
BRAKE PAD SET RR 04
From (V) 501286 		$772.33 1
4 2885456
CLIP & PIN SET REAR CALIPER 		$44.68 1
5 3026952
WASHER - COPPER
For uprated brakes 		$5.96 2
5 1R12280465AH
ASSY BRAKE HOSE REAR 		$59.63 2
6 4G431K024BD
Nut, Wheel, M14 x 2.0
Vanquish S From (V) 501506
IN STOCK 		$27.87 10
6 1R123610006PK
WHL NUT M12x1.5 (5) 		$68.28 10
7 1R129010479
ABS SENSOR REAR LH 		$185.17 1
7 1R129010408
ABS SENSOR-REAR RH 		$57.01 1
8 1R12282323AA
BRACKET - REAR ABS SENSOR CABLE LH 		$117.45 1
8 1R12282322AA
BRACKET-REAR ABS SENSOR CABLE RH 		$18.73 1
9 700126
SCREW M6x20 HEX FLG 		$2.80 2
10 697398
TIESTRAP-RELEASEABLE 4.6 x 165 		$1.31 2
11 703141
SCREW M8 x 16 CHROME FREE
Vanquish S From (V) 501506
IN STOCK 		$2.10 4
11 699878
NUT M12 RETAINER
IN STOCK 		$9.67 2
