Cooler, Hoses And Reservoir - Rhd

Aston Martin V12 Zagato

Find Your Part

Aston Martin V12 Zagato - Cooler, Hoses and Reservoir - RHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G433R700AB Reservoir and Cap Assembly $164.67 To Order
Photo Part No Description Price (each) Stock
AD2334006AA Cap, Power Steering Reservoir $25.84 To Order
Photo Part No Description Price (each) Stock
AD233489AA BRACKET ASSY - PAS RESERVOIR $73.34 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.32 IN STOCK
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
AD233E525AB HOSE ASSY PAS RESERVOIR TO PUMP SUCTION $53.15 To Order
Photo Part No Description Price (each) Stock
699545 HOSE CLAMP OETIKER REF: 025.6 - 706R $2.87 To Order
Photo Part No Description Price (each) Stock
AD233A713AA PAS HOSE COOLER TO RESERVOIR $56.71 To Order
Photo Part No Description Price (each) Stock
701349 Clamp, Hose 20 Dia $0.92 To Order
Photo Part No Description Price (each) Stock
8D3360155AA CLAMP - PAS HOSE $5.35 To Order
Photo Part No Description Price (each) Stock
AD233D746AA Cooler Assy, Power Steering $345.98 To Order
Photo Part No Description Price (each) Stock
AD233A719DA Hose Assy, PAS Pressure Line, Pump to Gear, RHD $1,157.01 To Order
Photo Part No Description Price (each) Stock
703141 SCREW M8 x 16 CHROME FREE $2.11 IN STOCK
Photo Part No Description Price (each) Stock
AD233F558BB Hose, Return, Gear to Cooler, RHD $318.08 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.25 IN STOCK
Photo Part No Description Price (each) Stock
4G439A317AA Clip, fuel fill overflow pipe $4.60 To Order
Photo Part No Description Price (each) Stock
4G436C727AA HOSE CLIP (RAYMOND 81442) $2.05 To Order
Photo Part No Description Price (each) Stock
AD233494AA Tube Assy, PWR Steering Pump Outlet $115.47 To Order
Photo Part No Description Price (each) Stock
703202 Screw,  M8  x 12, Flange Hd $0.33 To Order
View All

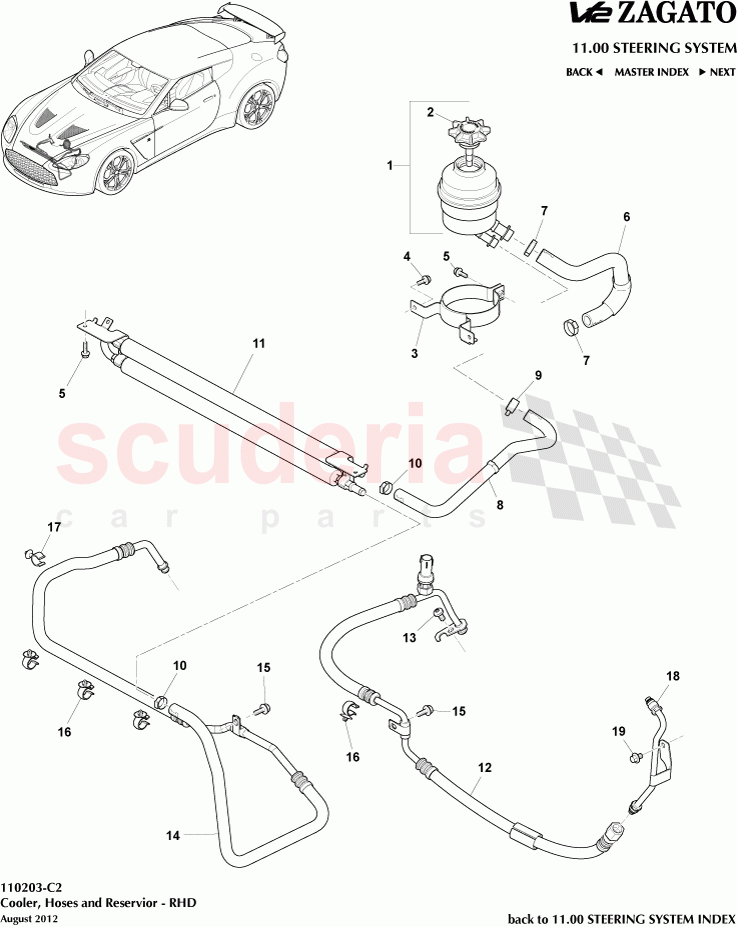

Cooler, Hoses and Reservoir - RHD of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G433R700AB
Reservoir and Cap Assembly 		$164.67 1
2 AD2334006AA
Cap, Power Steering Reservoir 		$25.84 1
3 AD233489AA
BRACKET ASSY - PAS RESERVOIR 		$73.34 1
4 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.32 2
5 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 7
6 AD233E525AB
HOSE ASSY PAS RESERVOIR TO PUMP SUCTION 		$53.15 1
7 699545
HOSE CLAMP OETIKER REF: 025.6 - 706R 		$2.87 2
8 AD233A713AA
PAS HOSE COOLER TO RESERVOIR 		$56.71 1
9 701349
Clamp, Hose 20 Dia 		$0.92 1
10 8D3360155AA
CLAMP - PAS HOSE 		$5.35 2
11 AD233D746AA
Cooler Assy, Power Steering 		$345.98 1
12 AD233A719DA
Hose Assy, PAS Pressure Line, Pump to Gear, RHD 		$1,157.01 1
13 703141
SCREW M8 x 16 CHROME FREE
IN STOCK 		$2.11 1
14 AD233F558BB
Hose, Return, Gear to Cooler, RHD 		$318.08 1
15 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.25 2
16 4G439A317AA
Clip, fuel fill overflow pipe 		$4.60 4
17 4G436C727AA
HOSE CLIP (RAYMOND 81442) 		$2.05 1
18 AD233494AA
Tube Assy, PWR Steering Pump Outlet
Includes O Rings 		$115.47 1
19 703202
Screw,  M8  x 12, Flange Hd 		$0.33 1
