Aston Martin V12 Zagato - Clutch System, RHD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD237540AB CLUTCH ASSENBLY, TWIN PLATE 215MM $2,872.74 IN STOCK
Photo Part No Description Price (each) Stock
8D336375CA Flywheel Assembly Single Mass $2,491.79 To Order
Photo Part No Description Price (each) Stock
AD23CD60AA Bolt, M6 x 1.0 x 75, Socket Head $3.55 IN STOCK
Photo Part No Description Price (each) Stock
697748 Plug-Oil Pan Drain $23.94 IN STOCK
Photo Part No Description Price (each) Stock
AD237A564AA Slave Cylinder, Clutch $1,336.54 To Order
Photo Part No Description Price (each) Stock
703203 Screw M6 x 20 Heex Flange 8 Chrome Free $0.19 IN STOCK
Photo Part No Description Price (each) Stock
4G437K640BB STUTZEN BLEED TO CSC M8 $22.61 To Order
Photo Part No Description Price (each) Stock
4G437H552AB HOSE ASSY - CLUTCH BLEED $116.88 To Order
Photo Part No Description Price (each) Stock
4G437K640AB STUTZEN FEED TO CSC M12x1.0 $22.61 To Order
Photo Part No Description Price (each) Stock
4G437608AB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD $162.38 To Order
Photo Part No Description Price (each) Stock
699632 'P' CLIP $1.04 To Order
Photo Part No Description Price (each) Stock
703206 SCREW-M5 x 8 HEX FLG CHROME FREE $1.49 IN STOCK
Photo Part No Description Price (each) Stock
4G437608CB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD $28.71 To Order
Photo Part No Description Price (each) Stock
AD23R7N630DA Bracket, Clutch Line, RHD $152.84 To Order
Photo Part No Description Price (each) Stock
701158 SCREW M6x10 BUTTON HD TORX BLACK $1.19 To Order
Photo Part No Description Price (each) Stock
4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl $69.87 To Order
Photo Part No Description Price (each) Stock
703121 Screw, M8 x 25, Hex Flange Head $0.25 IN STOCK
View All

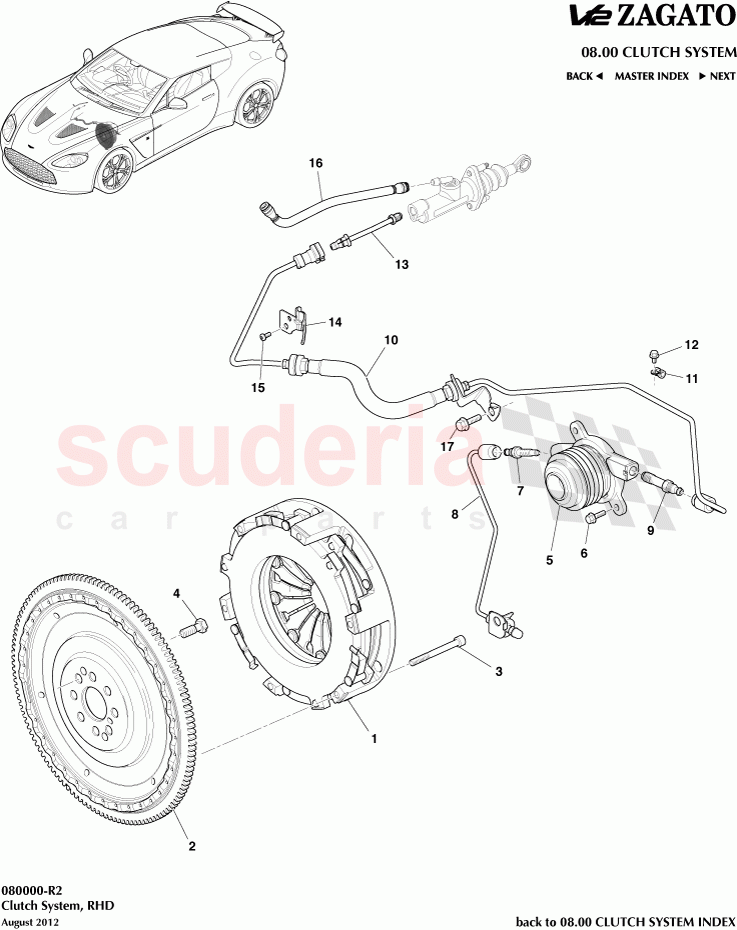

Clutch System, RHD of Aston Martin Aston Martin V12 Zagato Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 4G431111200
Clutch Kit
Includes Items 1 to 5
IN STOCK 		$4,330.34 1
1 AD237540AB
CLUTCH ASSENBLY, TWIN PLATE 215MM
IN STOCK 		$2,872.74 1
2 8D336375CA
Flywheel Assembly Single Mass 		$2,491.79 1
3 AD23CD60AA
Bolt, M6 x 1.0 x 75, Socket Head
IN STOCK 		$3.55 9
4 697748
Plug-Oil Pan Drain
Pack of 5, Replace Upon Removal
IN STOCK 		$23.94 8
5 AD237A564AA
Slave Cylinder, Clutch 		$1,336.54 1
6 703203
Screw M6 x 20 Heex Flange 8 Chrome Free
IN STOCK 		$0.19 2
7 4G437K640BB
STUTZEN BLEED TO CSC M8 		$22.61 1
8 4G437H552AB
HOSE ASSY - CLUTCH BLEED
Includes Spring Clip 		$116.88 1
9 4G437K640AB
STUTZEN FEED TO CSC M12x1.0 		$22.61 1
10 4G437608AB
HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD 		$162.38 1
11 699632
'P' CLIP 		$1.04 1
12 703206
SCREW-M5 x 8 HEX FLG CHROME FREE
IN STOCK 		$1.49 1
13 4G437608CB
TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD 		$28.71 1
14 AD23R7N630DA
Bracket, Clutch Line, RHD 		$152.84 1
15 701158
SCREW M6x10 BUTTON HD TORX BLACK 		$1.19 2
16 4G4341360BA
Pipe, Clutch Low Pressure, Reservoir to Master Cyl 		$69.87 1
17 703121
Screw, M8 x 25, Hex Flange Head
IN STOCK 		$0.25 1
