Rear Suspension Assembly

Aston Martin Rapide

Find Your Part

Aston Martin Rapide - Rear Suspension Assembly

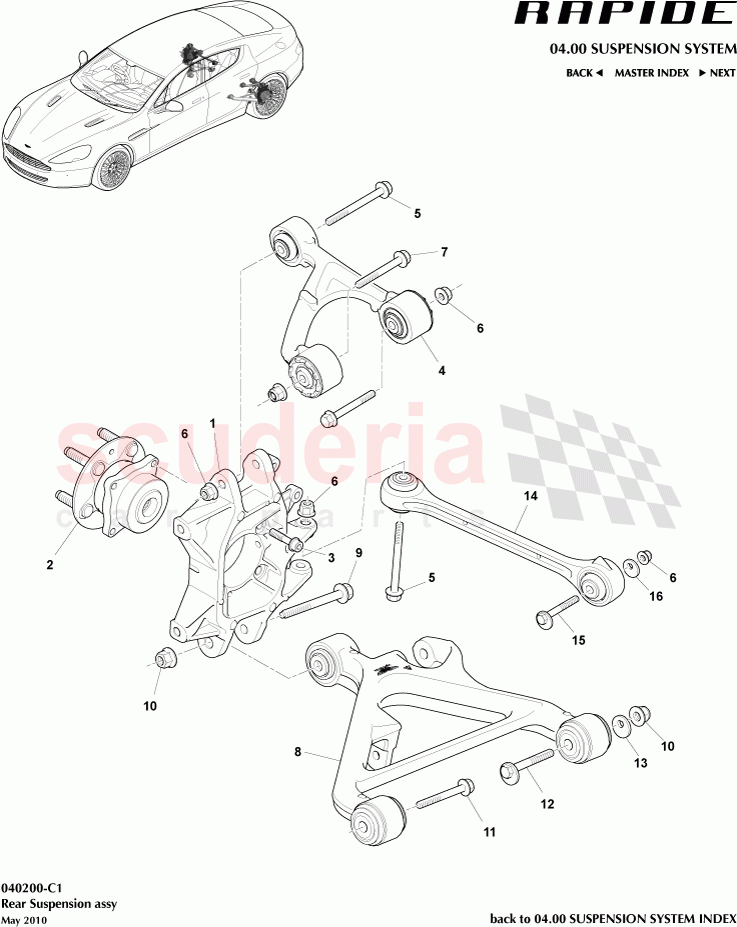

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD435A970AB KNUCKLE REAR WHL RH $1,696.71 To Order
AD435A971AB KNUCKLE REAR WHL LH $1,696.71 To Order
Photo Part No Description Price (each) Stock

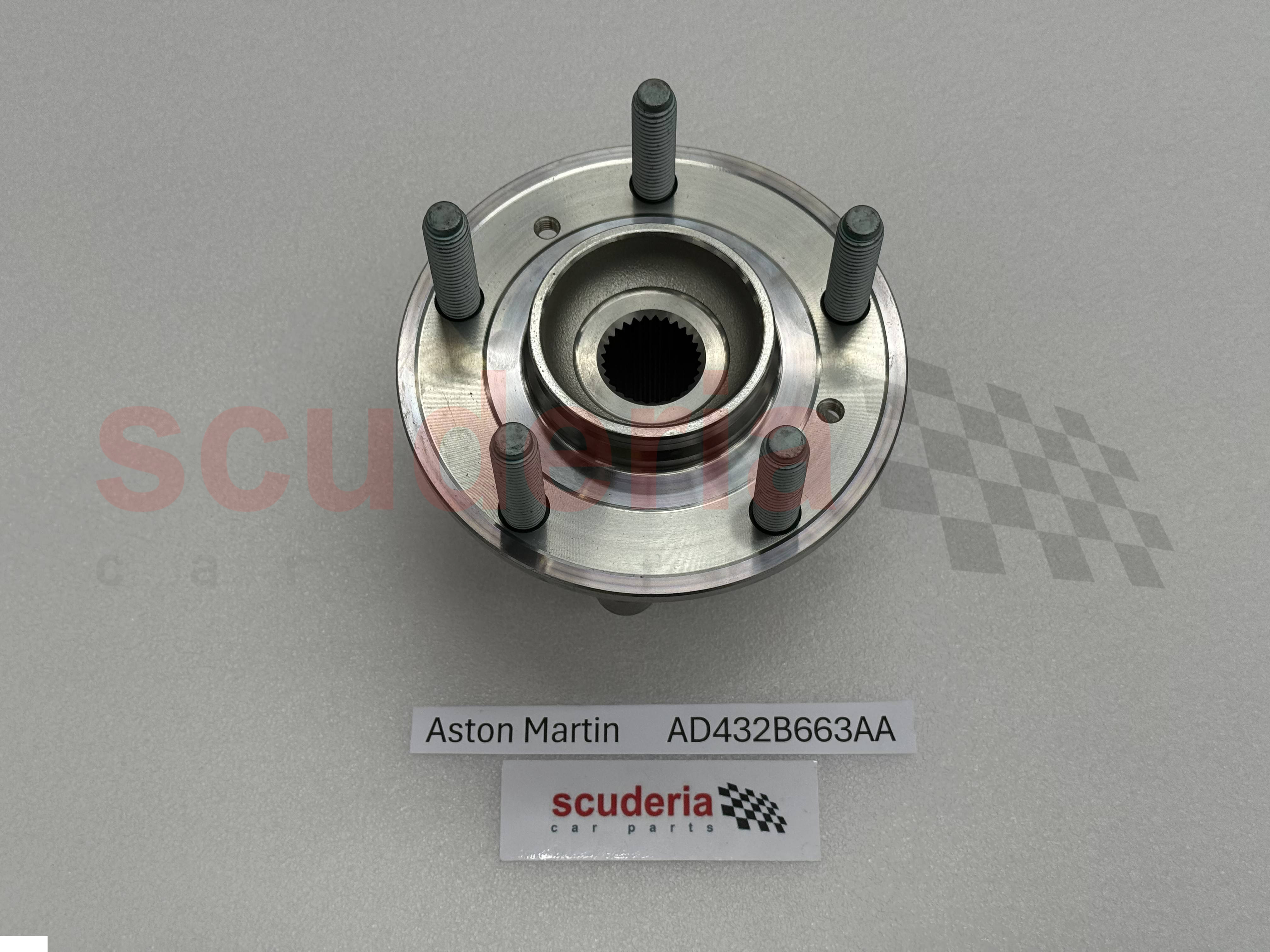

AD432B663AA Suspension Hub and Bearing $818.27 To Order
Photo Part No Description Price (each) Stock
4G430783AAPK Hub Bolt M10 x 55 x 1.25 (Pack of 5) $24.46 IN STOCK
Photo Part No Description Price (each) Stock

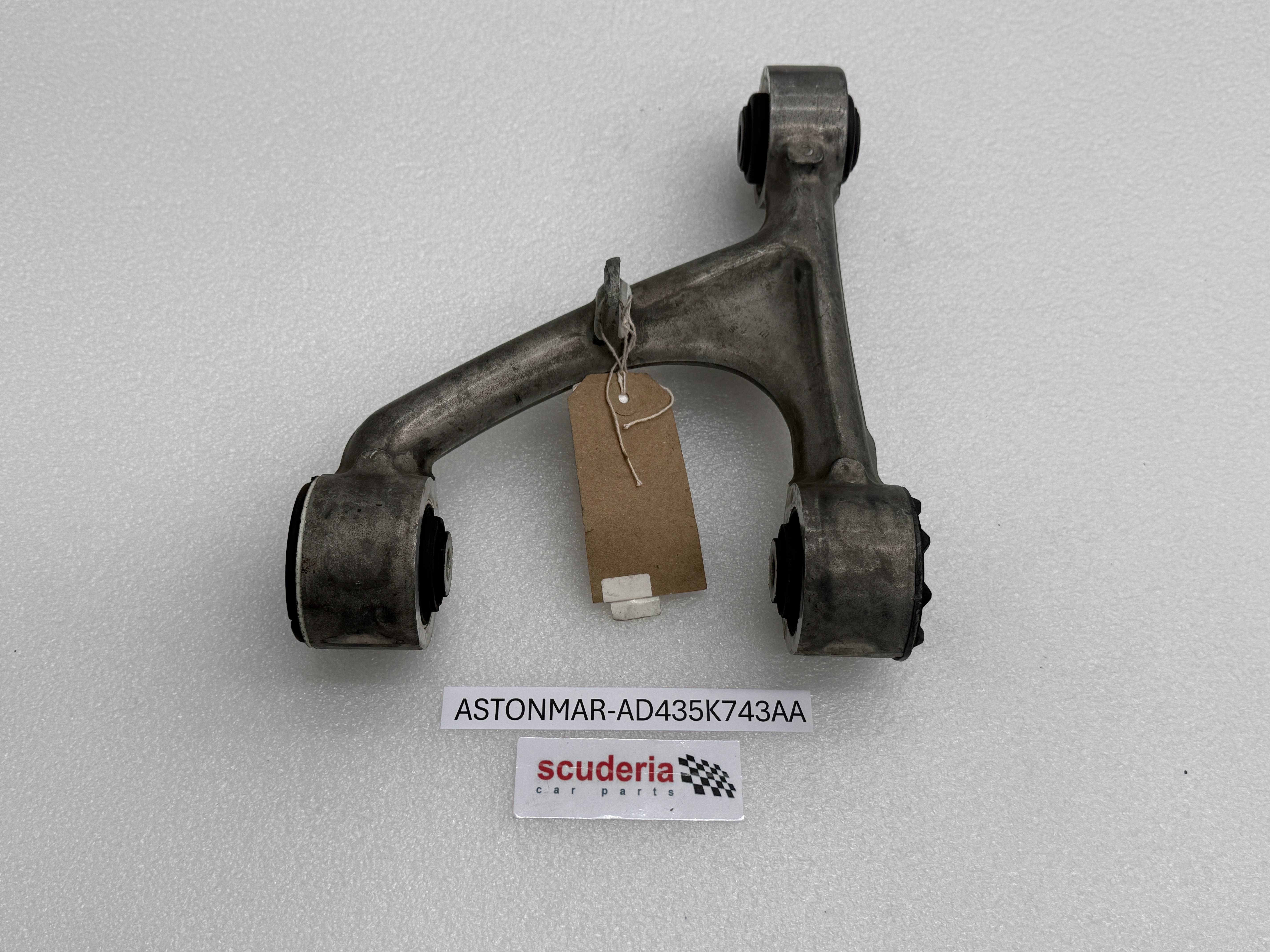

AD435K742AA ARM & BUSHING ASSY REAR SUSPENSION UPPER RH $771.69 To Order
AD435K743AA ARM & BUSHING ASSY REAR SUSPENSION UPPER LH $596.91 IN STOCK
Photo Part No Description Price (each) Stock
AD43487029AA BOLT M14 x 100 HEX FLANGE CONE (S442) $7.73 IN STOCK
Photo Part No Description Price (each) Stock
703565 NUT-M12 HEX FLANGE $1.13 IN STOCK
Photo Part No Description Price (each) Stock
CG4308024AA BOLT M12 X 90 HEXAGON HEAD FLANGED $5.99 IN STOCK
Photo Part No Description Price (each) Stock
AD435B530AA ARM AND BUSH ASSY REAR SUSPENSION LWR REAR RH $913.77 To Order
AD435B531AA ARM AND BUSHING ASSY REAR SUSPENSION LOWER REAR LH $913.77 To Order
Photo Part No Description Price (each) Stock
703133 BOLT M14 X 110 HEX FLANGE CHROME FREE $19.40 IN STOCK
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head $1.25 IN STOCK
Photo Part No Description Price (each) Stock
AD43487029AA BOLT M14 x 100 HEX FLANGE CONE (S442) $7.73 IN STOCK
Photo Part No Description Price (each) Stock
4G433B236CB BOLT, M14, ECCENTRIC, FRONT SUSPENSION $26.18 ARRIVING SOON
Photo Part No Description Price (each) Stock
4G433B237CA Washer, M14 eccentric $9.75 ARRIVING SOON
Photo Part No Description Price (each) Stock
4G435B551AA TOE CONTROL ARM REAR SUSPENSION RH $644.93 To Order
Photo Part No Description Price (each) Stock
AD435K978AA ECCENTRIC BOLT M12 x 90 $30.08 IN STOCK
Photo Part No Description Price (each) Stock
4G433B237BB Washer, M12, Eccentric $10.70 ARRIVING SOON
View All
Rear Suspension Assembly of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD435A970AB
KNUCKLE REAR WHL RH 		$1,696.71 1
1 AD435A971AB
KNUCKLE REAR WHL LH 		$1,696.71 1
2 AD432B663AA
Suspension Hub and Bearing 		$818.27 2
3 4G430783AAPK
Hub Bolt M10 x 55 x 1.25 (Pack of 5)
IN STOCK 		$24.46 8
4 AD435K742AA
ARM & BUSHING ASSY REAR SUSPENSION UPPER RH 		$771.69 1
4 AD435K743AA
ARM & BUSHING ASSY REAR SUSPENSION UPPER LH
IN STOCK 		$596.91 1
5 AD43487029AA
BOLT M14 x 100 HEX FLANGE CONE (S442)
IN STOCK 		$7.73 4
6 703565
NUT-M12 HEX FLANGE
IN STOCK 		$1.13 10
7 CG4308024AA
BOLT M12 X 90 HEXAGON HEAD FLANGED
IN STOCK 		$5.99 4
8 AD435B530AA
ARM AND BUSH ASSY REAR SUSPENSION LWR REAR RH 		$913.77 1
8 AD435B531AA
ARM AND BUSHING ASSY REAR SUSPENSION LOWER REAR LH 		$913.77 1
9 703133
BOLT M14 X 110 HEX FLANGE CHROME FREE
IN STOCK 		$19.40 2
10 704596
Nut, M14, Hex Flange Head
IN STOCK 		$1.25 2
11 AD43487029AA
BOLT M14 x 100 HEX FLANGE CONE (S442)
IN STOCK 		$7.73 2
12 4G433B236CB
BOLT, M14, ECCENTRIC, FRONT SUSPENSION
ARRIVING SOON 		$26.18 2
13 4G433B237CA
Washer, M14 eccentric
ARRIVING SOON 		$9.75 4
14 4G435B551AA
TOE CONTROL ARM REAR SUSPENSION RH 		$644.93 2
15 AD435K978AA
ECCENTRIC BOLT M12 x 90
IN STOCK 		$30.08 2
16 4G433B237BB
Washer, M12, Eccentric
ARRIVING SOON 		$10.70 2
