Aston Martin Rapide - Exhaust System (page 2)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AD435G221EA SHIELD ASSY EXHAUST SYSTEM REAR CENTRE $135.94 To Order
Photo Part No Description Price (each) Stock
703752 Screw and Washer, M6 x 16 $1.27 To Order
Photo Part No Description Price (each) Stock
AD435G221AA Shield Assy, Exhaust System, Rear Front $178.28 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
AD435290AA Heatshield, rear silencer centre $179.38 To Order
Photo Part No Description Price (each) Stock
703752 Screw and Washer, M6 x 16 $1.27 To Order
Photo Part No Description Price (each) Stock
AD435290CB Heatshield, rear silencer RH $179.38 To Order
Photo Part No Description Price (each) Stock
703752 Screw and Washer, M6 x 16 $1.27 To Order
Photo Part No Description Price (each) Stock
AD435290BB Heatshield, rear silencer LH $147.87 To Order
Photo Part No Description Price (each) Stock
703752 Screw and Washer, M6 x 16 $1.27 To Order
Photo Part No Description Price (each) Stock
AD435G221DB SHIELD ASSY EXHAUST SYSTEM REAR REAR $101.32 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
AD435G221CA SHIELD ASSY EXHAUST SYSTEM REAR REAR $186.03 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
AD435G221FC SHIELD ASSY EXHAUST SYSTEM REAR SIDE $101.32 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
Photo Part No Description Price (each) Stock
FD335G221BA SHL ASY EXH SYS RR R $181.99 To Order
Photo Part No Description Price (each) Stock
HY53E804349AA M6 X 14 SCREW HEX HD $0.66 IN STOCK
View All

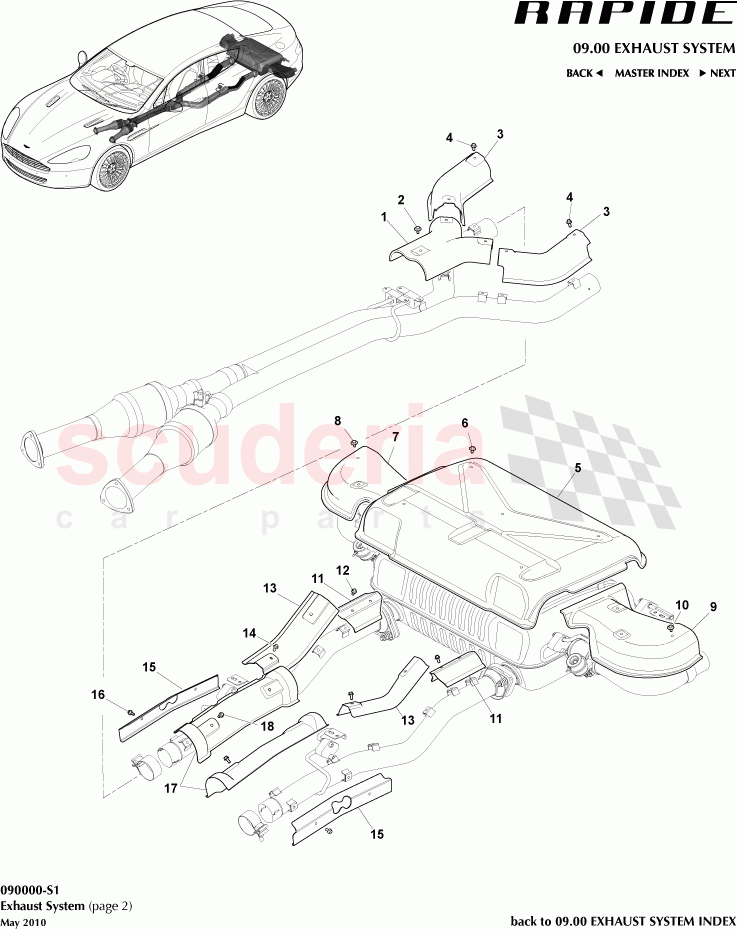

Exhaust System (page 2) of Aston Martin Aston Martin Rapide Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AD435G221EA
SHIELD ASSY EXHAUST SYSTEM REAR CENTRE 		$135.94 1
2 703752
Screw and Washer, M6 x 16 		$1.27 3
3 AD435G221AA
Shield Assy, Exhaust System, Rear Front 		$178.28 2
4 HY53E804349AA
M6 X 14 SCREW HEX HD
2 per shield
IN STOCK 		$0.66 4
5 AD435290AA
Heatshield, rear silencer centre 		$179.38 1
6 703752
Screw and Washer, M6 x 16 		$1.27 5
7 AD435290CB
Heatshield, rear silencer RH 		$179.38 1
8 703752
Screw and Washer, M6 x 16 		$1.27 3
9 AD435290BB
Heatshield, rear silencer LH 		$147.87 1
10 703752
Screw and Washer, M6 x 16 		$1.27 3
11 AD435G221DB
SHIELD ASSY EXHAUST SYSTEM REAR REAR 		$101.32 2
12 HY53E804349AA
M6 X 14 SCREW HEX HD
2 per shield
IN STOCK 		$0.66 4
13 AD435G221CA
SHIELD ASSY EXHAUST SYSTEM REAR REAR 		$186.03 2
14 HY53E804349AA
M6 X 14 SCREW HEX HD
2 per shield
IN STOCK 		$0.66 4
15 AD435G221FC
SHIELD ASSY EXHAUST SYSTEM REAR SIDE 		$101.32 2
16 HY53E804349AA
M6 X 14 SCREW HEX HD
2 per shield
IN STOCK 		$0.66 4
17 FD335G221BA
SHL ASY EXH SYS RR R 		$181.99 2
18 HY53E804349AA
M6 X 14 SCREW HEX HD
2 per shield
IN STOCK 		$0.66 4
